Spectrum 819: SW98 Edit
DeleteMeasurement
Brand |
Reptiles Expert http://www.reptilesexpert.com/ |
---|---|
Lamp Product |

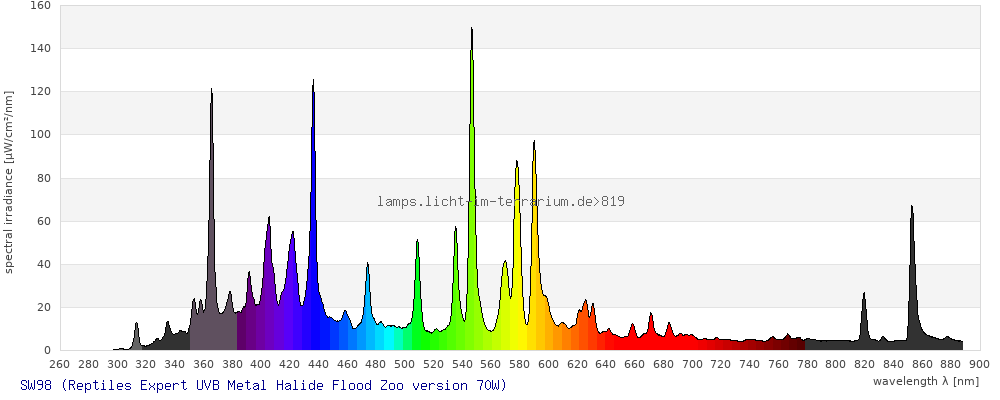

UVB Metal Halide Flood Zoo version 70W |
Lamp ID |
SW98 (02/2025) Send in for test by a Belgium reptile keeper |
Spectrometer | USB2000+ |
Ballast | 70W EVG |
Reflector | |
Distance | 30 cm |
Age | 8 hours |
Originator (measurement) | Sarina Wunderlich |
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

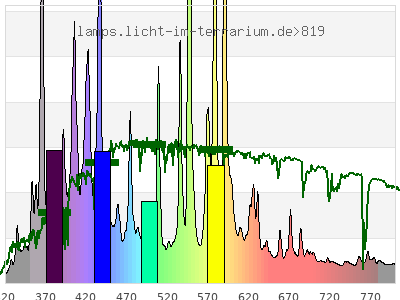

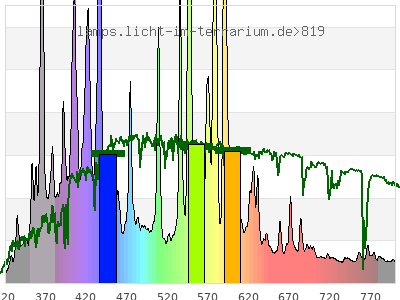

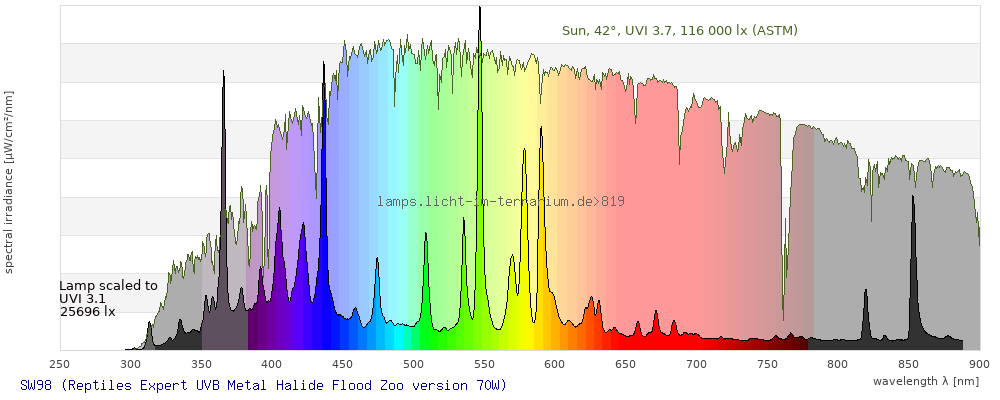

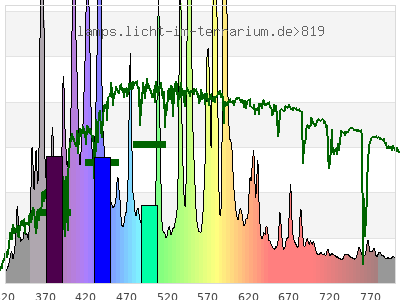

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
Human (CIE) | 3 cone reptile | 4 cone reptile | |
---|---|---|---|
Cone Excitation | |||
Colour Coordinate | ( 0.33 ; 0.35 ) | ( 0.24 ; 0.38 ) | ( 0.25 ; 0.18 ; 0.28 ) |
CCT | 5600 Kelvin | 12000 Kelvin | 6800 Kelvin |
distance | 0.052 | 0.085 | |
colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

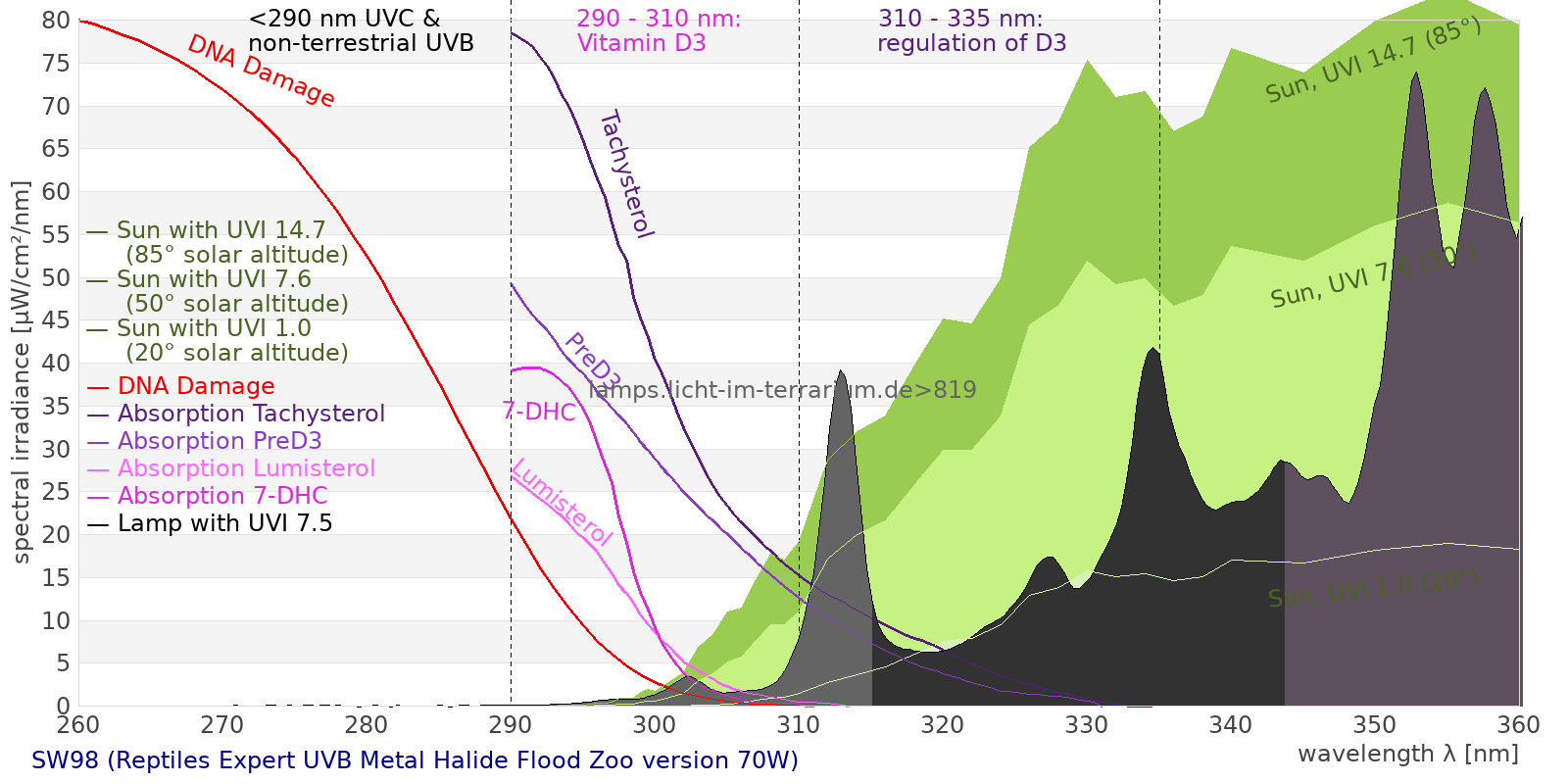

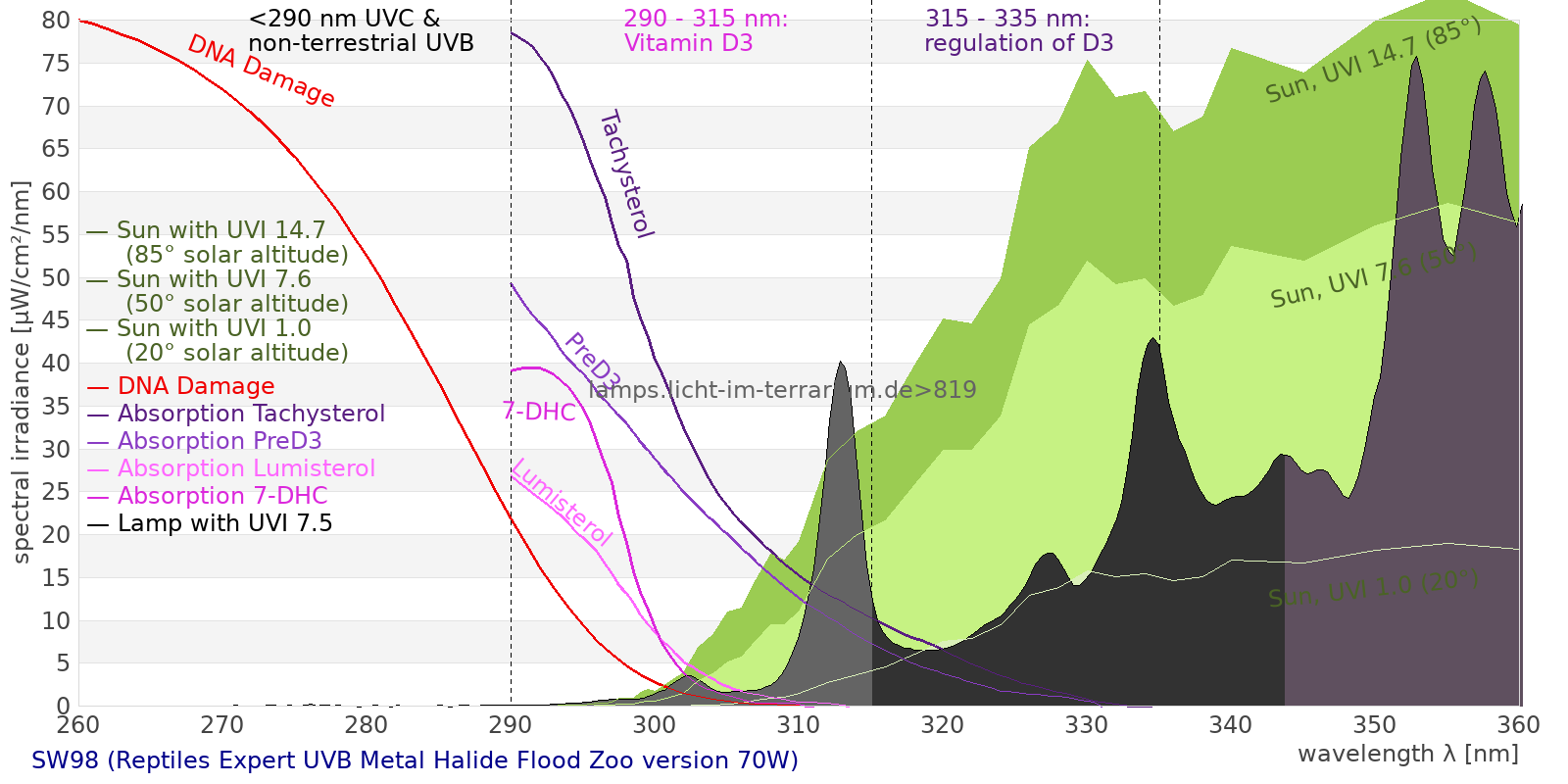

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
total ( 0 nm - 0 nm) 9840 µW/cm² = 98.4 W/m² UVC ( 0 nm - 280 nm) 0.12 µW/cm² = 0.0012 W/m² non-terrestrial ( 0 nm - 290 nm) 0.27 µW/cm² = 0.0027 W/m² total2 ( 250 nm - 880 nm) 9810 µW/cm² = 98.1 W/m² UVB (EU) ( 280 nm - 315 nm) 51.4 µW/cm² = 0.514 W/m² UVB (US) ( 280 nm - 320 nm) 63.5 µW/cm² = 0.635 W/m² UVA+B ( 280 nm - 380 nm) 1240 µW/cm² = 12.4 W/m² Solar UVB ( 290 nm - 315 nm) 51.3 µW/cm² = 0.513 W/m² UVA D3 regulating ( 315 nm - 335 nm) 99.3 µW/cm² = 0.993 W/m² UVA (EU) ( 315 nm - 380 nm) 1180 µW/cm² = 11.8 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 129 µW/cm² = 1.29 W/m² UVA (US) ( 320 nm - 380 nm) 1170 µW/cm² = 11.7 W/m² UVA1 (variant) ( 335 nm - 380 nm) 1080 µW/cm² = 10.8 W/m² UVA1 (medical) ( 340 nm - 400 nm) 1490 µW/cm² = 14.9 W/m² vis. UVA ( 350 nm - 380 nm) 953 µW/cm² = 9.53 W/m² VIS Rep3 ( 350 nm - 600 nm) 7180 µW/cm² = 71.8 W/m² VIS Rep4 ( 350 nm - 700 nm) 8240 µW/cm² = 82.4 W/m² purple ( 380 nm - 420 nm) 1210 µW/cm² = 12.1 W/m² VIS ( 380 nm - 780 nm) 7710 µW/cm² = 77.1 W/m² VIS2 ( 400 nm - 680 nm) 6670 µW/cm² = 66.7 W/m² PAR ( 400 nm - 700 nm) 6840 µW/cm² = 68.4 W/m² tmp ( 400 nm - 1100 nm) 8150 µW/cm² = 81.5 W/m² blue ( 420 nm - 490 nm) 1780 µW/cm² = 17.8 W/m² green ( 490 nm - 575 nm) 2090 µW/cm² = 20.9 W/m² yellow ( 575 nm - 585 nm) 490 µW/cm² = 4.9 W/m² orange ( 585 nm - 650 nm) 1290 µW/cm² = 12.9 W/m² red ( 650 nm - 780 nm) 841 µW/cm² = 8.41 W/m² IRA ( 700 nm - 1400 nm) 1320 µW/cm² = 13.2 W/m² IR2 ( 720 nm - 1100 nm) 1210 µW/cm² = 12.1 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Erythema 2.61 UV-Index Pyrimidine dimerization of DNA 23.6 µW/cm² Photoceratitis 4.23 µW/cm² Photoconjunctivitis 0.157 µW/cm² DNA Damage 0.38 Vitamin D3 10.2 µW/cm² Photosynthesis 4630 µW/cm² Luminosity 21400 lx Human L-Cone 3200 µW/cm² Human M-Cone 2670 µW/cm² Human S-Cone 1590 µW/cm² CIE X 2850 µW/cm² CIE Y 2990 µW/cm² CIE Z 2770 µW/cm² PAR PPFD 325 µmol/m²/s Extinction preD3 69.4 e-3*m²/mol Extinction Tachysterol 242 e-3*m²/mol Exctincition PreD3 35400 m²/mol Extinction Lumisterol 10.9 m²/mol Exctincition Tachysterol 374000 m²/mol Extinction 7DHC 10.6 m²/mol L-Cone 2710 µW/cm² M-Cone 1890 µW/cm² S-Cone 3050 µW/cm² U-Cone 3070 µW/cm² UVR - ICNIRP 2004 2.18 Rel Biol Eff Melatonin Supression 2130 µW/cm² Blue Light Hazard 1950 µW/cm² (91.2 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 10.6 µW/cm² Lumen Reptil 23500 "pseudo-lx" Vitamin D3 Degradation 12.4 µW/cm² Actinic UV 2.15 µW/cm² (1 mW/klm) Exctincition Lumisterol 15700 m²/mol Exctincition 7DHC 13700 m²/mol Exctincition Toxisterols 6640 m²/mol
Solarmeter 6.2 (UVB, pre 2010) 77.4 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 2.92 Leybold UVB 55.7 µW/cm² Leybold UVA 886 µW/cm² Leybold UVC 0.0477 µW/cm² DeltaOhm UVB 139 µW/cm² DeltaOhm UVC 14.4 µW/cm² Vernier UVB 18.4 µW/cm² Vernier UVA 500 µW/cm² Gröbel UVA 992 µW/cm² Gröbel UVB 29.6 µW/cm² Gröbel UVC 0.0509 µW/cm² Luxmeter 22400 lx Solarmeter 6.4 (D3) 9.11 IU/min UVX-31 192 µW/cm² IL UVB 0.0362 µW/cm² IL UVA 1080 µW/cm² Solarmeter 6.5 (UVI, post 2010) 2.4 UV-Index Solarmeter 6.2 (UVB, post 2010) 47.2 µW/cm² (Solarmeter Ratio = 19.6) Solarmeter AlGaN 6.5 UVI sensor 38 UV Index GenUV 7.1 UV-Index 2.23 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 97.5 W/m² Solarmeter 4.0 (UVA) 17.2 mW/cm² LS122 (manuf.) 2.05 W/m² ISM400 (first guess) 73.5 W/m² LS122 (assumption) 4.39 W/m² ISM400_new 66.6 W/m² Solarmeter 10.0 (Global Power) (assumption) 91.2 W/m²
