Broadbandmeter 38: Solarmeter 10.0 (Global Power) (assumption)

Full Spectrum

Calibration factor chosen such, that the ASTM AM 1.5 reference spectrum with 1000 W/m² global irradiance (http://lamps.licht-im-terrarium.de/spectrummeasurements/view/1) results in a meter reading of 1000 W/m². This is based on the description on the solarmeter website: "The master meter was calibrated to match standard class II pyranometer on a plane tilted 37° from horizontal, oriented perpendicular to the axis of the sun, under airmass 1.5 global solar irradiance at an independent test lab"

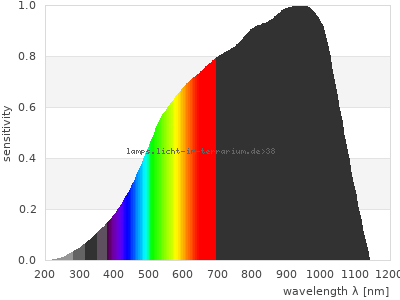

Spektral sensitivity adapted to match experiments

Title Solarmeter 10.0 (Global Power) (assumption)
Unit W/m²
Lambdamax 945
Factor 0.019
ColorMap 0
Database entry created: Sarina Wunderlich 9/Jun/2024 ; updated: Sarina Wunderlich 9/Jun/2024
