CCT:1019 3266K
CRI DC:1017 3,00E-3
CRI R01:1002 91,4 (3266K)
CRI R02:1003 89,1 (3266K)
CRI R03:1004 73,4 (3266K)
CRI R04:1005 90,1 (3266K)
CRI R05:1006 95,2 (3266K)
CRI R06:1007 90,5 (3266K)
CRI R07:1008 84,3 (3266K)
CRI R08:1009 68,1 (3266K)
CRI R09:1010 22,0 (3266K)
CRI R10:1011 66,0 (3266K)
CRI R11:1012 91,1 (3266K)
CRI R12:1013 72,1 (3266K)
CRI R13:1014 91,8 (3266K)
CRI R14:1015 82,9 (3266K)
CRI R15:1016 81,1 (3266K)
CRI Ra:1001 85,2 (3266K)
DC<5.4E-3:1018 true
X:1022 60,81
Y:1023 58,38
Z:1024 24,60
x:1026 0,4229
y:1027 0,4060
z:1028 0,1711

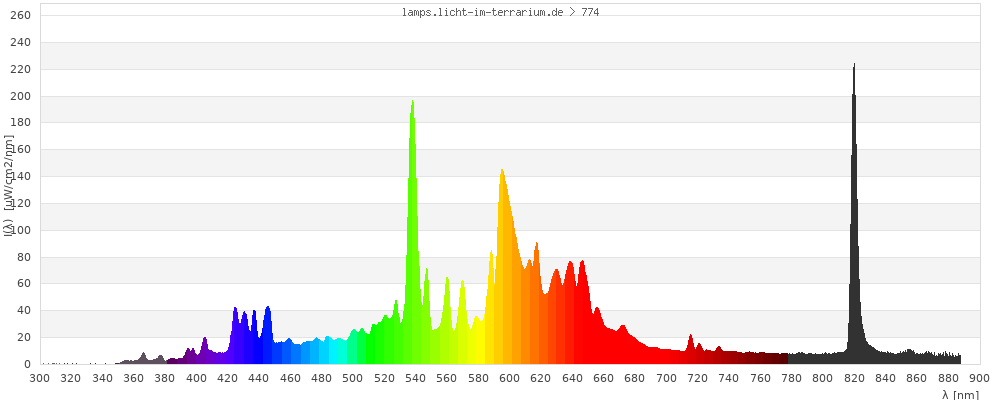

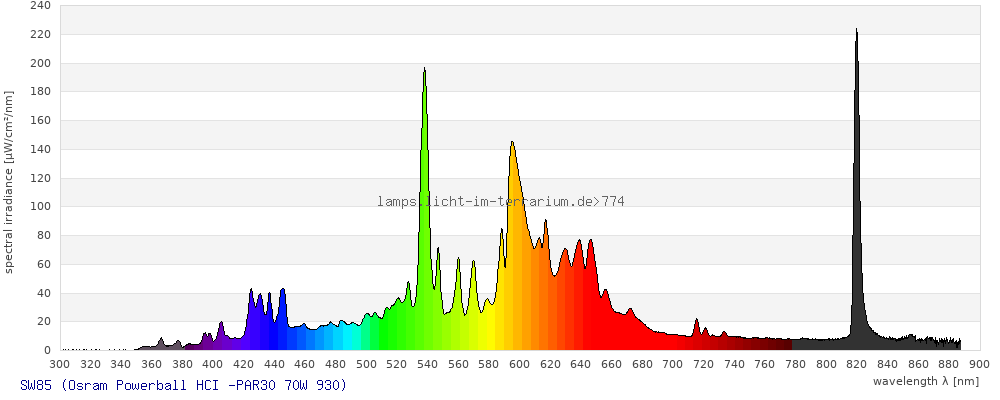

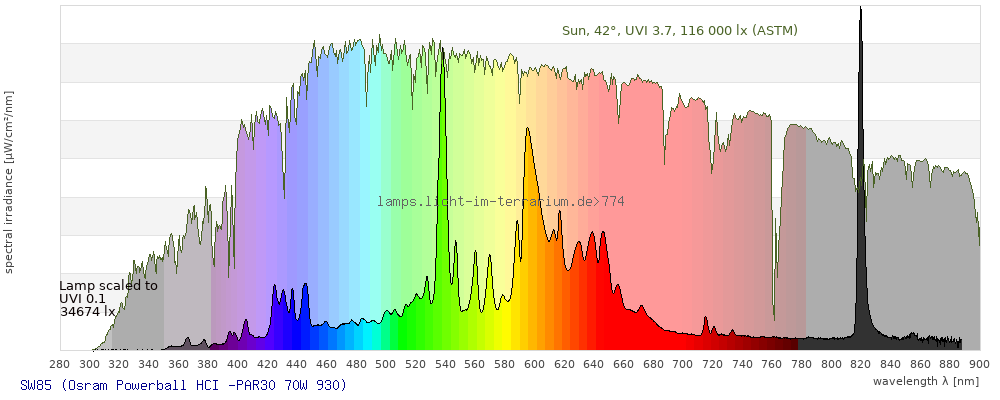

Spectrum 774: SW85 Edit
DeleteMeasurement
| Brand |
Osram Osram GmbH http://www.osram.de/ |
|---|---|
| Lamp Product |
Powerball HCI -PAR30 70W 930 |
| Lamp ID |
SW85 (01/2024) |
| Spectrometer | USB2000+ |
| Ballast | 70W EVG |
| Reflector | |
| Distance | 60 cm |
| Age | 1 hours |
| Originator (measurement) | Sarina Wunderlich |
Database entry created:
Sarina Wunderlich
24/Feb/2024 ; updated:
Sarina Wunderlich
24/Feb/2024
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

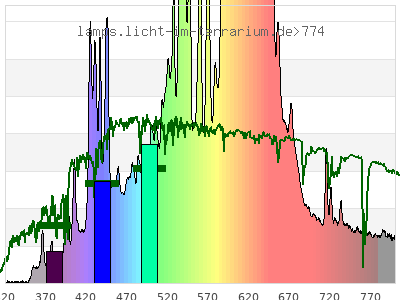

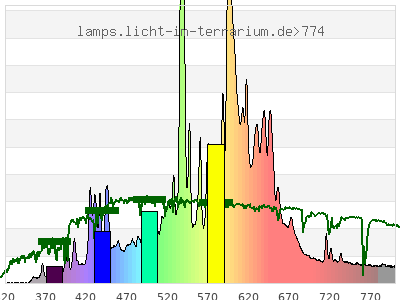

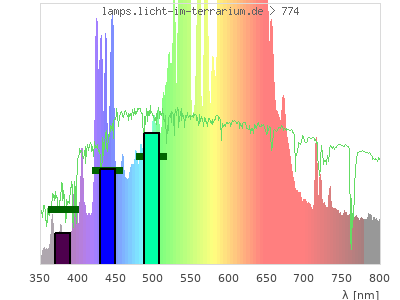

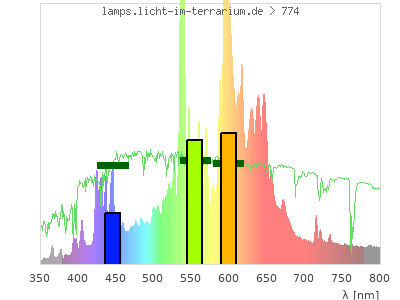

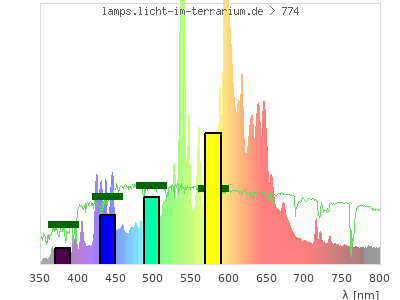

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.43 ; 0.41 ) | ( 0.51 ; 0.37 ) | ( 0.5 ; 0.26 ; 0.19 ) |
| CCT | 3200 Kelvin | 3700 Kelvin | 3000 Kelvin |
| distance | 0.05 | 0.048 | |
| colour space | 3-D-graph not implemented yet |

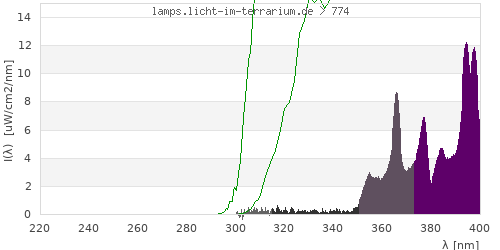

Vitamin D3 Analysis

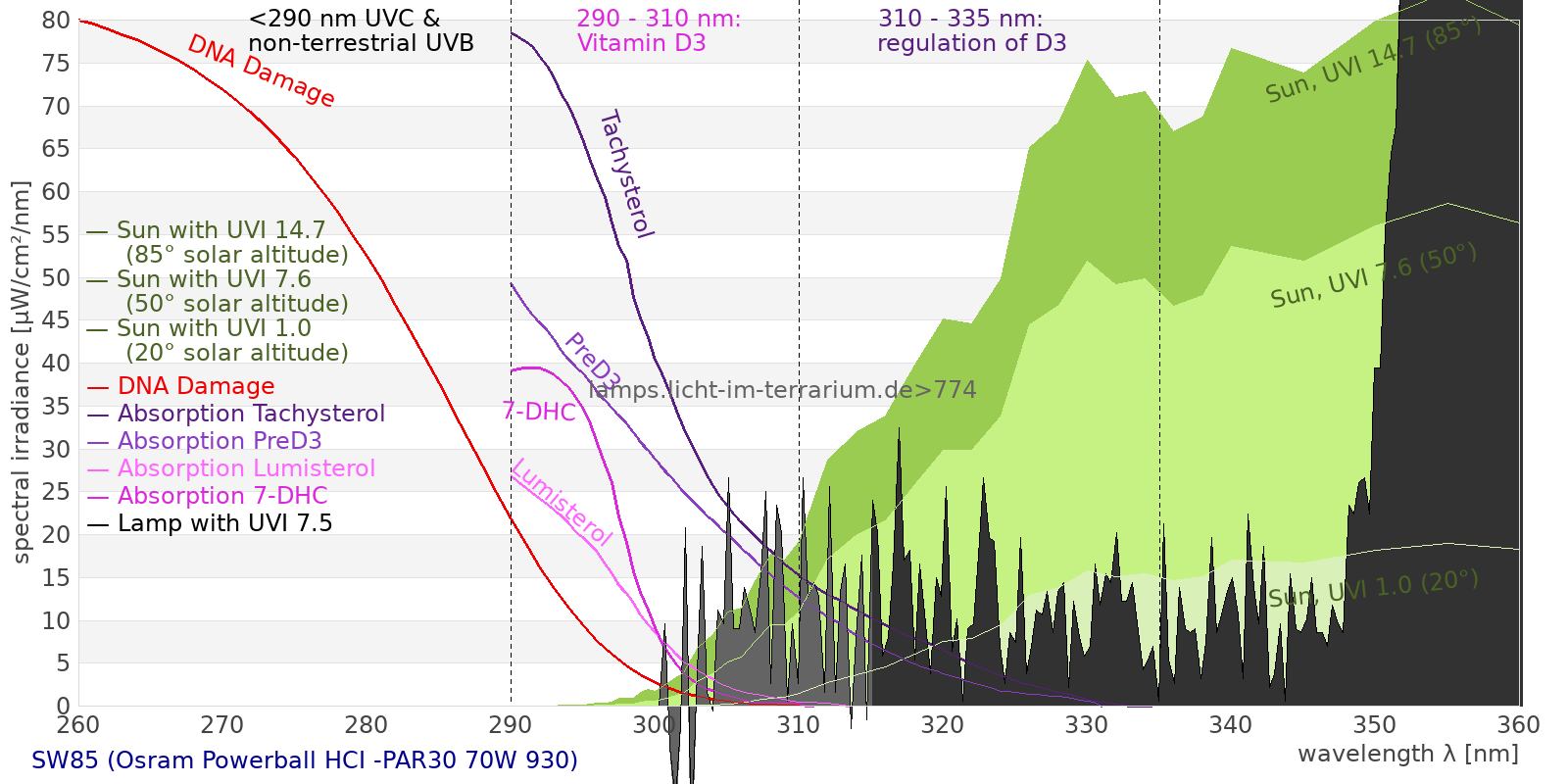

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 15200 µW/cm² = 152 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 15100 µW/cm² = 151 W/m² UVB (EU) ( 280 nm - 315 nm) 2.58 µW/cm² = 0.0258 W/m² UVB (US) ( 280 nm - 320 nm) 4.01 µW/cm² = 0.0401 W/m² UVA+B ( 280 nm - 380 nm) 124 µW/cm² = 1.24 W/m² Solar UVB ( 290 nm - 315 nm) 2.58 µW/cm² = 0.0258 W/m² UVA D3 regulating ( 315 nm - 335 nm) 4.51 µW/cm² = 0.0451 W/m² UVA (EU) ( 315 nm - 380 nm) 122 µW/cm² = 1.22 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 3.98 µW/cm² = 0.0398 W/m² UVA (US) ( 320 nm - 380 nm) 120 µW/cm² = 1.2 W/m² UVA1 (variant) ( 335 nm - 380 nm) 117 µW/cm² = 1.17 W/m² UVA1 (medical) ( 340 nm - 400 nm) 246 µW/cm² = 2.46 W/m² vis. UVA ( 350 nm - 380 nm) 114 µW/cm² = 1.14 W/m² VIS Rep3 ( 350 nm - 600 nm) 7790 µW/cm² = 77.9 W/m² VIS Rep4 ( 350 nm - 700 nm) 12500 µW/cm² = 125 W/m² purple ( 380 nm - 420 nm) 346 µW/cm² = 3.46 W/m² VIS ( 380 nm - 780 nm) 13200 µW/cm² = 132 W/m² VIS2 ( 400 nm - 680 nm) 12000 µW/cm² = 120 W/m² PAR ( 400 nm - 700 nm) 12300 µW/cm² = 123 W/m² tmp ( 400 nm - 1100 nm) 14900 µW/cm² = 149 W/m² blue ( 420 nm - 490 nm) 1620 µW/cm² = 16.2 W/m² green ( 490 nm - 575 nm) 3800 µW/cm² = 38 W/m² yellow ( 575 nm - 585 nm) 355 µW/cm² = 3.55 W/m² orange ( 585 nm - 650 nm) 5140 µW/cm² = 51.4 W/m² red ( 650 nm - 780 nm) 1960 µW/cm² = 19.6 W/m² IRA ( 700 nm - 1400 nm) 2650 µW/cm² = 26.5 W/m² IR2 ( 720 nm - 1100 nm) 2400 µW/cm² = 24 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.163 UV-Index Pyrimidine dimerization of DNA 1.9 µW/cm² Photoceratitis 0.228 µW/cm² Photoconjunctivitis 0.00307 µW/cm² DNA Damage 0.00796 Vitamin D3 0.749 µW/cm² Photosynthesis 7930 µW/cm² Luminosity 43200 lx Human L-Cone 6730 µW/cm² Human M-Cone 4820 µW/cm² Human S-Cone 1330 µW/cm² CIE X 6340 µW/cm² CIE Y 6010 µW/cm² CIE Z 2470 µW/cm² PAR 59200000 mol photons Extinction preD3 4.44 e-3*m²/mol Extinction Tachysterol 14.9 e-3*m²/mol Exctincition PreD3 1980 m²/mol Extinction Lumisterol 0.477 m²/mol Exctincition Tachysterol 21000 m²/mol Extinction 7DHC 0.211 m²/mol L-Cone 6030 µW/cm² M-Cone 3110 µW/cm² S-Cone 2270 µW/cm² U-Cone 727 µW/cm² UVR - ICNIRP 2004 0.0983 Rel Biol Eff Melatonin Supression 1990 µW/cm² Blue Light Hazard 1540 µW/cm² (35.7 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.894 µW/cm² Lumen Reptil 31900 "pseudo-lx" Vitamin D3 Degradation 0.789 µW/cm² Actinic UV 0.102 µW/cm² (0.0236 mW/klm) Exctincition Lumisterol 779 m²/mol Exctincition 7DHC 298 m²/mol Exctincition Toxisterols 351 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 5.42 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.224 Leybold UVB 3.45 µW/cm² Leybold UVA 91.8 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 6.47 µW/cm² DeltaOhm UVC 0.854 µW/cm² Vernier UVB 1.85 µW/cm² Vernier UVA 42.7 µW/cm² Gröbel UVA 94.6 µW/cm² Gröbel UVB 1.85 µW/cm² Gröbel UVC -0.000724 µW/cm² Luxmeter 42400 lx Solarmeter 6.4 (D3) 0.701 IU/min UVX-31 10.5 µW/cm² IL UVB 0.00223 µW/cm² IL UVA 115 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.192 UV-Index Solarmeter 6.2 (UVB, post 2010) 2.9 µW/cm² (Solarmeter Ratio = 15.1) Solarmeter AlGaN 6.5 UVI sensor 2.47 UV Index GenUV 7.1 UV-Index 0.167 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 185 W/m² Solarmeter 4.0 (UVA) 2.46 mW/cm² LS122 (manuf.) 2.93 W/m² ISM400 (first guess) 161 W/m² LS122 (assumption) 9.82 W/m² ISM400_new 148 W/m² Solarmeter 10.0 (Global Power) (assumption) 186 W/m²
