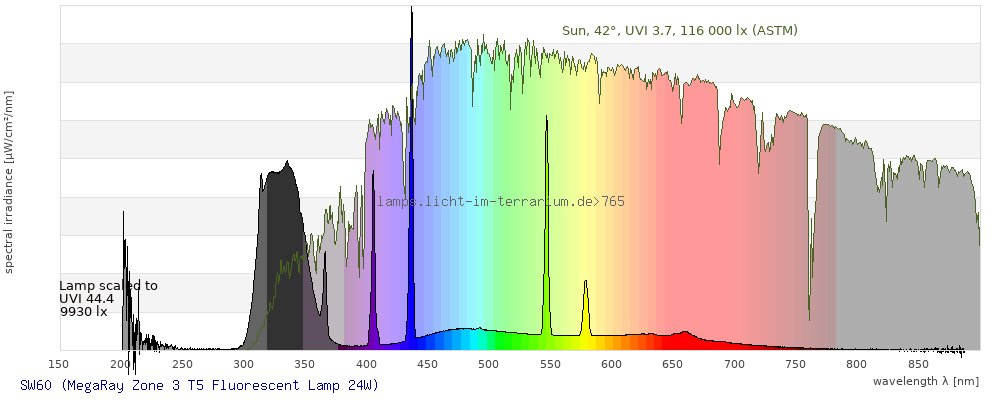

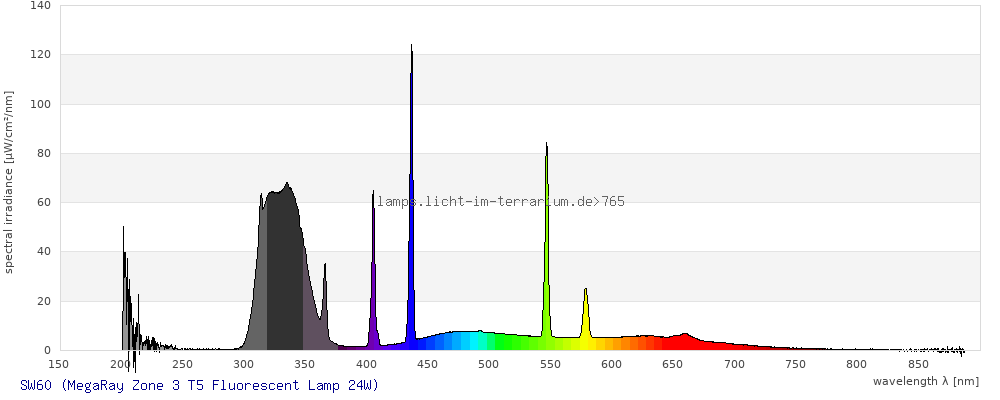

Spectrum 765: SW60 Edit
DeleteMeasurement
| Brand |
MegaRay Mac Industries Inc http://www.reptileuv.com/ |
|---|---|
| Lamp Product |
Zone 3 T5 Fluorescent Lamp 24W |
| Lamp ID |
SW60 (04/2023) for lamp test provided by SP Lighting |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 100 hours |
| Originator (measurement) | Sarina Wunderlich |
Database entry created:
Sarina Wunderlich
5/Feb/2024 ; updated:
Sarina Wunderlich
5/Feb/2024
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

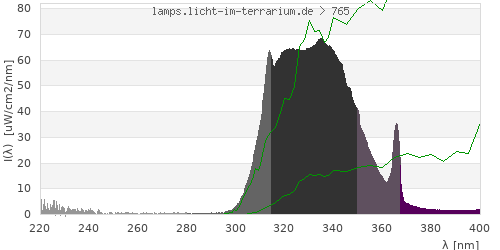

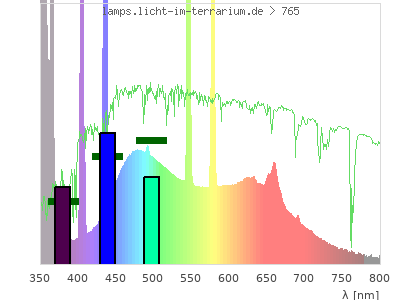

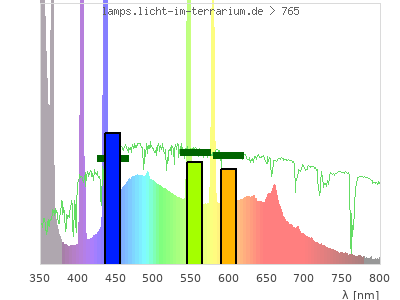

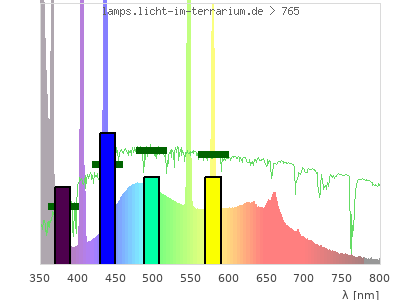

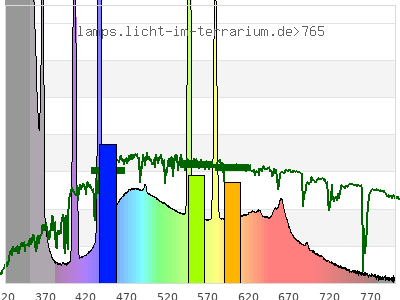

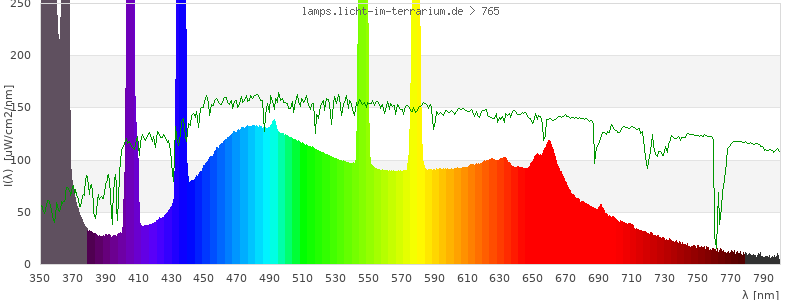

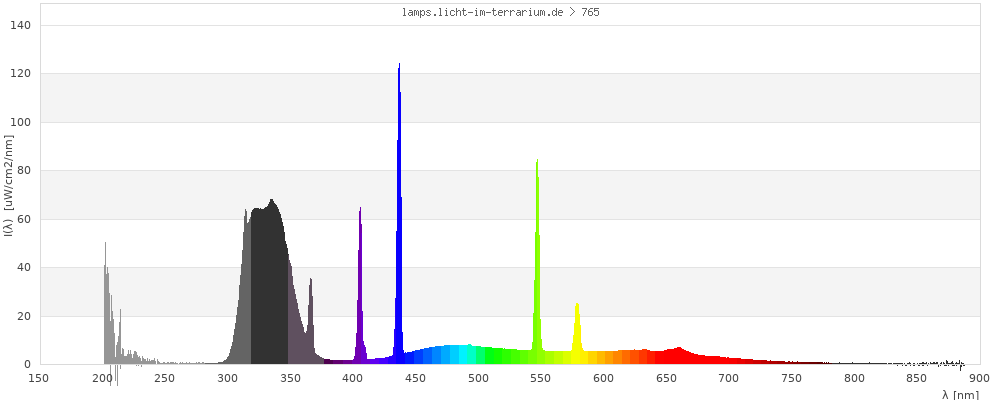

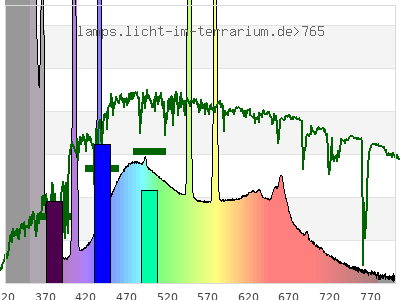

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.31 ) | ( 0.3 ; 0.44 ) | ( 0.23 ; 0.23 ; 0.34 ) |
| CCT | 8300 Kelvin | 7500 Kelvin | 6800 Kelvin |
| distance | 0.1 | 0.079 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

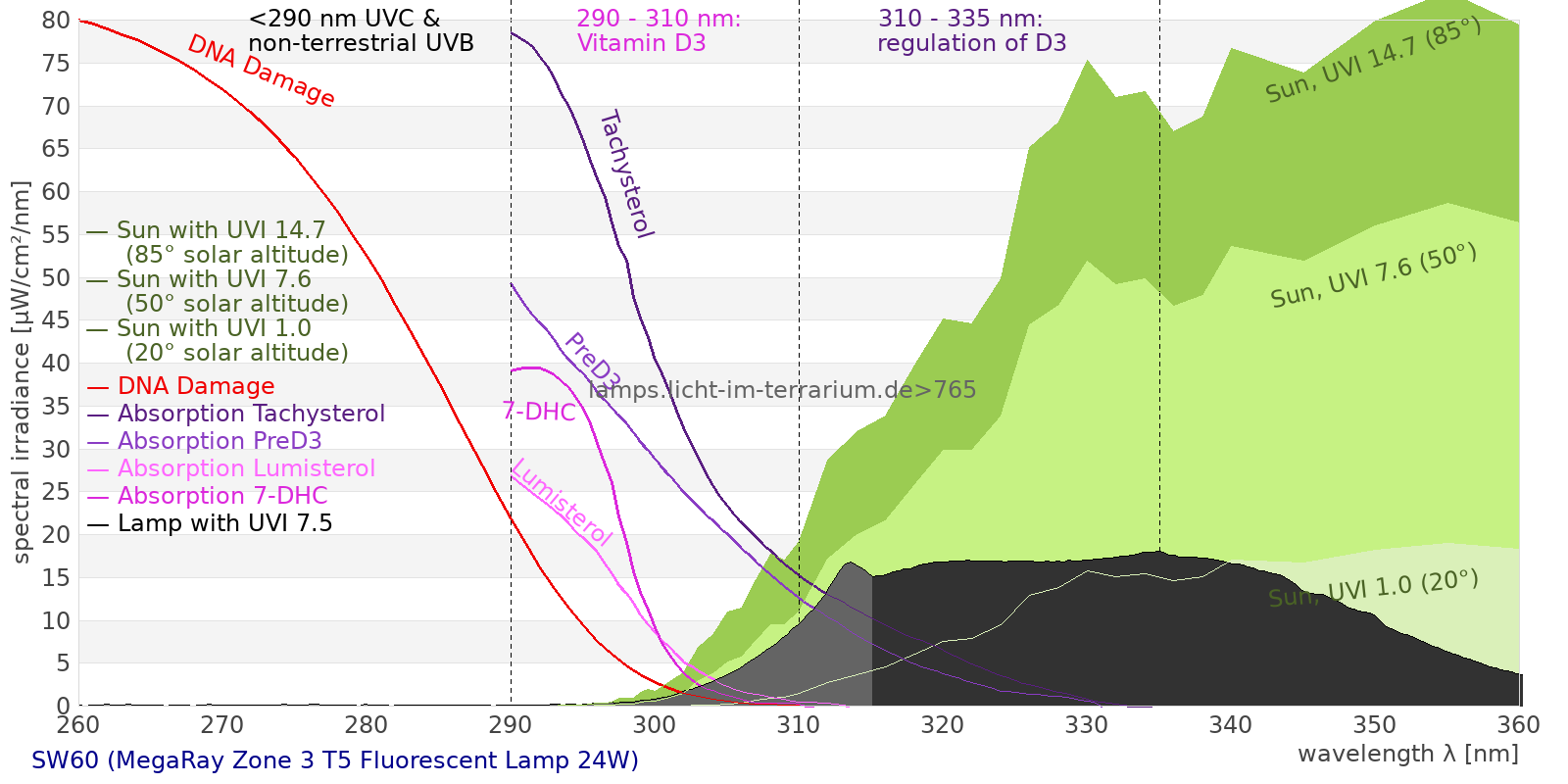

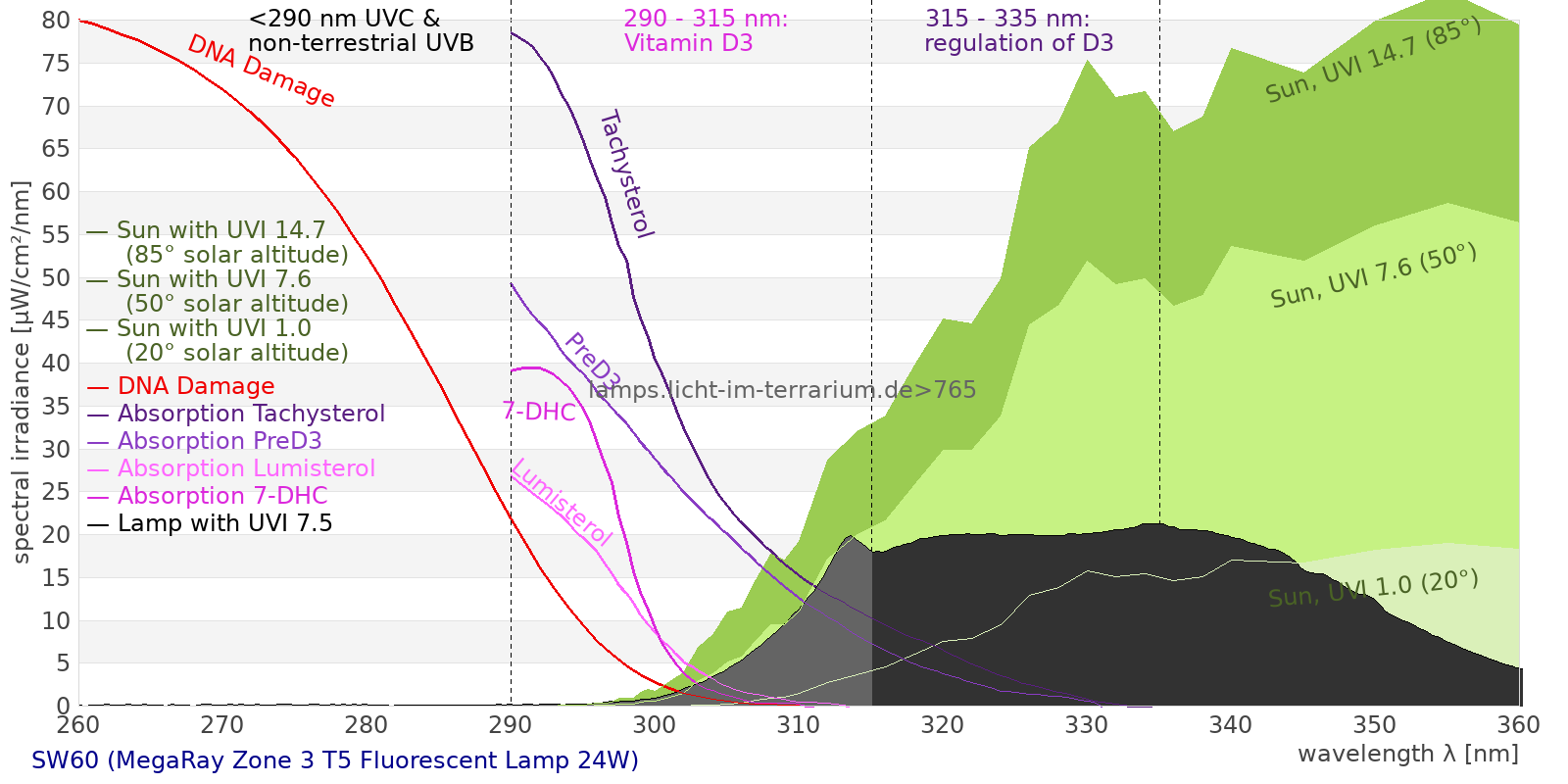

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 5970 µW/cm² = 59.7 W/m² UVC ( 0 nm - 280 nm) 283 µW/cm² = 2.83 W/m² non-terrestrial ( 0 nm - 290 nm) 286 µW/cm² = 2.86 W/m² total2 ( 250 nm - 880 nm) 5710 µW/cm² = 57.1 W/m² UVB (EU) ( 280 nm - 315 nm) 445 µW/cm² = 4.45 W/m² UVB (US) ( 280 nm - 320 nm) 759 µW/cm² = 7.59 W/m² UVA+B ( 280 nm - 380 nm) 3010 µW/cm² = 30.1 W/m² Solar UVB ( 290 nm - 315 nm) 441 µW/cm² = 4.41 W/m² UVA D3 regulating ( 315 nm - 335 nm) 1290 µW/cm² = 12.9 W/m² UVA (EU) ( 315 nm - 380 nm) 2570 µW/cm² = 25.7 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 1290 µW/cm² = 12.9 W/m² UVA (US) ( 320 nm - 380 nm) 2250 µW/cm² = 22.5 W/m² UVA1 (variant) ( 335 nm - 380 nm) 1280 µW/cm² = 12.8 W/m² UVA1 (medical) ( 340 nm - 400 nm) 997 µW/cm² = 9.97 W/m² vis. UVA ( 350 nm - 380 nm) 434 µW/cm² = 4.34 W/m² VIS Rep3 ( 350 nm - 600 nm) 2480 µW/cm² = 24.8 W/m² VIS Rep4 ( 350 nm - 700 nm) 2980 µW/cm² = 29.8 W/m² purple ( 380 nm - 420 nm) 274 µW/cm² = 2.74 W/m² VIS ( 380 nm - 780 nm) 2650 µW/cm² = 26.5 W/m² VIS2 ( 400 nm - 680 nm) 2460 µW/cm² = 24.6 W/m² PAR ( 400 nm - 700 nm) 2520 µW/cm² = 25.2 W/m² tmp ( 400 nm - 1100 nm) 2640 µW/cm² = 26.4 W/m² blue ( 420 nm - 490 nm) 774 µW/cm² = 7.74 W/m² green ( 490 nm - 575 nm) 777 µW/cm² = 7.77 W/m² yellow ( 575 nm - 585 nm) 143 µW/cm² = 1.43 W/m² orange ( 585 nm - 650 nm) 363 µW/cm² = 3.63 W/m² red ( 650 nm - 780 nm) 323 µW/cm² = 3.23 W/m² IRA ( 700 nm - 1400 nm) 126 µW/cm² = 1.26 W/m² IR2 ( 720 nm - 1100 nm) 83.9 µW/cm² = 0.839 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 30.7 UV-Index Pyrimidine dimerization of DNA 279 µW/cm² Photoceratitis 46.4 µW/cm² Photoconjunctivitis 40.2 µW/cm² DNA Damage 62.4 Vitamin D3 111 µW/cm² Photosynthesis 1760 µW/cm² Luminosity 6850 lx Human L-Cone 1000 µW/cm² Human M-Cone 896 µW/cm² Human S-Cone 670 µW/cm² CIE X 888 µW/cm² CIE Y 955 µW/cm² CIE Z 1230 µW/cm² PAR 12500000 mol photons Extinction preD3 1220 e-3*m²/mol Extinction Tachysterol 3320 e-3*m²/mol Exctincition PreD3 643000 m²/mol Extinction Lumisterol 361 m²/mol Exctincition Tachysterol 4490000 m²/mol Extinction 7DHC 298 m²/mol L-Cone 823 µW/cm² M-Cone 818 µW/cm² S-Cone 1230 µW/cm² U-Cone 725 µW/cm² UVR - ICNIRP 2004 53.1 Rel Biol Eff Melatonin Supression 894 µW/cm² Blue Light Hazard 779 µW/cm² (114 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 122 µW/cm² Lumen Reptil 7910 "pseudo-lx" Vitamin D3 Degradation 149 µW/cm² Actinic UV 52.9 µW/cm² (77.1 mW/klm) Exctincition Lumisterol 305000 m²/mol Exctincition 7DHC 279000 m²/mol Exctincition Toxisterols 307000 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 927 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 33.3 Leybold UVB 647 µW/cm² Leybold UVA 1570 µW/cm² Leybold UVC 25.8 µW/cm² DeltaOhm UVB 1600 µW/cm² DeltaOhm UVC 260 µW/cm² Vernier UVB 208 µW/cm² Vernier UVA 1980 µW/cm² Gröbel UVA 2130 µW/cm² Gröbel UVB 318 µW/cm² Gröbel UVC 35 µW/cm² Luxmeter 7140 lx Solarmeter 6.4 (D3) 104 IU/min UVX-31 1710 µW/cm² IL UVB 0.385 µW/cm² IL UVA 1740 µW/cm² Solarmeter 6.5 (UVI, post 2010) 28.2 UV-Index Solarmeter 6.2 (UVB, post 2010) 626 µW/cm² (Solarmeter Ratio = 22.2) Solarmeter AlGaN 6.5 UVI sensor 389 UV Index GenUV 7.1 UV-Index 23.3 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 38.9 W/m² Solarmeter 4.0 (UVA) 22 mW/cm² LS122 (manuf.) 0.0271 W/m² ISM400 (first guess) 19.5 W/m² LS122 (assumption) 0.882 W/m² ISM400_new 15.5 W/m² Solarmeter 10.0 (Global Power) (assumption) 30.4 W/m²
