Par38
Spectrum 743: TG-HALIDEPROT-009 Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
Halide Prototype Prototype Lamp |
| Lamp ID |
TG-HALIDEPROT-009 (11/2023) 70W PAR38 |
| Spectrometer | FLAME UV-Vis (E) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 30 cm |
| Age | 100 hours |
| Originator (measurement) | Thomas Griffiths |
Database entry created:
Thomas Griffiths (Tomaskas Ltd.)
27/Nov/2023 ; updated:
Thomas Griffiths (Tomaskas Ltd.)
27/Nov/2023
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

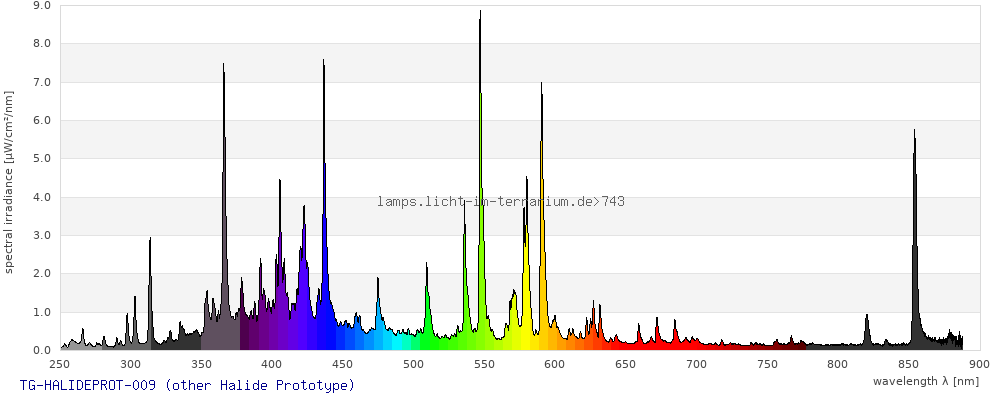

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.32 ; 0.32 ) | ( 0.2 ; 0.38 ) | ( 0.22 ; 0.16 ; 0.3 ) |
| CCT | 6200 Kelvin | 17000 Kelvin | 9100 Kelvin |
| distance | 0.063 | 0.084 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

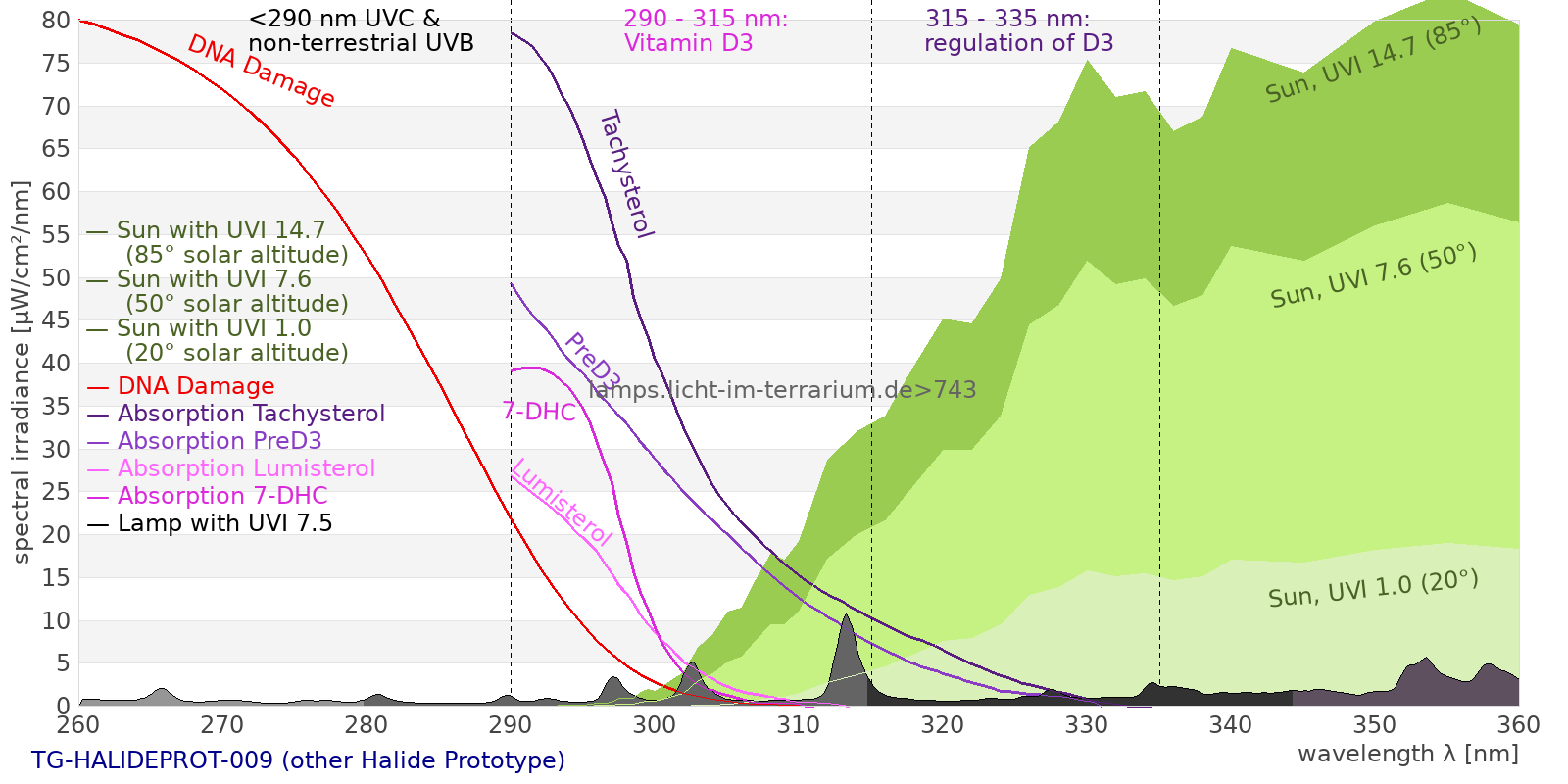

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

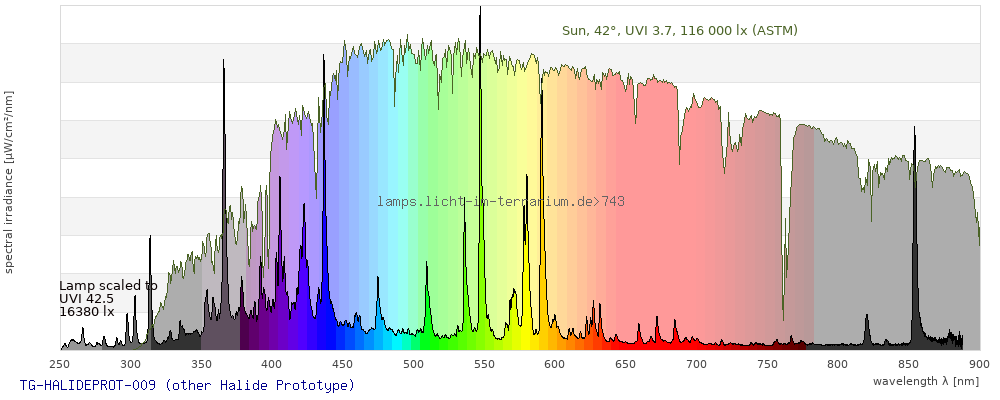

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 434 µW/cm² = 4.34 W/m² UVC ( 0 nm - 280 nm) 5.55 µW/cm² = 0.0555 W/m² non-terrestrial ( 0 nm - 290 nm) 7.25 µW/cm² = 0.0725 W/m² total2 ( 250 nm - 880 nm) 432 µW/cm² = 4.32 W/m² UVB (EU) ( 280 nm - 315 nm) 15 µW/cm² = 0.15 W/m² UVB (US) ( 280 nm - 320 nm) 16.3 µW/cm² = 0.163 W/m² UVA+B ( 280 nm - 380 nm) 73.9 µW/cm² = 0.739 W/m² Solar UVB ( 290 nm - 315 nm) 13.3 µW/cm² = 0.133 W/m² UVA D3 regulating ( 315 nm - 335 nm) 5.98 µW/cm² = 0.0598 W/m² UVA (EU) ( 315 nm - 380 nm) 58.9 µW/cm² = 0.589 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 7.25 µW/cm² = 0.0725 W/m² UVA (US) ( 320 nm - 380 nm) 57.6 µW/cm² = 0.576 W/m² UVA1 (variant) ( 335 nm - 380 nm) 52.9 µW/cm² = 0.529 W/m² UVA1 (medical) ( 340 nm - 400 nm) 73.8 µW/cm² = 0.738 W/m² vis. UVA ( 350 nm - 380 nm) 45.8 µW/cm² = 0.458 W/m² VIS Rep3 ( 350 nm - 600 nm) 309 µW/cm² = 3.09 W/m² VIS Rep4 ( 350 nm - 700 nm) 346 µW/cm² = 3.46 W/m² purple ( 380 nm - 420 nm) 59.6 µW/cm² = 0.596 W/m² VIS ( 380 nm - 780 nm) 314 µW/cm² = 3.14 W/m² VIS2 ( 400 nm - 680 nm) 270 µW/cm² = 2.7 W/m² PAR ( 400 nm - 700 nm) 277 µW/cm² = 2.77 W/m² tmp ( 400 nm - 1100 nm) 331 µW/cm² = 3.31 W/m² blue ( 420 nm - 490 nm) 80.7 µW/cm² = 0.807 W/m² green ( 490 nm - 575 nm) 77.2 µW/cm² = 0.772 W/m² yellow ( 575 nm - 585 nm) 19.8 µW/cm² = 0.198 W/m² orange ( 585 nm - 650 nm) 47.7 µW/cm² = 0.477 W/m² red ( 650 nm - 780 nm) 29.2 µW/cm² = 0.292 W/m² IRA ( 700 nm - 1400 nm) 54.9 µW/cm² = 0.549 W/m² IR2 ( 720 nm - 1100 nm) 51.2 µW/cm² = 0.512 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 4.71 UV-Index Pyrimidine dimerization of DNA 7.27 µW/cm² Photoceratitis 5.41 µW/cm² Photoconjunctivitis 5.27 µW/cm² DNA Damage 6.23 Vitamin D3 8.15 µW/cm² Photosynthesis 192 µW/cm² Luminosity 807 lx Human L-Cone 120 µW/cm² Human M-Cone 101 µW/cm² Human S-Cone 72.2 µW/cm² CIE X 110 µW/cm² CIE Y 112 µW/cm² CIE Z 124 µW/cm² PAR 1320000 mol photons Extinction preD3 80.1 e-3*m²/mol Extinction Tachysterol 212 e-3*m²/mol Exctincition PreD3 66300 m²/mol Extinction Lumisterol 61 m²/mol Exctincition Tachysterol 268000 m²/mol Extinction 7DHC 73.9 m²/mol L-Cone 102 µW/cm² M-Cone 74.7 µW/cm² S-Cone 140 µW/cm² U-Cone 152 µW/cm² UVR - ICNIRP 2004 7.64 Rel Biol Eff Melatonin Supression 94.7 µW/cm² Blue Light Hazard 89.3 µW/cm² (111 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 8.41 µW/cm² Lumen Reptil 997 "pseudo-lx" Vitamin D3 Degradation 5.69 µW/cm² Actinic UV 7.58 µW/cm² (93.9 mW/klm) Exctincition Lumisterol 66800 m²/mol Exctincition 7DHC 78400 m²/mol Exctincition Toxisterols 22500 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 25.4 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 2.72 Leybold UVB 13 µW/cm² Leybold UVA 42.9 µW/cm² Leybold UVC 4.26 µW/cm² DeltaOhm UVB 18.1 µW/cm² DeltaOhm UVC 7.58 µW/cm² Vernier UVB 7.74 µW/cm² Vernier UVA 29 µW/cm² Gröbel UVA 49.8 µW/cm² Gröbel UVB 11.5 µW/cm² Gröbel UVC 4.6 µW/cm² Luxmeter 846 lx Solarmeter 6.4 (D3) 8.49 IU/min UVX-31 21.7 µW/cm² IL UVB 0.0103 µW/cm² IL UVA 53.2 µW/cm² Solarmeter 6.5 (UVI, post 2010) 2.01 UV-Index Solarmeter 6.2 (UVB, post 2010) 11.1 µW/cm² (Solarmeter Ratio = 5.52) Solarmeter AlGaN 6.5 UVI sensor 12.7 UV Index GenUV 7.1 UV-Index 0.82 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 4.04 W/m² Solarmeter 4.0 (UVA) 0.861 mW/cm² LS122 (manuf.) 0.105 W/m² ISM400 (first guess) 2.95 W/m² LS122 (assumption) 0.183 W/m² ISM400_new 2.69 W/m² Solarmeter 10.0 (Global Power) (assumption) 3.67 W/m²
