Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

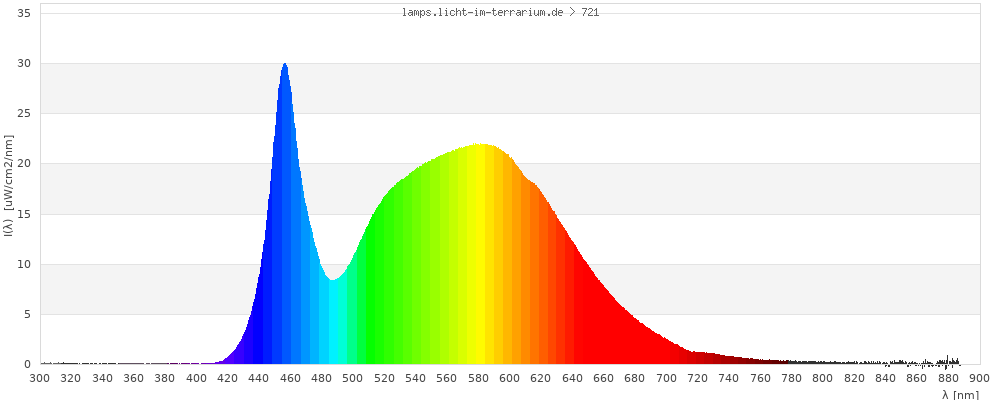

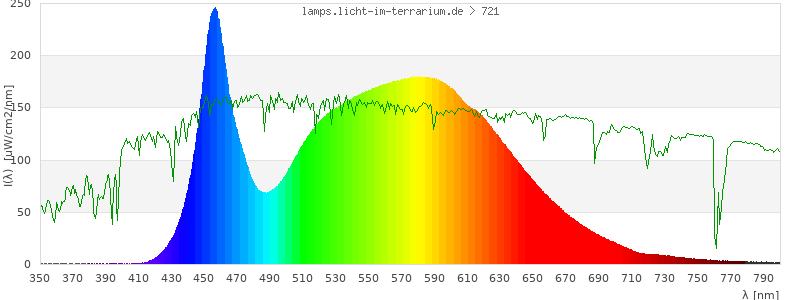

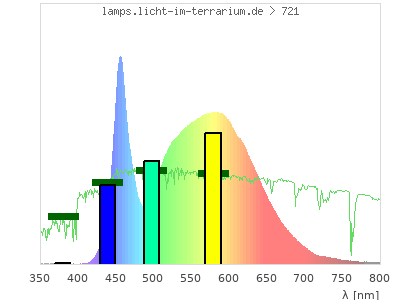

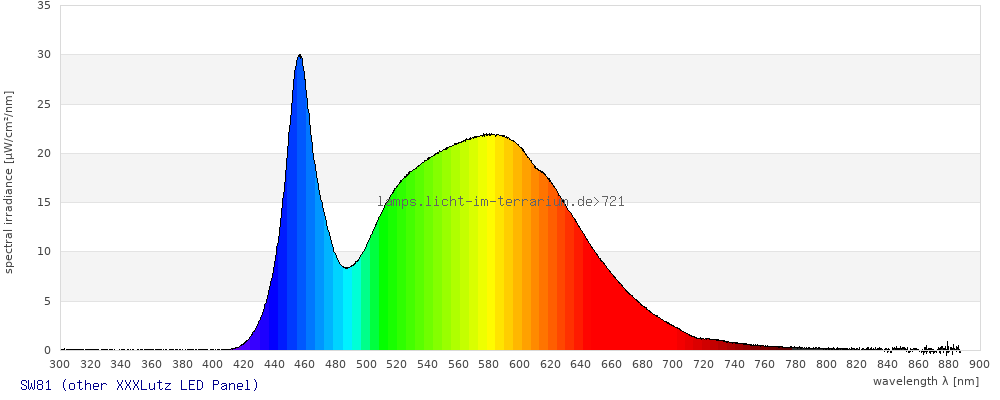

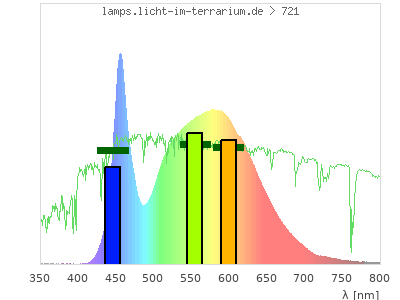

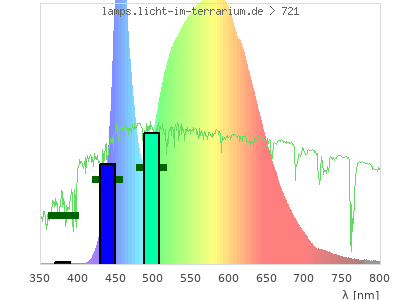

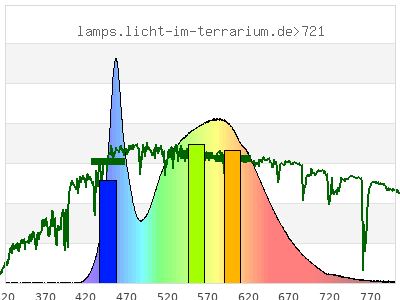

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

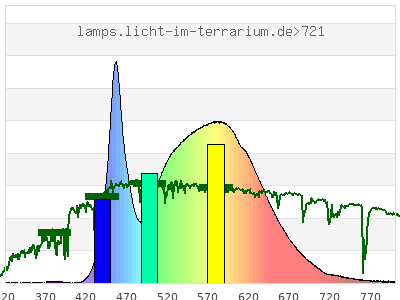

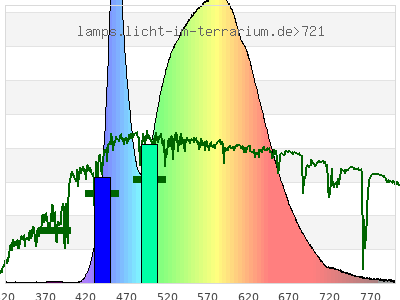

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.35 ; 0.37 )	( 0.56 ; 0.43 )	( 0.42 ; 0.33 ; 0.25 )
CCT	4800 Kelvin	3400 Kelvin	3600 Kelvin
distance		0.12	0.072
colour space			3-D-graph not implemented yet

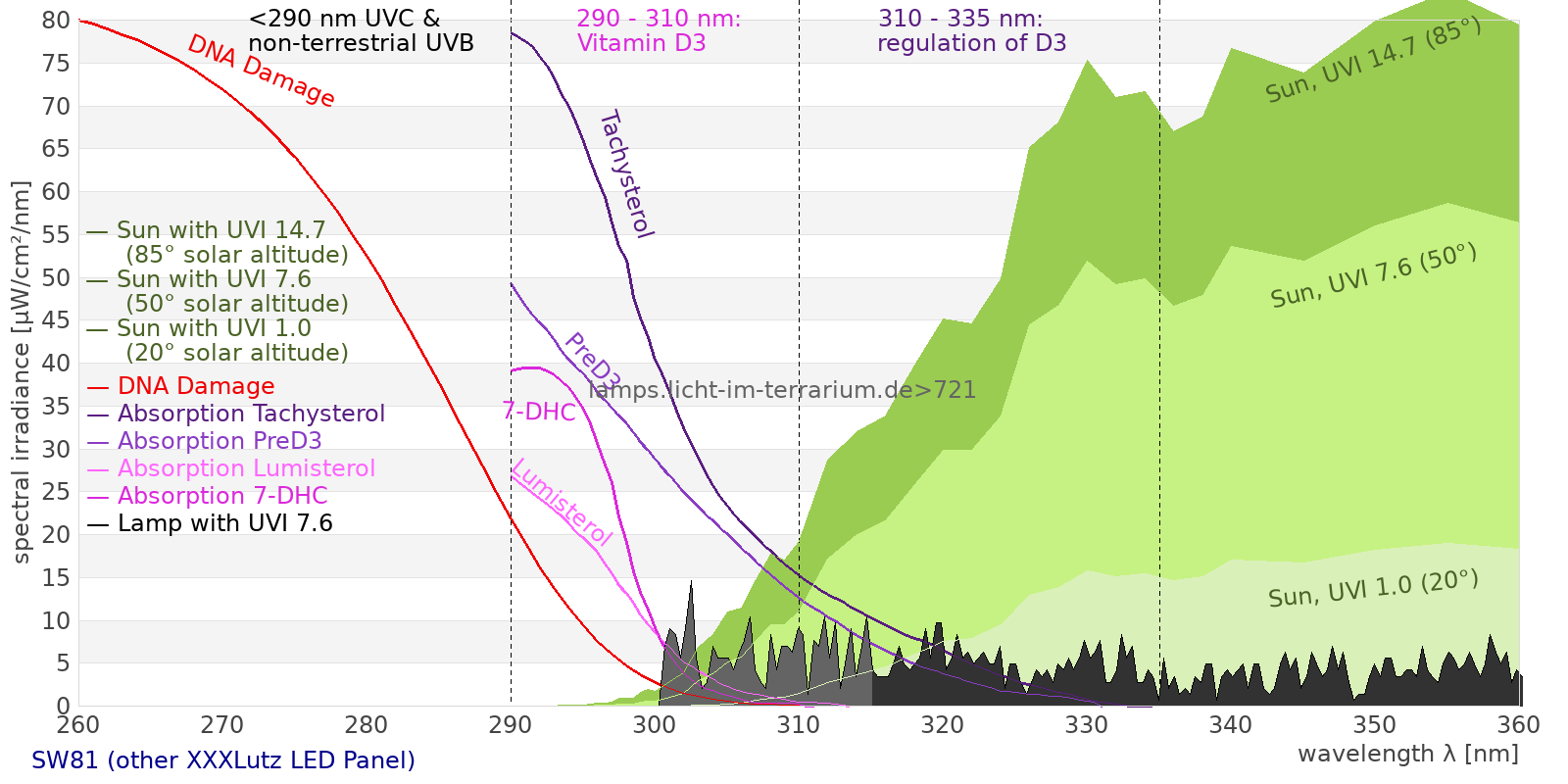

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

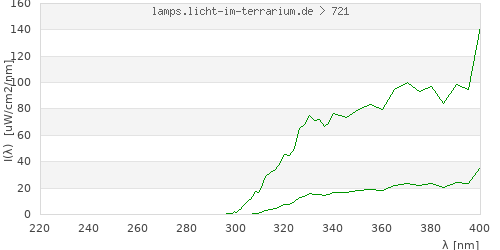

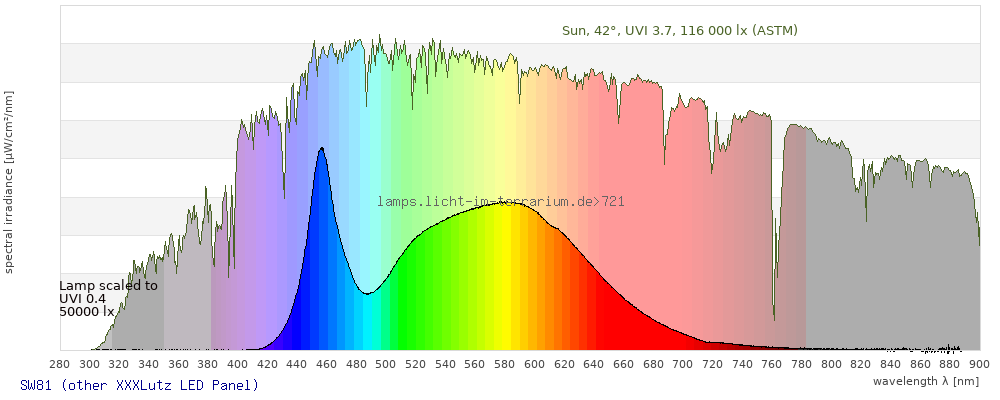

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	4080 µW/cm² = 40.8 W/m²
UVC ( 0 nm - 280 nm)	0 µW/cm² = 0 W/m²
non-terrestrial ( 0 nm - 290 nm)	0 µW/cm² = 0 W/m²
total2 ( 250 nm - 880 nm)	4080 µW/cm² = 40.8 W/m²
UVB (EU) ( 280 nm - 315 nm)	1.38 µW/cm² = 0.0138 W/m²
UVB (US) ( 280 nm - 320 nm)	1.8 µW/cm² = 0.018 W/m²
UVA+B ( 280 nm - 380 nm)	5.42 µW/cm² = 0.0542 W/m²
Solar UVB ( 290 nm - 315 nm)	1.38 µW/cm² = 0.0138 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	1.44 µW/cm² = 0.0144 W/m²
UVA (EU) ( 315 nm - 380 nm)	4.05 µW/cm² = 0.0405 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	1.23 µW/cm² = 0.0123 W/m²
UVA (US) ( 320 nm - 380 nm)	3.62 µW/cm² = 0.0362 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	2.6 µW/cm² = 0.026 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	3.5 µW/cm² = 0.035 W/m²
vis. UVA ( 350 nm - 380 nm)	1.83 µW/cm² = 0.0183 W/m²
VIS Rep3 ( 350 nm - 600 nm)	2940 µW/cm² = 29.4 W/m²
VIS Rep4 ( 350 nm - 700 nm)	3990 µW/cm² = 39.9 W/m²
purple ( 380 nm - 420 nm)	5.24 µW/cm² = 0.0524 W/m²
VIS ( 380 nm - 780 nm)	4060 µW/cm² = 40.6 W/m²
VIS2 ( 400 nm - 680 nm)	3920 µW/cm² = 39.2 W/m²
PAR ( 400 nm - 700 nm)	3980 µW/cm² = 39.8 W/m²
tmp ( 400 nm - 1100 nm)	4070 µW/cm² = 40.7 W/m²
blue ( 420 nm - 490 nm)	922 µW/cm² = 9.22 W/m²
green ( 490 nm - 575 nm)	1470 µW/cm² = 14.7 W/m²
yellow ( 575 nm - 585 nm)	223 µW/cm² = 2.23 W/m²
orange ( 585 nm - 650 nm)	1090 µW/cm² = 10.9 W/m²
red ( 650 nm - 780 nm)	346 µW/cm² = 3.46 W/m²
IRA ( 700 nm - 1400 nm)	86.3 µW/cm² = 0.863 W/m²
IR2 ( 720 nm - 1100 nm)	53 µW/cm² = 0.53 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	0.109 UV-Index
Pyrimidine dimerization of DNA	0.973 µW/cm²
Photoceratitis	0.168 µW/cm²
Photoconjunctivitis	0.00284 µW/cm²
DNA Damage	0.00947
Vitamin D3	0.541 µW/cm²
Photosynthesis	2600 µW/cm²
Luminosity	14200 lx
Human L-Cone	2140 µW/cm²
Human M-Cone	1730 µW/cm²
Human S-Cone	739 µW/cm²
CIE X	1890 µW/cm²
CIE Y	1980 µW/cm²
CIE Z	1470 µW/cm²
PAR	18400000 mol photons
Extinction preD3	2.39 e-3*m²/mol
Extinction Tachysterol	7.96 e-3*m²/mol
Exctincition PreD3	1070 m²/mol
Extinction Lumisterol	0.482 m²/mol
Exctincition Tachysterol	10500 m²/mol
Extinction 7DHC	0.3 m²/mol
L-Cone	1840 µW/cm²
M-Cone	1450 µW/cm²
S-Cone	1100 µW/cm²
U-Cone	19.9 µW/cm²
UVR - ICNIRP 2004	0.0934 Rel Biol Eff
Melatonin Supression	1090 µW/cm²
Blue Light Hazard	767 µW/cm² (54.1 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	0.616 µW/cm²
Lumen Reptil	11200 "pseudo-lx"
Vitamin D3 Degradation	0.377 µW/cm²
Actinic UV	0.0893 µW/cm² (0.063 mW/klm)
Exctincition Lumisterol	652 m²/mol
Exctincition 7DHC	397 m²/mol
Exctincition Toxisterols	142 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	2.03 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	0.151
Leybold UVB	1.59 µW/cm²
Leybold UVA	2.58 µW/cm²
Leybold UVC	0 µW/cm²
DeltaOhm UVB	2.47 µW/cm²
DeltaOhm UVC	0.361 µW/cm²
Vernier UVB	0.739 µW/cm²
Vernier UVA	2.69 µW/cm²
Gröbel UVA	3.36 µW/cm²
Gröbel UVB	0.98 µW/cm²
Gröbel UVC	0.00075 µW/cm²
Luxmeter	14500 lx
Solarmeter 6.4 (D3)	0.471 IU/min
UVX-31	2.77 µW/cm²
IL UVB	0.000871 µW/cm²
IL UVA	3.1 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	0.12 UV-Index
Solarmeter 6.2 (UVB, post 2010)	1.2 µW/cm² (Solarmeter Ratio = 9.96)
Solarmeter AlGaN 6.5 UVI sensor	1.23 UV Index
GenUV 7.1 UV-Index	0.062 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	44.5 W/m²
Solarmeter 4.0 (UVA)	0.0472 mW/cm²
LS122 (manuf.)	0.0181 W/m²
ISM400 (first guess)	31.8 W/m²
LS122 (assumption)	1.73 W/m²
ISM400_new	25.8 W/m²
Solarmeter 10.0 (Global Power) (assumption)	44 W/m²
