CCT:1019 2773K
CRI DC:1017 2,26E-3
CRI R01:1002 76,9 (2773K)
CRI R02:1003 88,8 (2773K)
CRI R03:1004 96,5 (2773K)
CRI R04:1005 76,4 (2773K)
CRI R05:1006 77,1 (2773K)
CRI R06:1007 87,1 (2773K)
CRI R07:1008 80,5 (2773K)
CRI R08:1009 52,6 (2773K)
CRI R09:1010 -5,0 (2773K)
CRI R10:1011 75,0 (2773K)
CRI R11:1012 74,6 (2773K)
CRI R12:1013 65,4 (2773K)
CRI R13:1014 79,4 (2773K)
CRI R14:1015 98,7 (2773K)
CRI R15:1016 68,3 (2773K)
CRI Ra:1001 79,5 (2773K)
DC<5.4E-3:1018 true
X:1022 18,28
Y:1023 16,62
Z:1024 5,03
x:1026 0,4578
y:1027 0,4162
z:1028 0,1260

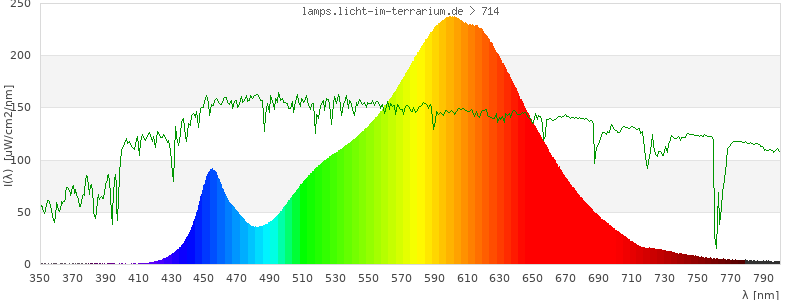

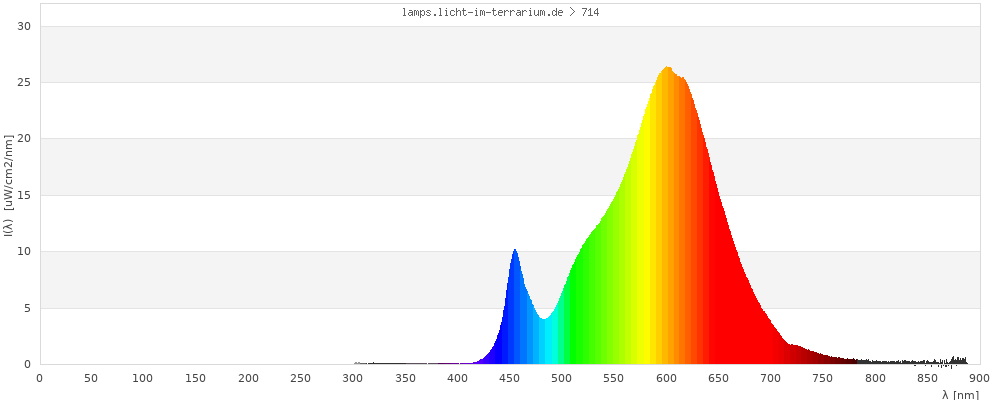

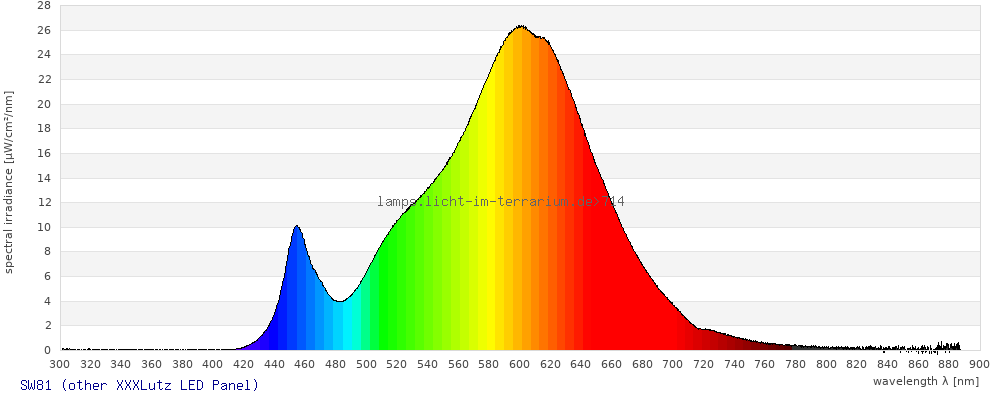

Spectrum 714: SW81 Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
XXXLutz LED Panel |
| Lamp ID |
SW81 (07/2021) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 2 hours |
| Originator (measurement) | Sarina Wunderlich |
Database entry created:
Sarina Wunderlich
10/Jul/2023 ; updated:
Sarina Wunderlich
10/Jul/2023
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

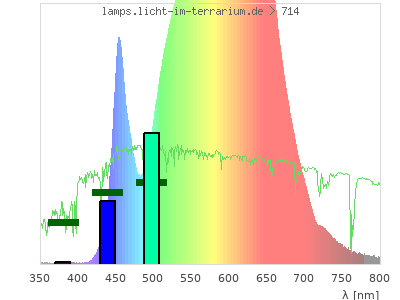

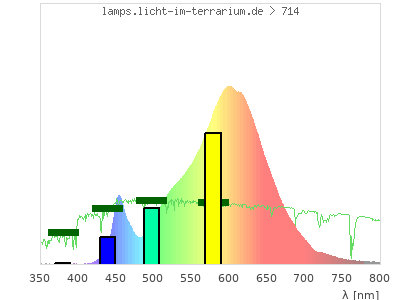

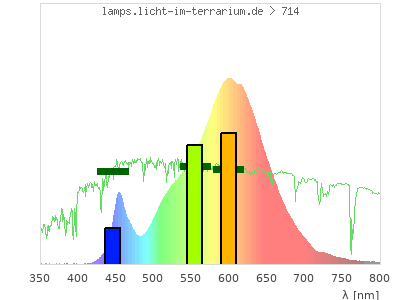

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

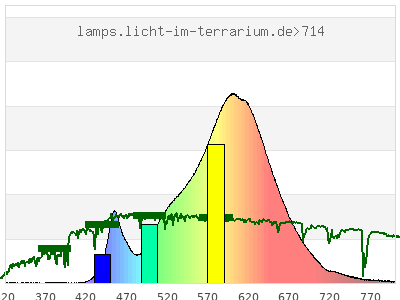

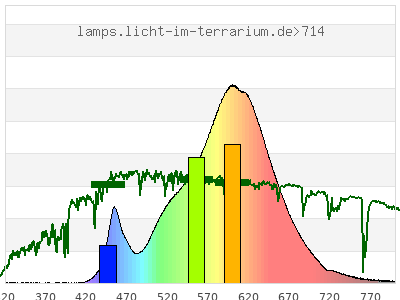

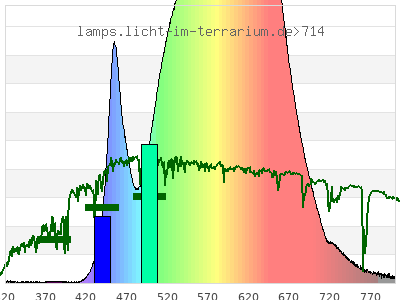

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.46 ; 0.42 ) | ( 0.67 ; 0.32 ) | ( 0.61 ; 0.26 ; 0.13 ) |
| CCT | 2800 Kelvin | 2600 Kelvin | 2500 Kelvin |
| distance | 0.062 | 0.025 | |
| colour space | 3-D-graph not implemented yet |

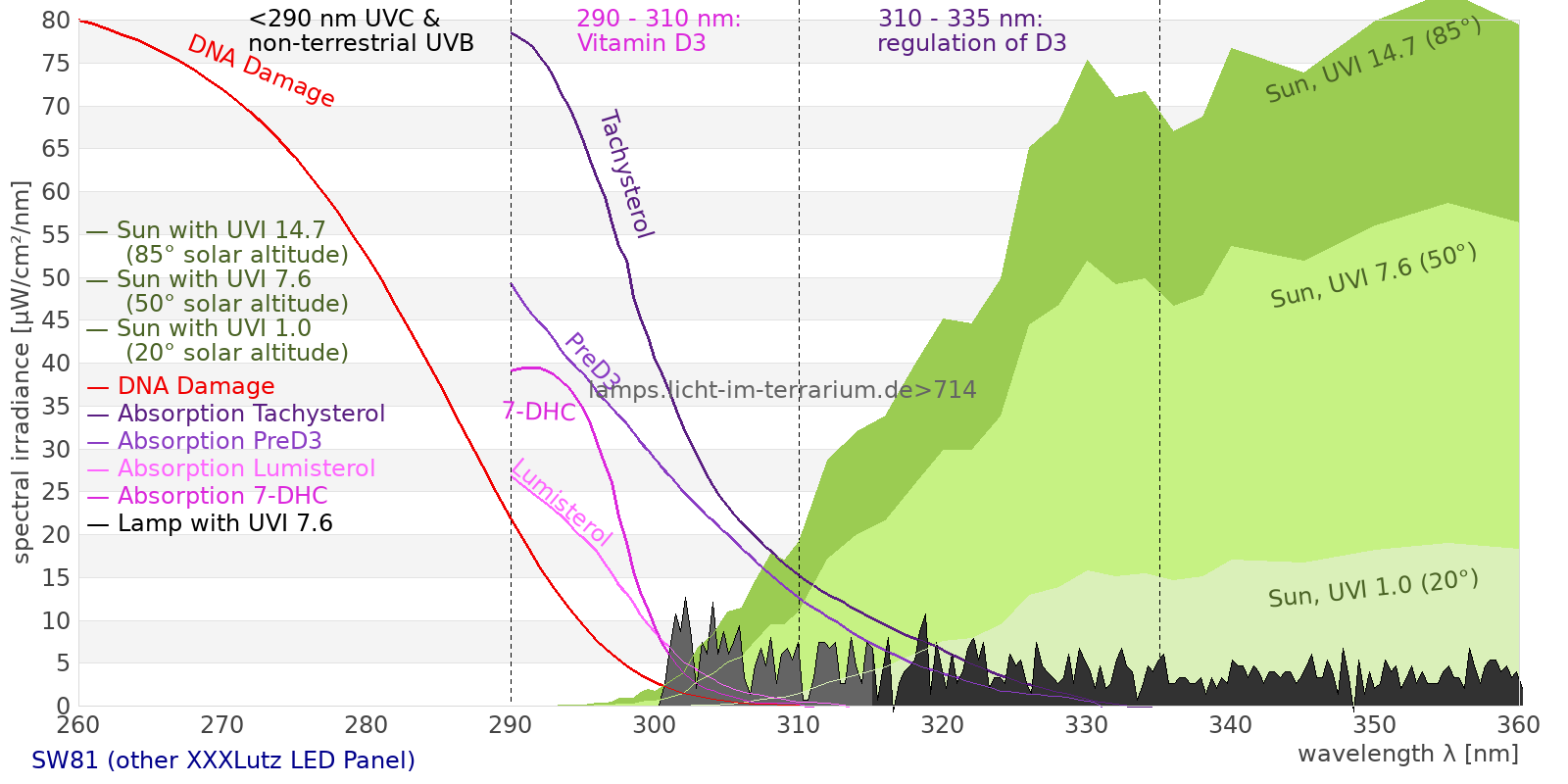

Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

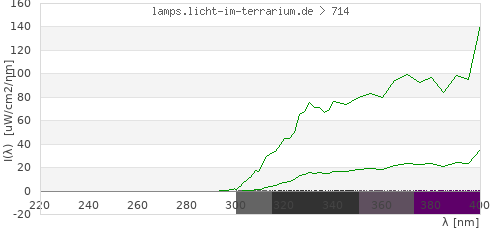

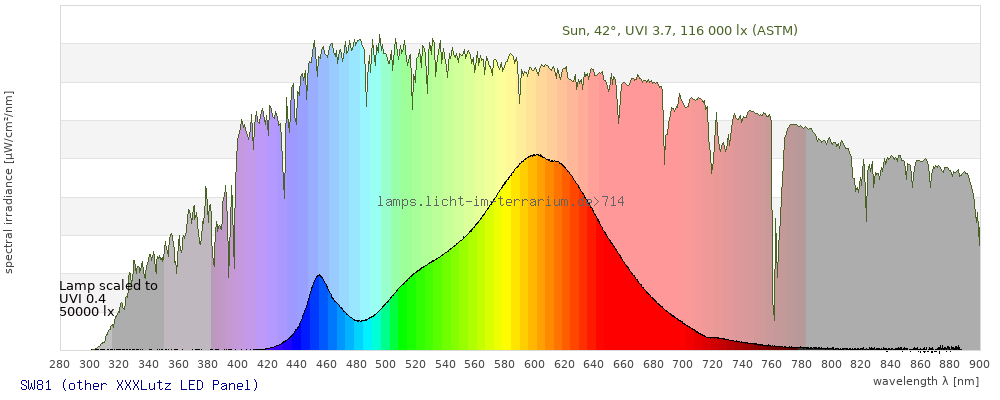

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 3670 µW/cm² = 36.7 W/m² UVC ( 0 nm - 280 nm) 16.5 µW/cm² = 0.165 W/m² non-terrestrial ( 0 nm - 290 nm) 16.5 µW/cm² = 0.165 W/m² total2 ( 250 nm - 880 nm) 3650 µW/cm² = 36.5 W/m² UVB (EU) ( 280 nm - 315 nm) 1.32 µW/cm² = 0.0132 W/m² UVB (US) ( 280 nm - 320 nm) 1.69 µW/cm² = 0.0169 W/m² UVA+B ( 280 nm - 380 nm) 4.95 µW/cm² = 0.0495 W/m² Solar UVB ( 290 nm - 315 nm) 1.32 µW/cm² = 0.0132 W/m² UVA D3 regulating ( 315 nm - 335 nm) 1.32 µW/cm² = 0.0132 W/m² UVA (EU) ( 315 nm - 380 nm) 3.62 µW/cm² = 0.0362 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 1.18 µW/cm² = 0.0118 W/m² UVA (US) ( 320 nm - 380 nm) 3.26 µW/cm² = 0.0326 W/m² UVA1 (variant) ( 335 nm - 380 nm) 2.3 µW/cm² = 0.023 W/m² UVA1 (medical) ( 340 nm - 400 nm) 3.11 µW/cm² = 0.0311 W/m² vis. UVA ( 350 nm - 380 nm) 1.52 µW/cm² = 0.0152 W/m² VIS Rep3 ( 350 nm - 600 nm) 2000 µW/cm² = 20 W/m² VIS Rep4 ( 350 nm - 700 nm) 3520 µW/cm² = 35.2 W/m² purple ( 380 nm - 420 nm) 3.01 µW/cm² = 0.0301 W/m² VIS ( 380 nm - 780 nm) 3620 µW/cm² = 36.2 W/m² VIS2 ( 400 nm - 680 nm) 3420 µW/cm² = 34.2 W/m² PAR ( 400 nm - 700 nm) 3520 µW/cm² = 35.2 W/m² tmp ( 400 nm - 1100 nm) 3640 µW/cm² = 36.4 W/m² blue ( 420 nm - 490 nm) 333 µW/cm² = 3.33 W/m² green ( 490 nm - 575 nm) 1050 µW/cm² = 10.5 W/m² yellow ( 575 nm - 585 nm) 231 µW/cm² = 2.31 W/m² orange ( 585 nm - 650 nm) 1490 µW/cm² = 14.9 W/m² red ( 650 nm - 780 nm) 520 µW/cm² = 5.2 W/m² IRA ( 700 nm - 1400 nm) 124 µW/cm² = 1.24 W/m² IR2 ( 720 nm - 1100 nm) 75.3 µW/cm² = 0.753 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.113 UV-Index Pyrimidine dimerization of DNA 0.993 µW/cm² Photoceratitis 0.171 µW/cm² Photoconjunctivitis 0.00304 µW/cm² DNA Damage 0.00994 Vitamin D3 0.566 µW/cm² Photosynthesis 2240 µW/cm² Luminosity 12900 lx Human L-Cone 2030 µW/cm² Human M-Cone 1390 µW/cm² Human S-Cone 270 µW/cm² CIE X 1970 µW/cm² CIE Y 1790 µW/cm² CIE Z 543 µW/cm² PAR 17100000 mol photons Extinction preD3 2.37 e-3*m²/mol Extinction Tachysterol 7.85 e-3*m²/mol Exctincition PreD3 1070 m²/mol Extinction Lumisterol 0.508 m²/mol Exctincition Tachysterol 10300 m²/mol Extinction 7DHC 0.313 m²/mol L-Cone 1880 µW/cm² M-Cone 801 µW/cm² S-Cone 388 µW/cm² U-Cone 9.81 µW/cm² UVR - ICNIRP 2004 0.097 Rel Biol Eff Melatonin Supression 448 µW/cm² Blue Light Hazard 286 µW/cm² (22.2 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.649 µW/cm² Lumen Reptil 8540 "pseudo-lx" Vitamin D3 Degradation 0.368 µW/cm² Actinic UV 0.0927 µW/cm² (0.072 mW/klm) Exctincition Lumisterol 681 m²/mol Exctincition 7DHC 405 m²/mol Exctincition Toxisterols 138 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 1.94 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.158 Leybold UVB 1.53 µW/cm² Leybold UVA 2.35 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 2.32 µW/cm² DeltaOhm UVC 0.345 µW/cm² Vernier UVB 0.736 µW/cm² Vernier UVA 2.46 µW/cm² Gröbel UVA 3.03 µW/cm² Gröbel UVB 0.974 µW/cm² Gröbel UVC 0.0009 µW/cm² Luxmeter 12600 lx Solarmeter 6.4 (D3) 0.495 IU/min UVX-31 2.61 µW/cm² IL UVB 0.000844 µW/cm² IL UVA 2.79 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.126 UV-Index Solarmeter 6.2 (UVB, post 2010) 1.12 µW/cm² (Solarmeter Ratio = 8.94) Solarmeter AlGaN 6.5 UVI sensor 1.21 UV Index GenUV 7.1 UV-Index 0.0601 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 43.6 W/m² Solarmeter 4.0 (UVA) 0.0427 mW/cm² LS122 (manuf.) 0.0355 W/m² ISM400 (first guess) 34.4 W/m² LS122 (assumption) 2.06 W/m² ISM400_new 29 W/m² Solarmeter 10.0 (Global Power) (assumption) 44.2 W/m²
