Spectrum 711: SW78 Edit
DeleteMeasurement
| Brand |
Chinese manufacturer |
|---|---|
| Lamp Product |

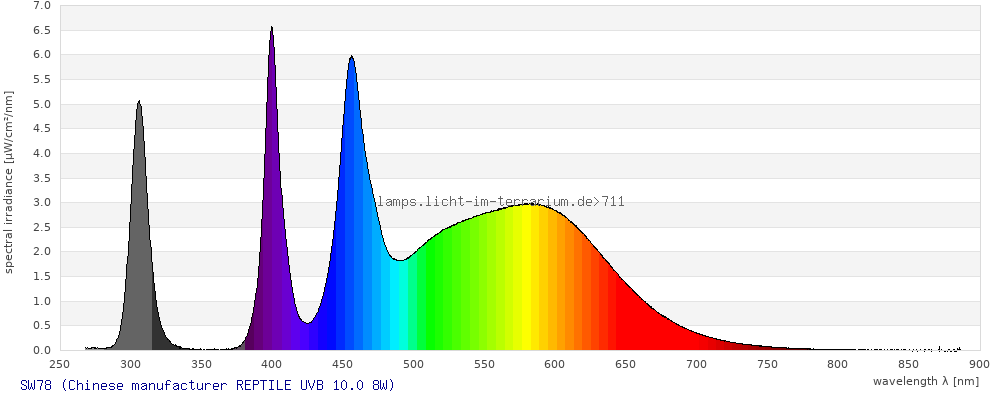

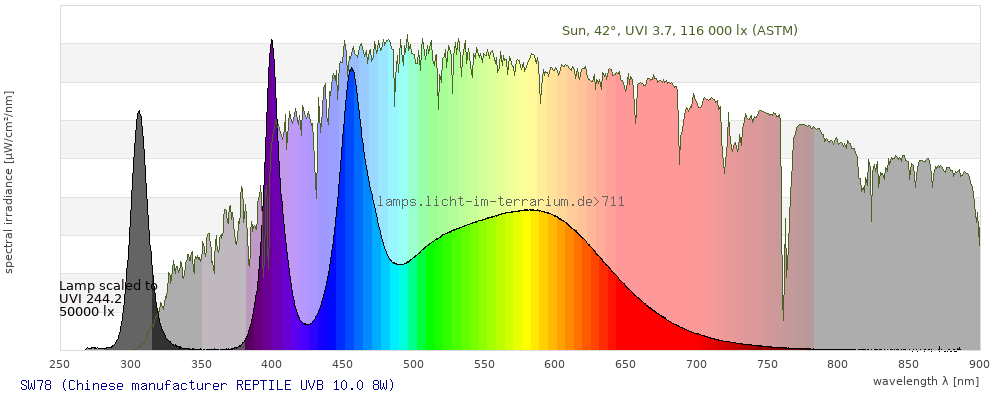

REPTILE UVB 10.0 8W 24-LED UV emitting LED spot with E27. It is labelled „REPTILE UVB 10.0 8W“ on the lamp socket and the otherwise neutral box. It contains 6 golden UVB LEDs, 4 yellow standard LEDs for white light and 4 white UVA LEDs. |
| Lamp ID |
SW78 (06/2023) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 30 cm |
| Age | 1 hours |
| Originator (measurement) | Sarina Wunderlich |
Database entry created:
Sarina Wunderlich
2/Jul/2023 ; updated:
Sarina Wunderlich
2/Jul/2023
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

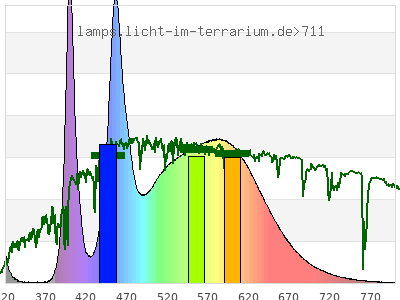

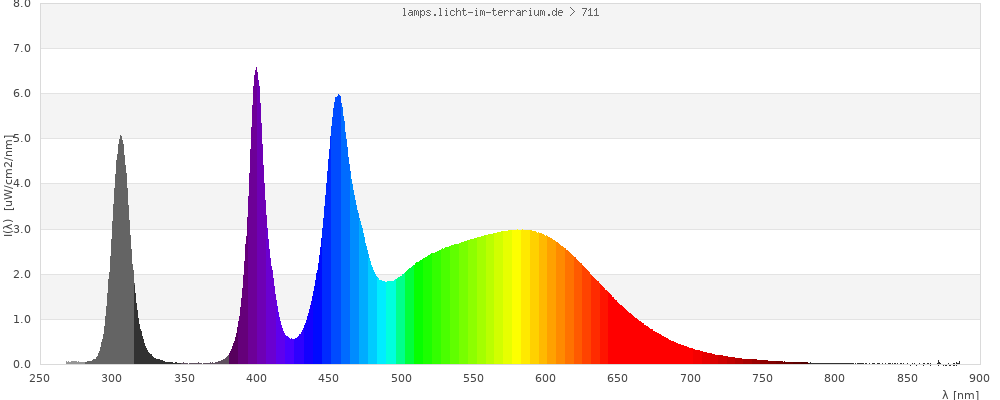

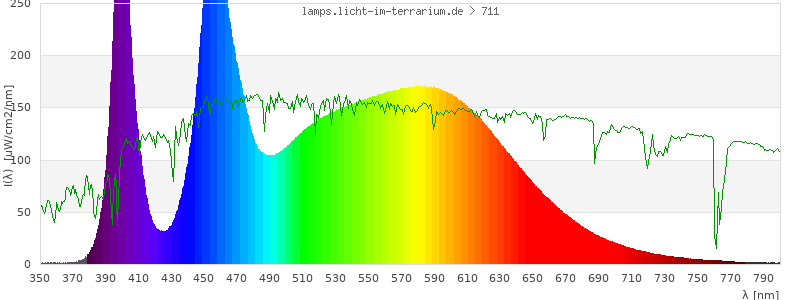

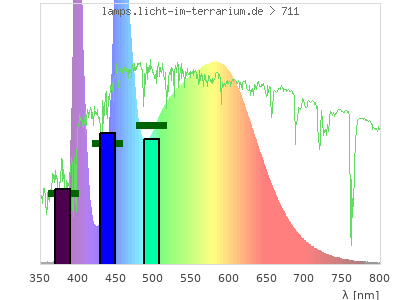

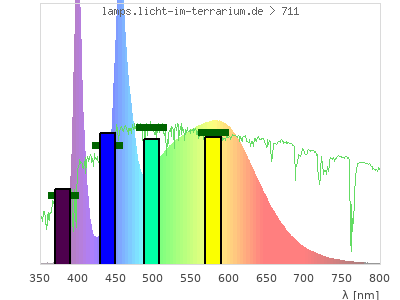

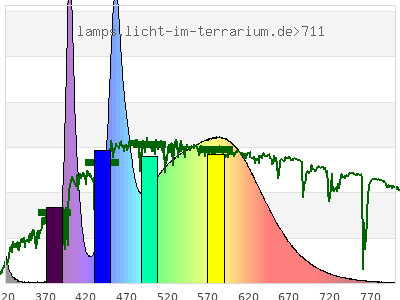

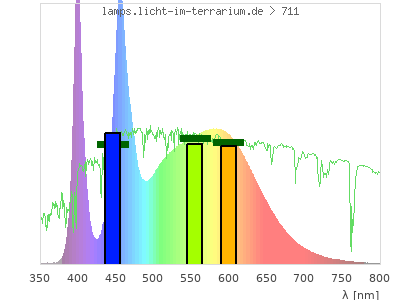

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

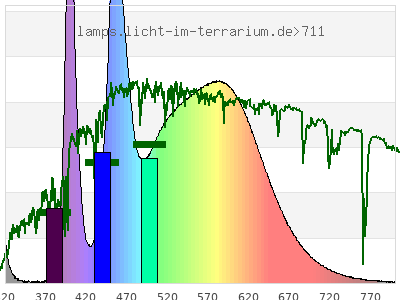

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.32 ; 0.32 ) | ( 0.38 ; 0.39 ) | ( 0.28 ; 0.27 ; 0.29 ) |
| CCT | 6100 Kelvin | 5400 Kelvin | 5300 Kelvin |
| distance | 0.053 | 0.038 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

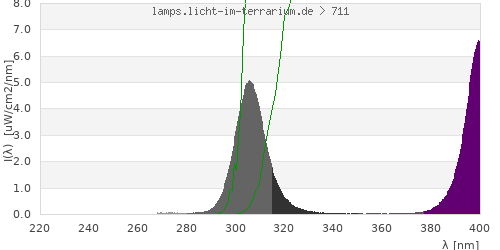

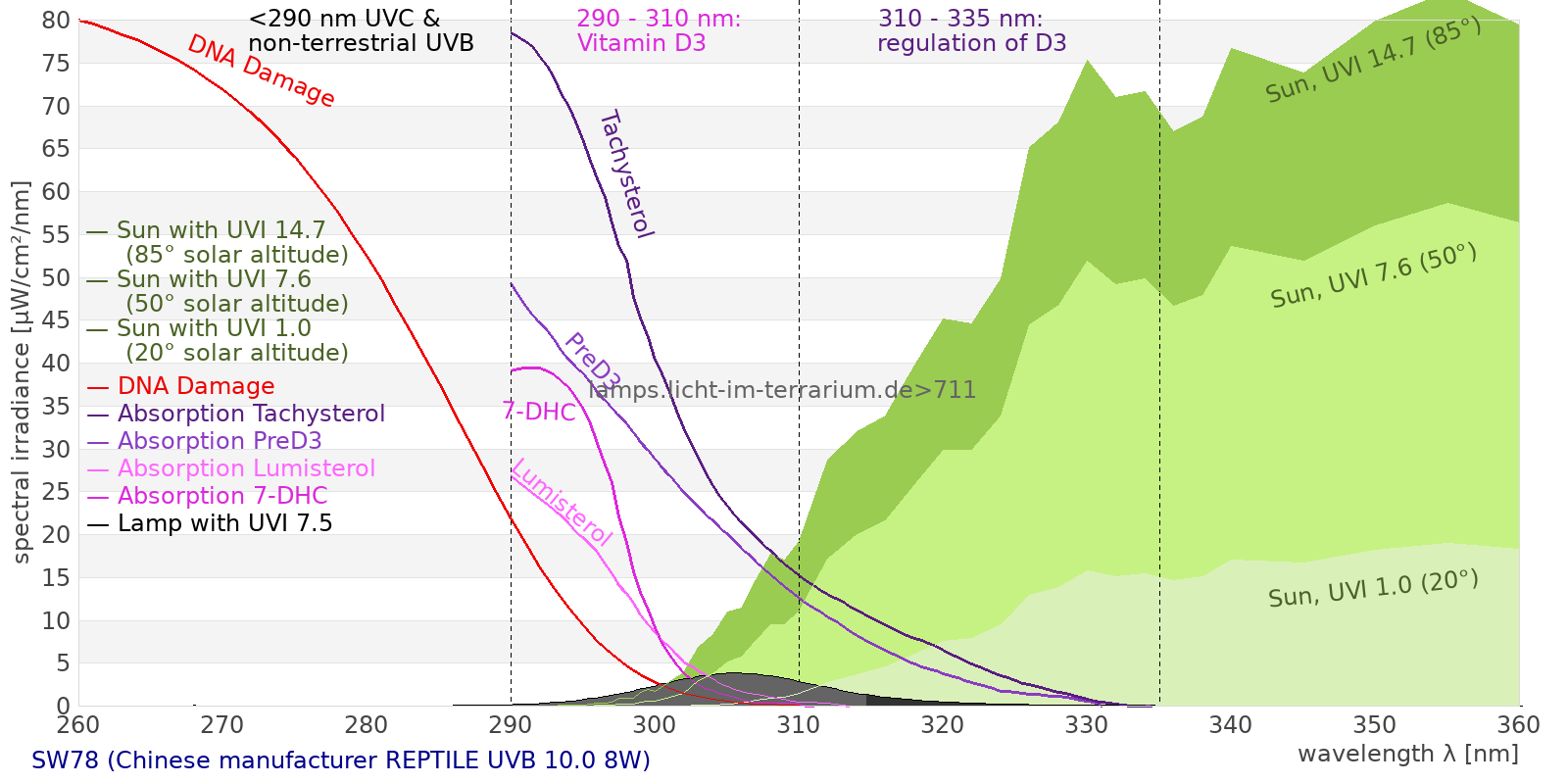

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 820 µW/cm² = 8.2 W/m² UVC ( 0 nm - 280 nm) 0.628 µW/cm² = 0.00628 W/m² non-terrestrial ( 0 nm - 290 nm) 1.52 µW/cm² = 0.0152 W/m² total2 ( 250 nm - 880 nm) 820 µW/cm² = 8.2 W/m² UVB (EU) ( 280 nm - 315 nm) 70.9 µW/cm² = 0.709 W/m² UVB (US) ( 280 nm - 320 nm) 76.3 µW/cm² = 0.763 W/m² UVA+B ( 280 nm - 380 nm) 81.4 µW/cm² = 0.814 W/m² Solar UVB ( 290 nm - 315 nm) 70 µW/cm² = 0.7 W/m² UVA D3 regulating ( 315 nm - 335 nm) 8.64 µW/cm² = 0.0864 W/m² UVA (EU) ( 315 nm - 380 nm) 10.5 µW/cm² = 0.105 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 3.51 µW/cm² = 0.0351 W/m² UVA (US) ( 320 nm - 380 nm) 5.14 µW/cm² = 0.0514 W/m² UVA1 (variant) ( 335 nm - 380 nm) 1.85 µW/cm² = 0.0185 W/m² UVA1 (medical) ( 340 nm - 400 nm) 52.4 µW/cm² = 0.524 W/m² vis. UVA ( 350 nm - 380 nm) 1.34 µW/cm² = 0.0134 W/m² VIS Rep3 ( 350 nm - 600 nm) 582 µW/cm² = 5.82 W/m² VIS Rep4 ( 350 nm - 700 nm) 727 µW/cm² = 7.27 W/m² purple ( 380 nm - 420 nm) 102 µW/cm² = 1.02 W/m² VIS ( 380 nm - 780 nm) 737 µW/cm² = 7.37 W/m² VIS2 ( 400 nm - 680 nm) 666 µW/cm² = 6.66 W/m² PAR ( 400 nm - 700 nm) 675 µW/cm² = 6.75 W/m² tmp ( 400 nm - 1100 nm) 687 µW/cm² = 6.87 W/m² blue ( 420 nm - 490 nm) 191 µW/cm² = 1.91 W/m² green ( 490 nm - 575 nm) 214 µW/cm² = 2.14 W/m² yellow ( 575 nm - 585 nm) 30.2 µW/cm² = 0.302 W/m² orange ( 585 nm - 650 nm) 151 µW/cm² = 1.51 W/m² red ( 650 nm - 780 nm) 48.6 µW/cm² = 0.486 W/m² IRA ( 700 nm - 1400 nm) 12 µW/cm² = 0.12 W/m² IR2 ( 720 nm - 1100 nm) 6.78 µW/cm² = 0.0678 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 9.9 UV-Index Pyrimidine dimerization of DNA 49.3 µW/cm² Photoceratitis 14.2 µW/cm² Photoconjunctivitis 0.966 µW/cm² DNA Damage 2.29 Vitamin D3 37.7 µW/cm² Photosynthesis 458 µW/cm² Luminosity 2030 lx Human L-Cone 303 µW/cm² Human M-Cone 252 µW/cm² Human S-Cone 160 µW/cm² CIE X 278 µW/cm² CIE Y 281 µW/cm² CIE Z 307 µW/cm² PAR 3200000 mol photons Extinction preD3 144 e-3*m²/mol Extinction Tachysterol 494 e-3*m²/mol Exctincition PreD3 72700 m²/mol Extinction Lumisterol 62.8 m²/mol Exctincition Tachysterol 625000 m²/mol Extinction 7DHC 69.9 m²/mol L-Cone 256 µW/cm² M-Cone 253 µW/cm² S-Cone 263 µW/cm² U-Cone 151 µW/cm² UVR - ICNIRP 2004 10.7 Rel Biol Eff Melatonin Supression 237 µW/cm² Blue Light Hazard 174 µW/cm² (85.9 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 41.8 µW/cm² Lumen Reptil 2150 "pseudo-lx" Vitamin D3 Degradation 19.8 µW/cm² Actinic UV 10.5 µW/cm² (52 mW/klm) Exctincition Lumisterol 76100 m²/mol Exctincition 7DHC 84900 m²/mol Exctincition Toxisterols 6930 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 86.5 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 10.8 Leybold UVB 69.3 µW/cm² Leybold UVA 6.53 µW/cm² Leybold UVC 0.293 µW/cm² DeltaOhm UVB 64.8 µW/cm² DeltaOhm UVC 13.5 µW/cm² Vernier UVB 47.3 µW/cm² Vernier UVA 17.8 µW/cm² Gröbel UVA 13.3 µW/cm² Gröbel UVB 53.7 µW/cm² Gröbel UVC 0.396 µW/cm² Luxmeter 2080 lx Solarmeter 6.4 (D3) 33.7 IU/min UVX-31 74.3 µW/cm² IL UVB 0.0391 µW/cm² IL UVA 7.63 µW/cm² Solarmeter 6.5 (UVI, post 2010) 7.8 UV-Index Solarmeter 6.2 (UVB, post 2010) 41.7 µW/cm² (Solarmeter Ratio = 5.35) Solarmeter AlGaN 6.5 UVI sensor 65 UV Index GenUV 7.1 UV-Index 3.08 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 7.56 W/m² Solarmeter 4.0 (UVA) 0.476 mW/cm² LS122 (manuf.) 0.00119 W/m² ISM400 (first guess) 4.81 W/m² LS122 (assumption) 0.238 W/m² ISM400_new 3.81 W/m² Solarmeter 10.0 (Global Power) (assumption) 7 W/m²
