Reptile Lamp Database

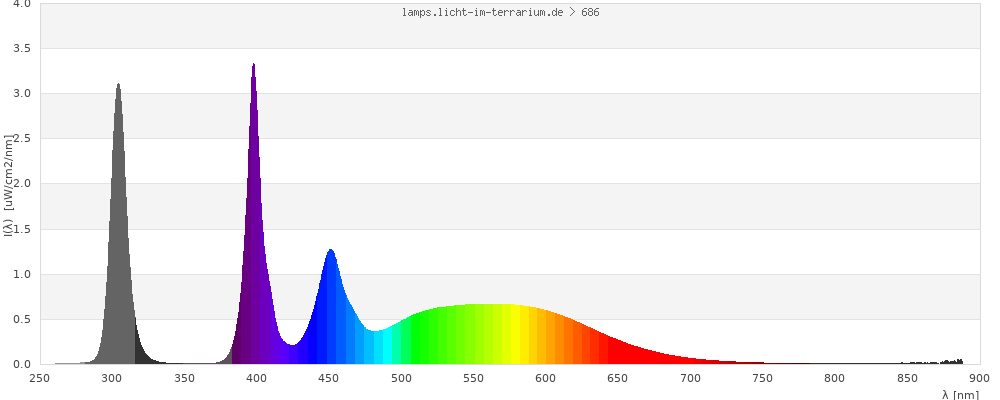

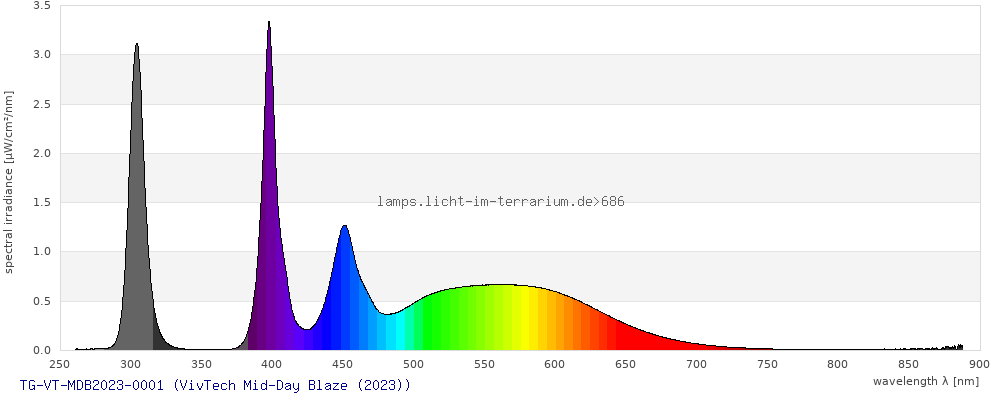

30cm
304nmpeak UVB
397nm peak uva

CCT:1019 6536K
CRI DC:1017 1.47E-3
CRI R01:1002 82.7 (6536K)
CRI R02:1003 87.2 (6536K)
CRI R03:1004 89.9 (6536K)
CRI R04:1005 84.8 (6536K)
CRI R05:1006 83.8 (6536K)
CRI R06:1007 84.1 (6536K)
CRI R07:1008 88.2 (6536K)
CRI R08:1009 72.4 (6536K)
CRI R09:1010 11.6 (6536K)
CRI R10:1011 68.9 (6536K)
CRI R11:1012 84.2 (6536K)
CRI R12:1013 67.4 (6536K)
CRI R13:1014 83.1 (6536K)
CRI R14:1015 94.3 (6536K)
CRI R15:1016 77.6 (6536K)
CRI Ra:1001 84.1 (6536K)
DC<5.4E-3:1018 true

Area (m²):1040 1.1946E-5
Illuminance (lux):1042 4.3818E2
Luminance (candela per m²):1044 4.3818E2
Luminous Flux (lumen):1041 5.2345E-3
Luminous intensity (candela):1043 5.2345E-3
Observer:1038 Photopic
Solid Angle (steradians):1039 1.0
Source:1037 FLMT09760

Device Source:1022 FLMT09760
Integration Begin:1023 270.00
Integration End:1024 850.00
Method:1025 Uses Simpson's Rule for integration.
Moles of Photons:1034 1.2925E-10
PAR uMoles/m²/sec:1036 6.8621E0
PAR uMoles:1035 9.6962E-5
Photons/cm²/sec:1032 5.5087E14
Total Photons:1033 7.7838E13
dBm:1030 -1.5542E1
eV:1031 2.0606E14
uJoule/cm²:1028 2.7637E2
uJoule:1026 3.3015E1
uWatt/cm²:1029 2.3365E2
uWatt:1027 2.7912E1

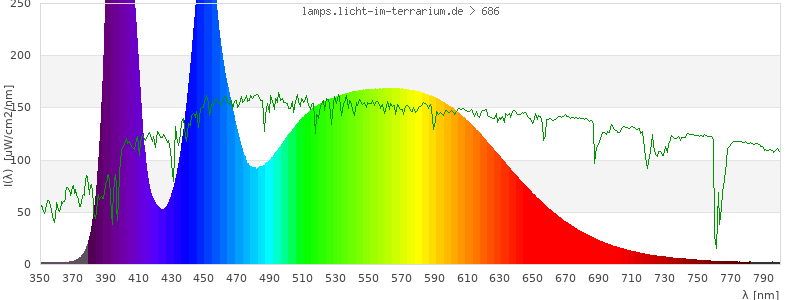

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

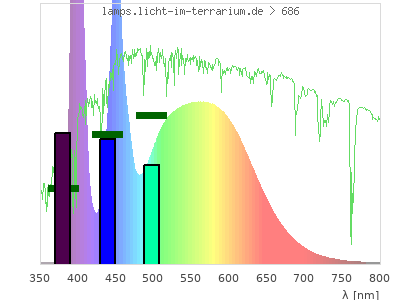

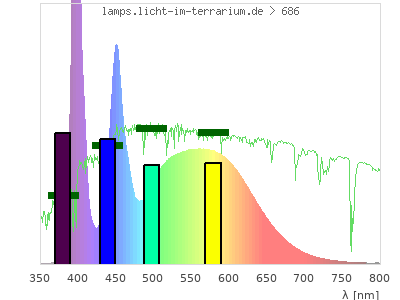

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.31 ; 0.33 )	( 0.28 ; 0.35 )	( 0.22 ; 0.22 ; 0.28 )
CCT	6500 Kelvin	8900 Kelvin	7300 Kelvin
distance		0.017	0.034
colour space			3-D-graph not implemented yet

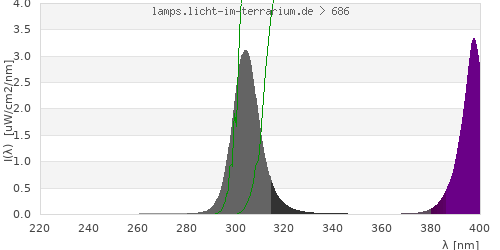

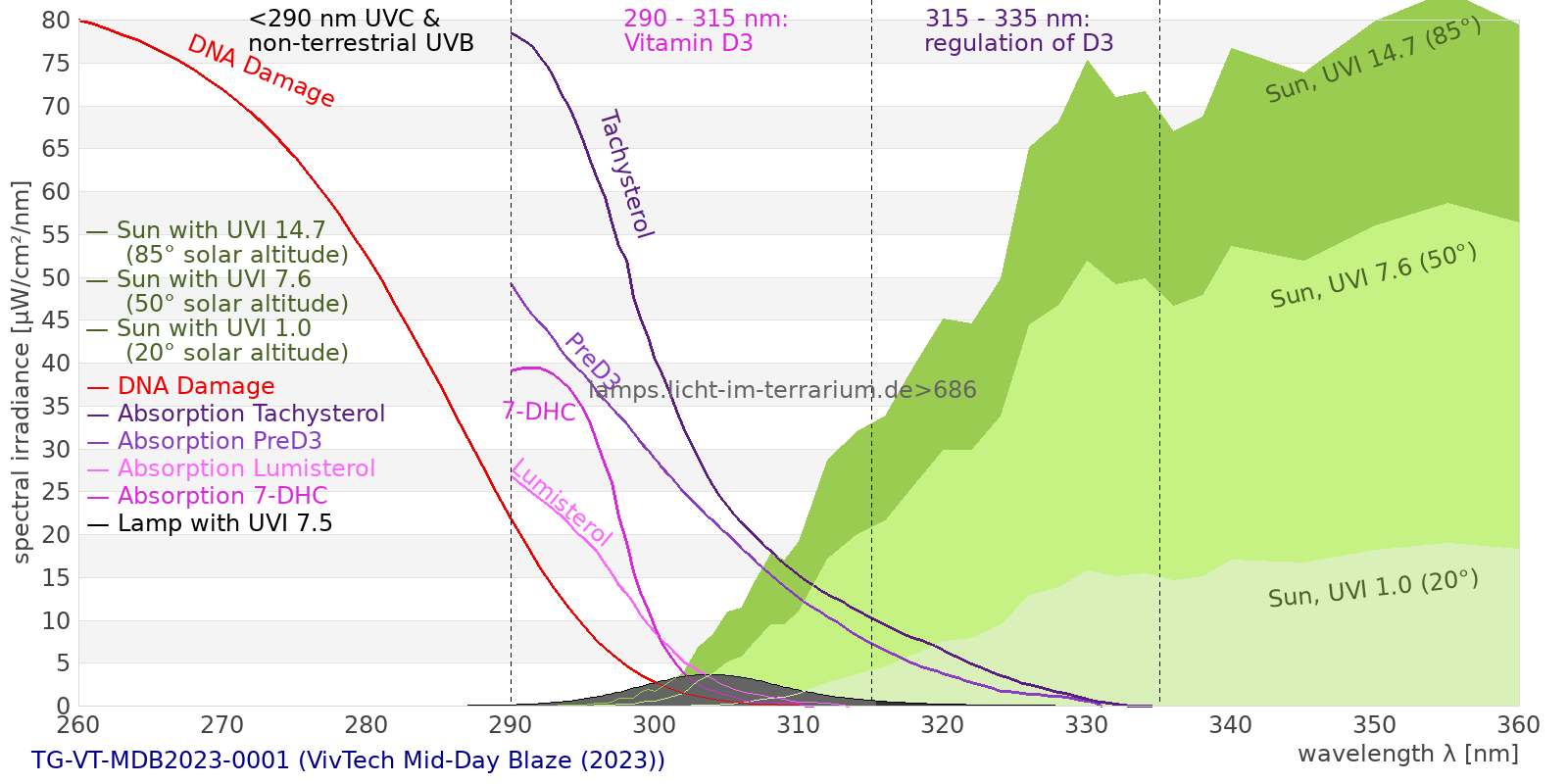

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

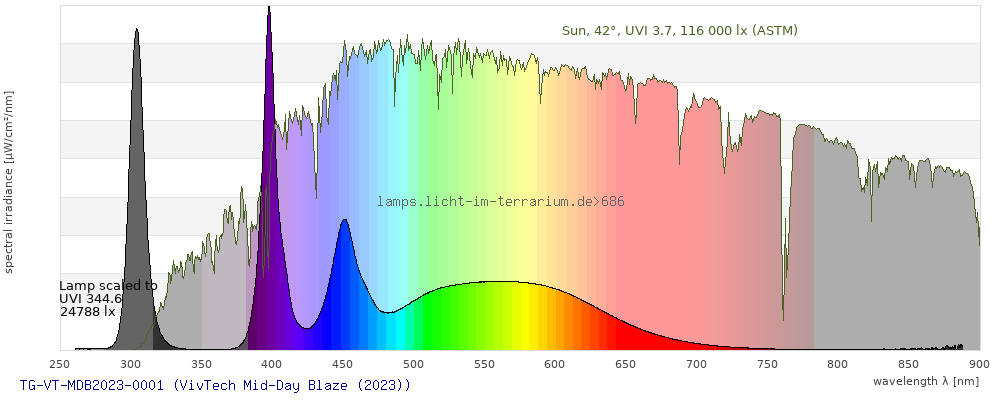

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	233 µW/cm² = 2.33 W/m²
UVC ( 0 nm - 280 nm)	0.297 µW/cm² = 0.00297 W/m²
non-terrestrial ( 0 nm - 290 nm)	0.734 µW/cm² = 0.00734 W/m²
total2 ( 250 nm - 880 nm)	233 µW/cm² = 2.33 W/m²
UVB (EU) ( 280 nm - 315 nm)	40.7 µW/cm² = 0.407 W/m²
UVB (US) ( 280 nm - 320 nm)	42.3 µW/cm² = 0.423 W/m²
UVA+B ( 280 nm - 380 nm)	44.1 µW/cm² = 0.441 W/m²
Solar UVB ( 290 nm - 315 nm)	40.2 µW/cm² = 0.402 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	2.65 µW/cm² = 0.0265 W/m²
UVA (EU) ( 315 nm - 380 nm)	3.4 µW/cm² = 0.034 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	1.11 µW/cm² = 0.0111 W/m²
UVA (US) ( 320 nm - 380 nm)	1.78 µW/cm² = 0.0178 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	0.751 µW/cm² = 0.00751 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	29.9 µW/cm² = 0.299 W/m²
vis. UVA ( 350 nm - 380 nm)	0.575 µW/cm² = 0.00575 W/m²
VIS Rep3 ( 350 nm - 600 nm)	157 µW/cm² = 1.57 W/m²
VIS Rep4 ( 350 nm - 700 nm)	186 µW/cm² = 1.86 W/m²
purple ( 380 nm - 420 nm)	46.9 µW/cm² = 0.469 W/m²
VIS ( 380 nm - 780 nm)	188 µW/cm² = 1.88 W/m²
VIS2 ( 400 nm - 680 nm)	154 µW/cm² = 1.54 W/m²
PAR ( 400 nm - 700 nm)	156 µW/cm² = 1.56 W/m²
tmp ( 400 nm - 1100 nm)	160 µW/cm² = 1.6 W/m²
blue ( 420 nm - 490 nm)	41.9 µW/cm² = 0.419 W/m²
green ( 490 nm - 575 nm)	51.5 µW/cm² = 0.515 W/m²
yellow ( 575 nm - 585 nm)	6.58 µW/cm² = 0.0658 W/m²
orange ( 585 nm - 650 nm)	31.2 µW/cm² = 0.312 W/m²
red ( 650 nm - 780 nm)	9.47 µW/cm² = 0.0947 W/m²
IR2 ( 655 nm - 685 nm)	4.88 µW/cm² = 0.0488 W/m²
IRA ( 700 nm - 1400 nm)	3.58 µW/cm² = 0.0358 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	6.56 UV-Index
Pyrimidine dimerization of DNA	29.2 µW/cm²
Photoceratitis	9.17 µW/cm²
Photoconjunctivitis	0.572 µW/cm²
DNA Damage	1.42
Vitamin D3	24.4 µW/cm²
Photosynthesis	105 µW/cm²
Luminosity	460 lx
Human L-Cone	68.2 µW/cm²
Human M-Cone	58.2 µW/cm²
Human S-Cone	38.3 µW/cm²
CIE X	61.3 µW/cm²
CIE Y	63.9 µW/cm²
CIE Z	70.9 µW/cm²
PAR PPFD	7.58 µmol/m²/s
Extinction preD3	87.6 e-3*m²/mol
Extinction Tachysterol	303 e-3*m²/mol
Exctincition PreD3	44700 m²/mol
Extinction Lumisterol	41 m²/mol
Exctincition Tachysterol	384000 m²/mol
Extinction 7DHC	46.2 m²/mol
L-Cone	56.9 µW/cm²
M-Cone	55.7 µW/cm²
S-Cone	70.6 µW/cm²
U-Cone	73.6 µW/cm²
UVR - ICNIRP 2004	7.16 Rel Biol Eff
Melatonin Supression	55 µW/cm²
Blue Light Hazard	43.3 µW/cm² (94.2 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	26.8 µW/cm²
Lumen Reptil	564 "pseudo-lx"
Vitamin D3 Degradation	11.6 µW/cm²
Actinic UV	7.02 µW/cm² (153 mW/klm)
Exctincition Lumisterol	49200 m²/mol
Exctincition 7DHC	56400 m²/mol
Exctincition Toxisterols	4340 m²/mol
UV-Index2	6.39 UV-Index (285-400nm)

Solarmeter 6.2 (UVB, pre 2010)	49.1 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	6.94
Leybold UVB	39.3 µW/cm²
Leybold UVA	3.37 µW/cm²
Leybold UVC	0.194 µW/cm²
DeltaOhm UVB	34.5 µW/cm²
DeltaOhm UVC	7.58 µW/cm²
Vernier UVB	28.9 µW/cm²
Vernier UVA	7.1 µW/cm²
Gröbel UVA	5.39 µW/cm²
Gröbel UVB	32.3 µW/cm²
Gröbel UVC	0.217 µW/cm²
Luxmeter	476 lx
Solarmeter 6.4 (D3)	21.7 IU/min
UVX-31	40 µW/cm²
IL UVB	0.023 µW/cm²
IL UVA	3.25 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	4.93 UV-Index
Solarmeter 6.2 (UVB, post 2010)	22.8 µW/cm² (Solarmeter Ratio = 4.62)
Solarmeter AlGaN 6.5 UVI sensor	37.7 UV Index
GenUV 7.1 UV-Index	1.78 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	1.9 W/m²
Solarmeter 4.0 (UVA)	0.241 mW/cm²
LS122 (manuf.)	0.00393 W/m²
ISM400 (first guess)	1.1 W/m²
LS122 (assumption)	0.0541 W/m²
ISM400_new	0.868 W/m²
Solarmeter 10.0 (Global Power) (assumption)	1.66 W/m²
