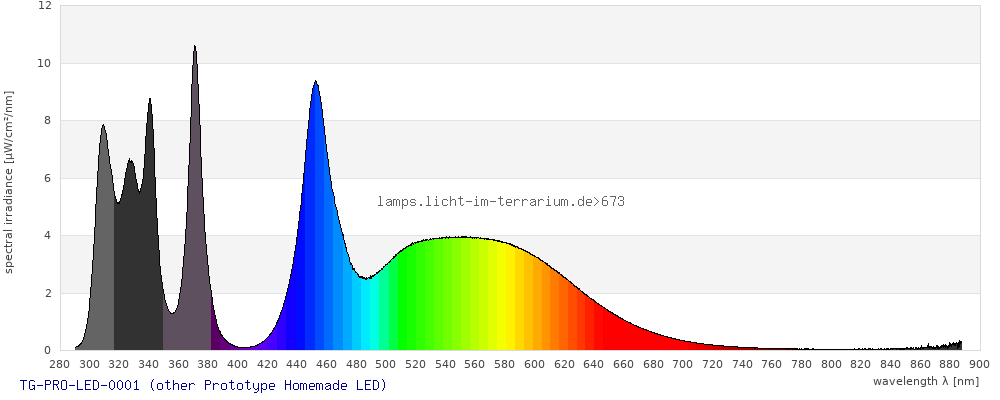

Spectrum 673: TG-PRO-LED-0001 Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
Prototype Homemade LED |
| Lamp ID |
TG-PRO-LED-0001 (02/2023) Prototype LED |
| Spectrometer | FLAME UV-Vis (E) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 25 cm |
| Age | 50 hours |
| Originator (measurement) | Thomas Griffiths |
Database entry created:
Thomas Griffiths (Tomaskas Ltd.)
25/Feb/2023 ; updated:
Thomas Griffiths (Tomaskas Ltd.)
25/Feb/2023
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

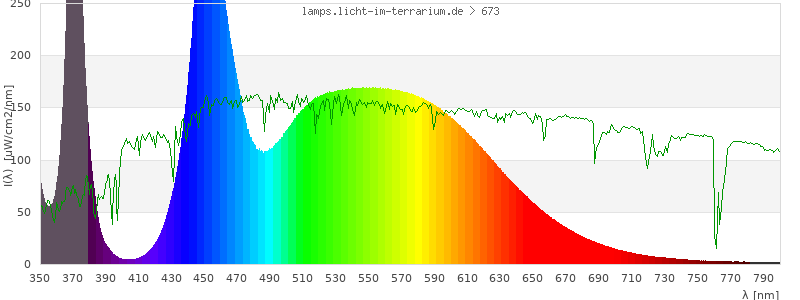

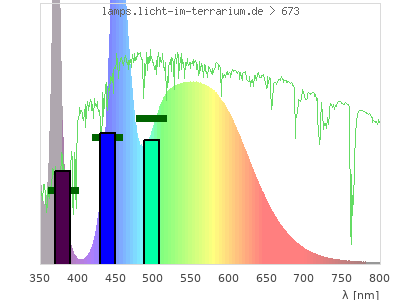

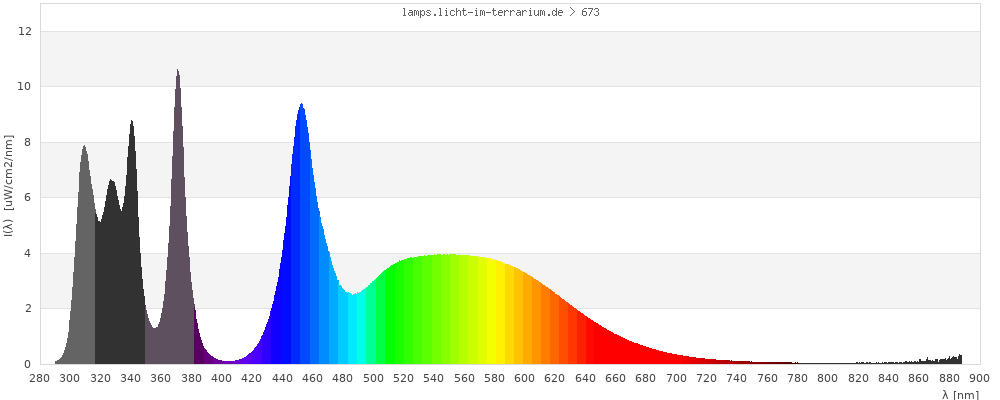

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

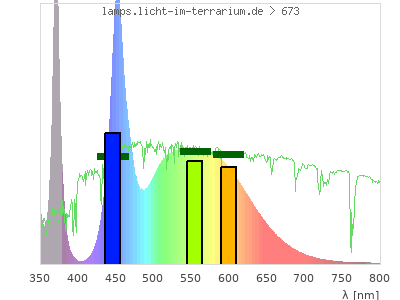

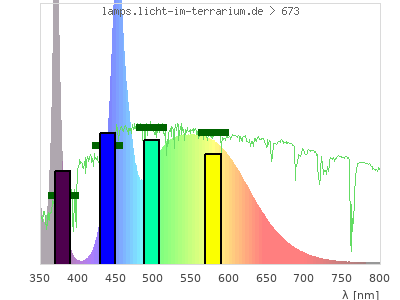

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.31 ) | ( 0.36 ; 0.38 ) | ( 0.24 ; 0.27 ; 0.29 ) |
| CCT | 7900 Kelvin | 5800 Kelvin | 6100 Kelvin |
| distance | 0.033 | 0.027 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

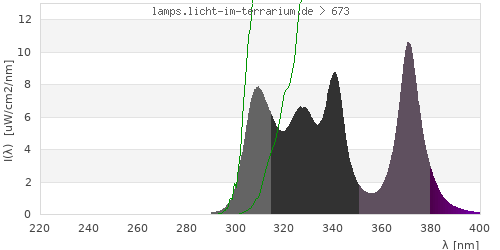

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

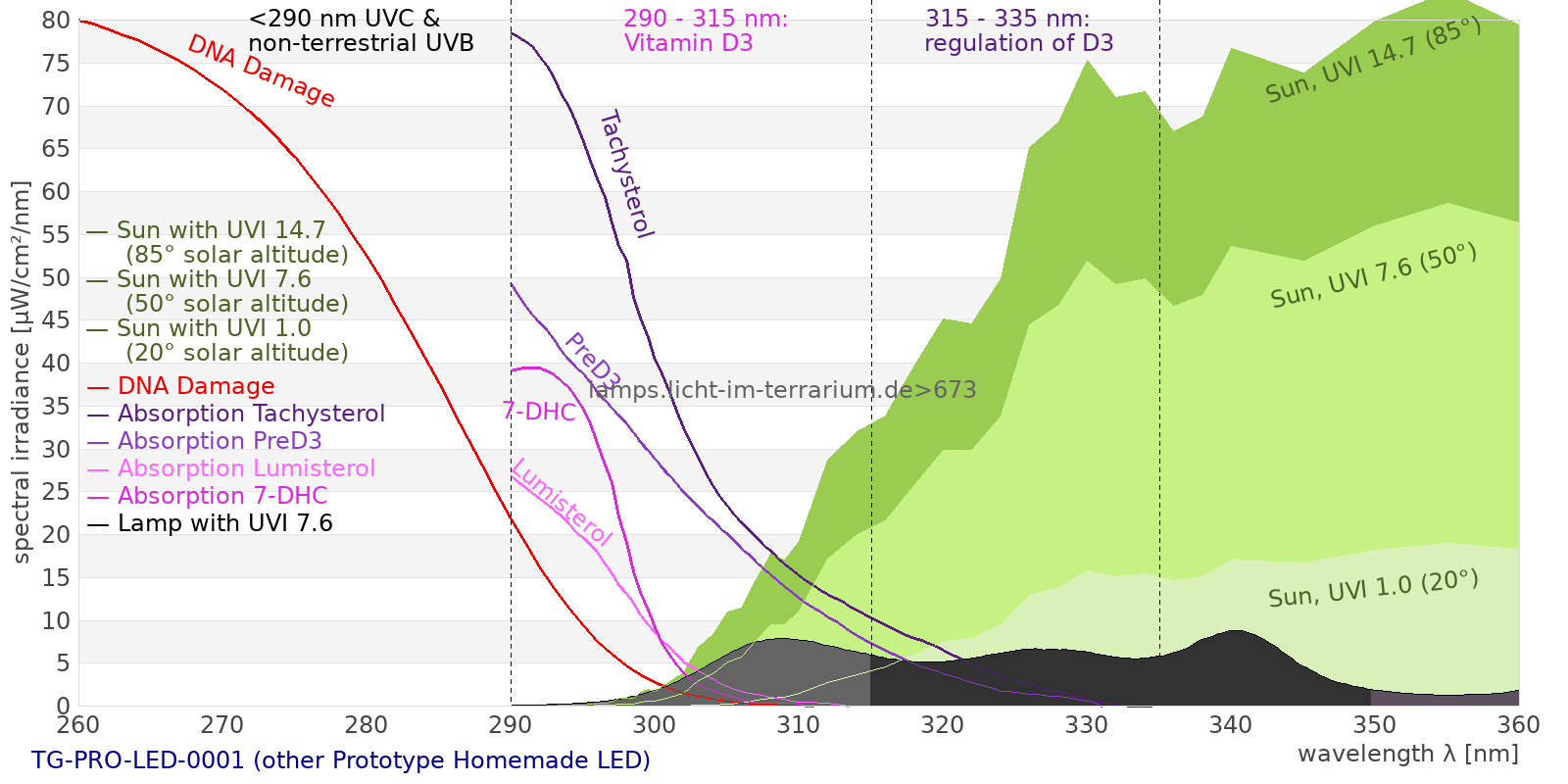

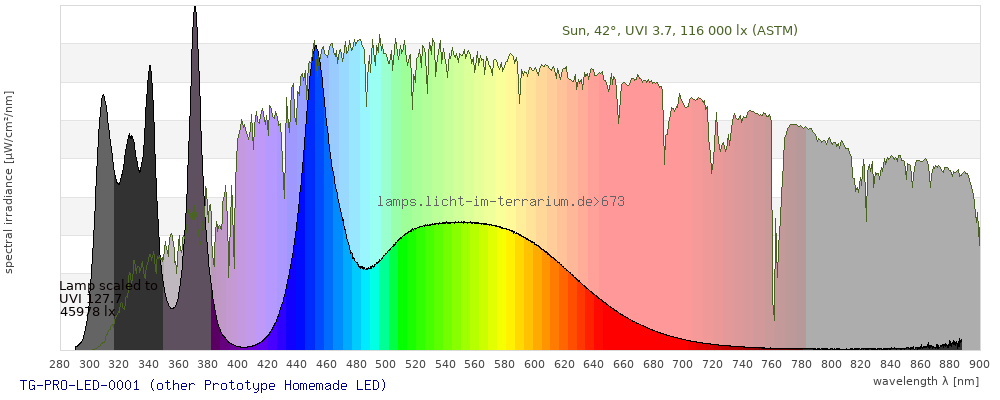

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 1320 µW/cm² = 13.2 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 1320 µW/cm² = 13.2 W/m² UVB (EU) ( 280 nm - 315 nm) 96.1 µW/cm² = 0.961 W/m² UVB (US) ( 280 nm - 320 nm) 122 µW/cm² = 1.22 W/m² UVA+B ( 280 nm - 380 nm) 433 µW/cm² = 4.33 W/m² Solar UVB ( 290 nm - 315 nm) 96.1 µW/cm² = 0.961 W/m² UVA D3 regulating ( 315 nm - 335 nm) 116 µW/cm² = 1.16 W/m² UVA (EU) ( 315 nm - 380 nm) 337 µW/cm² = 3.37 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 127 µW/cm² = 1.27 W/m² UVA (US) ( 320 nm - 380 nm) 311 µW/cm² = 3.11 W/m² UVA1 (variant) ( 335 nm - 380 nm) 221 µW/cm² = 2.21 W/m² UVA1 (medical) ( 340 nm - 400 nm) 199 µW/cm² = 1.99 W/m² vis. UVA ( 350 nm - 380 nm) 134 µW/cm² = 1.34 W/m² VIS Rep3 ( 350 nm - 600 nm) 850 µW/cm² = 8.5 W/m² VIS Rep4 ( 350 nm - 700 nm) 1000 µW/cm² = 10 W/m² purple ( 380 nm - 420 nm) 18.2 µW/cm² = 0.182 W/m² VIS ( 380 nm - 780 nm) 880 µW/cm² = 8.8 W/m² VIS2 ( 400 nm - 680 nm) 846 µW/cm² = 8.46 W/m² PAR ( 400 nm - 700 nm) 855 µW/cm² = 8.55 W/m² tmp ( 400 nm - 1100 nm) 874 µW/cm² = 8.74 W/m² blue ( 420 nm - 490 nm) 297 µW/cm² = 2.97 W/m² green ( 490 nm - 575 nm) 311 µW/cm² = 3.11 W/m² yellow ( 575 nm - 585 nm) 37.6 µW/cm² = 0.376 W/m² orange ( 585 nm - 650 nm) 168 µW/cm² = 1.68 W/m² red ( 650 nm - 780 nm) 48.2 µW/cm² = 0.482 W/m² IRA ( 700 nm - 1400 nm) 19.1 µW/cm² = 0.191 W/m² IR2 ( 720 nm - 1100 nm) 14 µW/cm² = 0.14 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 7.52 UV-Index Pyrimidine dimerization of DNA 65.5 µW/cm² Photoceratitis 11.6 µW/cm² Photoconjunctivitis 0.249 µW/cm² DNA Damage 0.829 Vitamin D3 34.6 µW/cm² Photosynthesis 589 µW/cm² Luminosity 2710 lx Human L-Cone 398 µW/cm² Human M-Cone 351 µW/cm² Human S-Cone 245 µW/cm² CIE X 356 µW/cm² CIE Y 377 µW/cm² CIE Z 477 µW/cm² PAR 3790000 mol photons Extinction preD3 165 e-3*m²/mol Extinction Tachysterol 556 e-3*m²/mol Exctincition PreD3 75400 m²/mol Extinction Lumisterol 35.4 m²/mol Exctincition Tachysterol 752000 m²/mol Extinction 7DHC 30.3 m²/mol L-Cone 327 µW/cm² M-Cone 367 µW/cm² S-Cone 388 µW/cm² U-Cone 277 µW/cm² UVR - ICNIRP 2004 6.4 Rel Biol Eff Melatonin Supression 332 µW/cm² Blue Light Hazard 259 µW/cm² (95.5 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 39.6 µW/cm² Lumen Reptil 2940 "pseudo-lx" Vitamin D3 Degradation 26.7 µW/cm² Actinic UV 6.33 µW/cm² (23.3 mW/klm) Exctincition Lumisterol 47500 m²/mol Exctincition 7DHC 38600 m²/mol Exctincition Toxisterols 10400 m²/mol
