Colour Setting 1/6
CRI R01:1002 94,9 (2149K)
CRI R02:1003 98,9 (2149K)
CRI R03:1004 95,2 (2149K)
CRI R04:1005 94,2 (2149K)
CRI R05:1006 96,8 (2149K)
CRI R06:1007 93,0 (2149K)
CRI R07:1008 86,8 (2149K)
CRI R08:1009 77,5 (2149K)
CRI R09:1010 58,6 (2149K)
CRI R10:1011 98,6 (2149K)
CRI R11:1012 97,1 (2149K)
CRI R12:1013 88,5 (2149K)
CRI R13:1014 96,8 (2149K)
CRI R14:1015 98,6 (2149K)
CRI R15:1016 89,2 (2149K)
CRI Ra:1001 92,2 (2149K)
DC<5.4E-3:1018 true
| Brand |
Ledvance Ledvance GmbH with headquarters in Garching, Germany is an international company for lighting products and networked light applications that evolved from the divestment of Osram Licht AG in July 2016. |
|---|---|
| Lamp Product |
Sun@Home Classic A40 E27 |
| Lamp ID |
SW49 (01/2023) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 5 cm |
| Age | 0 hours |
| Originator (measurement) | Sarina Wunderlich |

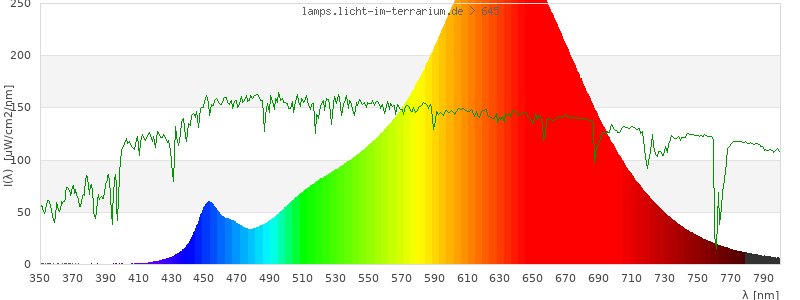

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

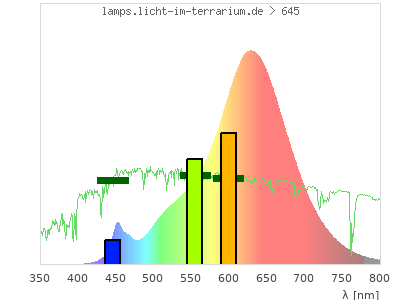

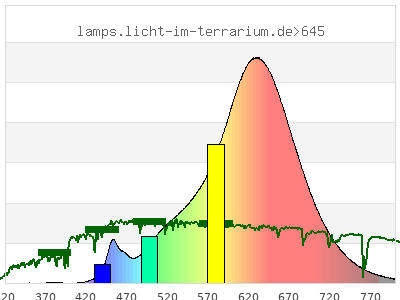

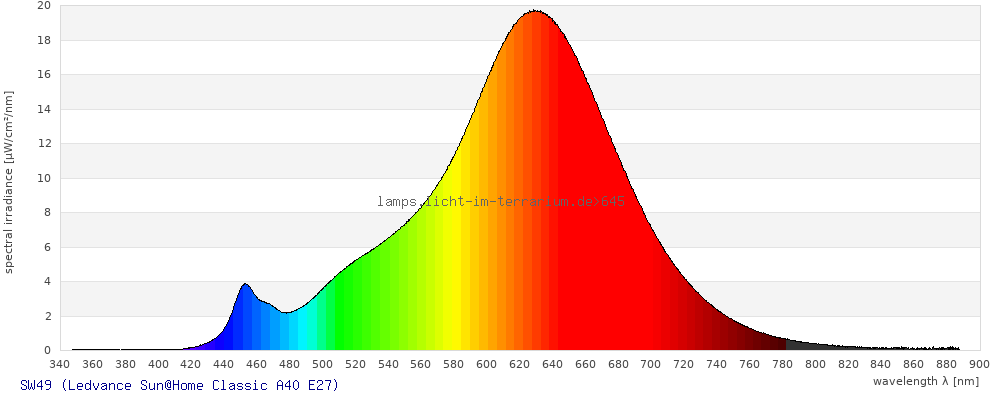

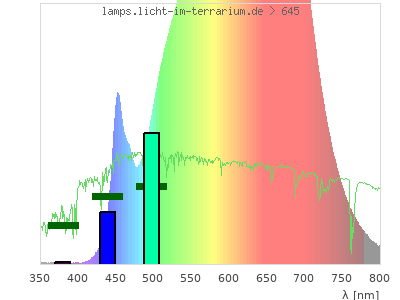

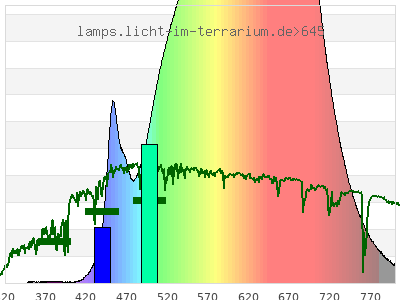

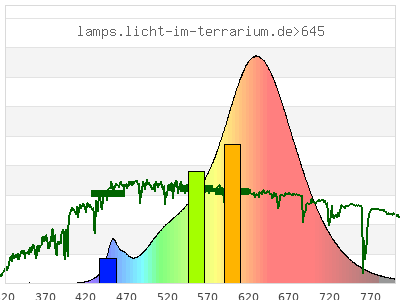

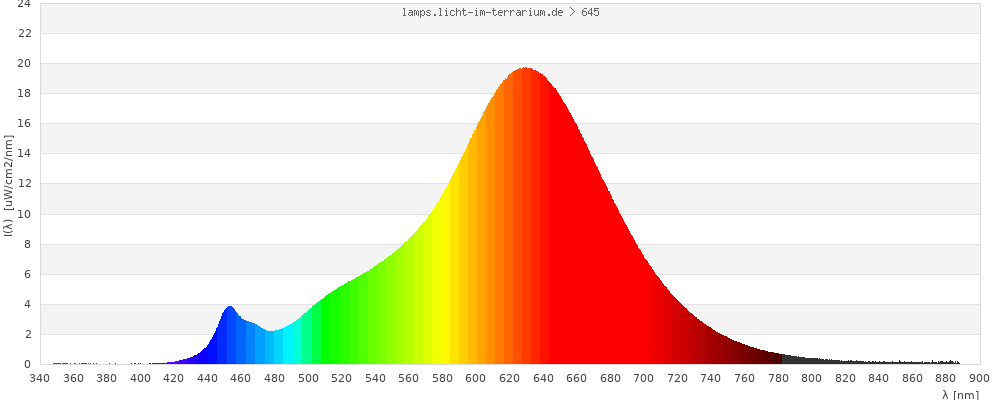

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.5 ; 0.4 ) | ( 0.71 ; 0.28 ) | ( 0.67 ; 0.23 ; 0.092 ) |
| CCT | 2100 Kelvin | 2300 Kelvin | 2200 Kelvin |
| distance | 0.044 | 0.018 | |
| colour space | 3-D-graph not implemented yet |

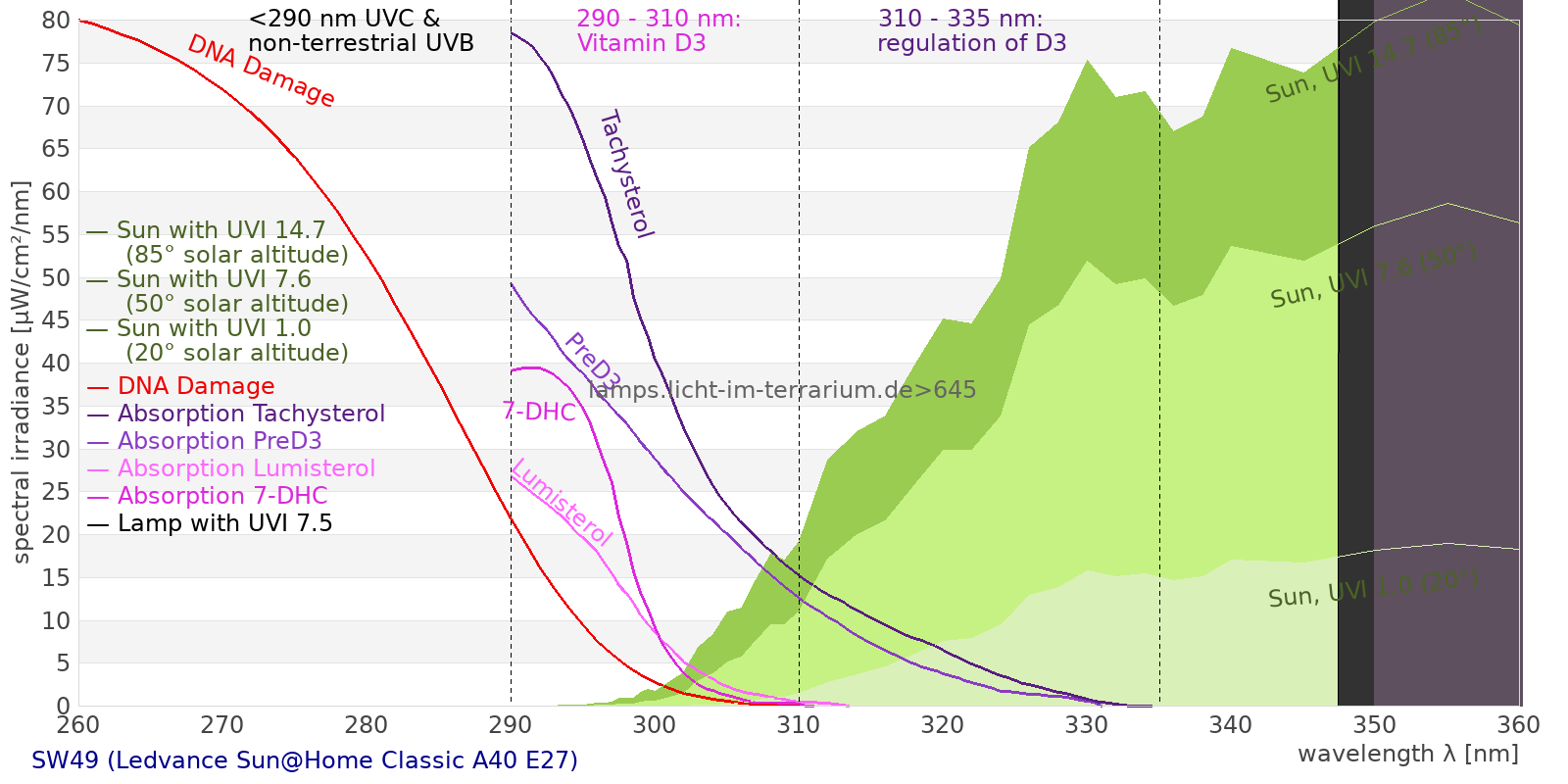

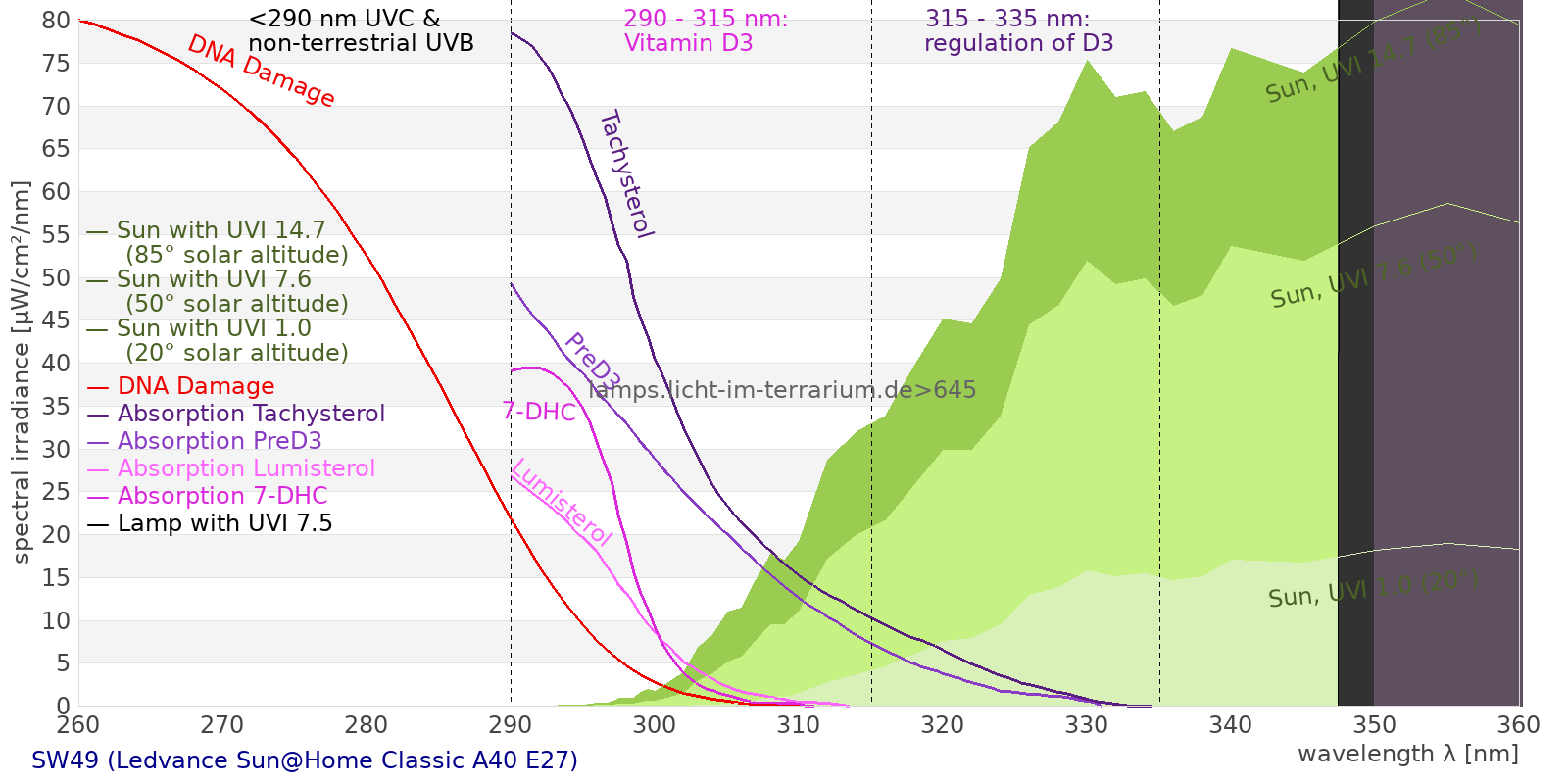

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

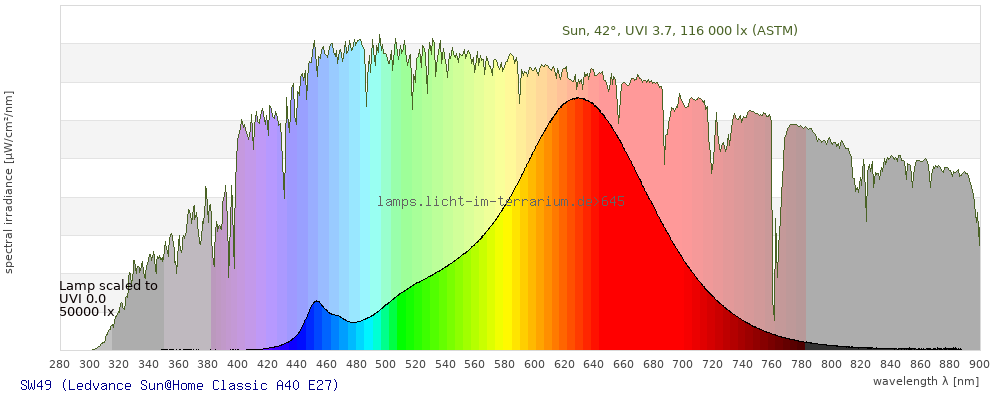

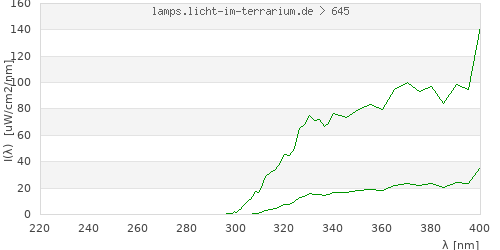

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
total ( 0 nm - 0 nm) 2800 µW/cm² = 28 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 2800 µW/cm² = 28 W/m² UVB (EU) ( 280 nm - 315 nm) 0 µW/cm² = 0 W/m² UVB (US) ( 280 nm - 320 nm) 0 µW/cm² = 0 W/m² UVA+B ( 280 nm - 380 nm) 1.1 µW/cm² = 0.011 W/m² Solar UVB ( 290 nm - 315 nm) 0 µW/cm² = 0 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m² UVA (EU) ( 315 nm - 380 nm) 1.1 µW/cm² = 0.011 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m² UVA (US) ( 320 nm - 380 nm) 1.1 µW/cm² = 0.011 W/m² UVA1 (variant) ( 335 nm - 380 nm) 1.1 µW/cm² = 0.011 W/m² UVA1 (medical) ( 340 nm - 400 nm) 1.72 µW/cm² = 0.0172 W/m² vis. UVA ( 350 nm - 380 nm) 0.99 µW/cm² = 0.0099 W/m² VIS Rep3 ( 350 nm - 600 nm) 1000 µW/cm² = 10 W/m² VIS Rep4 ( 350 nm - 700 nm) 2550 µW/cm² = 25.5 W/m² purple ( 380 nm - 420 nm) 1.99 µW/cm² = 0.0199 W/m² VIS ( 380 nm - 780 nm) 2770 µW/cm² = 27.7 W/m² VIS2 ( 400 nm - 680 nm) 2370 µW/cm² = 23.7 W/m² PAR ( 400 nm - 700 nm) 2550 µW/cm² = 25.5 W/m² tmp ( 400 nm - 1100 nm) 2800 µW/cm² = 28 W/m² blue ( 420 nm - 490 nm) 146 µW/cm² = 1.46 W/m² green ( 490 nm - 575 nm) 527 µW/cm² = 5.27 W/m² yellow ( 575 nm - 585 nm) 116 µW/cm² = 1.16 W/m² orange ( 585 nm - 650 nm) 1140 µW/cm² = 11.4 W/m² red ( 650 nm - 780 nm) 842 µW/cm² = 8.42 W/m² IRA ( 700 nm - 1400 nm) 253 µW/cm² = 2.53 W/m² IR2 ( 720 nm - 1100 nm) 143 µW/cm² = 1.43 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Erythema 0.000243 UV-Index Pyrimidine dimerization of DNA 0.00025 µW/cm² Photoceratitis 0 µW/cm² Photoconjunctivitis 0 µW/cm² DNA Damage 9.04E-7 Vitamin D3 0 µW/cm² Photosynthesis 1730 µW/cm² Luminosity 7480 lx Human L-Cone 1220 µW/cm² Human M-Cone 735 µW/cm² Human S-Cone 117 µW/cm² CIE X 1290 µW/cm² CIE Y 1030 µW/cm² CIE Z 235 µW/cm² PAR 12900000 mol photons Extinction preD3 0 e-3*m²/mol Extinction Tachysterol 0 e-3*m²/mol Exctincition PreD3 1.36 m²/mol Extinction Lumisterol 0 m²/mol Exctincition Tachysterol 25.1 m²/mol Extinction 7DHC 0 m²/mol L-Cone 1180 µW/cm² M-Cone 404 µW/cm² S-Cone 162 µW/cm² U-Cone 5.43 µW/cm² UVR - ICNIRP 2004 0.000166 Rel Biol Eff Melatonin Supression 208 µW/cm² Blue Light Hazard 125 µW/cm² (16.8 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0 µW/cm² Lumen Reptil 4980 "pseudo-lx" Vitamin D3 Degradation 0 µW/cm² Actinic UV 0.000166 µW/cm² (0.000222 mW/klm) Exctincition Lumisterol 0 m²/mol Exctincition 7DHC 0 m²/mol Exctincition Toxisterols 1.34 m²/mol
Solarmeter 6.2 (UVB, pre 2010) 0.00624 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 8.77E-5 Leybold UVB 0 µW/cm² Leybold UVA 0.884 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 0.00238 µW/cm² DeltaOhm UVC 0 µW/cm² Vernier UVB 0 µW/cm² Vernier UVA 0.418 µW/cm² Gröbel UVA 0.924 µW/cm² Gröbel UVB 0.000327 µW/cm² Gröbel UVC 0 µW/cm² Luxmeter 6880 lx Solarmeter 6.4 (D3) 0.000274 IU/min UVX-31 0.0606 µW/cm² IL UVB 5.07E-6 µW/cm² IL UVA 1.07 µW/cm² Solarmeter 6.5 (UVI, post 2010) 3.74E-5 UV-Index Solarmeter 6.2 (UVB, post 2010) 0.00037 µW/cm² (Solarmeter Ratio = 9.89) Solarmeter AlGaN 6.5 UVI sensor 0.000309 UV Index GenUV 7.1 UV-Index 0.000287 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 35.6 W/m² Solarmeter 4.0 (UVA) 0.0178 mW/cm² LS122 (manuf.) 0.0295 W/m² ISM400 (first guess) 30.8 W/m² LS122 (assumption) 1.77 W/m² ISM400_new 27 W/m² Solarmeter 10.0 (Global Power) (assumption) 36.4 W/m²
