Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

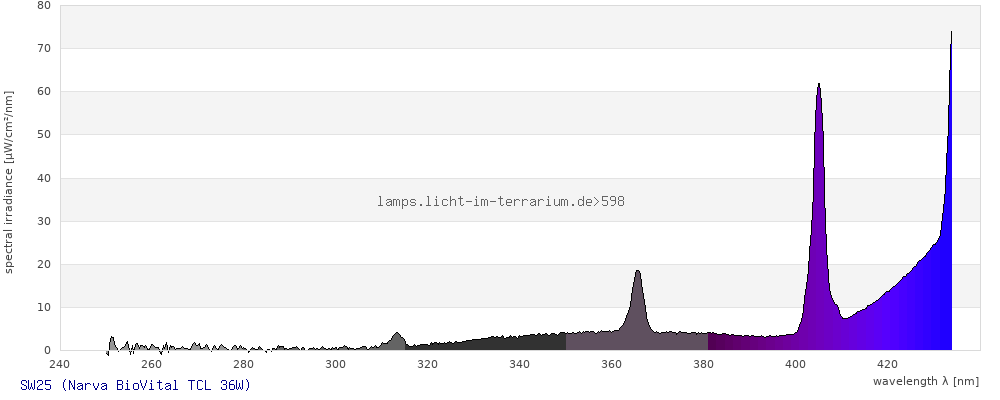

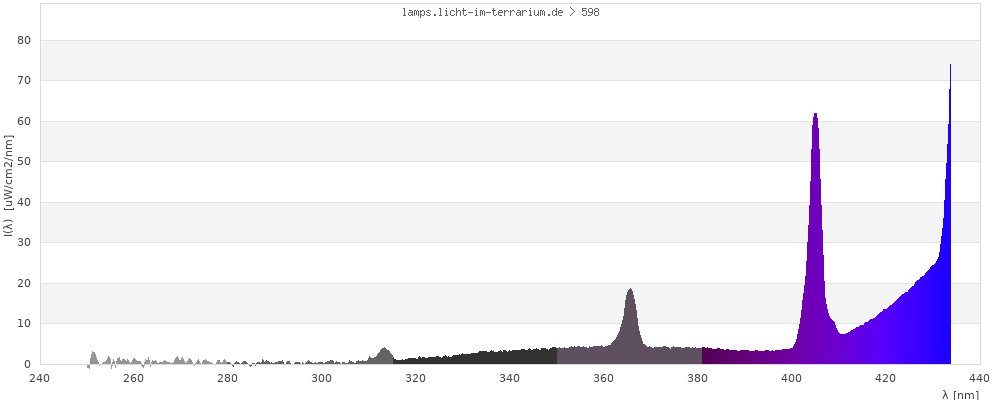

WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 249.956 - 433.716 nm. Results are shown anyway but should be ignored by anyone except experts.

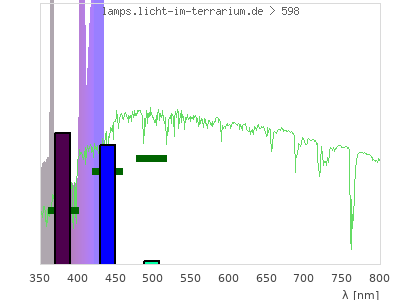

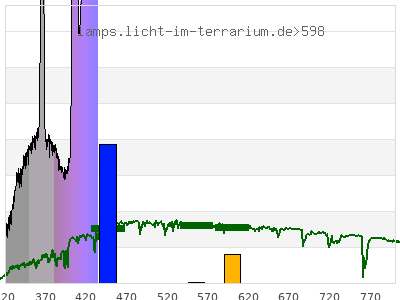

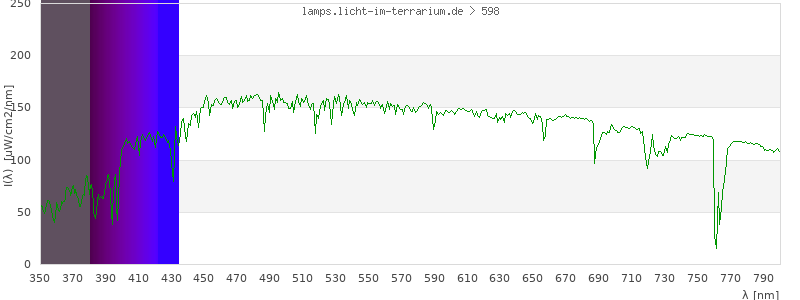

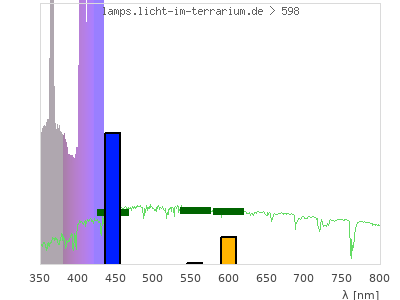

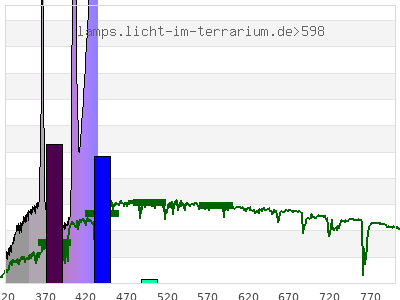

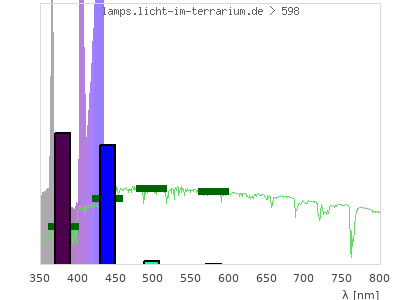

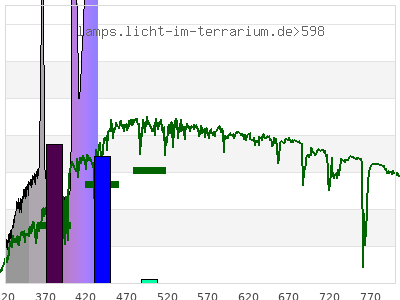

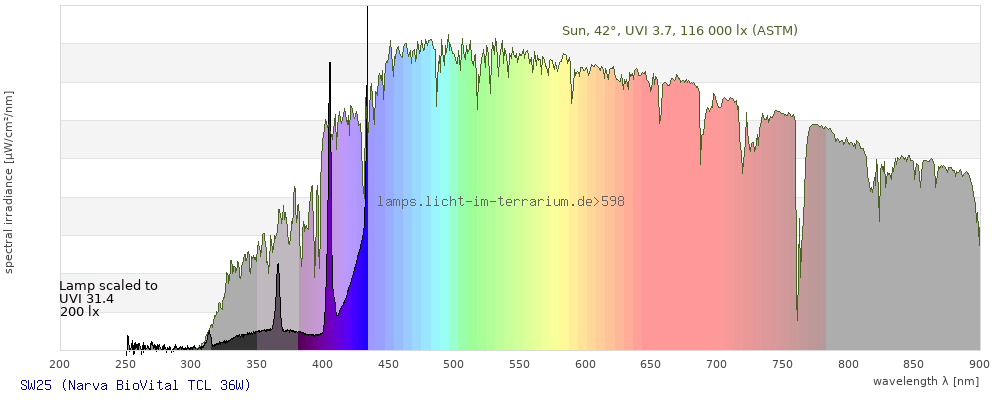

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.17 ; 0.0064 )	( 0.013 ; 0.47 )	( 0.0004 ; 0.013 ; 0.47 )
CCT	0 Kelvin	0 Kelvin	0 Kelvin
distance		0	0
colour space			3-D-graph not implemented yet

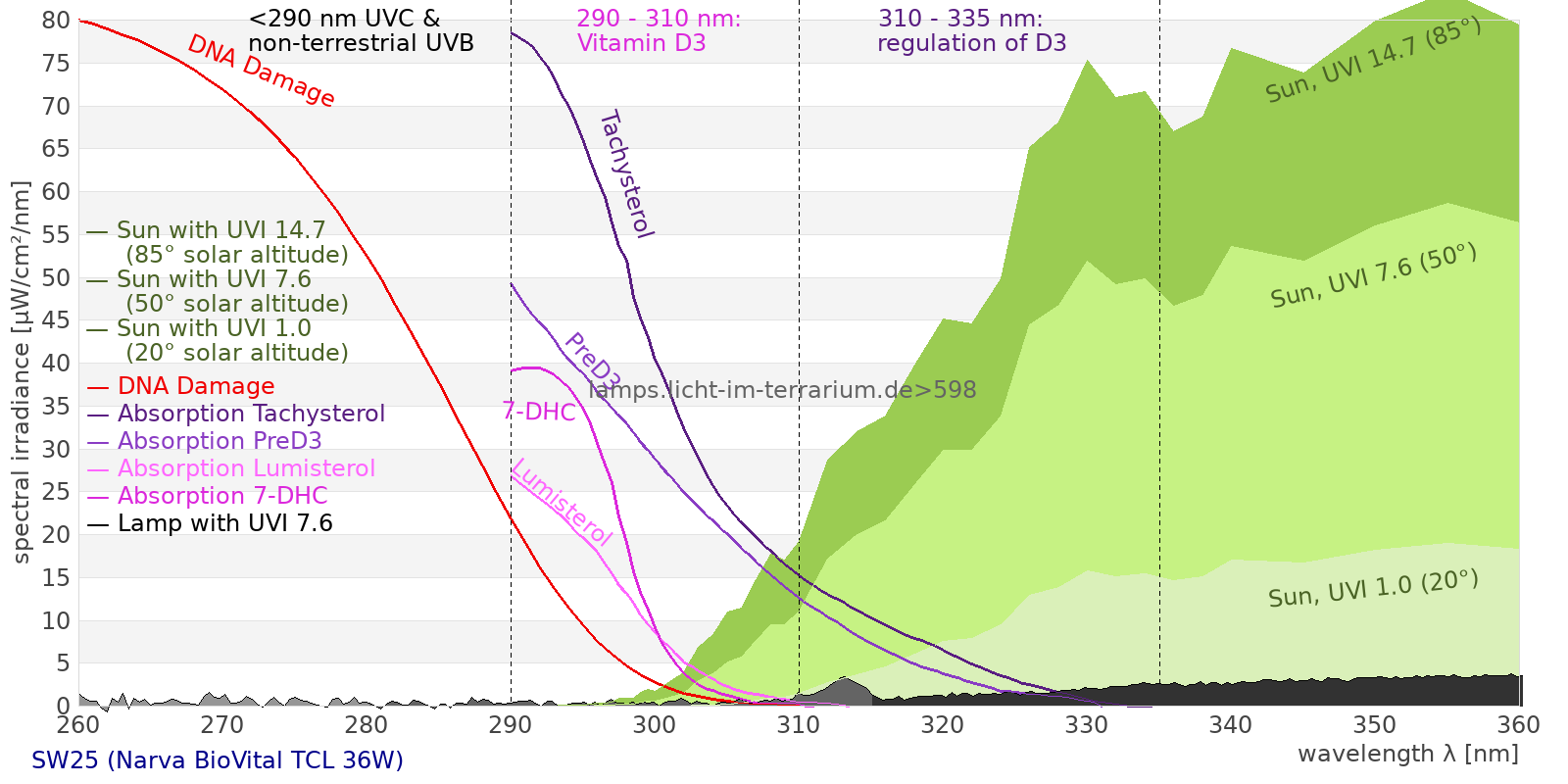

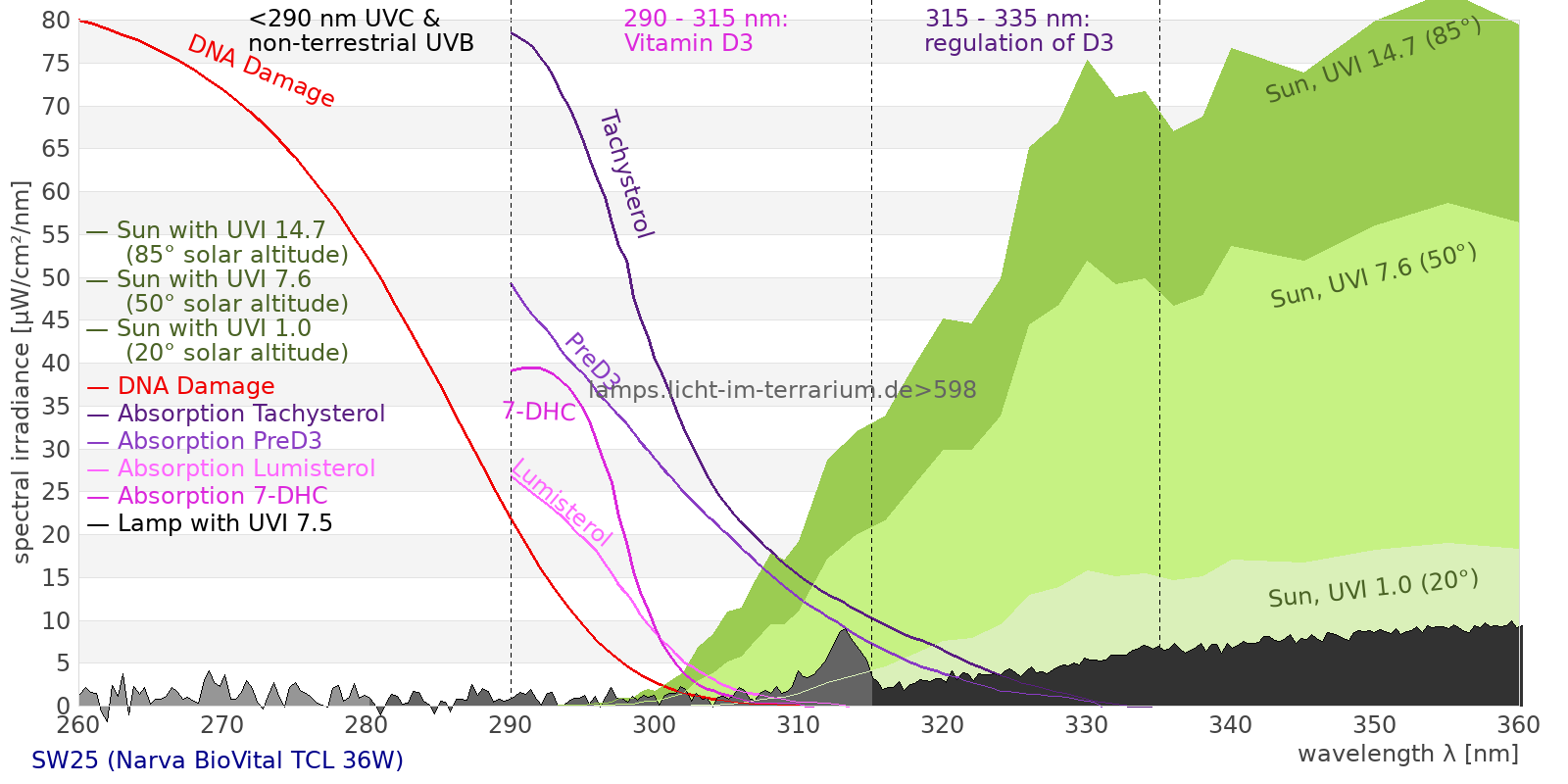

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

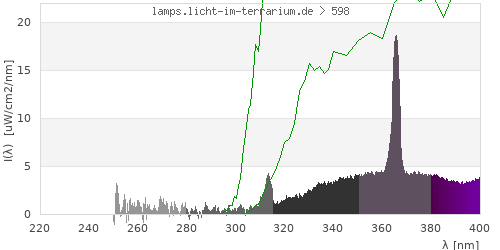

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	1060 µW/cm² = 10.6 W/m²
UVC ( 0 nm - 280 nm)	21.8 µW/cm² = 0.218 W/m²
non-terrestrial ( 0 nm - 290 nm)	25.3 µW/cm² = 0.253 W/m²
total2 ( 250 nm - 880 nm)	1060 µW/cm² = 10.6 W/m²
UVB (EU) ( 280 nm - 315 nm)	28.4 µW/cm² = 0.284 W/m²
UVB (US) ( 280 nm - 320 nm)	34.8 µW/cm² = 0.348 W/m²
UVA+B ( 280 nm - 380 nm)	295 µW/cm² = 2.95 W/m²
Solar UVB ( 290 nm - 315 nm)	24.9 µW/cm² = 0.249 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	40.3 µW/cm² = 0.403 W/m²
UVA (EU) ( 315 nm - 380 nm)	267 µW/cm² = 2.67 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	49 µW/cm² = 0.49 W/m²
UVA (US) ( 320 nm - 380 nm)	260 µW/cm² = 2.6 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	227 µW/cm² = 2.27 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	282 µW/cm² = 2.82 W/m²
vis. UVA ( 350 nm - 380 nm)	173 µW/cm² = 1.73 W/m²
VIS Rep3 ( 350 nm - 600 nm)	911 µW/cm² = 9.11 W/m²
VIS Rep4 ( 350 nm - 700 nm)	911 µW/cm² = 9.11 W/m²
purple ( 380 nm - 420 nm)	412 µW/cm² = 4.12 W/m²
VIS ( 380 nm - 780 nm)	738 µW/cm² = 7.38 W/m²
VIS2 ( 400 nm - 680 nm)	667 µW/cm² = 6.67 W/m²
PAR ( 400 nm - 700 nm)	667 µW/cm² = 6.67 W/m²
tmp ( 400 nm - 1100 nm)	667 µW/cm² = 6.67 W/m²
blue ( 420 nm - 490 nm)	327 µW/cm² = 3.27 W/m²
green ( 490 nm - 575 nm)	0 µW/cm² = 0 W/m²
yellow ( 575 nm - 585 nm)	0 µW/cm² = 0 W/m²
orange ( 585 nm - 650 nm)	0 µW/cm² = 0 W/m²
red ( 650 nm - 780 nm)	0 µW/cm² = 0 W/m²
IRA ( 700 nm - 1400 nm)	0 µW/cm² = 0 W/m²
IR2 ( 720 nm - 1100 nm)	0 µW/cm² = 0 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	12.9 UV-Index
Pyrimidine dimerization of DNA	13.5 µW/cm²
Photoceratitis	13.3 µW/cm²
Photoconjunctivitis	19.3 µW/cm²
DNA Damage	22
Vitamin D3	14.9 µW/cm²
Photosynthesis	538 µW/cm²
Luminosity	82.3 lx
Human L-Cone	10.6 µW/cm²
Human M-Cone	13.7 µW/cm²
Human S-Cone	298 µW/cm²
CIE X	91.5 µW/cm²
CIE Y	3.46 µW/cm²
CIE Z	444 µW/cm²
PAR	3790000 mol photons
Extinction preD3	243 e-3*m²/mol
Extinction Tachysterol	565 e-3*m²/mol
Exctincition PreD3	216000 m²/mol
Extinction Lumisterol	185 m²/mol
Exctincition Tachysterol	722000 m²/mol
Extinction 7DHC	218 m²/mol
L-Cone	0.597 µW/cm²
M-Cone	19.5 µW/cm²
S-Cone	705 µW/cm²
U-Cone	771 µW/cm²
UVR - ICNIRP 2004	21.9 Rel Biol Eff
Melatonin Supression	371 µW/cm²
Blue Light Hazard	425 µW/cm² (5160 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	15.1 µW/cm²
Lumen Reptil	2730 "pseudo-lx"
Vitamin D3 Degradation	13.9 µW/cm²
Actinic UV	21.8 µW/cm² (2650 mW/klm)
Exctincition Lumisterol	198000 m²/mol
Exctincition 7DHC	226000 m²/mol
Exctincition Toxisterols	95300 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	66.8 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	5.52
Leybold UVB	28.3 µW/cm²
Leybold UVA	197 µW/cm²
Leybold UVC	16.4 µW/cm²
DeltaOhm UVB	63.4 µW/cm²
DeltaOhm UVC	25.2 µW/cm²
Vernier UVB	14 µW/cm²
Vernier UVA	136 µW/cm²
Gröbel UVA	226 µW/cm²
Gröbel UVB	23.7 µW/cm²
Gröbel UVC	17.4 µW/cm²
Luxmeter	91.7 lx
Solarmeter 6.4 (D3)	17.2 IU/min
UVX-31	77.4 µW/cm²
IL UVB	0.0261 µW/cm²
IL UVA	235 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	4.54 UV-Index
Solarmeter 6.2 (UVB, post 2010)	30.9 µW/cm² (Solarmeter Ratio = 6.81)
Solarmeter AlGaN 6.5 UVI sensor	26.7 UV Index
GenUV 7.1 UV-Index	2.04 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	5.64 W/m²
Solarmeter 4.0 (UVA)	3.77 mW/cm²
LS122 (manuf.)	0 W/m²
ISM400 (first guess)	1.5 W/m²
LS122 (assumption)	0 W/m²
ISM400_new	0.844 W/m²
Solarmeter 10.0 (Global Power) (assumption)	3.49 W/m²
