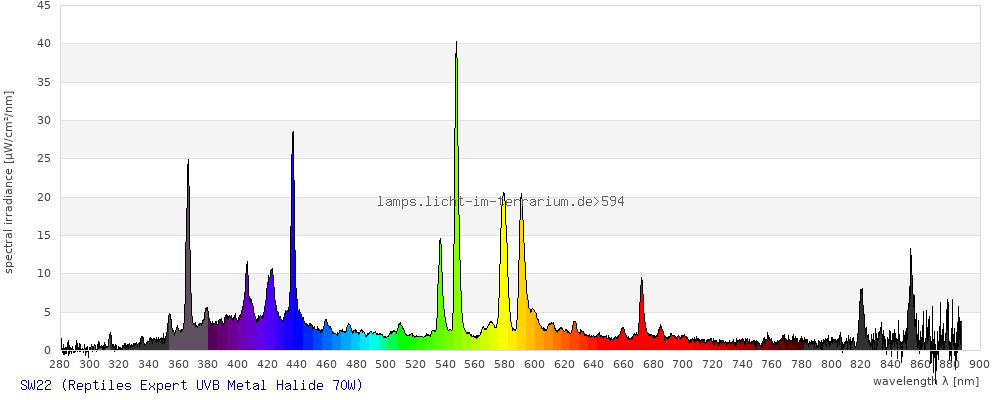

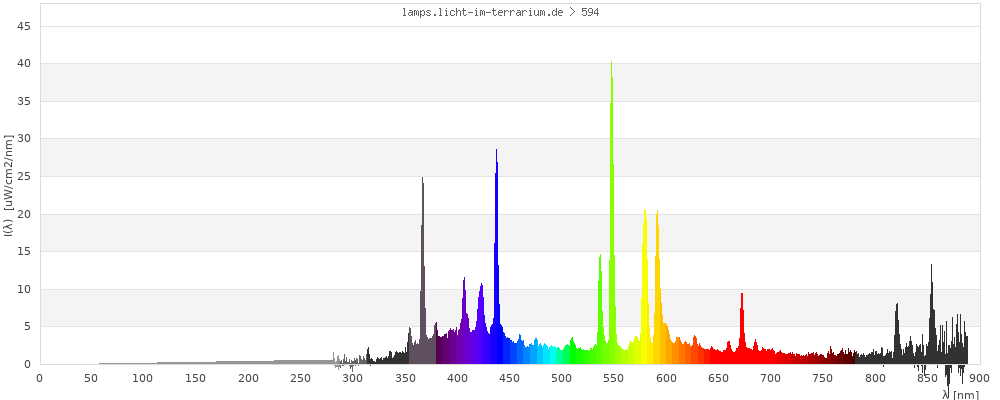

Spectrum 594: SW22 Edit
DeleteMeasurement
| Brand |
Reptiles Expert http://www.reptilesexpert.com/ |
|---|---|
| Lamp Product |
UVB Metal Halide 70W PAR 30, E27 |
| Lamp ID |
SW22 (01/2022) |
| Spectrometer | USB2000+ |
| Ballast | 70W EVG |
| Reflector | |
| Distance | 95 cm |
| Age | 103 hours |
| Originator (measurement) | Sarina Wunderlich |
Database entry created:
Sarina Wunderlich
19/Mar/2022 ; updated:
Sarina Wunderlich
19/Mar/2022
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

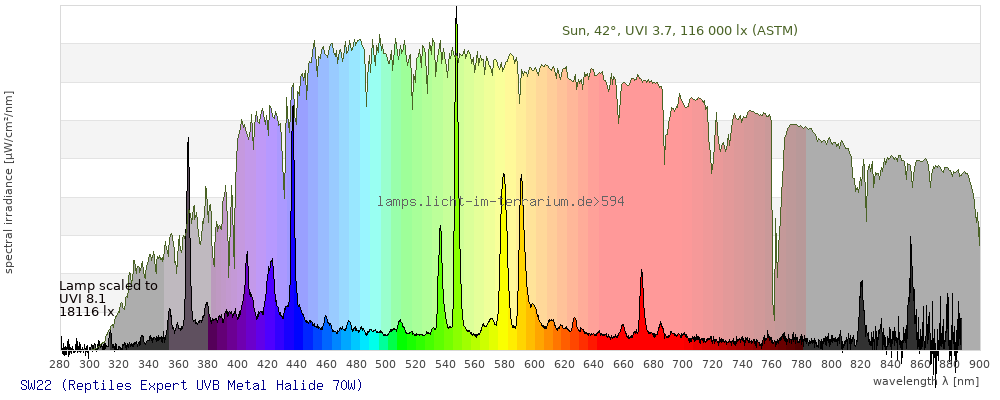

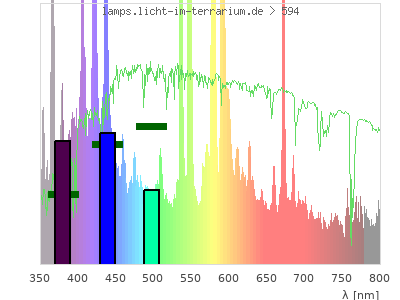

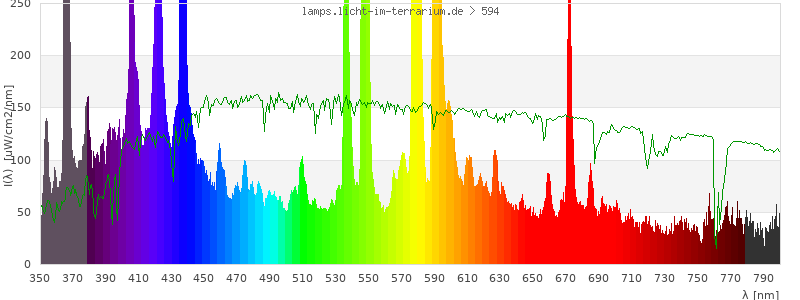

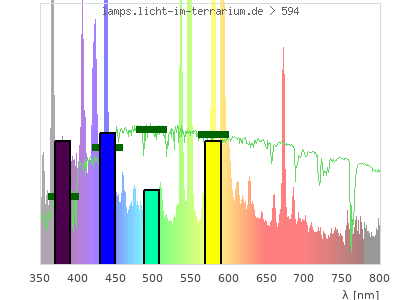

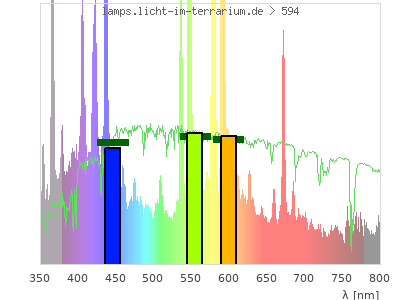

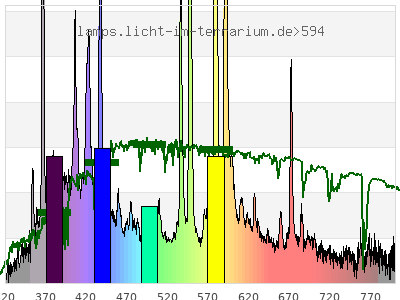

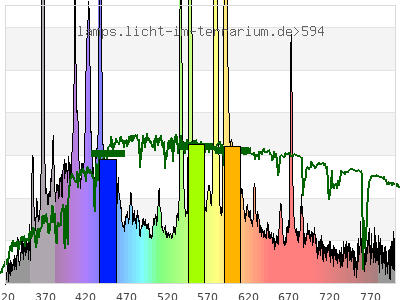

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

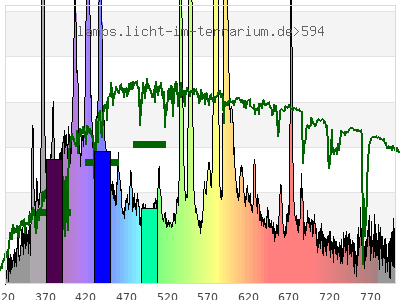

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.34 ; 0.35 ) | ( 0.23 ; 0.4 ) | ( 0.27 ; 0.17 ; 0.29 ) |
| CCT | 5100 Kelvin | 12000 Kelvin | 6300 Kelvin |
| distance | 0.072 | 0.1 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

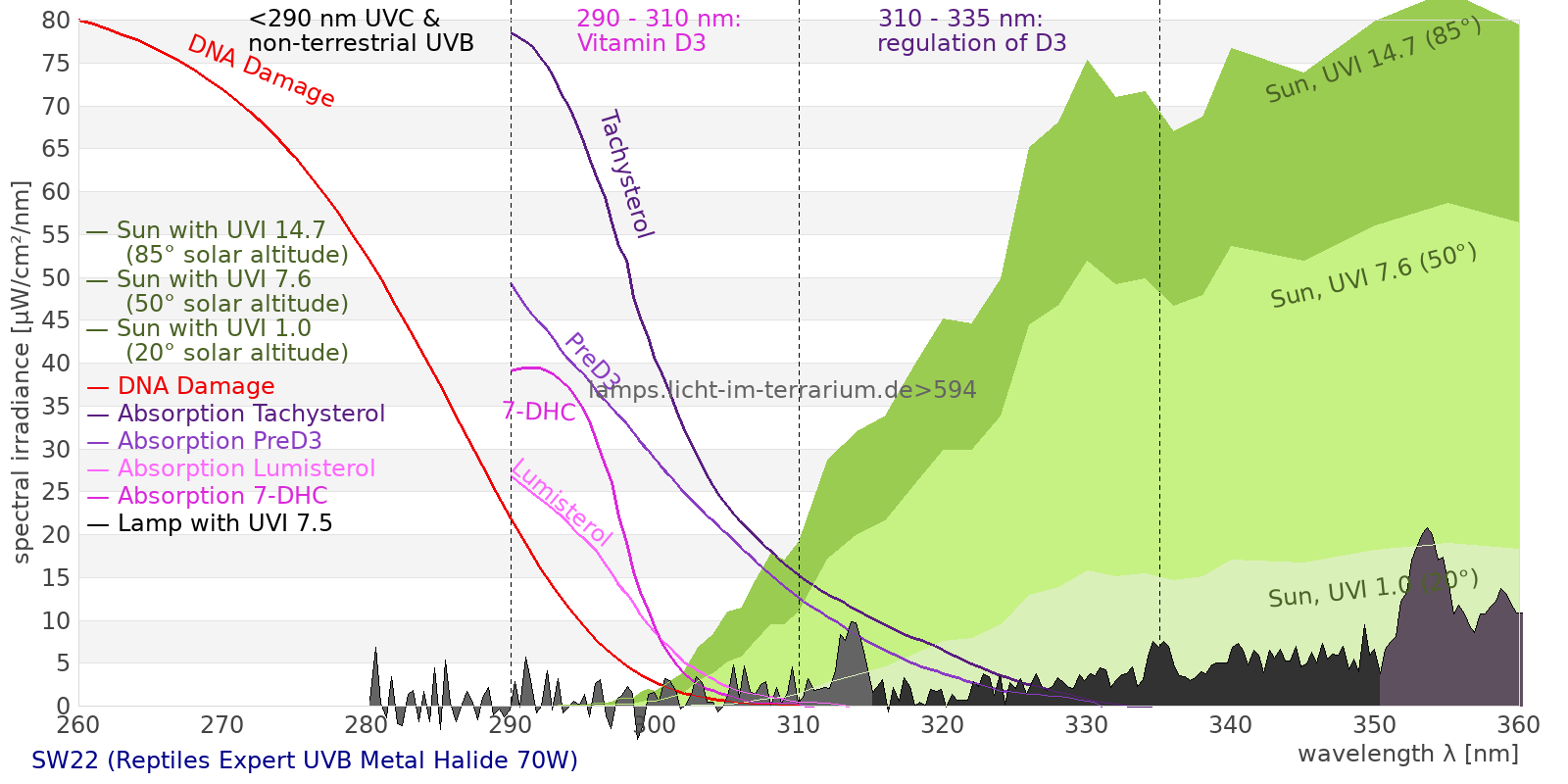

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

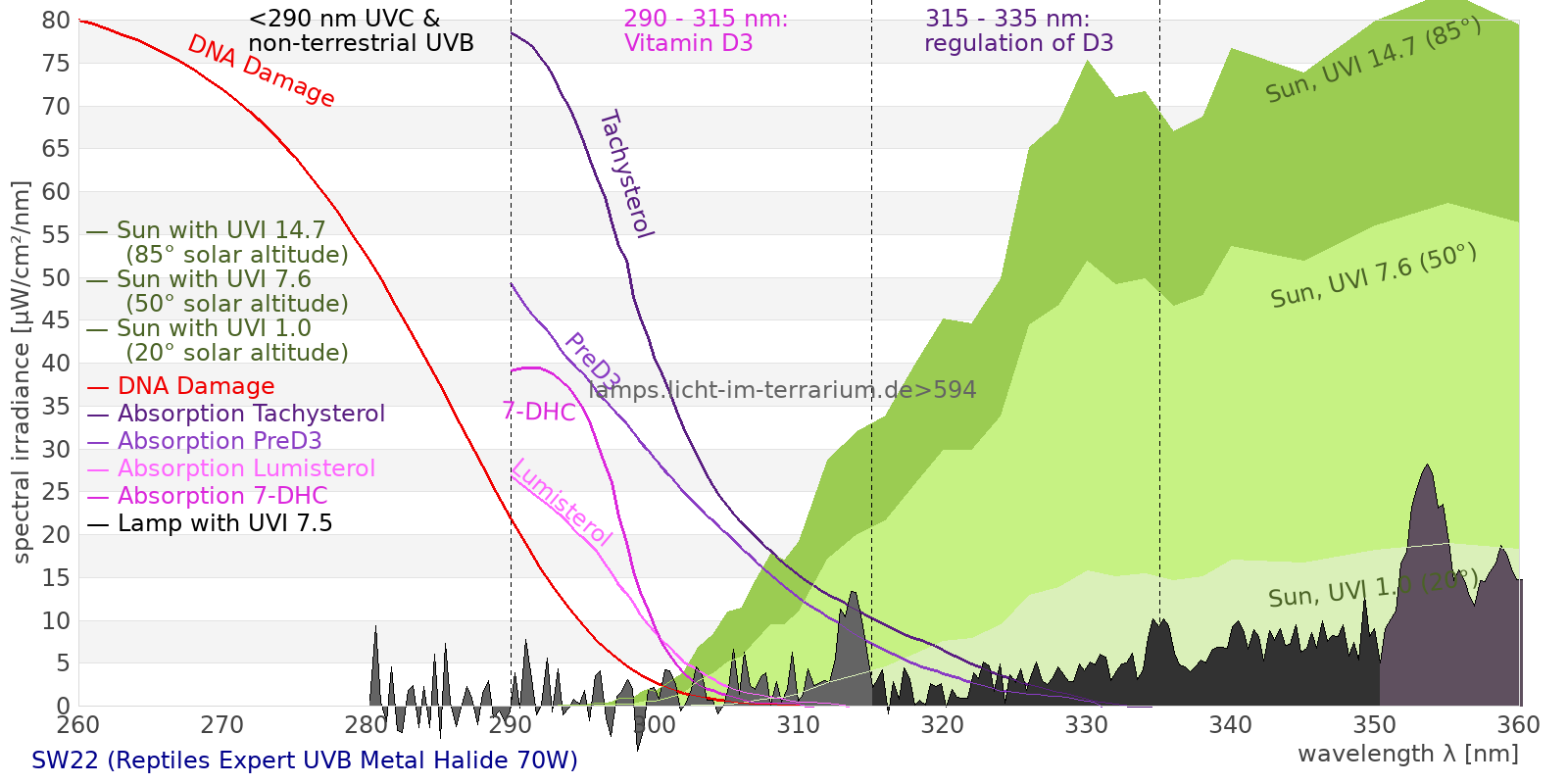

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 2020 µW/cm² = 20.2 W/m² UVC ( 0 nm - 280 nm) 102 µW/cm² = 1.02 W/m² non-terrestrial ( 0 nm - 290 nm) 158 µW/cm² = 1.58 W/m² total2 ( 250 nm - 880 nm) 1850 µW/cm² = 18.5 W/m² UVB (EU) ( 280 nm - 315 nm) 12.8 µW/cm² = 0.128 W/m² UVB (US) ( 280 nm - 320 nm) 14.5 µW/cm² = 0.145 W/m² UVA+B ( 280 nm - 380 nm) 201 µW/cm² = 2.01 W/m² Solar UVB ( 290 nm - 315 nm) 11.4 µW/cm² = 0.114 W/m² UVA D3 regulating ( 315 nm - 335 nm) 12.4 µW/cm² = 0.124 W/m² UVA (EU) ( 315 nm - 380 nm) 188 µW/cm² = 1.88 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 15.8 µW/cm² = 0.158 W/m² UVA (US) ( 320 nm - 380 nm) 187 µW/cm² = 1.87 W/m² UVA1 (variant) ( 335 nm - 380 nm) 176 µW/cm² = 1.76 W/m² UVA1 (medical) ( 340 nm - 400 nm) 249 µW/cm² = 2.49 W/m² vis. UVA ( 350 nm - 380 nm) 157 µW/cm² = 1.57 W/m² VIS Rep3 ( 350 nm - 600 nm) 1280 µW/cm² = 12.8 W/m² VIS Rep4 ( 350 nm - 700 nm) 1530 µW/cm² = 15.3 W/m² purple ( 380 nm - 420 nm) 198 µW/cm² = 1.98 W/m² VIS ( 380 nm - 780 nm) 1470 µW/cm² = 14.7 W/m² VIS2 ( 400 nm - 680 nm) 1260 µW/cm² = 12.6 W/m² PAR ( 400 nm - 700 nm) 1300 µW/cm² = 13 W/m² tmp ( 400 nm - 1100 nm) 1580 µW/cm² = 15.8 W/m² blue ( 420 nm - 490 nm) 324 µW/cm² = 3.24 W/m² green ( 490 nm - 575 nm) 358 µW/cm² = 3.58 W/m² yellow ( 575 nm - 585 nm) 114 µW/cm² = 1.14 W/m² orange ( 585 nm - 650 nm) 258 µW/cm² = 2.58 W/m² red ( 650 nm - 780 nm) 218 µW/cm² = 2.18 W/m² IRA ( 700 nm - 1400 nm) 288 µW/cm² = 2.88 W/m² IR2 ( 720 nm - 1100 nm) 261 µW/cm² = 2.61 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 1.8 UV-Index Pyrimidine dimerization of DNA 6.09 µW/cm² Photoceratitis 2.88 µW/cm² Photoconjunctivitis 0.495 µW/cm² DNA Damage 1.1 Vitamin D3 5.04 µW/cm² Photosynthesis 882 µW/cm² Luminosity 4050 lx Human L-Cone 610 µW/cm² Human M-Cone 496 µW/cm² Human S-Cone 290 µW/cm² CIE X 556 µW/cm² CIE Y 566 µW/cm² CIE Z 504 µW/cm² PAR 6160000 mol photons Extinction preD3 28.5 e-3*m²/mol Extinction Tachysterol 104 e-3*m²/mol Exctincition PreD3 18200 m²/mol Extinction Lumisterol 18.1 m²/mol Exctincition Tachysterol 142000 m²/mol Extinction 7DHC 23.9 m²/mol L-Cone 525 µW/cm² M-Cone 318 µW/cm² S-Cone 557 µW/cm² U-Cone 525 µW/cm² UVR - ICNIRP 2004 2.56 Rel Biol Eff Melatonin Supression 373 µW/cm² Blue Light Hazard 352 µW/cm² (86.8 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 5.34 µW/cm² Lumen Reptil 4270 "pseudo-lx" Vitamin D3 Degradation 4 µW/cm² Actinic UV 2.55 µW/cm² (6.29 mW/klm) Exctincition Lumisterol 21600 m²/mol Exctincition 7DHC 27000 m²/mol Exctincition Toxisterols 1850 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 18.3 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 1.7 Leybold UVB 11.4 µW/cm² Leybold UVA 138 µW/cm² Leybold UVC 0.042 µW/cm² DeltaOhm UVB 22.4 µW/cm² DeltaOhm UVC 3.33 µW/cm² Vernier UVB 6.01 µW/cm² Vernier UVA 77.8 µW/cm² Gröbel UVA 154 µW/cm² Gröbel UVB 8.7 µW/cm² Gröbel UVC 0.18 µW/cm² Luxmeter 4210 lx Solarmeter 6.4 (D3) 5.3 IU/min UVX-31 30.4 µW/cm² IL UVB 0.00847 µW/cm² IL UVA 173 µW/cm² Solarmeter 6.5 (UVI, post 2010) 1.09 UV-Index Solarmeter 6.2 (UVB, post 2010) 9.4 µW/cm² (Solarmeter Ratio = 8.66) Solarmeter AlGaN 6.5 UVI sensor 9.89 UV Index GenUV 7.1 UV-Index 0.557 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 19.3 W/m² Solarmeter 4.0 (UVA) 2.8 mW/cm² LS122 (manuf.) 0.423 W/m² ISM400 (first guess) 15.2 W/m² LS122 (assumption) 0.92 W/m² ISM400_new 14 W/m² Solarmeter 10.0 (Global Power) (assumption) 18.3 W/m²
