Spectrum 54: BZL1 Edit
DeleteMeasurement
| Brand |
R-Zilla Zilla Products http://www.zilla-rules.com |
|---|---|
| Lamp Product |
Desert 50 T5 18W |
| Lamp ID |
BZL1 (09/2007) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
4/Mar/2010 ; updated:
Sarina Wunderlich
9/Oct/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 250.17 - 780.01 nm. Results are shown anyway but should be ignored by anyone except experts.

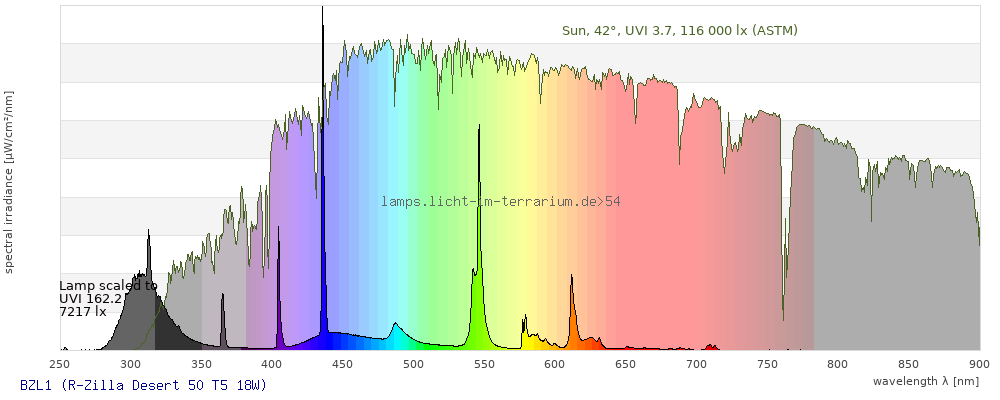

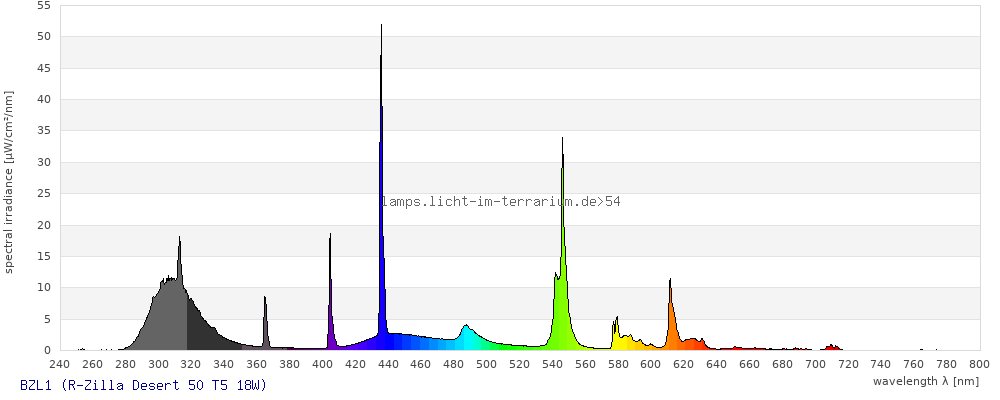

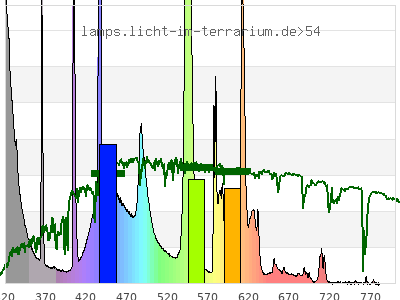

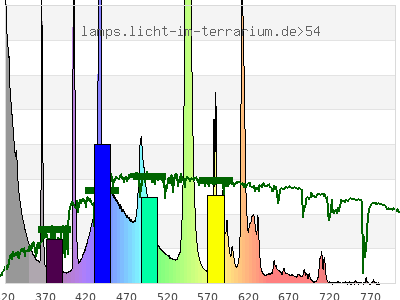

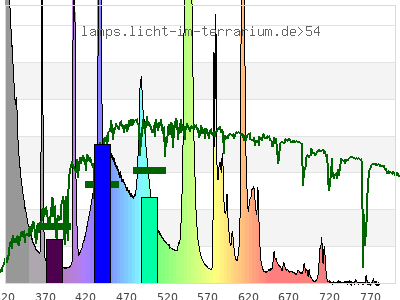

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.28 ; 0.31 ) | ( 0.32 ; 0.52 ) | ( 0.25 ; 0.24 ; 0.39 ) |
| CCT | 9100 Kelvin | 6600 Kelvin | 6200 Kelvin |
| distance | 0.17 | 0.13 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

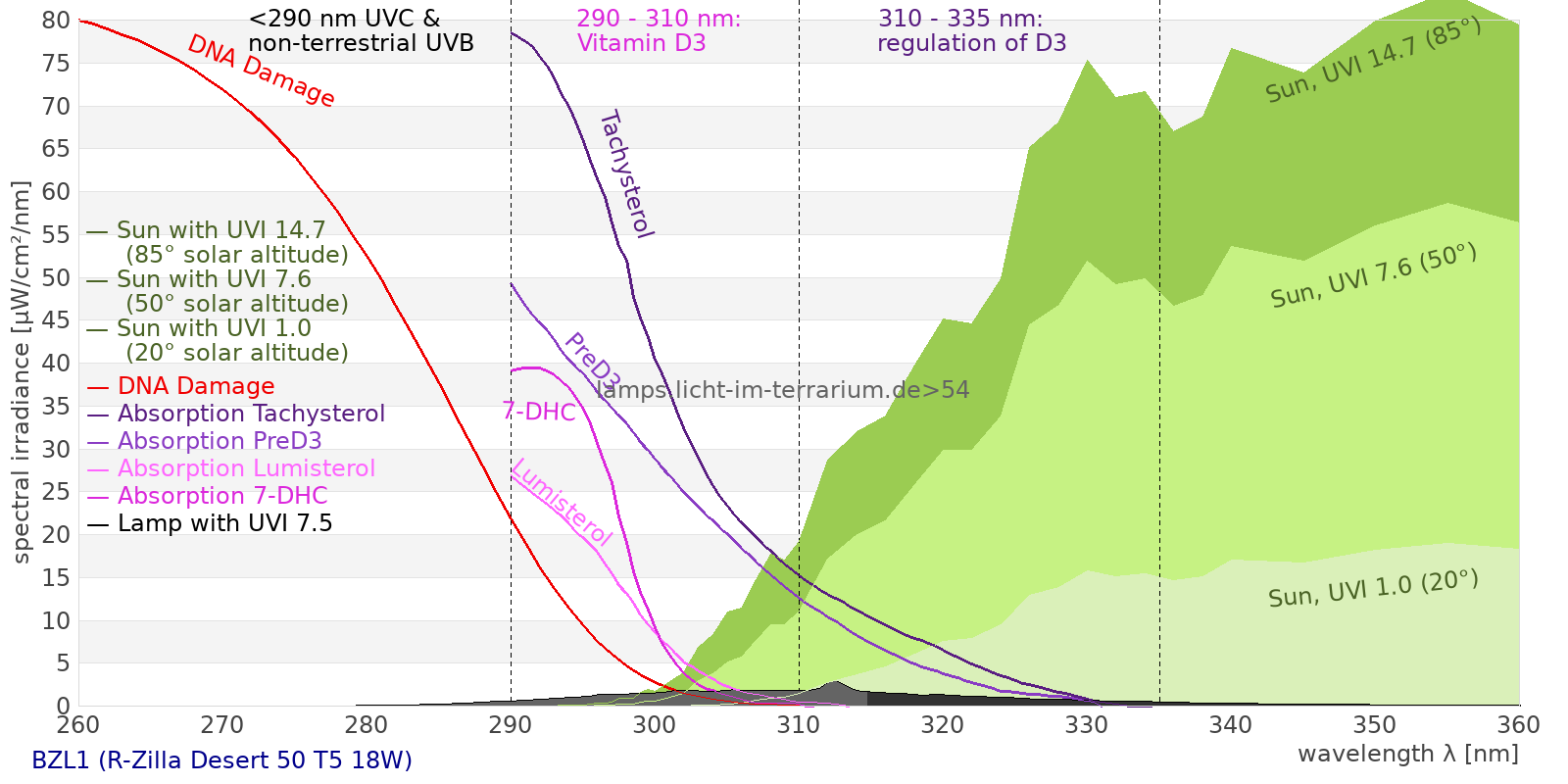

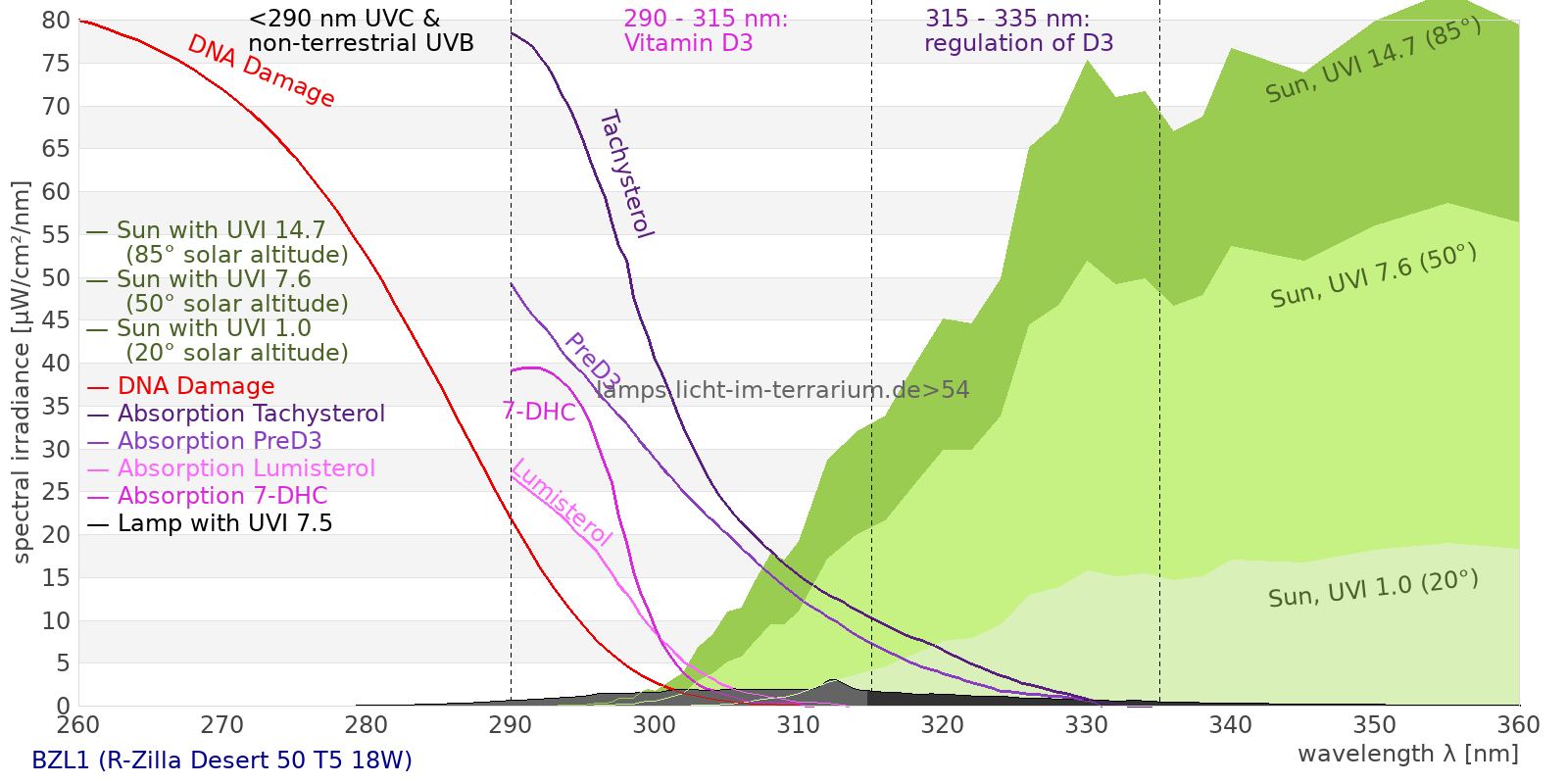

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 1140 µW/cm² = 11.4 W/m² UVC ( 0 nm - 280 nm) 2.17 µW/cm² = 0.0217 W/m² non-terrestrial ( 0 nm - 290 nm) 19.9 µW/cm² = 0.199 W/m² total2 ( 250 nm - 880 nm) 1140 µW/cm² = 11.4 W/m² UVB (EU) ( 280 nm - 315 nm) 264 µW/cm² = 2.64 W/m² UVB (US) ( 280 nm - 320 nm) 310 µW/cm² = 3.1 W/m² UVA+B ( 280 nm - 380 nm) 446 µW/cm² = 4.46 W/m² Solar UVB ( 290 nm - 315 nm) 246 µW/cm² = 2.46 W/m² UVA D3 regulating ( 315 nm - 335 nm) 121 µW/cm² = 1.21 W/m² UVA (EU) ( 315 nm - 380 nm) 182 µW/cm² = 1.82 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 87.7 µW/cm² = 0.877 W/m² UVA (US) ( 320 nm - 380 nm) 136 µW/cm² = 1.36 W/m² UVA1 (variant) ( 335 nm - 380 nm) 60.8 µW/cm² = 0.608 W/m² UVA1 (medical) ( 340 nm - 400 nm) 55.4 µW/cm² = 0.554 W/m² vis. UVA ( 350 nm - 380 nm) 34.2 µW/cm² = 0.342 W/m² VIS Rep3 ( 350 nm - 600 nm) 625 µW/cm² = 6.25 W/m² VIS Rep4 ( 350 nm - 700 nm) 722 µW/cm² = 7.22 W/m² purple ( 380 nm - 420 nm) 53 µW/cm² = 0.53 W/m² VIS ( 380 nm - 780 nm) 695 µW/cm² = 6.95 W/m² VIS2 ( 400 nm - 680 nm) 677 µW/cm² = 6.77 W/m² PAR ( 400 nm - 700 nm) 681 µW/cm² = 6.81 W/m² tmp ( 400 nm - 1100 nm) 688 µW/cm² = 6.88 W/m² blue ( 420 nm - 490 nm) 252 µW/cm² = 2.52 W/m² green ( 490 nm - 575 nm) 235 µW/cm² = 2.35 W/m² yellow ( 575 nm - 585 nm) 29.6 µW/cm² = 0.296 W/m² orange ( 585 nm - 650 nm) 105 µW/cm² = 1.05 W/m² red ( 650 nm - 780 nm) 21 µW/cm² = 0.21 W/m² IRA ( 700 nm - 1400 nm) 7.47 µW/cm² = 0.0747 W/m² IR2 ( 720 nm - 1100 nm) 1.18 µW/cm² = 0.0118 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 46.8 UV-Index Pyrimidine dimerization of DNA 156 µW/cm² Photoceratitis 72.4 µW/cm² Photoconjunctivitis 6.75 µW/cm² DNA Damage 17 Vitamin D3 146 µW/cm² Photosynthesis 470 µW/cm² Luminosity 2080 lx Human L-Cone 302 µW/cm² Human M-Cone 276 µW/cm² Human S-Cone 211 µW/cm² CIE X 263 µW/cm² CIE Y 290 µW/cm² CIE Z 387 µW/cm² PAR 3170000 mol photons Extinction preD3 630 e-3*m²/mol Extinction Tachysterol 2300 e-3*m²/mol Exctincition PreD3 358000 m²/mol Extinction Lumisterol 365 m²/mol Exctincition Tachysterol 2950000 m²/mol Extinction 7DHC 466 m²/mol L-Cone 241 µW/cm² M-Cone 237 µW/cm² S-Cone 382 µW/cm² U-Cone 121 µW/cm² UVR - ICNIRP 2004 58 Rel Biol Eff Melatonin Supression 267 µW/cm² Blue Light Hazard 239 µW/cm² (115 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 156 µW/cm² Lumen Reptil 2230 "pseudo-lx" Vitamin D3 Degradation 84.4 µW/cm² Actinic UV 57.4 µW/cm² (276 mW/klm) Exctincition Lumisterol 434000 m²/mol Exctincition 7DHC 549000 m²/mol Exctincition Toxisterols 36900 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 367 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 44 Leybold UVB 259 µW/cm² Leybold UVA 78.1 µW/cm² Leybold UVC 1.43 µW/cm² DeltaOhm UVB 321 µW/cm² DeltaOhm UVC 64 µW/cm² Vernier UVB 161 µW/cm² Vernier UVA 166 µW/cm² Gröbel UVA 155 µW/cm² Gröbel UVB 206 µW/cm² Gröbel UVC 2.07 µW/cm² Luxmeter 2180 lx Solarmeter 6.4 (D3) 137 IU/min UVX-31 342 µW/cm² IL UVB 0.164 µW/cm² IL UVA 107 µW/cm² Solarmeter 6.5 (UVI, post 2010) 29.1 UV-Index Solarmeter 6.2 (UVB, post 2010) 183 µW/cm² (Solarmeter Ratio = 6.3) Solarmeter AlGaN 6.5 UVI sensor 232 UV Index GenUV 7.1 UV-Index 11.7 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 8.18 W/m² Solarmeter 4.0 (UVA) 1.59 mW/cm² LS122 (manuf.) 0 W/m² ISM400 (first guess) 4.13 W/m² LS122 (assumption) 0.192 W/m² ISM400_new 3.13 W/m² Solarmeter 10.0 (Global Power) (assumption) 6.76 W/m²
