Fake 5%UVB lamp (actually a warm white household lamp)

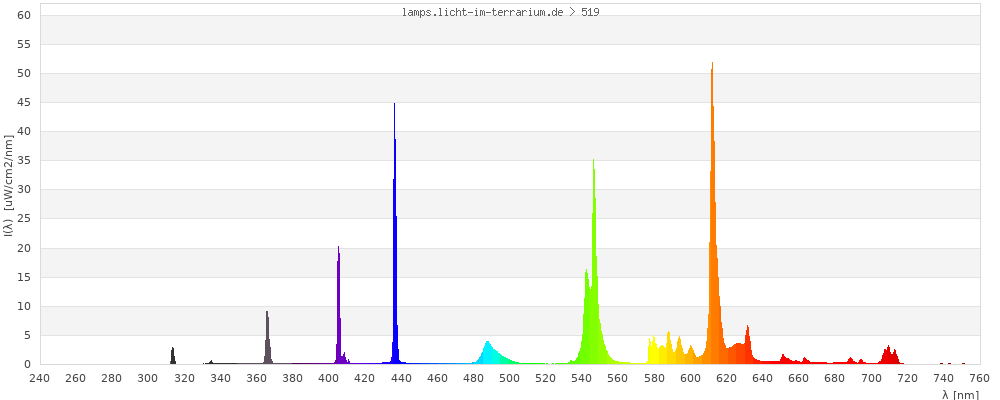

Spectrum 519: BTQ3 Edit
DeleteMeasurement
| Brand |
Chinese manufacturer |
|---|---|
| Lamp Product |
Mini Compact Coil Warm white compact lamp |
| Lamp ID |
BTQ3 (06/2015) Fake 5%UVB lamp (actually a warm white household lamp) |
| Spectrometer | USB2000+ (2) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Frances Baines
21/Jun/2015 ; updated:
Frances Baines
21/Jun/2015

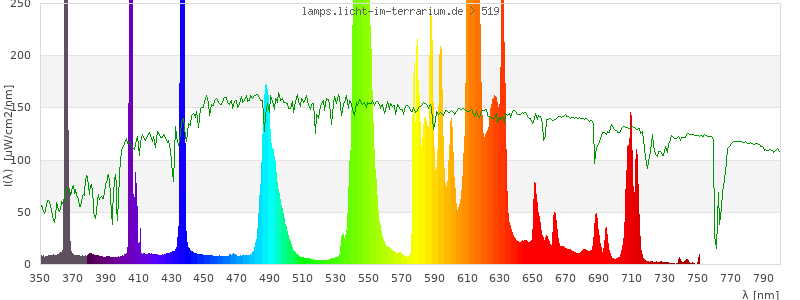

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 250.23 - 750.88 nm. Results are shown anyway but should be ignored by anyone except experts.

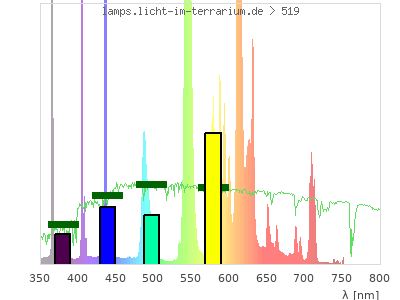

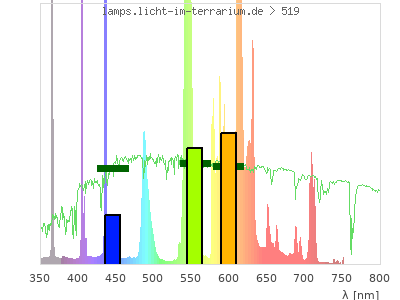

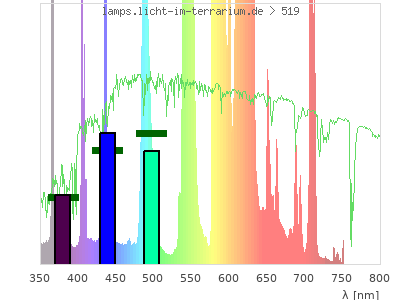

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.44 ; 0.39 ) | ( 0.36 ; 0.42 ) | ( 0.49 ; 0.18 ; 0.21 ) |
| CCT | 2800 Kelvin | 5700 Kelvin | 3000 Kelvin |
| distance | 0.075 | 0.12 | |
| colour space | 3-D-graph not implemented yet |

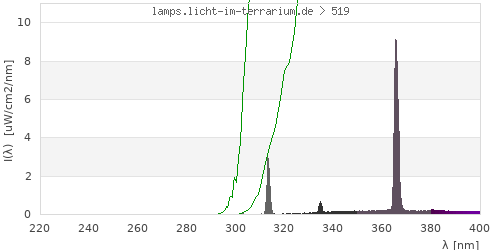

Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 767 µW/cm² = 7.67 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 767 µW/cm² = 7.67 W/m² UVB (EU) ( 280 nm - 315 nm) 4.76 µW/cm² = 0.0476 W/m² UVB (US) ( 280 nm - 320 nm) 4.84 µW/cm² = 0.0484 W/m² UVA+B ( 280 nm - 380 nm) 31.1 µW/cm² = 0.311 W/m² Solar UVB ( 290 nm - 315 nm) 4.76 µW/cm² = 0.0476 W/m² UVA D3 regulating ( 315 nm - 335 nm) 1.69 µW/cm² = 0.0169 W/m² UVA (EU) ( 315 nm - 380 nm) 26.4 µW/cm² = 0.264 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 2.34 µW/cm² = 0.0234 W/m² UVA (US) ( 320 nm - 380 nm) 26.3 µW/cm² = 0.263 W/m² UVA1 (variant) ( 335 nm - 380 nm) 24.7 µW/cm² = 0.247 W/m² UVA1 (medical) ( 340 nm - 400 nm) 27.4 µW/cm² = 0.274 W/m² vis. UVA ( 350 nm - 380 nm) 22.4 µW/cm² = 0.224 W/m² VIS Rep3 ( 350 nm - 600 nm) 444 µW/cm² = 4.44 W/m² VIS Rep4 ( 350 nm - 700 nm) 736 µW/cm² = 7.36 W/m² purple ( 380 nm - 420 nm) 38.9 µW/cm² = 0.389 W/m² VIS ( 380 nm - 780 nm) 736 µW/cm² = 7.36 W/m² VIS2 ( 400 nm - 680 nm) 701 µW/cm² = 7.01 W/m² PAR ( 400 nm - 700 nm) 710 µW/cm² = 7.1 W/m² tmp ( 400 nm - 1100 nm) 732 µW/cm² = 7.32 W/m² blue ( 420 nm - 490 nm) 102 µW/cm² = 1.02 W/m² green ( 490 nm - 575 nm) 206 µW/cm² = 2.06 W/m² yellow ( 575 nm - 585 nm) 29.4 µW/cm² = 0.294 W/m² orange ( 585 nm - 650 nm) 311 µW/cm² = 3.11 W/m² red ( 650 nm - 780 nm) 48 µW/cm² = 0.48 W/m² IRA ( 700 nm - 1400 nm) 22.7 µW/cm² = 0.227 W/m² IR2 ( 720 nm - 1100 nm) 1.5 µW/cm² = 0.015 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.0851 UV-Index Pyrimidine dimerization of DNA 1.4 µW/cm² Photoceratitis 0.219 µW/cm² Photoconjunctivitis 0.00025 µW/cm² DNA Damage 0.00238 Vitamin D3 0.415 µW/cm² Photosynthesis 451 µW/cm² Luminosity 2650 lx Human L-Cone 418 µW/cm² Human M-Cone 285 µW/cm² Human S-Cone 86 µW/cm² CIE X 414 µW/cm² CIE Y 368 µW/cm² CIE Z 156 µW/cm² PAR 3540000 mol photons Extinction preD3 4.12 e-3*m²/mol Extinction Tachysterol 13.9 e-3*m²/mol Exctincition PreD3 1830 m²/mol Extinction Lumisterol 0.102 m²/mol Exctincition Tachysterol 18500 m²/mol Extinction 7DHC 0.0268 m²/mol L-Cone 376 µW/cm² M-Cone 142 µW/cm² S-Cone 164 µW/cm² U-Cone 86.2 µW/cm² UVR - ICNIRP 2004 0.0385 Rel Biol Eff Melatonin Supression 119 µW/cm² Blue Light Hazard 99.6 µW/cm² (37.6 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.406 µW/cm² Lumen Reptil 1990 "pseudo-lx" Vitamin D3 Degradation 0.775 µW/cm² Actinic UV 0.0383 µW/cm² (0.144 mW/klm) Exctincition Lumisterol 396 m²/mol Exctincition 7DHC 122 m²/mol Exctincition Toxisterols 285 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 4.75 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.105 Leybold UVB 3.88 µW/cm² Leybold UVA 19 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 5.8 µW/cm² DeltaOhm UVC 0.751 µW/cm² Vernier UVB 1.17 µW/cm² Vernier UVA 12.4 µW/cm² Gröbel UVA 23.6 µW/cm² Gröbel UVB 1.89 µW/cm² Gröbel UVC -0.00226 µW/cm² Luxmeter 2560 lx Solarmeter 6.4 (D3) 0.328 IU/min UVX-31 7.12 µW/cm² IL UVB 0.00179 µW/cm² IL UVA 24.7 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.109 UV-Index Solarmeter 6.2 (UVB, post 2010) 2.77 µW/cm² (Solarmeter Ratio = 25.4) Solarmeter AlGaN 6.5 UVI sensor 2.8 UV Index GenUV 7.1 UV-Index 0.148 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 8.35 W/m² Solarmeter 4.0 (UVA) 0.385 mW/cm² LS122 (manuf.) 0 W/m² ISM400 (first guess) 6.08 W/m² LS122 (assumption) 0.362 W/m² ISM400_new 4.97 W/m² Solarmeter 10.0 (Global Power) (assumption) 8.25 W/m²
