Reserve lamp 100h use
Spectrum 492: JBL-R1 Edit
DeleteMeasurement
| Brand |
JBL JBL GmbH & Co. KG http://www.jbl.de/ |
|---|---|
| Lamp Product |
Reptil Desert UV 480 Research project c/o Oonincx et al 2012 |
| Lamp ID |
JBL-R1 (04/2014) Reserve lamp |
| Spectrometer | USB2000+ (2) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 100 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Frances Baines
29/Apr/2014 ; updated:
Frances Baines
29/Apr/2014
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

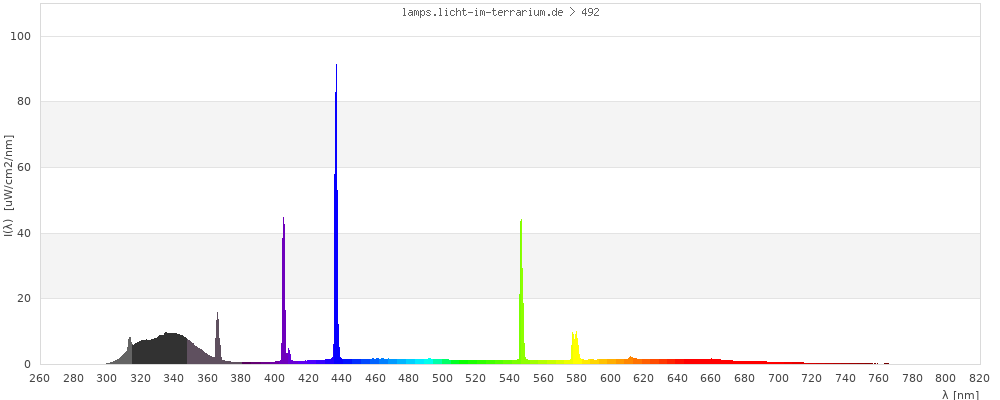

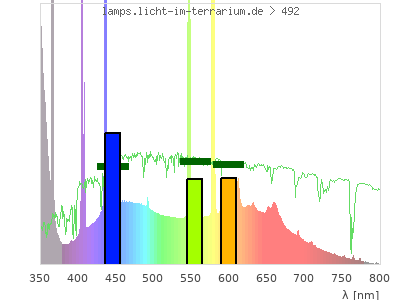

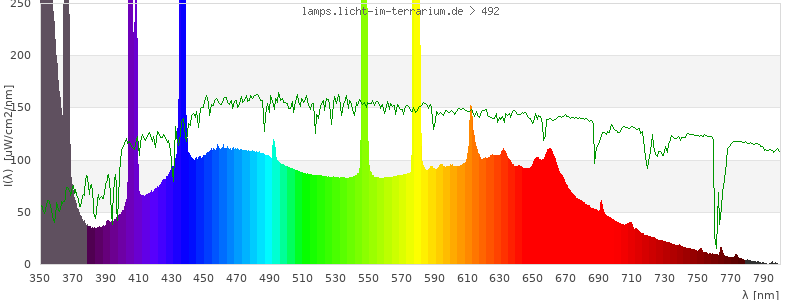

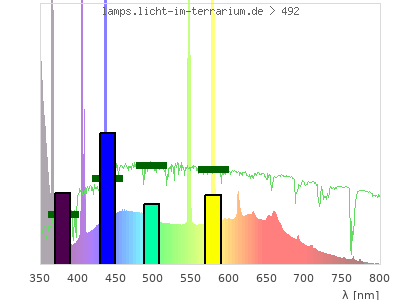

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

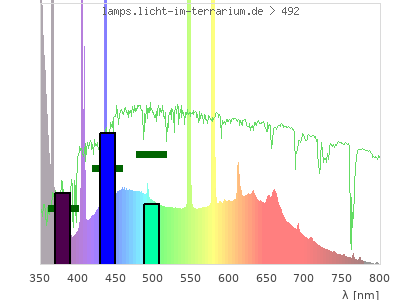

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.28 ) | ( 0.23 ; 0.5 ) | ( 0.21 ; 0.18 ; 0.39 ) |
| CCT | 9800 Kelvin | 10000 Kelvin | 8700 Kelvin |
| distance | 0.17 | 0.13 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

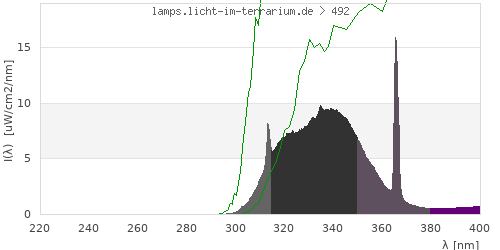

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 1150 µW/cm² = 11.5 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 1150 µW/cm² = 11.5 W/m² UVB (EU) ( 280 nm - 315 nm) 44 µW/cm² = 0.44 W/m² UVB (US) ( 280 nm - 320 nm) 75.1 µW/cm² = 0.751 W/m² UVA+B ( 280 nm - 380 nm) 424 µW/cm² = 4.24 W/m² Solar UVB ( 290 nm - 315 nm) 44 µW/cm² = 0.44 W/m² UVA D3 regulating ( 315 nm - 335 nm) 152 µW/cm² = 1.52 W/m² UVA (EU) ( 315 nm - 380 nm) 380 µW/cm² = 3.8 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 170 µW/cm² = 1.7 W/m² UVA (US) ( 320 nm - 380 nm) 348 µW/cm² = 3.48 W/m² UVA1 (variant) ( 335 nm - 380 nm) 227 µW/cm² = 2.27 W/m² UVA1 (medical) ( 340 nm - 400 nm) 191 µW/cm² = 1.91 W/m² vis. UVA ( 350 nm - 380 nm) 96.4 µW/cm² = 0.964 W/m² VIS Rep3 ( 350 nm - 600 nm) 669 µW/cm² = 6.69 W/m² VIS Rep4 ( 350 nm - 700 nm) 801 µW/cm² = 8.01 W/m² purple ( 380 nm - 420 nm) 96.2 µW/cm² = 0.962 W/m² VIS ( 380 nm - 780 nm) 728 µW/cm² = 7.28 W/m² VIS2 ( 400 nm - 680 nm) 677 µW/cm² = 6.77 W/m² PAR ( 400 nm - 700 nm) 692 µW/cm² = 6.92 W/m² tmp ( 400 nm - 1100 nm) 716 µW/cm² = 7.16 W/m² blue ( 420 nm - 490 nm) 231 µW/cm² = 2.31 W/m² green ( 490 nm - 575 nm) 184 µW/cm² = 1.84 W/m² yellow ( 575 nm - 585 nm) 39.8 µW/cm² = 0.398 W/m² orange ( 585 nm - 650 nm) 98.3 µW/cm² = 0.983 W/m² red ( 650 nm - 780 nm) 77.7 µW/cm² = 0.777 W/m² IRA ( 700 nm - 1400 nm) 23.6 µW/cm² = 0.236 W/m² IR2 ( 720 nm - 1100 nm) 13.1 µW/cm² = 0.131 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 2.01 UV-Index Pyrimidine dimerization of DNA 27 µW/cm² Photoceratitis 3.22 µW/cm² Photoconjunctivitis 0.0356 µW/cm² DNA Damage 0.117 Vitamin D3 9.14 µW/cm² Photosynthesis 495 µW/cm² Luminosity 1750 lx Human L-Cone 258 µW/cm² Human M-Cone 225 µW/cm² Human S-Cone 209 µW/cm² CIE X 248 µW/cm² CIE Y 243 µW/cm² CIE Z 375 µW/cm² PAR 3500000 mol photons Extinction preD3 76 e-3*m²/mol Extinction Tachysterol 273 e-3*m²/mol Exctincition PreD3 36800 m²/mol Extinction Lumisterol 6.04 m²/mol Exctincition Tachysterol 416000 m²/mol Extinction 7DHC 3.65 m²/mol L-Cone 214 µW/cm² M-Cone 184 µW/cm² S-Cone 402 µW/cm² U-Cone 218 µW/cm² UVR - ICNIRP 2004 1.27 Rel Biol Eff Melatonin Supression 259 µW/cm² Blue Light Hazard 240 µW/cm² (137 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 10 µW/cm² Lumen Reptil 2200 "pseudo-lx" Vitamin D3 Degradation 14.4 µW/cm² Actinic UV 1.26 µW/cm² (7.23 mW/klm) Exctincition Lumisterol 10600 m²/mol Exctincition 7DHC 5430 m²/mol Exctincition Toxisterols 7460 m²/mol
