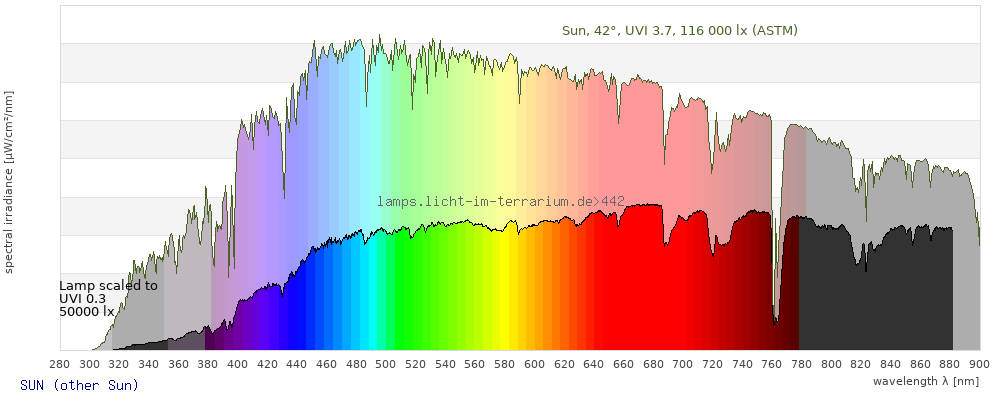

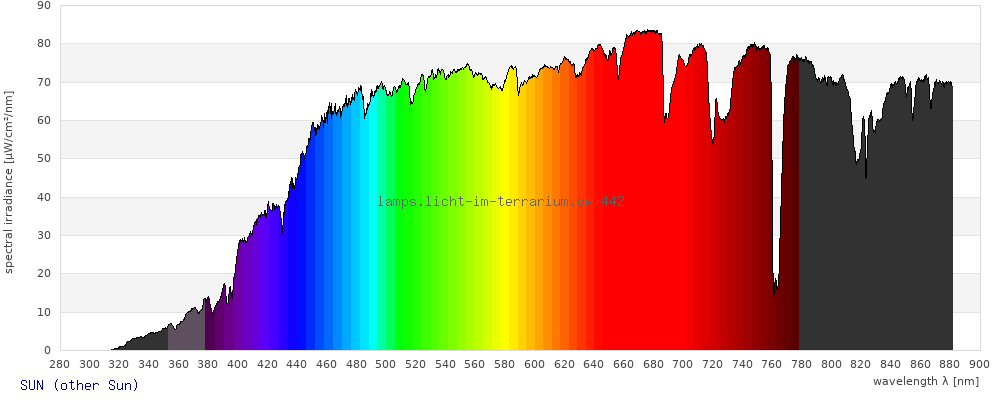

2007-05-02; 18:08 (solar altitude 12.3)
direct sun
Corrected data with value at 290nm converted to zero to loer baseline, and all negative values to zero
Spectrum 442: SUN Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
Sun Direct sunlight |
| Lamp ID |
SUN (01/2000) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 0 cm |
| Age | 0 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
12/Jan/2012 ; updated:
Sarina Wunderlich
12/Jan/2012
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

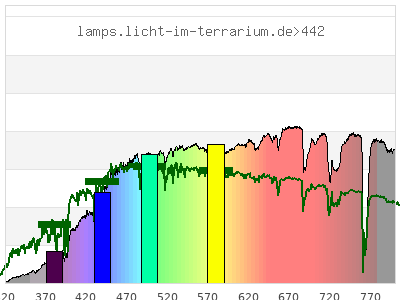

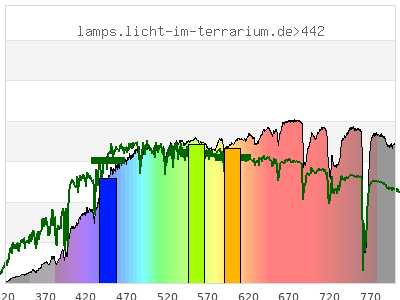

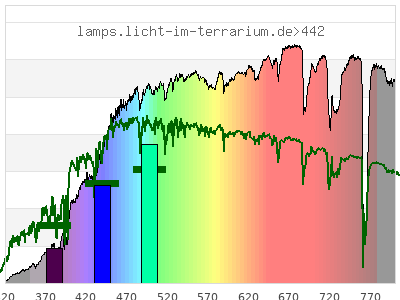

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.36 ; 0.37 ) | ( 0.51 ; 0.36 ) | ( 0.36 ; 0.33 ; 0.23 ) |
| CCT | 4700 Kelvin | 3600 Kelvin | 4100 Kelvin |
| distance | 0.04 | 0.044 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

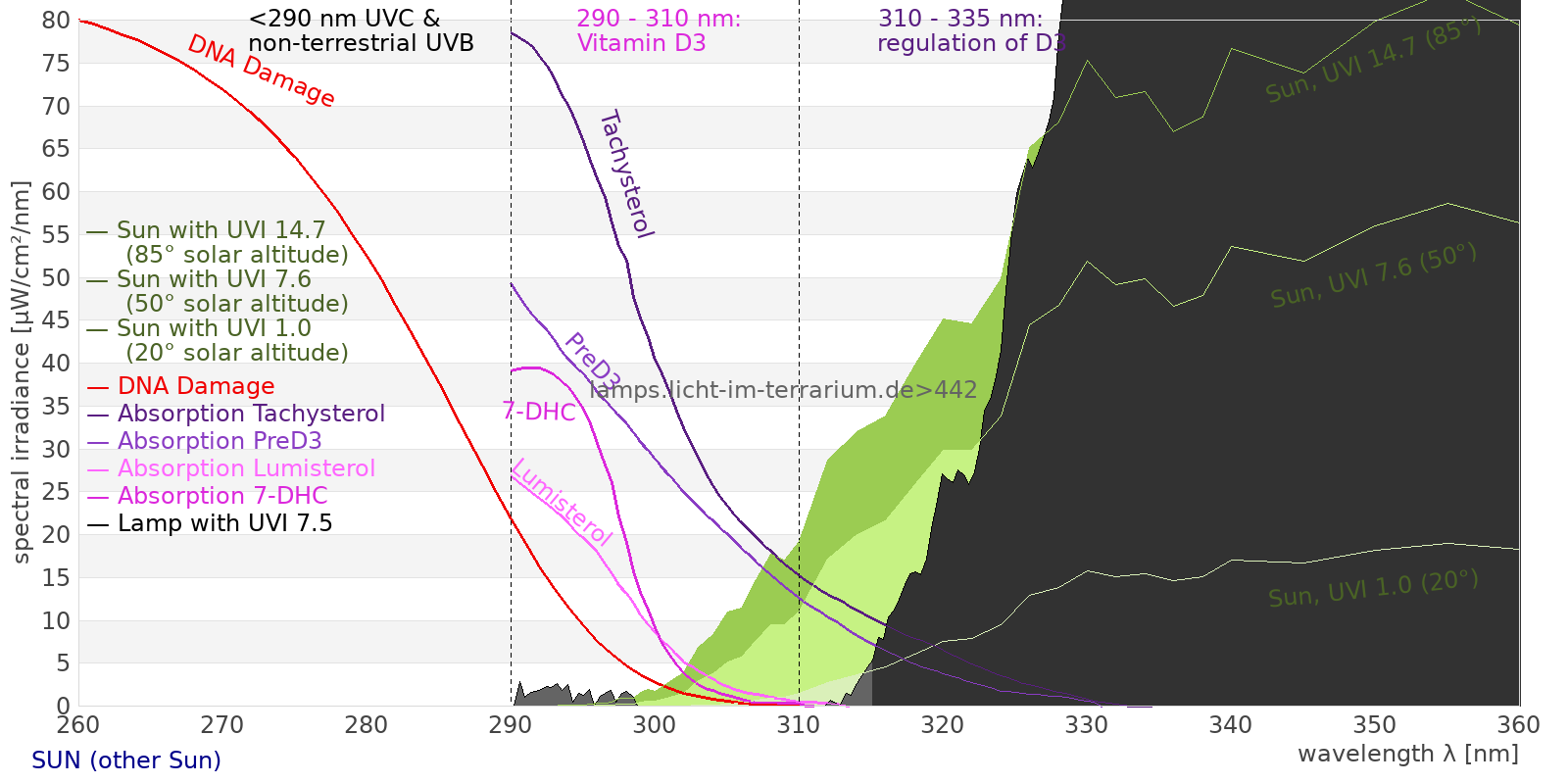

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 32800 µW/cm² = 328 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 32700 µW/cm² = 327 W/m² UVB (EU) ( 280 nm - 315 nm) 0.713 µW/cm² = 0.00713 W/m² UVB (US) ( 280 nm - 320 nm) 3.64 µW/cm² = 0.0364 W/m² UVA+B ( 280 nm - 380 nm) 382 µW/cm² = 3.82 W/m² Solar UVB ( 290 nm - 315 nm) 0.713 µW/cm² = 0.00713 W/m² UVA D3 regulating ( 315 nm - 335 nm) 39.6 µW/cm² = 0.396 W/m² UVA (EU) ( 315 nm - 380 nm) 381 µW/cm² = 3.81 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 56.8 µW/cm² = 0.568 W/m² UVA (US) ( 320 nm - 380 nm) 378 µW/cm² = 3.78 W/m² UVA1 (variant) ( 335 nm - 380 nm) 342 µW/cm² = 3.42 W/m² UVA1 (medical) ( 340 nm - 400 nm) 624 µW/cm² = 6.24 W/m² vis. UVA ( 350 nm - 380 nm) 273 µW/cm² = 2.73 W/m² VIS Rep3 ( 350 nm - 600 nm) 12800 µW/cm² = 128 W/m² VIS Rep4 ( 350 nm - 700 nm) 20400 µW/cm² = 204 W/m² purple ( 380 nm - 420 nm) 942 µW/cm² = 9.42 W/m² VIS ( 380 nm - 780 nm) 25600 µW/cm² = 256 W/m² VIS2 ( 400 nm - 680 nm) 18400 µW/cm² = 184 W/m² PAR ( 400 nm - 700 nm) 19900 µW/cm² = 199 W/m² tmp ( 400 nm - 1100 nm) 32100 µW/cm² = 321 W/m² blue ( 420 nm - 490 nm) 3830 µW/cm² = 38.3 W/m² green ( 490 nm - 575 nm) 5980 µW/cm² = 59.8 W/m² yellow ( 575 nm - 585 nm) 729 µW/cm² = 7.29 W/m² orange ( 585 nm - 650 nm) 4800 µW/cm² = 48 W/m² red ( 650 nm - 780 nm) 9350 µW/cm² = 93.5 W/m² IRA ( 700 nm - 1400 nm) 12200 µW/cm² = 122 W/m² IR2 ( 720 nm - 1100 nm) 10800 µW/cm² = 108 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.325 UV-Index Pyrimidine dimerization of DNA 1.31 µW/cm² Photoceratitis 0.319 µW/cm² Photoconjunctivitis 0.0204 µW/cm² DNA Damage 0.0713 Vitamin D3 0.499 µW/cm² Photosynthesis 14000 µW/cm² Luminosity 54700 lx Human L-Cone 8270 µW/cm² Human M-Cone 6640 µW/cm² Human S-Cone 3040 µW/cm² CIE X 7410 µW/cm² CIE Y 7610 µW/cm² CIE Z 5760 µW/cm² PAR 95400000 mol photons Extinction preD3 5.93 e-3*m²/mol Extinction Tachysterol 25.7 e-3*m²/mol Exctincition PreD3 5010 m²/mol Extinction Lumisterol 1.65 m²/mol Exctincition Tachysterol 64500 m²/mol Extinction 7DHC 2.51 m²/mol L-Cone 7220 µW/cm² M-Cone 6680 µW/cm² S-Cone 4720 µW/cm² U-Cone 1670 µW/cm² UVR - ICNIRP 2004 0.341 Rel Biol Eff Melatonin Supression 4890 µW/cm² Blue Light Hazard 3430 µW/cm² (62.6 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.475 µW/cm² Lumen Reptil 49900 "pseudo-lx" Vitamin D3 Degradation 1.28 µW/cm² Actinic UV 0.341 µW/cm² (0.0622 mW/klm) Exctincition Lumisterol 2080 m²/mol Exctincition 7DHC 2890 m²/mol Exctincition Toxisterols 1620 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 10.8 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.221 Leybold UVB 4.99 µW/cm² Leybold UVA 293 µW/cm² Leybold UVC 0.00221 µW/cm² DeltaOhm UVB 40.7 µW/cm² DeltaOhm UVC 3.04 µW/cm² Vernier UVB 0.401 µW/cm² Vernier UVA 172 µW/cm² Gröbel UVA 304 µW/cm² Gröbel UVB 2.3 µW/cm² Gröbel UVC -0.000134 µW/cm² Luxmeter 54700 lx Solarmeter 6.4 (D3) 0.69 IU/min UVX-31 55.8 µW/cm² IL UVB 0.00698 µW/cm² IL UVA 346 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.138 UV-Index Solarmeter 6.2 (UVB, post 2010) 8.17 µW/cm² (Solarmeter Ratio = 59.3) Solarmeter AlGaN 6.5 UVI sensor 1.16 UV Index GenUV 7.1 UV-Index 0.197 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 425 W/m² Solarmeter 4.0 (UVA) 6.74 mW/cm² LS122 (manuf.) 12.5 W/m² ISM400 (first guess) 418 W/m² LS122 (assumption) 24.6 W/m² ISM400_new 413 W/m² Solarmeter 10.0 (Global Power) (assumption) 428 W/m²
