2007-05-02; 18:40 (solar altitude 7.8)
direct sun
Corrected data with value at 290nm converted to zero to loer baseline, and all negative values to zero

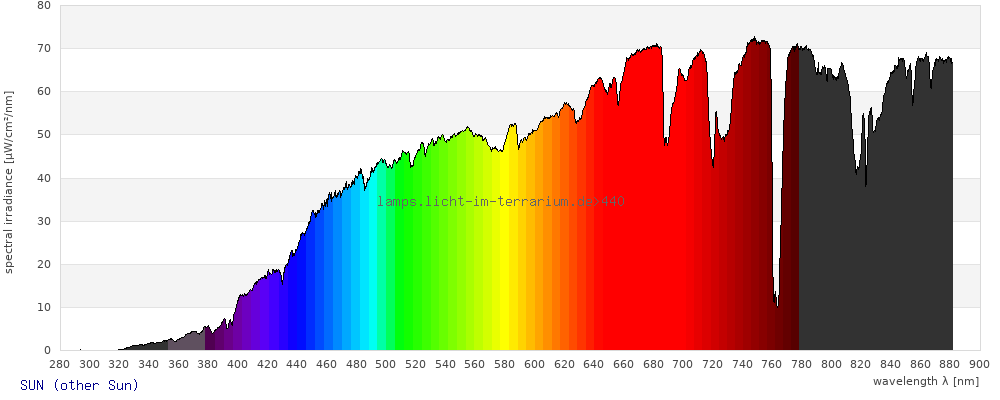

Spectrum 440: SUN Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
Sun Direct sunlight |
| Lamp ID |
SUN (01/2000) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 0 cm |
| Age | 0 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
12/Jan/2012 ; updated:
Sarina Wunderlich
12/Jan/2012
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

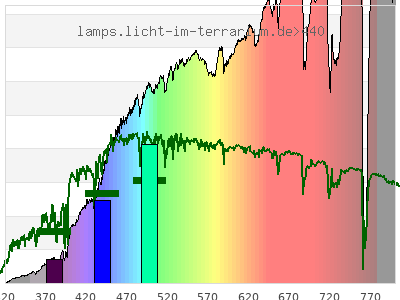

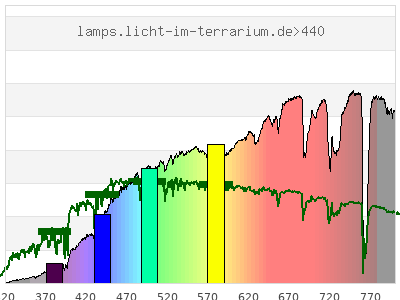

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.38 ; 0.38 ) | ( 0.57 ; 0.34 ) | ( 0.41 ; 0.34 ; 0.2 ) |
| CCT | 4100 Kelvin | 3200 Kelvin | 3700 Kelvin |
| distance | 0.034 | 0.044 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

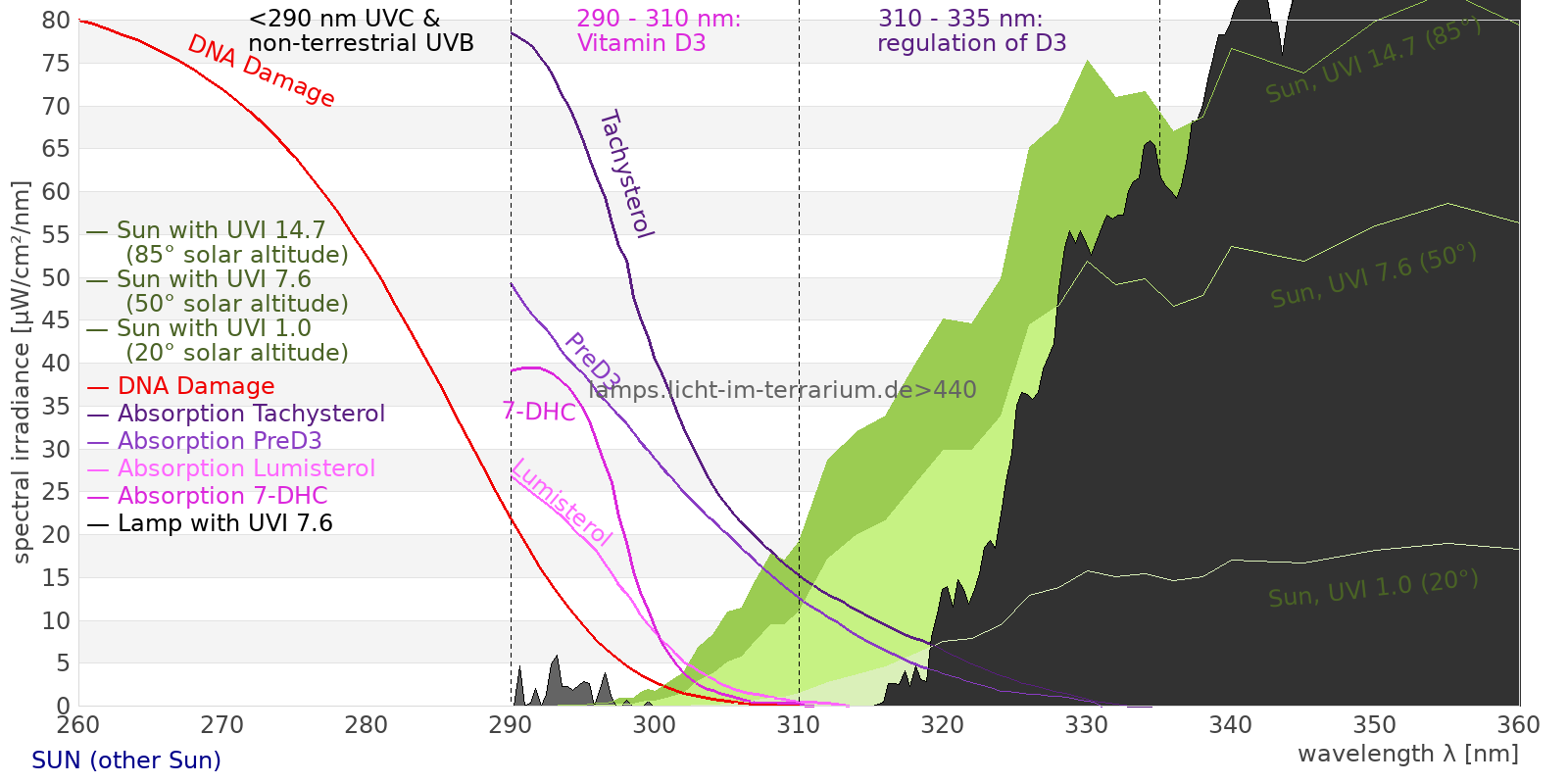

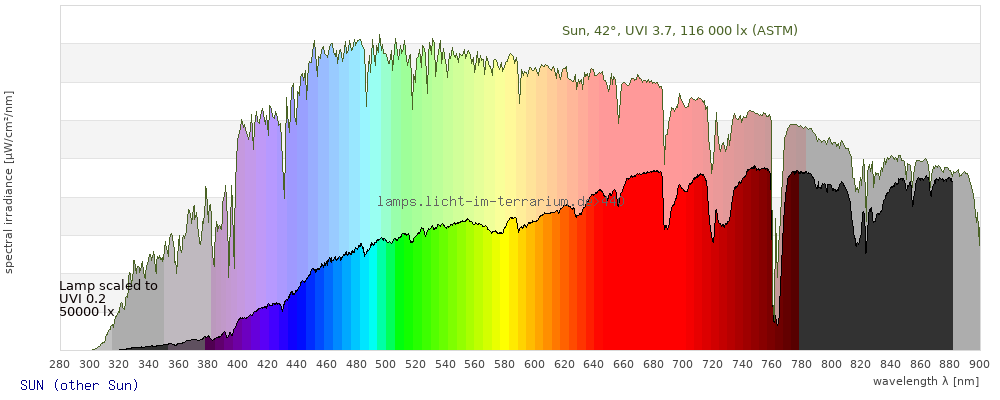

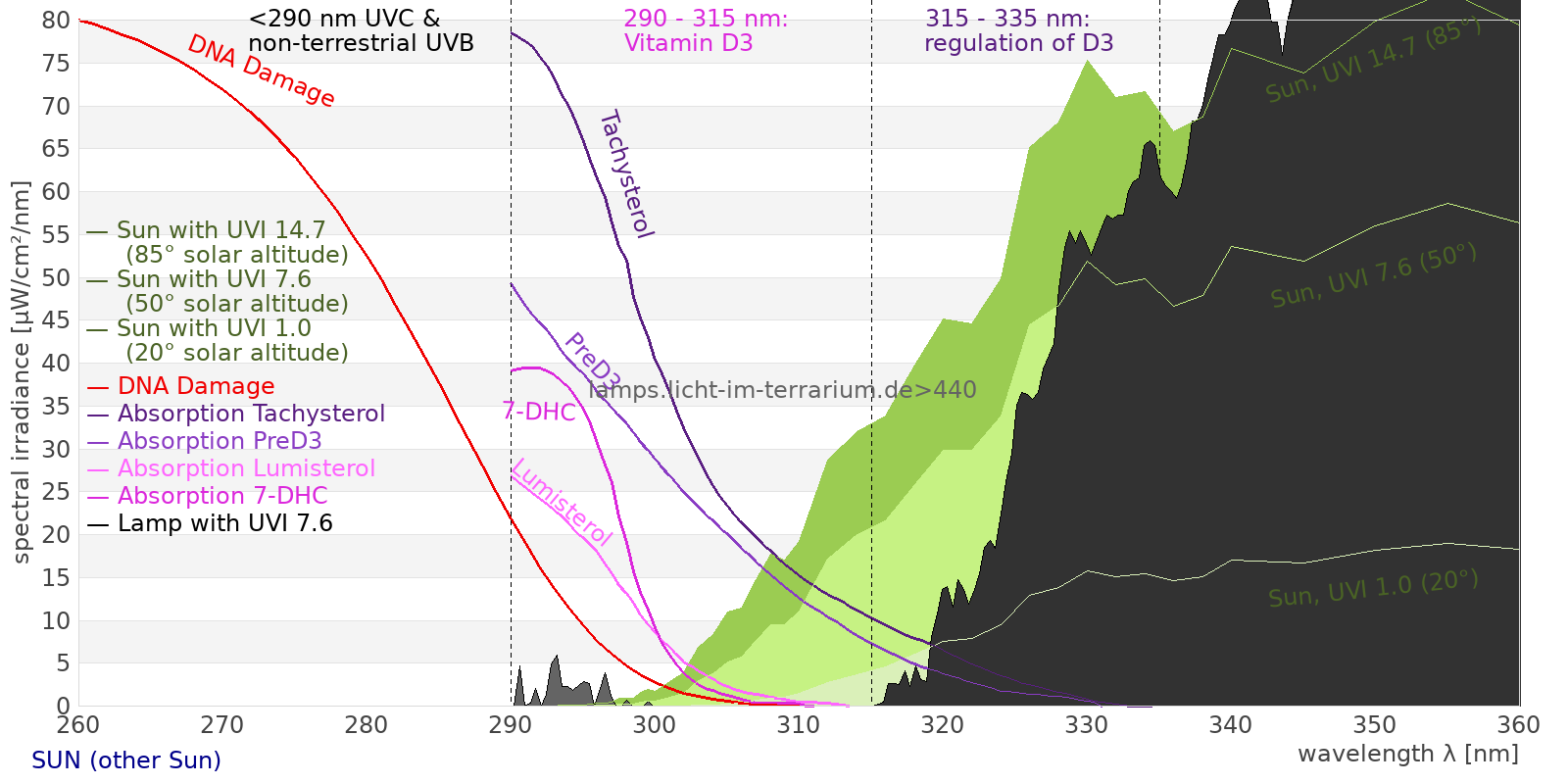

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 25100 µW/cm² = 251 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 25000 µW/cm² = 250 W/m² UVB (EU) ( 280 nm - 315 nm) 0.331 µW/cm² = 0.00331 W/m² UVB (US) ( 280 nm - 320 nm) 0.834 µW/cm² = 0.00834 W/m² UVA+B ( 280 nm - 380 nm) 147 µW/cm² = 1.47 W/m² Solar UVB ( 290 nm - 315 nm) 0.331 µW/cm² = 0.00331 W/m² UVA D3 regulating ( 315 nm - 335 nm) 13.2 µW/cm² = 0.132 W/m² UVA (EU) ( 315 nm - 380 nm) 146 µW/cm² = 1.46 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 20.2 µW/cm² = 0.202 W/m² UVA (US) ( 320 nm - 380 nm) 146 µW/cm² = 1.46 W/m² UVA1 (variant) ( 335 nm - 380 nm) 133 µW/cm² = 1.33 W/m² UVA1 (medical) ( 340 nm - 400 nm) 255 µW/cm² = 2.55 W/m² vis. UVA ( 350 nm - 380 nm) 107 µW/cm² = 1.07 W/m² VIS Rep3 ( 350 nm - 600 nm) 7930 µW/cm² = 79.3 W/m² VIS Rep4 ( 350 nm - 700 nm) 14000 µW/cm² = 140 W/m² purple ( 380 nm - 420 nm) 425 µW/cm² = 4.25 W/m² VIS ( 380 nm - 780 nm) 18600 µW/cm² = 186 W/m² VIS2 ( 400 nm - 680 nm) 12500 µW/cm² = 125 W/m² PAR ( 400 nm - 700 nm) 13800 µW/cm² = 138 W/m² tmp ( 400 nm - 1100 nm) 24800 µW/cm² = 248 W/m² blue ( 420 nm - 490 nm) 2150 µW/cm² = 21.5 W/m² green ( 490 nm - 575 nm) 4000 µW/cm² = 40 W/m² yellow ( 575 nm - 585 nm) 504 µW/cm² = 5.04 W/m² orange ( 585 nm - 650 nm) 3570 µW/cm² = 35.7 W/m² red ( 650 nm - 780 nm) 7990 µW/cm² = 79.9 W/m² IRA ( 700 nm - 1400 nm) 11000 µW/cm² = 110 W/m² IR2 ( 720 nm - 1100 nm) 9800 µW/cm² = 98 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.178 UV-Index Pyrimidine dimerization of DNA 0.419 µW/cm² Photoceratitis 0.214 µW/cm² Photoconjunctivitis 0.0141 µW/cm² DNA Damage 0.0493 Vitamin D3 0.323 µW/cm² Photosynthesis 9700 µW/cm² Luminosity 37800 lx Human L-Cone 5750 µW/cm² Human M-Cone 4480 µW/cm² Human S-Cone 1680 µW/cm² CIE X 5190 µW/cm² CIE Y 5250 µW/cm² CIE Z 3230 µW/cm² PAR 67000000 mol photons Extinction preD3 2.3 e-3*m²/mol Extinction Tachysterol 10.1 e-3*m²/mol Exctincition PreD3 2030 m²/mol Extinction Lumisterol 1.16 m²/mol Exctincition Tachysterol 24600 m²/mol Extinction 7DHC 1.8 m²/mol L-Cone 5120 µW/cm² M-Cone 4230 µW/cm² S-Cone 2530 µW/cm² U-Cone 729 µW/cm² UVR - ICNIRP 2004 0.212 Rel Biol Eff Melatonin Supression 2820 µW/cm² Blue Light Hazard 1880 µW/cm² (49.9 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.318 µW/cm² Lumen Reptil 31900 "pseudo-lx" Vitamin D3 Degradation 0.444 µW/cm² Actinic UV 0.212 µW/cm² (0.0561 mW/klm) Exctincition Lumisterol 1400 m²/mol Exctincition 7DHC 2070 m²/mol Exctincition Toxisterols 581 m²/mol
