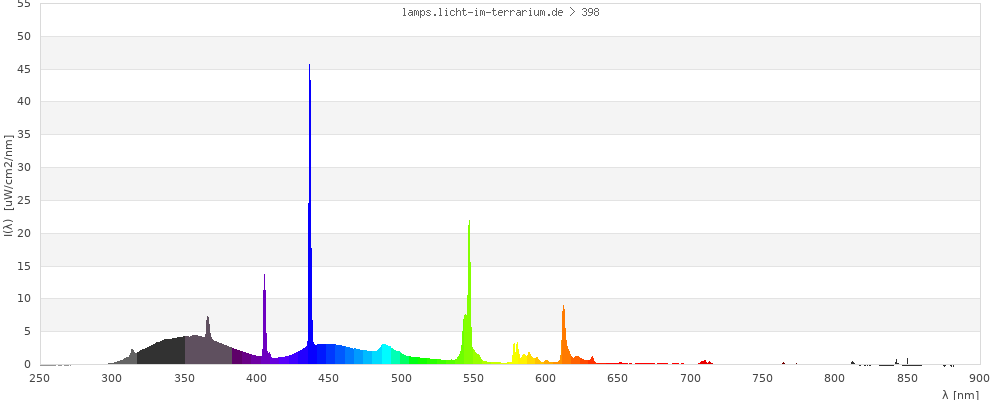

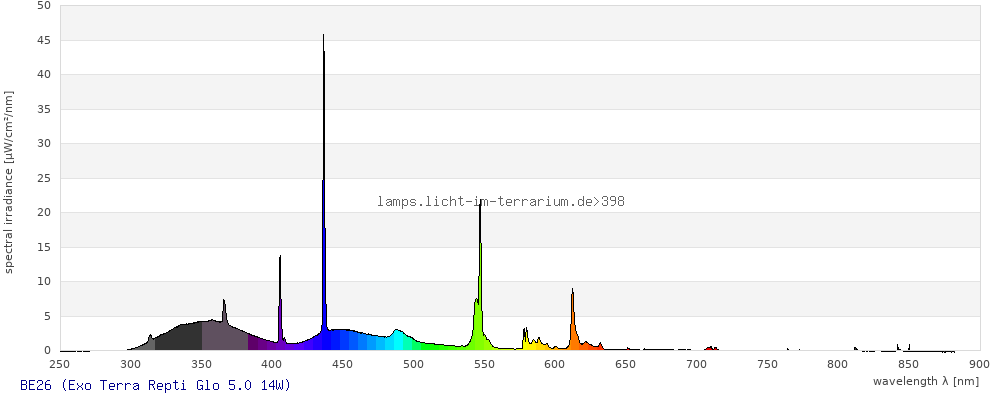

Spectrum 398: BE26 Edit
DeleteMeasurement
| Brand |
Exo Terra Rolf C. Hagen Inc. http://www.hagen.com/ |
|---|---|
| Lamp Product |
Repti Glo 5.0 14W |
| Lamp ID |
BE26 (04/2011) Exact usage unknown - submitted for possible association with photoconjunctivitis in chameleon |
| Spectrometer | USB2000+ (2) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 100 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Frances Baines
1/May/2011 ; updated:
Frances Baines
1/May/2011

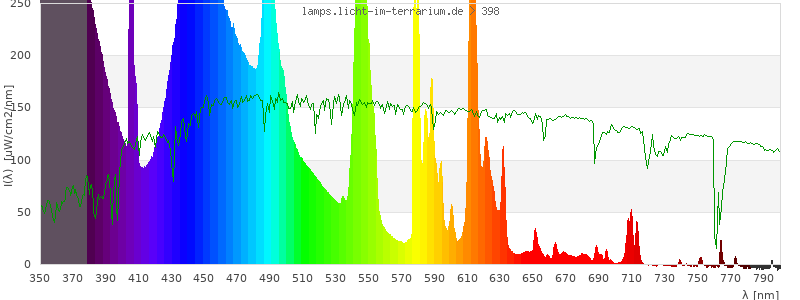

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

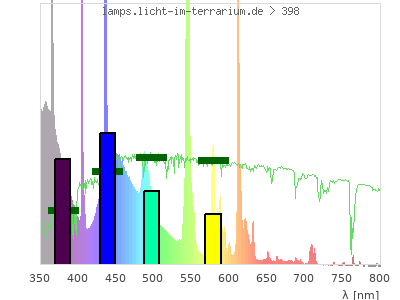

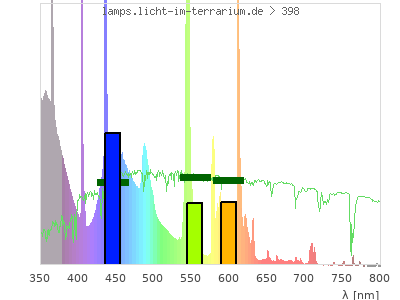

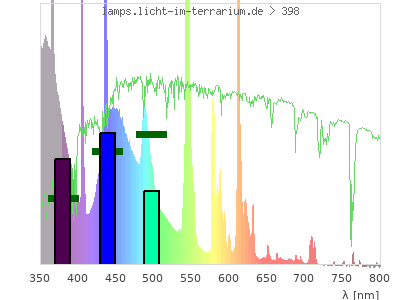

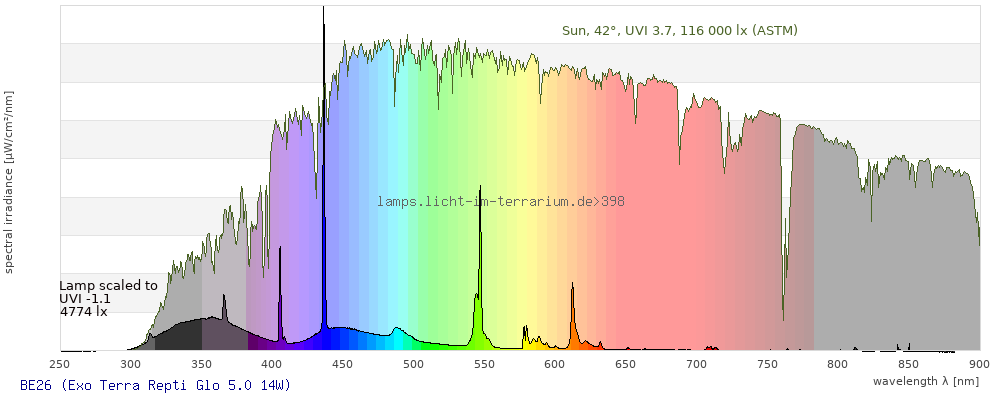

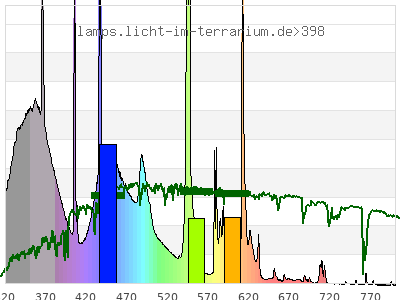

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

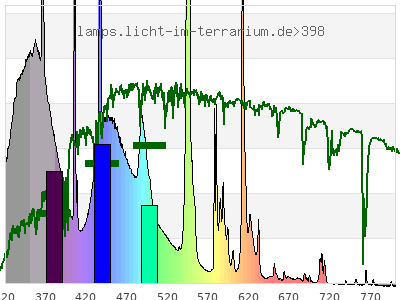

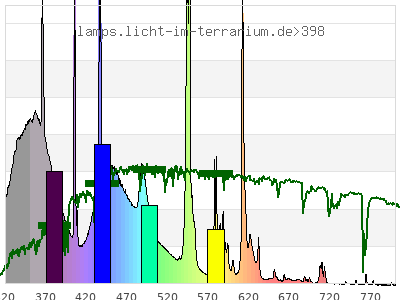

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.25 ; 0.24 ) | ( 0.24 ; 0.42 ) | ( 0.14 ; 0.2 ; 0.36 ) |
| CCT | 66000 Kelvin | 11000 Kelvin | 14000 Kelvin |
| distance | 0.094 | 0.083 | |
| colour space | 3-D-graph not implemented yet |

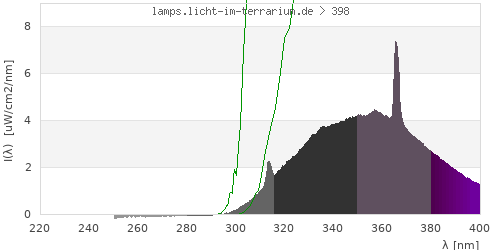

Vitamin D3 Analysis

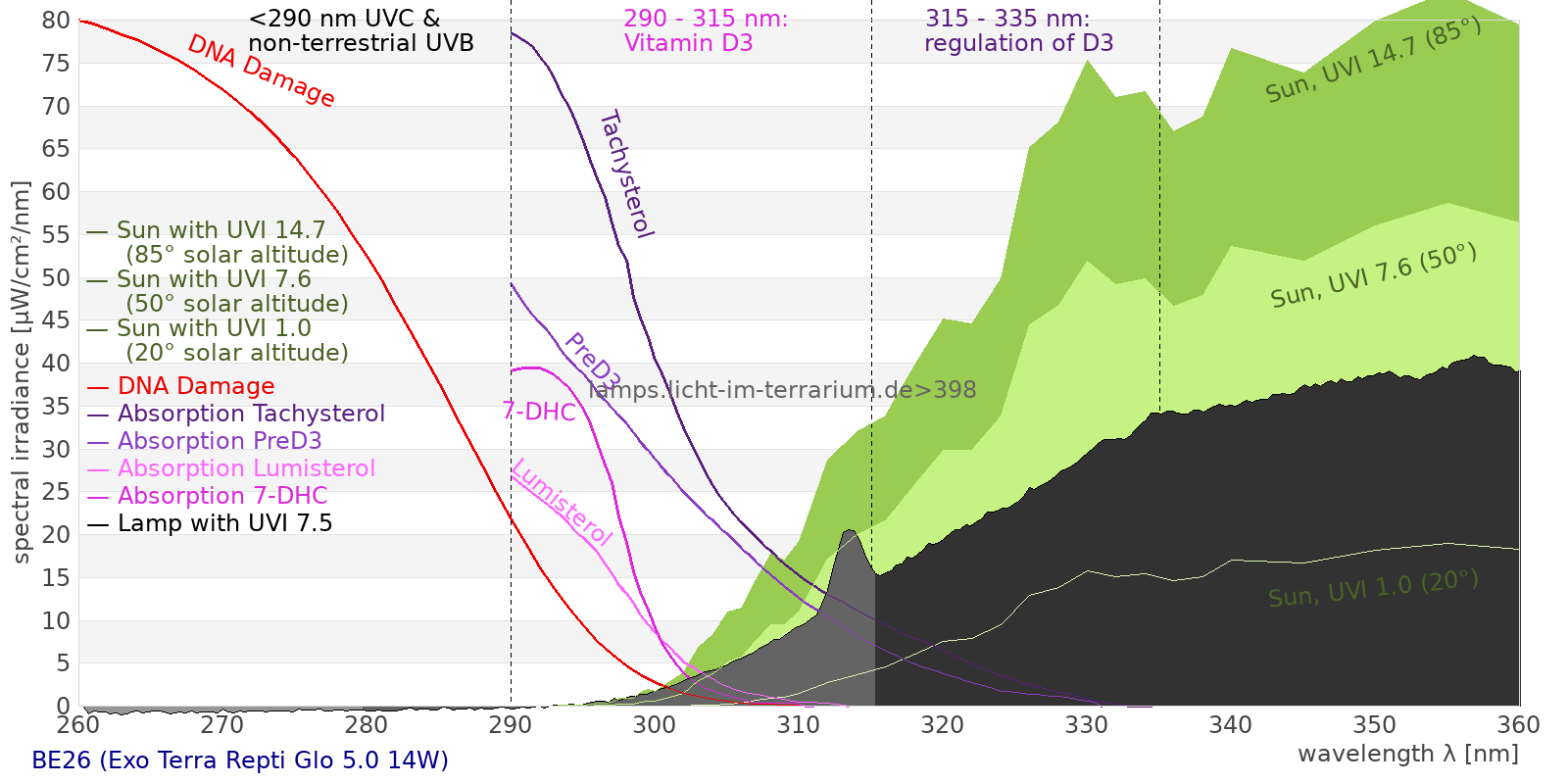

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 776 µW/cm² = 7.76 W/m² UVC ( 0 nm - 280 nm) -2.53 µW/cm² = -0.0253 W/m² non-terrestrial ( 0 nm - 290 nm) -2.93 µW/cm² = -0.0293 W/m² total2 ( 250 nm - 880 nm) 776 µW/cm² = 7.76 W/m² UVB (EU) ( 280 nm - 315 nm) 14.5 µW/cm² = 0.145 W/m² UVB (US) ( 280 nm - 320 nm) 23.6 µW/cm² = 0.236 W/m² UVA+B ( 280 nm - 380 nm) 248 µW/cm² = 2.48 W/m² Solar UVB ( 290 nm - 315 nm) 14.9 µW/cm² = 0.149 W/m² UVA D3 regulating ( 315 nm - 335 nm) 53.3 µW/cm² = 0.533 W/m² UVA (EU) ( 315 nm - 380 nm) 234 µW/cm² = 2.34 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 63.7 µW/cm² = 0.637 W/m² UVA (US) ( 320 nm - 380 nm) 225 µW/cm² = 2.25 W/m² UVA1 (variant) ( 335 nm - 380 nm) 181 µW/cm² = 1.81 W/m² UVA1 (medical) ( 340 nm - 400 nm) 199 µW/cm² = 1.99 W/m² vis. UVA ( 350 nm - 380 nm) 121 µW/cm² = 1.21 W/m² VIS Rep3 ( 350 nm - 600 nm) 602 µW/cm² = 6.02 W/m² VIS Rep4 ( 350 nm - 700 nm) 655 µW/cm² = 6.55 W/m² purple ( 380 nm - 420 nm) 79.9 µW/cm² = 0.799 W/m² VIS ( 380 nm - 780 nm) 537 µW/cm² = 5.37 W/m² VIS2 ( 400 nm - 680 nm) 494 µW/cm² = 4.94 W/m² PAR ( 400 nm - 700 nm) 496 µW/cm² = 4.96 W/m² tmp ( 400 nm - 1100 nm) 492 µW/cm² = 4.92 W/m² blue ( 420 nm - 490 nm) 231 µW/cm² = 2.31 W/m² green ( 490 nm - 575 nm) 141 µW/cm² = 1.41 W/m² yellow ( 575 nm - 585 nm) 15.6 µW/cm² = 0.156 W/m² orange ( 585 nm - 650 nm) 61 µW/cm² = 0.61 W/m² red ( 650 nm - 780 nm) 8.28 µW/cm² = 0.0828 W/m² IRA ( 700 nm - 1400 nm) -3.59 µW/cm² = -0.0359 W/m² IR2 ( 720 nm - 1100 nm) -6.87 µW/cm² = -0.0687 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema -0.271 UV-Index Pyrimidine dimerization of DNA 9.55 µW/cm² Photoceratitis 0.328 µW/cm² Photoconjunctivitis -2.28 µW/cm² DNA Damage -2.47 Vitamin D3 3.22 µW/cm² Photosynthesis 368 µW/cm² Luminosity 1210 lx Human L-Cone 174 µW/cm² Human M-Cone 165 µW/cm² Human S-Cone 195 µW/cm² CIE X 171 µW/cm² CIE Y 166 µW/cm² CIE Z 359 µW/cm² PAR 2260000 mol photons Extinction preD3 3.44 e-3*m²/mol Extinction Tachysterol 51 e-3*m²/mol Exctincition PreD3 -9260 m²/mol Extinction Lumisterol -16 m²/mol Exctincition Tachysterol 96200 m²/mol Extinction 7DHC -19.7 m²/mol L-Cone 135 µW/cm² M-Cone 196 µW/cm² S-Cone 349 µW/cm² U-Cone 280 µW/cm² UVR - ICNIRP 2004 -1.46 Rel Biol Eff Melatonin Supression 246 µW/cm² Blue Light Hazard 218 µW/cm² (180 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 3.64 µW/cm² Lumen Reptil 1920 "pseudo-lx" Vitamin D3 Degradation 4.21 µW/cm² Actinic UV -1.46 µW/cm² (-12.1 mW/klm) Exctincition Lumisterol -15200 m²/mol Exctincition 7DHC -19200 m²/mol Exctincition Toxisterols -9210 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 28.3 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.819 Leybold UVB 21.9 µW/cm² Leybold UVA 168 µW/cm² Leybold UVC -2.02 µW/cm² DeltaOhm UVB 64.6 µW/cm² DeltaOhm UVC 4.68 µW/cm² Vernier UVB 6.98 µW/cm² Vernier UVA 136 µW/cm² Gröbel UVA 197 µW/cm² Gröbel UVB 10.2 µW/cm² Gröbel UVC -2.1 µW/cm² Luxmeter 1270 lx Solarmeter 6.4 (D3) 2.56 IU/min UVX-31 76.1 µW/cm² IL UVB 0.0137 µW/cm² IL UVA 194 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.642 UV-Index Solarmeter 6.2 (UVB, post 2010) 21 µW/cm² (Solarmeter Ratio = 32.7) Solarmeter AlGaN 6.5 UVI sensor 12 UV Index GenUV 7.1 UV-Index 0.64 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 5.63 W/m² Solarmeter 4.0 (UVA) 2.71 mW/cm² LS122 (manuf.) -0.02 W/m² ISM400 (first guess) 2.59 W/m² LS122 (assumption) 0.0869 W/m² ISM400_new 1.81 W/m² Solarmeter 10.0 (Global Power) (assumption) 4.55 W/m²
