Spectrum 333: BOL4 Edit
DeleteMeasurement
| Brand |
Ott-Lite http://www.ottlite.com/ |
|---|---|
| Lamp Product |
Natural Light Suppement T12 20W |
| Lamp ID |
BOL4 (04/2008) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 105 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
3/Jul/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

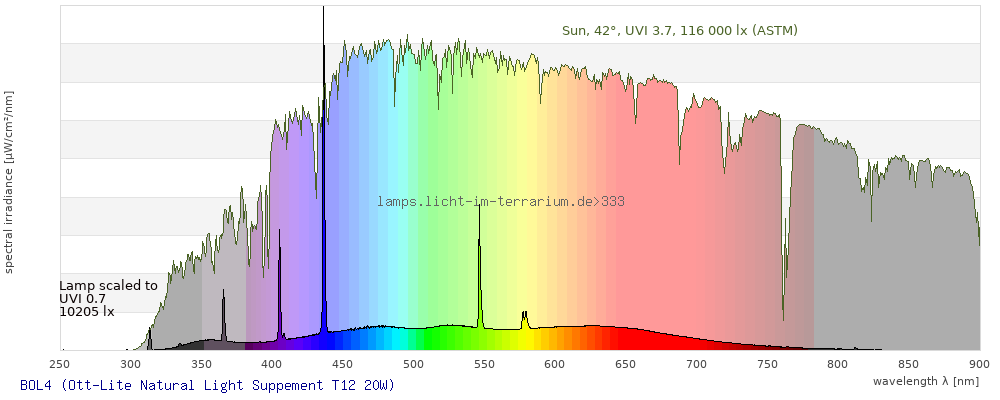

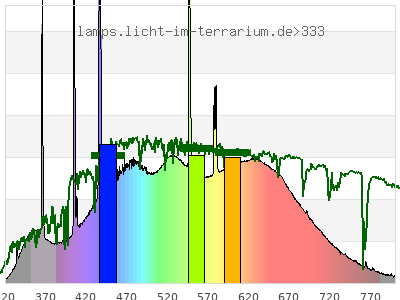

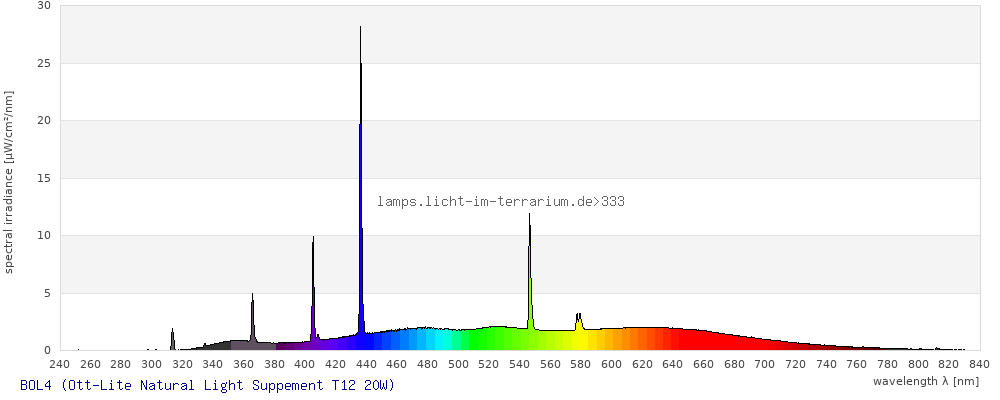

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

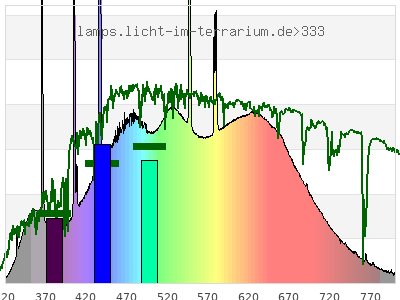

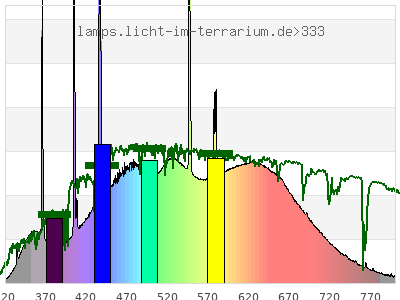

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.32 ; 0.33 ) | ( 0.38 ; 0.43 ) | ( 0.28 ; 0.27 ; 0.31 ) |
| CCT | 6100 Kelvin | 5400 Kelvin | 5300 Kelvin |
| distance | 0.083 | 0.06 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

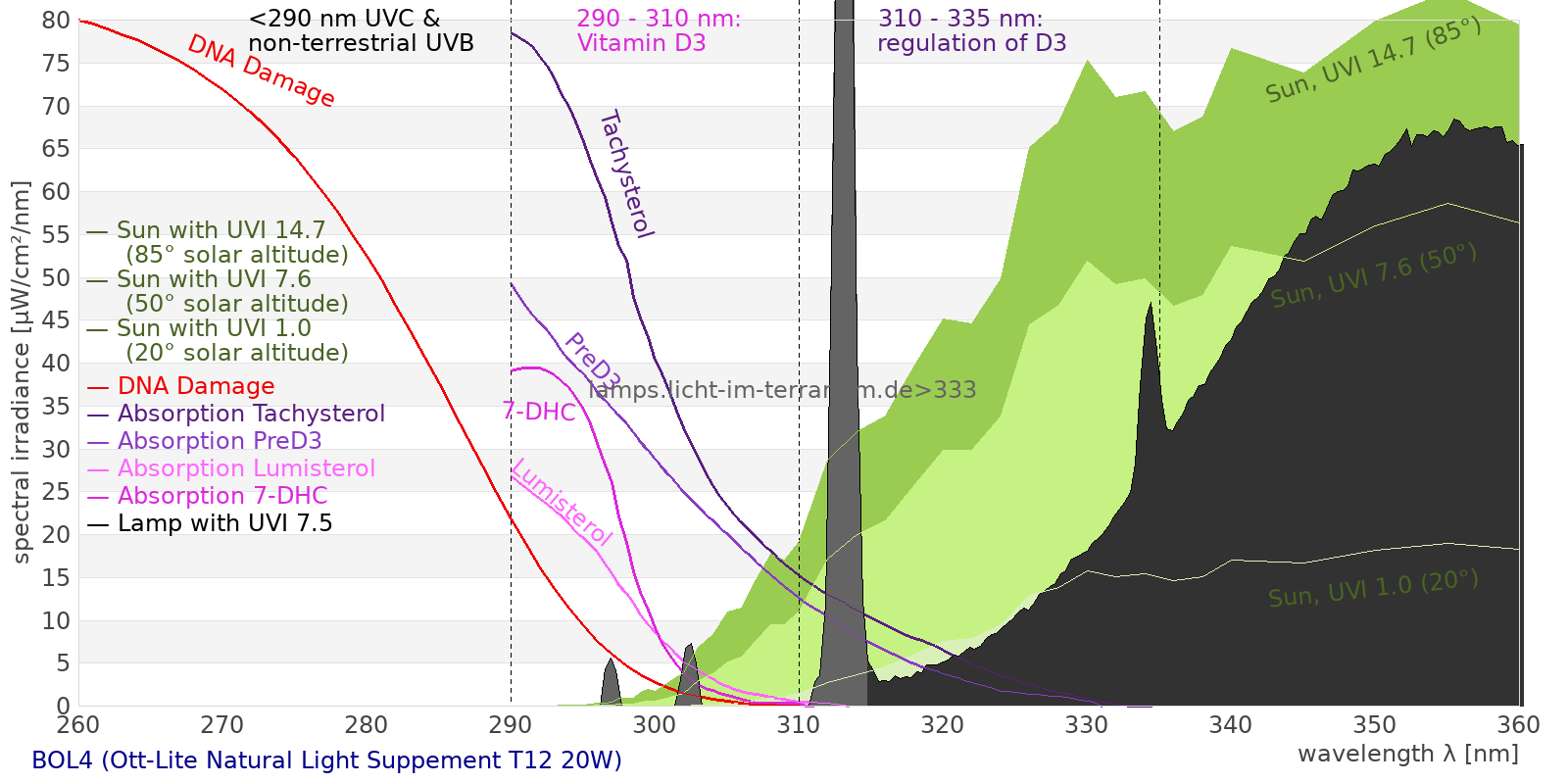

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

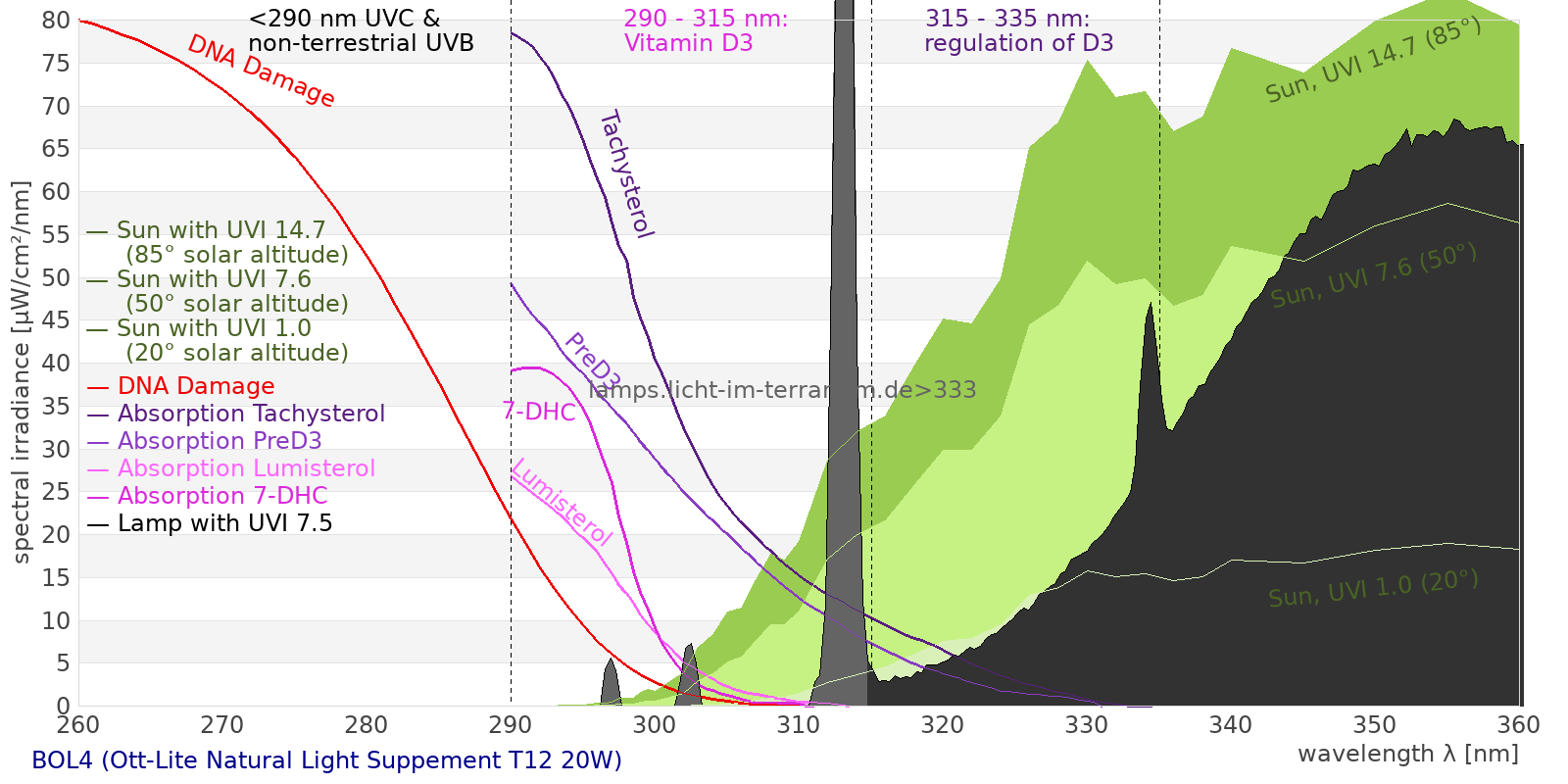

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 687 µW/cm² = 6.87 W/m² UVC ( 0 nm - 280 nm) 0.0369 µW/cm² = 0.000369 W/m² non-terrestrial ( 0 nm - 290 nm) 0.0369 µW/cm² = 0.000369 W/m² total2 ( 250 nm - 880 nm) 687 µW/cm² = 6.87 W/m² UVB (EU) ( 280 nm - 315 nm) 3.08 µW/cm² = 0.0308 W/m² UVB (US) ( 280 nm - 320 nm) 3.34 µW/cm² = 0.0334 W/m² UVA+B ( 280 nm - 380 nm) 46 µW/cm² = 0.46 W/m² Solar UVB ( 290 nm - 315 nm) 3.08 µW/cm² = 0.0308 W/m² UVA D3 regulating ( 315 nm - 335 nm) 3.51 µW/cm² = 0.0351 W/m² UVA (EU) ( 315 nm - 380 nm) 42.9 µW/cm² = 0.429 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 5.73 µW/cm² = 0.0573 W/m² UVA (US) ( 320 nm - 380 nm) 42.7 µW/cm² = 0.427 W/m² UVA1 (variant) ( 335 nm - 380 nm) 39.4 µW/cm² = 0.394 W/m² UVA1 (medical) ( 340 nm - 400 nm) 50.5 µW/cm² = 0.505 W/m² vis. UVA ( 350 nm - 380 nm) 29.9 µW/cm² = 0.299 W/m² VIS Rep3 ( 350 nm - 600 nm) 458 µW/cm² = 4.58 W/m² VIS Rep4 ( 350 nm - 700 nm) 627 µW/cm² = 6.27 W/m² purple ( 380 nm - 420 nm) 45.7 µW/cm² = 0.457 W/m² VIS ( 380 nm - 780 nm) 636 µW/cm² = 6.36 W/m² VIS2 ( 400 nm - 680 nm) 560 µW/cm² = 5.6 W/m² PAR ( 400 nm - 700 nm) 583 µW/cm² = 5.83 W/m² tmp ( 400 nm - 1100 nm) 627 µW/cm² = 6.27 W/m² blue ( 420 nm - 490 nm) 156 µW/cm² = 1.56 W/m² green ( 490 nm - 575 nm) 176 µW/cm² = 1.76 W/m² yellow ( 575 nm - 585 nm) 22.4 µW/cm² = 0.224 W/m² orange ( 585 nm - 650 nm) 126 µW/cm² = 1.26 W/m² red ( 650 nm - 780 nm) 109 µW/cm² = 1.09 W/m² IRA ( 700 nm - 1400 nm) 43.8 µW/cm² = 0.438 W/m² IR2 ( 720 nm - 1100 nm) 27.7 µW/cm² = 0.277 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.116 UV-Index Pyrimidine dimerization of DNA 1.06 µW/cm² Photoceratitis 0.195 µW/cm² Photoconjunctivitis 0.0352 µW/cm² DNA Damage 0.0447 Vitamin D3 0.388 µW/cm² Photosynthesis 410 µW/cm² Luminosity 1600 lx Human L-Cone 238 µW/cm² Human M-Cone 199 µW/cm² Human S-Cone 130 µW/cm² CIE X 219 µW/cm² CIE Y 222 µW/cm² CIE Z 241 µW/cm² PAR 2780000 mol photons Extinction preD3 3.51 e-3*m²/mol Extinction Tachysterol 11.5 e-3*m²/mol Exctincition PreD3 1940 m²/mol Extinction Lumisterol 0.476 m²/mol Exctincition Tachysterol 17900 m²/mol Extinction 7DHC 0.488 m²/mol L-Cone 202 µW/cm² M-Cone 199 µW/cm² S-Cone 225 µW/cm² U-Cone 105 µW/cm² UVR - ICNIRP 2004 0.09 Rel Biol Eff Melatonin Supression 182 µW/cm² Blue Light Hazard 147 µW/cm² (91.8 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.388 µW/cm² Lumen Reptil 1680 "pseudo-lx" Vitamin D3 Degradation 0.593 µW/cm² Actinic UV 0.0886 µW/cm² (0.555 mW/klm) Exctincition Lumisterol 677 m²/mol Exctincition 7DHC 612 m²/mol Exctincition Toxisterols 647 m²/mol
