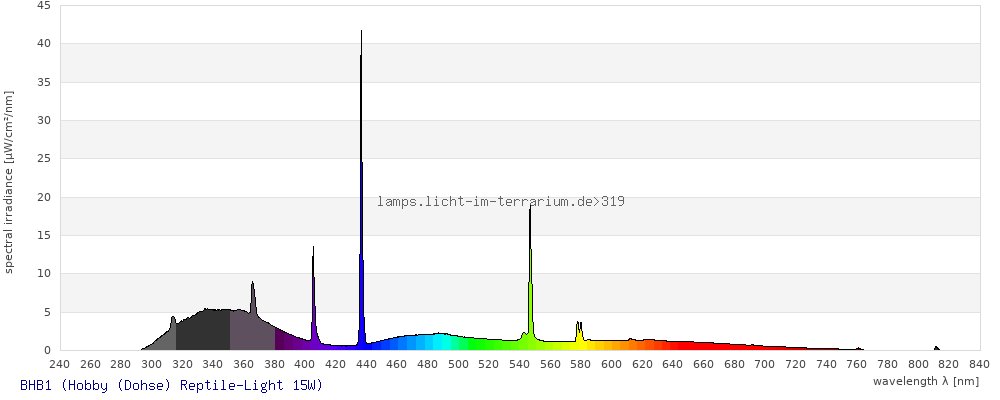

Spectrum 319: BHB1 Edit
DeleteMeasurement
| Brand |
Hobby (Dohse) Dohse Aquaristik KG http://www.dohse-aquaristik.com/ |
|---|---|
| Lamp Product |
Reptile-Light 15W 30% UV-A / 8% UV-B (homepage 2009/10) |
| Lamp ID |
BHB1 (08/2009) |
| Spectrometer | USB2000+ (2) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
3/Jul/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

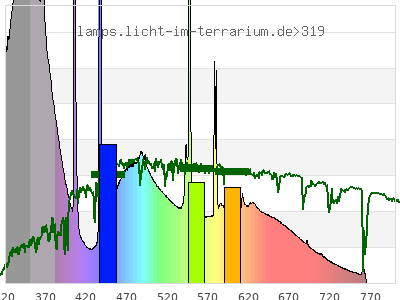

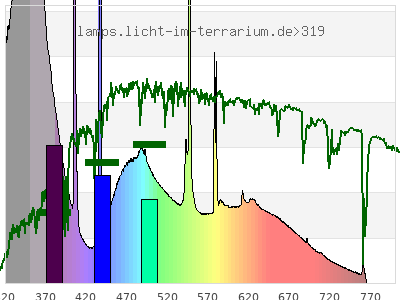

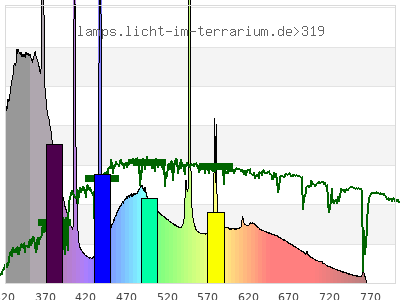

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.3 ) | ( 0.25 ; 0.33 ) | ( 0.18 ; 0.21 ; 0.27 ) |
| CCT | 8900 Kelvin | 11000 Kelvin | 9700 Kelvin |
| distance | 0.0032 | 0.02 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

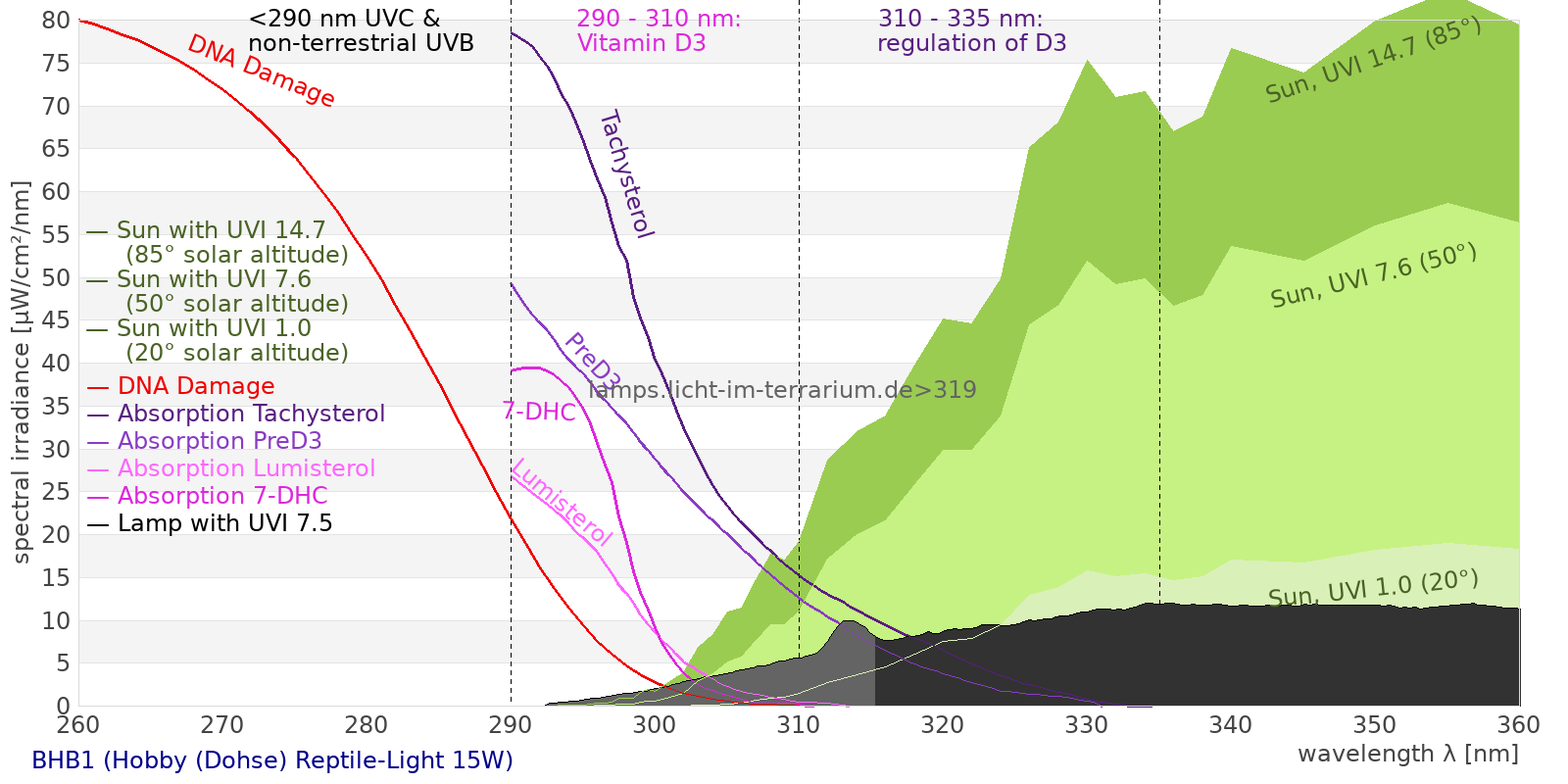

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

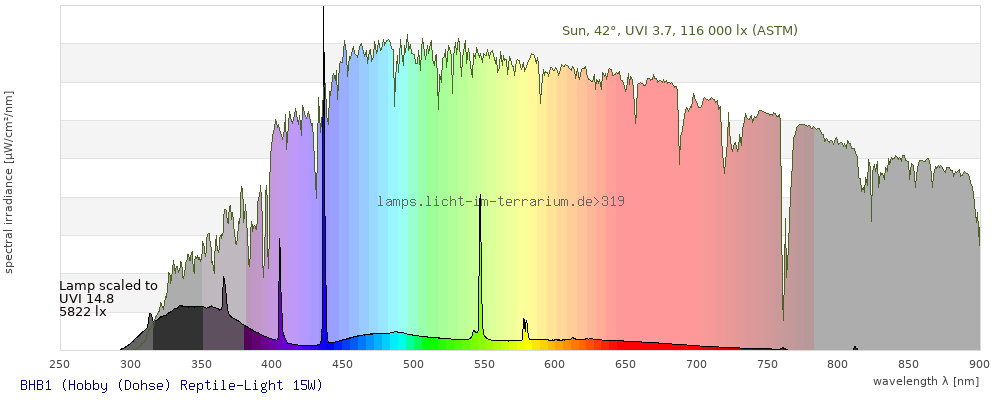

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 930 µW/cm² = 9.3 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 930 µW/cm² = 9.3 W/m² UVB (EU) ( 280 nm - 315 nm) 40.3 µW/cm² = 0.403 W/m² UVB (US) ( 280 nm - 320 nm) 57.9 µW/cm² = 0.579 W/m² UVA+B ( 280 nm - 380 nm) 354 µW/cm² = 3.54 W/m² Solar UVB ( 290 nm - 315 nm) 40.3 µW/cm² = 0.403 W/m² UVA D3 regulating ( 315 nm - 335 nm) 88.2 µW/cm² = 0.882 W/m² UVA (EU) ( 315 nm - 380 nm) 314 µW/cm² = 3.14 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 98.1 µW/cm² = 0.981 W/m² UVA (US) ( 320 nm - 380 nm) 296 µW/cm² = 2.96 W/m² UVA1 (variant) ( 335 nm - 380 nm) 226 µW/cm² = 2.26 W/m² UVA1 (medical) ( 340 nm - 400 nm) 240 µW/cm² = 2.4 W/m² vis. UVA ( 350 nm - 380 nm) 146 µW/cm² = 1.46 W/m² VIS Rep3 ( 350 nm - 600 nm) 592 µW/cm² = 5.92 W/m² VIS Rep4 ( 350 nm - 700 nm) 700 µW/cm² = 7 W/m² purple ( 380 nm - 420 nm) 83.5 µW/cm² = 0.835 W/m² VIS ( 380 nm - 780 nm) 575 µW/cm² = 5.75 W/m² VIS2 ( 400 nm - 680 nm) 499 µW/cm² = 4.99 W/m² PAR ( 400 nm - 700 nm) 513 µW/cm² = 5.13 W/m² tmp ( 400 nm - 1100 nm) 534 µW/cm² = 5.34 W/m² blue ( 420 nm - 490 nm) 165 µW/cm² = 1.65 W/m² green ( 490 nm - 575 nm) 158 µW/cm² = 1.58 W/m² yellow ( 575 nm - 585 nm) 20.3 µW/cm² = 0.203 W/m² orange ( 585 nm - 650 nm) 84.4 µW/cm² = 0.844 W/m² red ( 650 nm - 780 nm) 63.4 µW/cm² = 0.634 W/m² IRA ( 700 nm - 1400 nm) 21.3 µW/cm² = 0.213 W/m² IR2 ( 720 nm - 1100 nm) 11.9 µW/cm² = 0.119 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 3.43 UV-Index Pyrimidine dimerization of DNA 26 µW/cm² Photoceratitis 4.97 µW/cm² Photoconjunctivitis 0.114 µW/cm² DNA Damage 0.414 Vitamin D3 13.8 µW/cm² Photosynthesis 364 µW/cm² Luminosity 1350 lx Human L-Cone 198 µW/cm² Human M-Cone 176 µW/cm² Human S-Cone 139 µW/cm² CIE X 178 µW/cm² CIE Y 187 µW/cm² CIE Z 257 µW/cm² PAR 2470000 mol photons Extinction preD3 73.3 e-3*m²/mol Extinction Tachysterol 260 e-3*m²/mol Exctincition PreD3 35700 m²/mol Extinction Lumisterol 16.5 m²/mol Exctincition Tachysterol 371000 m²/mol Extinction 7DHC 16.8 m²/mol L-Cone 161 µW/cm² M-Cone 192 µW/cm² S-Cone 247 µW/cm² U-Cone 314 µW/cm² UVR - ICNIRP 2004 3.09 Rel Biol Eff Melatonin Supression 192 µW/cm² Blue Light Hazard 158 µW/cm² (117 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 15.2 µW/cm² Lumen Reptil 1860 "pseudo-lx" Vitamin D3 Degradation 12.3 µW/cm² Actinic UV 3.05 µW/cm² (22.5 mW/klm) Exctincition Lumisterol 21800 m²/mol Exctincition 7DHC 21500 m²/mol Exctincition Toxisterols 5670 m²/mol
