Spectrum 314: BJBL7 Edit
DeleteMeasurement
| Brand |
JBL JBL GmbH & Co. KG http://www.jbl.de/ |
|---|---|
| Lamp Product |
Solar ReptilJungle T8 18W |
| Lamp ID |
BJBL7 (03/2008) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 105 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
3/Jul/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

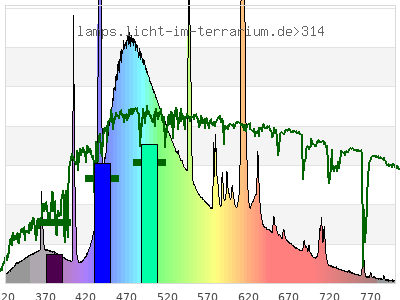

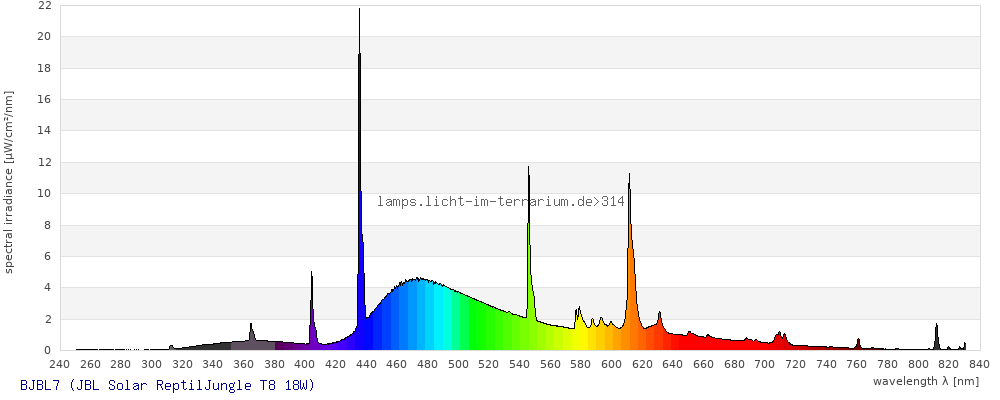

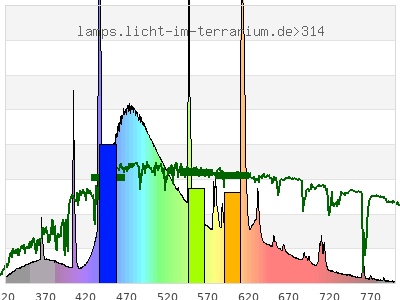

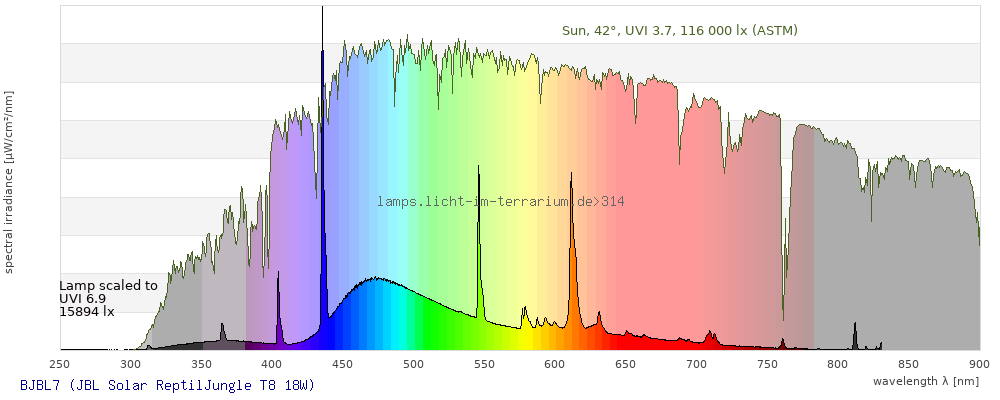

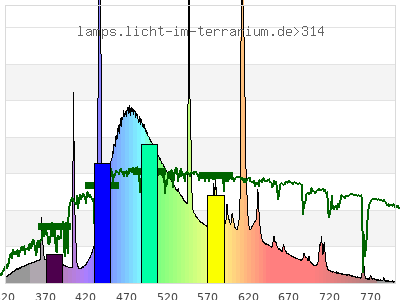

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.28 ; 0.29 ) | ( 0.48 ; 0.42 ) | ( 0.23 ; 0.37 ; 0.32 ) |
| CCT | 9900 Kelvin | 4000 Kelvin | 5500 Kelvin |
| distance | 0.088 | 0.12 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

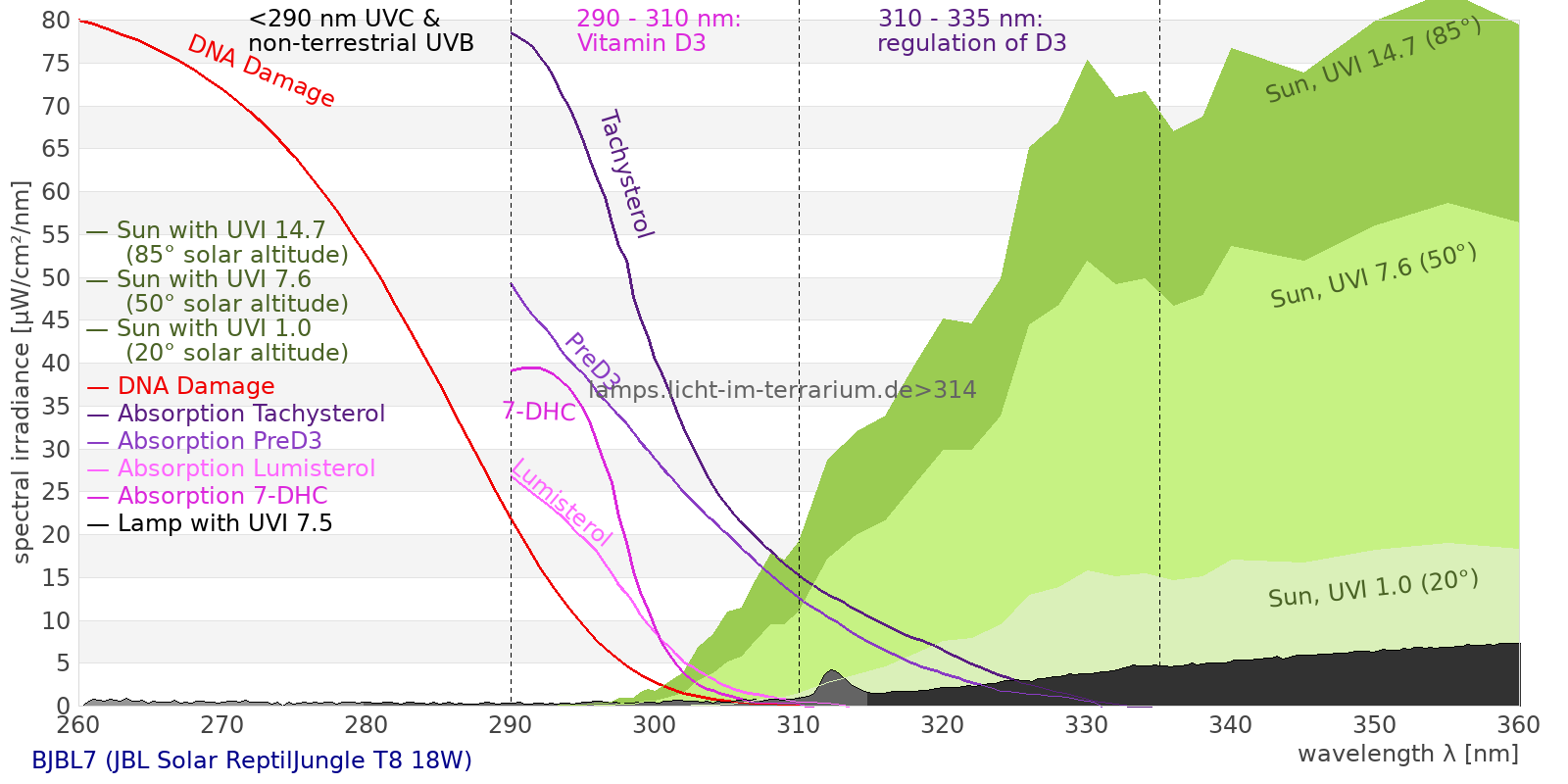

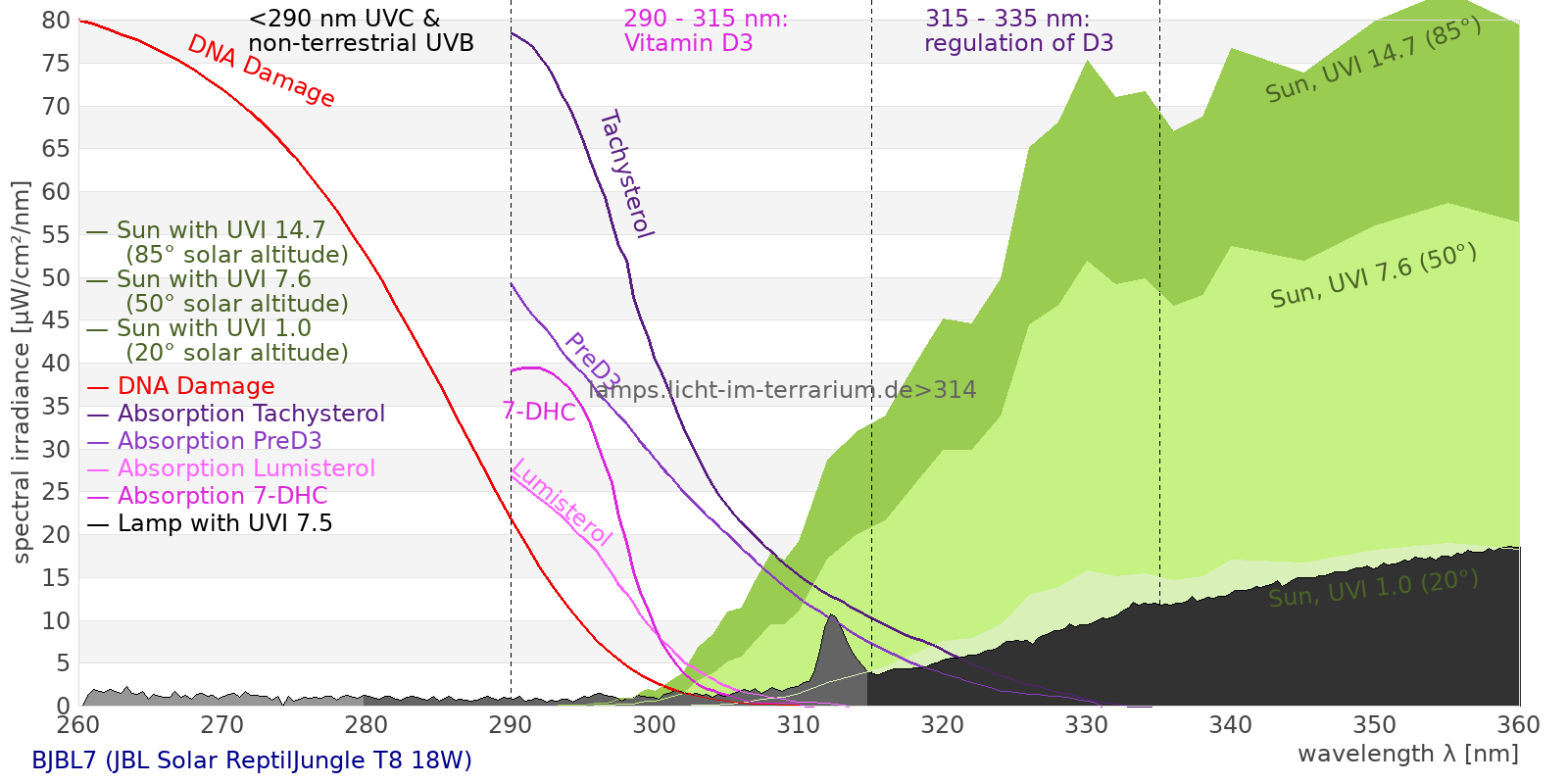

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 785 µW/cm² = 7.85 W/m² UVC ( 0 nm - 280 nm) 1.33 µW/cm² = 0.0133 W/m² non-terrestrial ( 0 nm - 290 nm) 1.61 µW/cm² = 0.0161 W/m² total2 ( 250 nm - 880 nm) 785 µW/cm² = 7.85 W/m² UVB (EU) ( 280 nm - 315 nm) 2.12 µW/cm² = 0.0212 W/m² UVB (US) ( 280 nm - 320 nm) 2.87 µW/cm² = 0.0287 W/m² UVA+B ( 280 nm - 380 nm) 34.2 µW/cm² = 0.342 W/m² Solar UVB ( 290 nm - 315 nm) 1.84 µW/cm² = 0.0184 W/m² UVA D3 regulating ( 315 nm - 335 nm) 4.87 µW/cm² = 0.0487 W/m² UVA (EU) ( 315 nm - 380 nm) 32 µW/cm² = 0.32 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 6.18 µW/cm² = 0.0618 W/m² UVA (US) ( 320 nm - 380 nm) 31.3 µW/cm² = 0.313 W/m² UVA1 (variant) ( 335 nm - 380 nm) 27.2 µW/cm² = 0.272 W/m² UVA1 (medical) ( 340 nm - 400 nm) 35 µW/cm² = 0.35 W/m² vis. UVA ( 350 nm - 380 nm) 20.4 µW/cm² = 0.204 W/m² VIS Rep3 ( 350 nm - 600 nm) 591 µW/cm² = 5.91 W/m² VIS Rep4 ( 350 nm - 700 nm) 737 µW/cm² = 7.37 W/m² purple ( 380 nm - 420 nm) 27.8 µW/cm² = 0.278 W/m² VIS ( 380 nm - 780 nm) 742 µW/cm² = 7.42 W/m² VIS2 ( 400 nm - 680 nm) 694 µW/cm² = 6.94 W/m² PAR ( 400 nm - 700 nm) 706 µW/cm² = 7.06 W/m² tmp ( 400 nm - 1100 nm) 739 µW/cm² = 7.39 W/m² blue ( 420 nm - 490 nm) 261 µW/cm² = 2.61 W/m² green ( 490 nm - 575 nm) 235 µW/cm² = 2.35 W/m² yellow ( 575 nm - 585 nm) 20.2 µW/cm² = 0.202 W/m² orange ( 585 nm - 650 nm) 134 µW/cm² = 1.34 W/m² red ( 650 nm - 780 nm) 63.9 µW/cm² = 0.639 W/m² IRA ( 700 nm - 1400 nm) 33.1 µW/cm² = 0.331 W/m² IR2 ( 720 nm - 1100 nm) 19.9 µW/cm² = 0.199 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.84 UV-Index Pyrimidine dimerization of DNA 1.1 µW/cm² Photoceratitis 0.875 µW/cm² Photoconjunctivitis 1.22 µW/cm² DNA Damage 1.39 Vitamin D3 1.05 µW/cm² Photosynthesis 507 µW/cm² Luminosity 1930 lx Human L-Cone 281 µW/cm² Human M-Cone 253 µW/cm² Human S-Cone 199 µW/cm² CIE X 252 µW/cm² CIE Y 264 µW/cm² CIE Z 385 µW/cm² PAR 3180000 mol photons Extinction preD3 16.1 e-3*m²/mol Extinction Tachysterol 38.4 e-3*m²/mol Exctincition PreD3 14100 m²/mol Extinction Lumisterol 11.8 m²/mol Exctincition Tachysterol 50600 m²/mol Extinction 7DHC 13.8 m²/mol L-Cone 225 µW/cm² M-Cone 355 µW/cm² S-Cone 306 µW/cm² U-Cone 73.1 µW/cm² UVR - ICNIRP 2004 1.39 Rel Biol Eff Melatonin Supression 299 µW/cm² Blue Light Hazard 214 µW/cm² (111 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 1.07 µW/cm² Lumen Reptil 2200 "pseudo-lx" Vitamin D3 Degradation 1.02 µW/cm² Actinic UV 1.39 µW/cm² (7.19 mW/klm) Exctincition Lumisterol 12600 m²/mol Exctincition 7DHC 14500 m²/mol Exctincition Toxisterols 6340 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 5.17 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.384 Leybold UVB 2.4 µW/cm² Leybold UVA 23.8 µW/cm² Leybold UVC 1.05 µW/cm² DeltaOhm UVB 6.62 µW/cm² DeltaOhm UVC 1.85 µW/cm² Vernier UVB 1.05 µW/cm² Vernier UVA 16.3 µW/cm² Gröbel UVA 26.8 µW/cm² Gröbel UVB 1.8 µW/cm² Gröbel UVC 1.09 µW/cm² Luxmeter 1980 lx Solarmeter 6.4 (D3) 1.2 IU/min UVX-31 8.2 µW/cm² IL UVB 0.00216 µW/cm² IL UVA 28.1 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.311 UV-Index Solarmeter 6.2 (UVB, post 2010) 2.66 µW/cm² (Solarmeter Ratio = 8.56) Solarmeter AlGaN 6.5 UVI sensor 1.98 UV Index GenUV 7.1 UV-Index 0.149 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 7.71 W/m² Solarmeter 4.0 (UVA) 0.438 mW/cm² LS122 (manuf.) 0.00548 W/m² ISM400 (first guess) 5.11 W/m² LS122 (assumption) 0.227 W/m² ISM400_new 4.1 W/m² Solarmeter 10.0 (Global Power) (assumption) 7.26 W/m²
