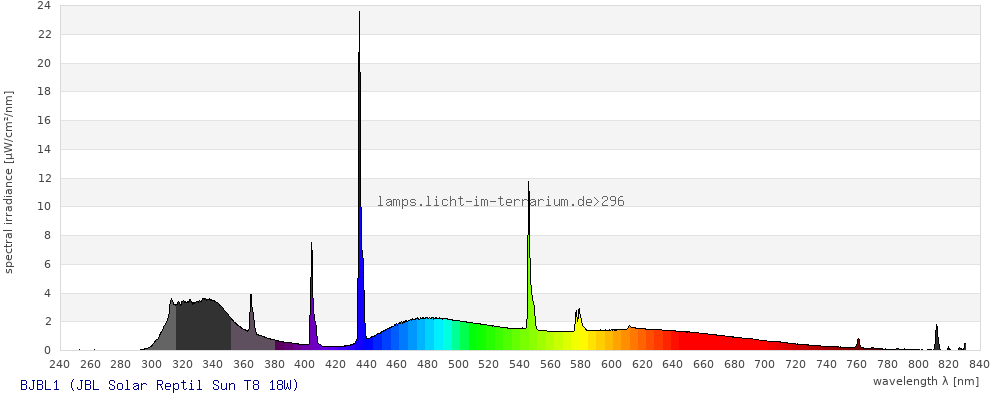

Spectrum 296: BJBL1 Edit
DeleteMeasurement
| Brand |
JBL JBL GmbH & Co. KG http://www.jbl.de/ |
|---|---|
| Lamp Product |
Solar Reptil Sun T8 18W |
| Lamp ID |
BJBL1 (03/2008) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

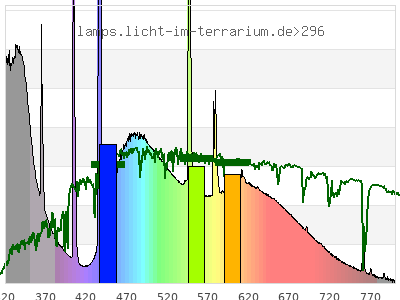

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.3 ; 0.32 ) | ( 0.41 ; 0.39 ) | ( 0.25 ; 0.3 ; 0.29 ) |
| CCT | 7400 Kelvin | 4900 Kelvin | 5600 Kelvin |
| distance | 0.052 | 0.055 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

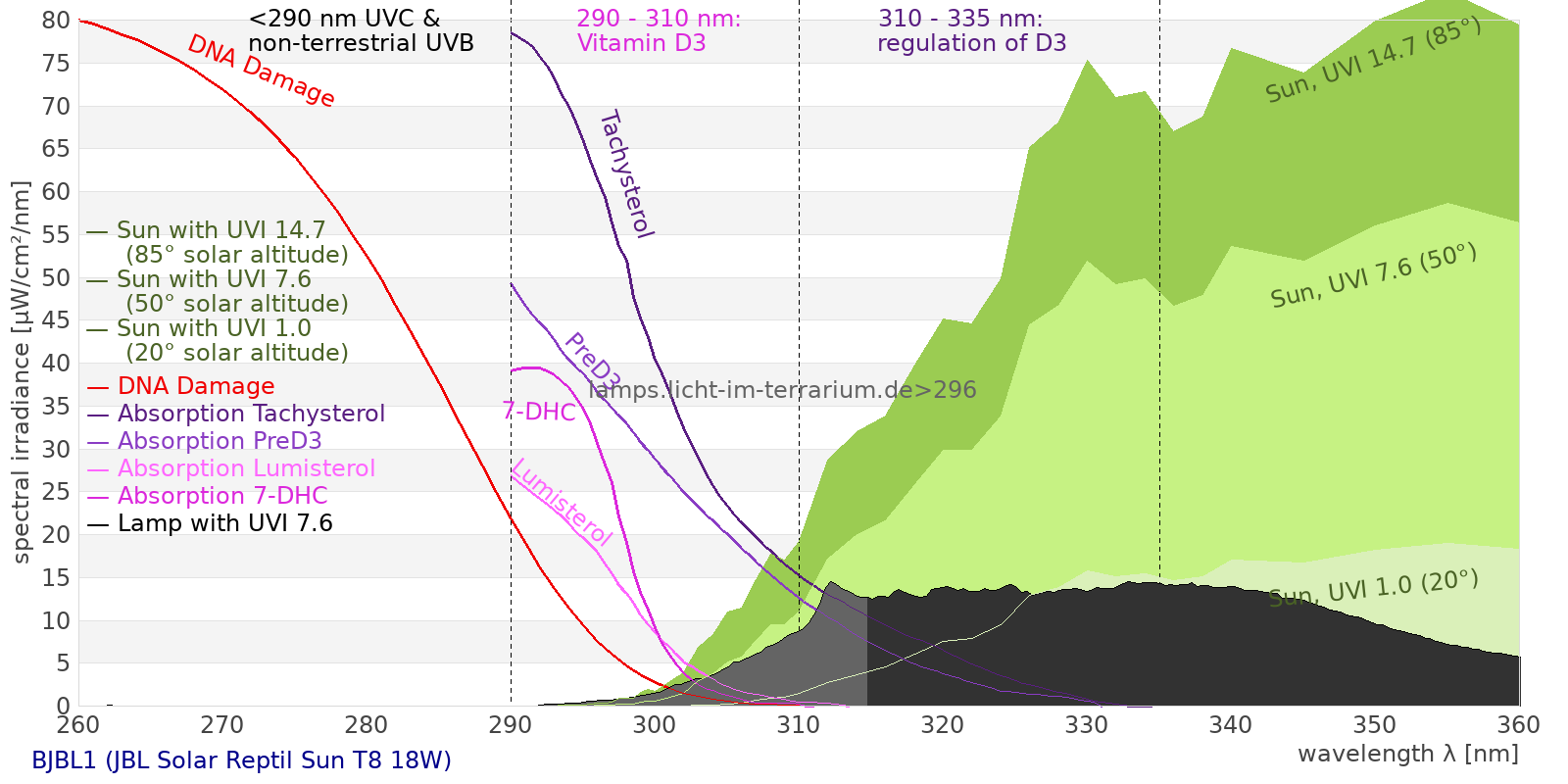

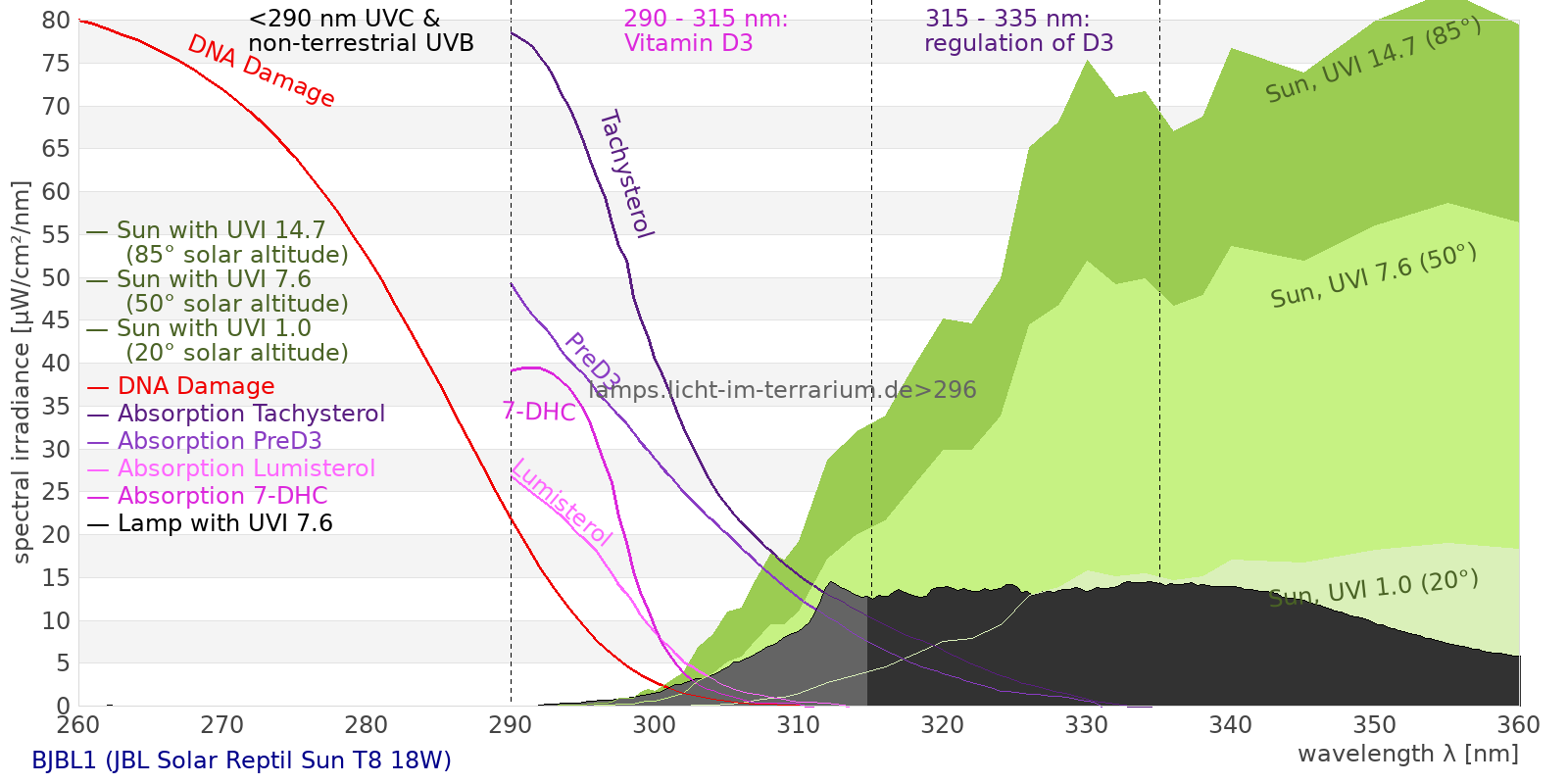

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

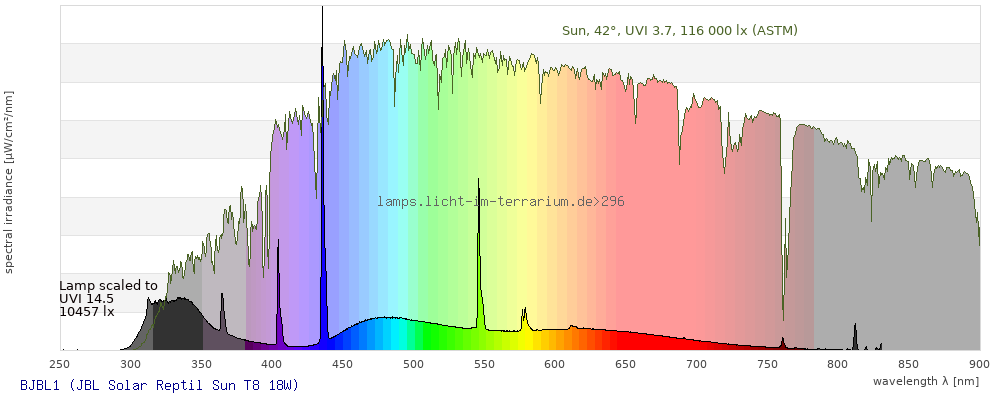

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 728 µW/cm² = 7.28 W/m² UVC ( 0 nm - 280 nm) 0.0302 µW/cm² = 0.000302 W/m² non-terrestrial ( 0 nm - 290 nm) 0.0302 µW/cm² = 0.000302 W/m² total2 ( 250 nm - 880 nm) 728 µW/cm² = 7.28 W/m² UVB (EU) ( 280 nm - 315 nm) 29.1 µW/cm² = 0.291 W/m² UVB (US) ( 280 nm - 320 nm) 46.1 µW/cm² = 0.461 W/m² UVA+B ( 280 nm - 380 nm) 190 µW/cm² = 1.9 W/m² Solar UVB ( 290 nm - 315 nm) 29.1 µW/cm² = 0.291 W/m² UVA D3 regulating ( 315 nm - 335 nm) 67.6 µW/cm² = 0.676 W/m² UVA (EU) ( 315 nm - 380 nm) 161 µW/cm² = 1.61 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 68.7 µW/cm² = 0.687 W/m² UVA (US) ( 320 nm - 380 nm) 144 µW/cm² = 1.44 W/m² UVA1 (variant) ( 335 nm - 380 nm) 93.3 µW/cm² = 0.933 W/m² UVA1 (medical) ( 340 nm - 400 nm) 85.8 µW/cm² = 0.858 W/m² vis. UVA ( 350 nm - 380 nm) 45.4 µW/cm² = 0.454 W/m² VIS Rep3 ( 350 nm - 600 nm) 428 µW/cm² = 4.28 W/m² VIS Rep4 ( 350 nm - 700 nm) 550 µW/cm² = 5.5 W/m² purple ( 380 nm - 420 nm) 32 µW/cm² = 0.32 W/m² VIS ( 380 nm - 780 nm) 532 µW/cm² = 5.32 W/m² VIS2 ( 400 nm - 680 nm) 478 µW/cm² = 4.78 W/m² PAR ( 400 nm - 700 nm) 494 µW/cm² = 4.94 W/m² tmp ( 400 nm - 1100 nm) 527 µW/cm² = 5.27 W/m² blue ( 420 nm - 490 nm) 149 µW/cm² = 1.49 W/m² green ( 490 nm - 575 nm) 162 µW/cm² = 1.62 W/m² yellow ( 575 nm - 585 nm) 19.6 µW/cm² = 0.196 W/m² orange ( 585 nm - 650 nm) 93.2 µW/cm² = 0.932 W/m² red ( 650 nm - 780 nm) 76.8 µW/cm² = 0.768 W/m² IRA ( 700 nm - 1400 nm) 33.4 µW/cm² = 0.334 W/m² IR2 ( 720 nm - 1100 nm) 22.2 µW/cm² = 0.222 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 1.9 UV-Index Pyrimidine dimerization of DNA 18.7 µW/cm² Photoceratitis 2.93 µW/cm² Photoconjunctivitis 0.0822 µW/cm² DNA Damage 0.214 Vitamin D3 8.32 µW/cm² Photosynthesis 347 µW/cm² Luminosity 1370 lx Human L-Cone 201 µW/cm² Human M-Cone 177 µW/cm² Human S-Cone 119 µW/cm² CIE X 177 µW/cm² CIE Y 190 µW/cm² CIE Z 225 µW/cm² PAR 2330000 mol photons Extinction preD3 51.5 e-3*m²/mol Extinction Tachysterol 181 e-3*m²/mol Exctincition PreD3 24300 m²/mol Extinction Lumisterol 8.12 m²/mol Exctincition Tachysterol 256000 m²/mol Extinction 7DHC 7.09 m²/mol L-Cone 166 µW/cm² M-Cone 202 µW/cm² S-Cone 195 µW/cm² U-Cone 100 µW/cm² UVR - ICNIRP 2004 1.52 Rel Biol Eff Melatonin Supression 173 µW/cm² Blue Light Hazard 131 µW/cm² (96 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 9.24 µW/cm² Lumen Reptil 1500 "pseudo-lx" Vitamin D3 Degradation 9.01 µW/cm² Actinic UV 1.5 µW/cm² (11 mW/klm) Exctincition Lumisterol 11500 m²/mol Exctincition 7DHC 9260 m²/mol Exctincition Toxisterols 4220 m²/mol
