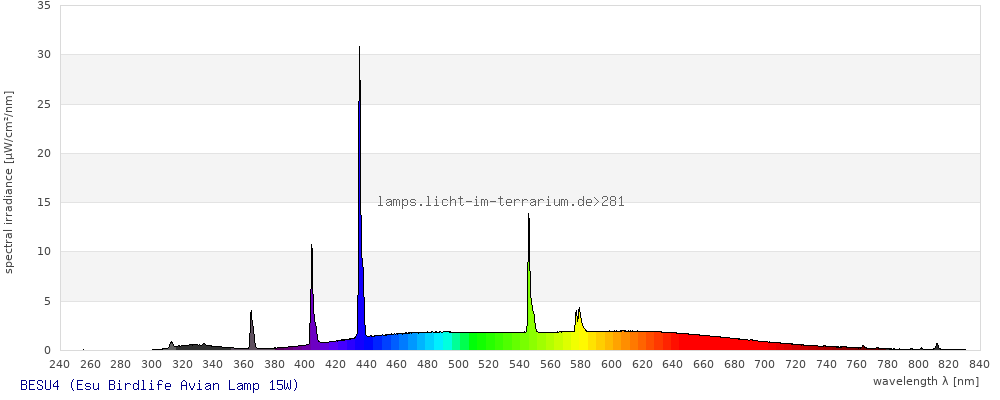

Spectrum 281: BESU4 Edit
DeleteMeasurement
| Brand |
Esu Birdlife Esu Birdlife |
|---|---|
| Lamp Product |
Avian Lamp 15W |
| Lamp ID |
BESU4 (02/2008) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 105 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
17/Jun/2010 ; updated:
Sarina Wunderlich
27/Feb/2011

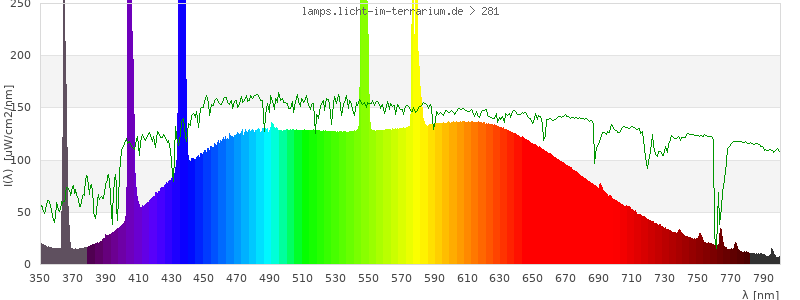

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

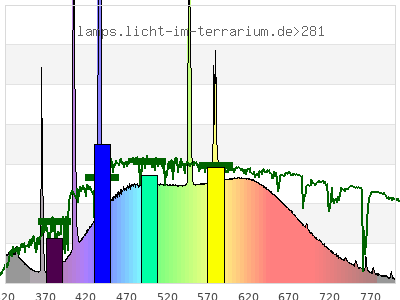

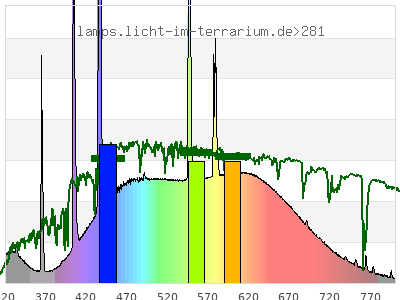

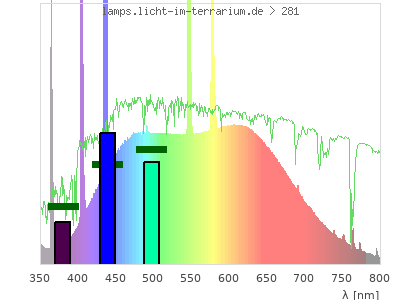

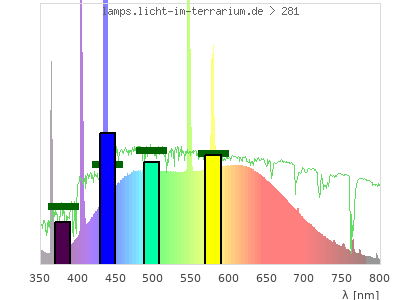

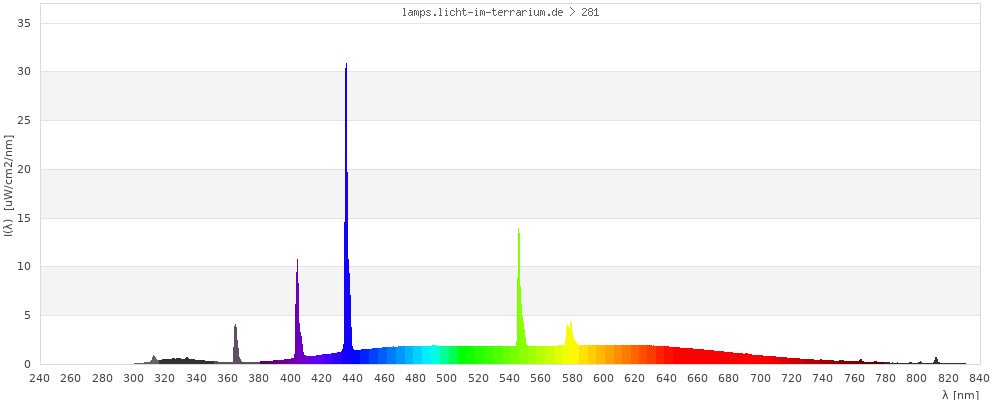

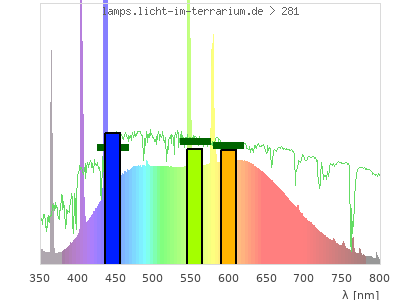

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.32 ; 0.32 ) | ( 0.37 ; 0.48 ) | ( 0.28 ; 0.27 ; 0.34 ) |
| CCT | 6300 Kelvin | 5600 Kelvin | 5200 Kelvin |
| distance | 0.13 | 0.096 | |
| colour space | 3-D-graph not implemented yet |

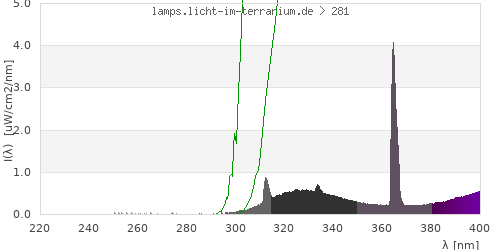

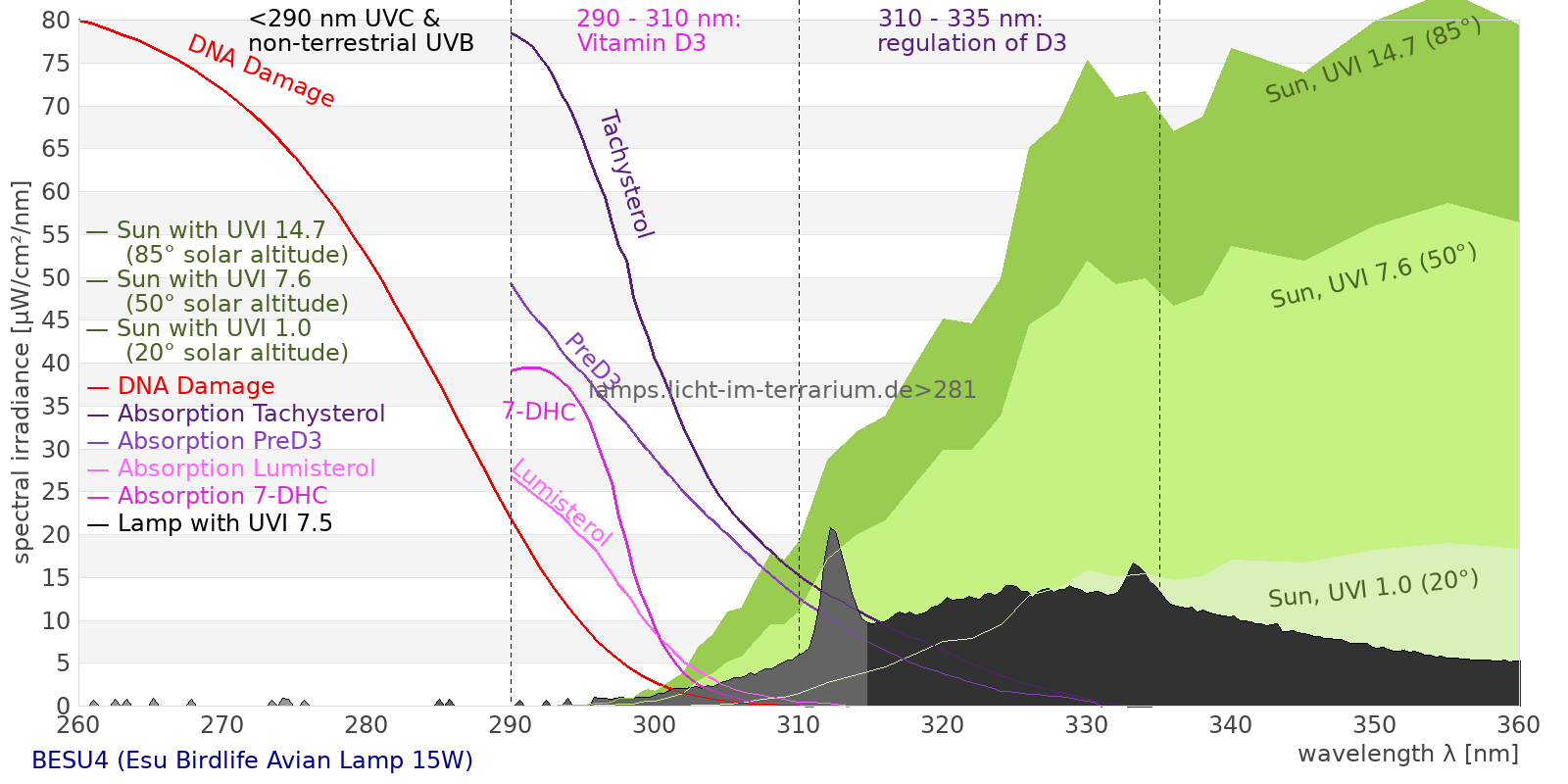

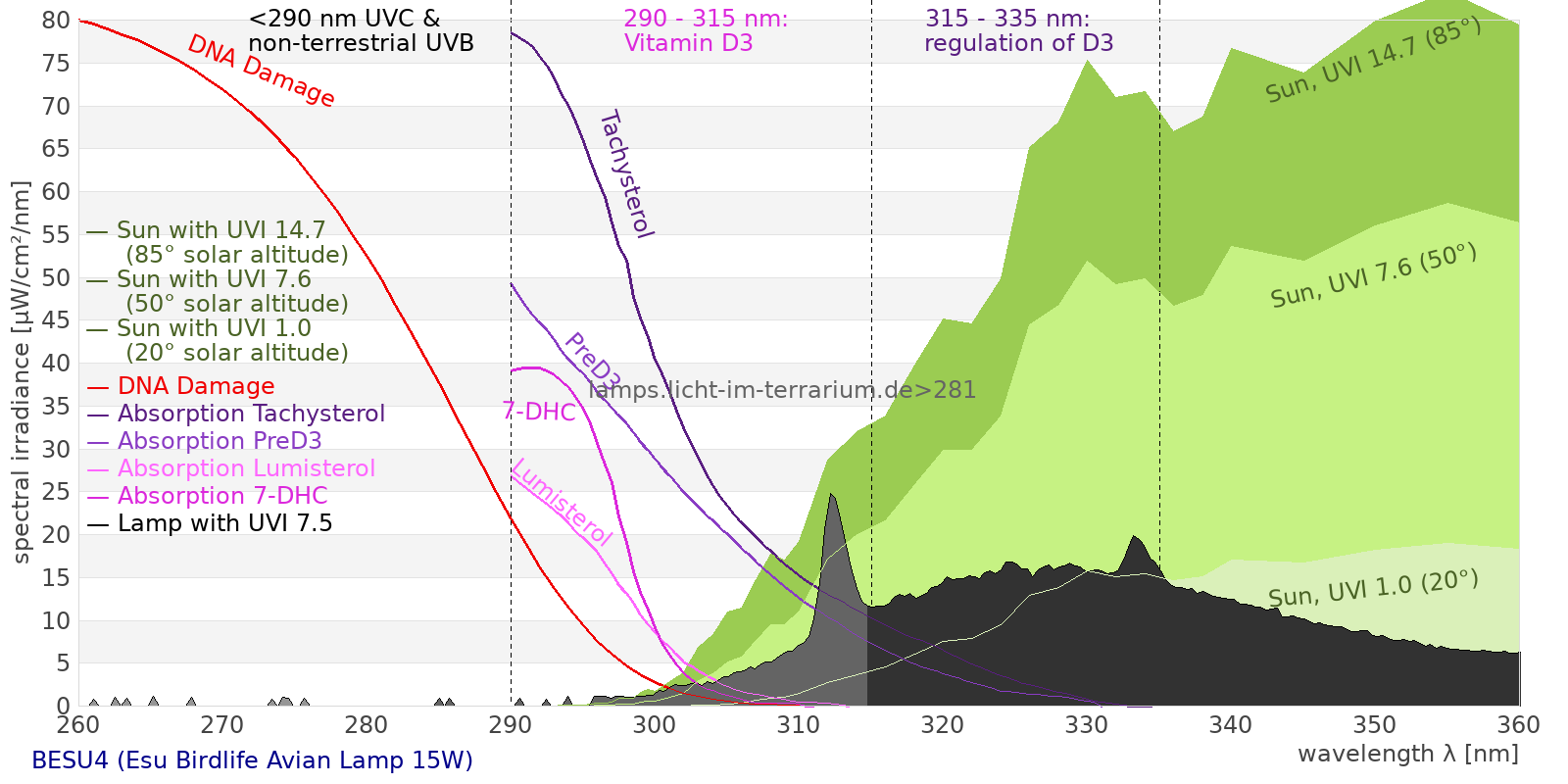

Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

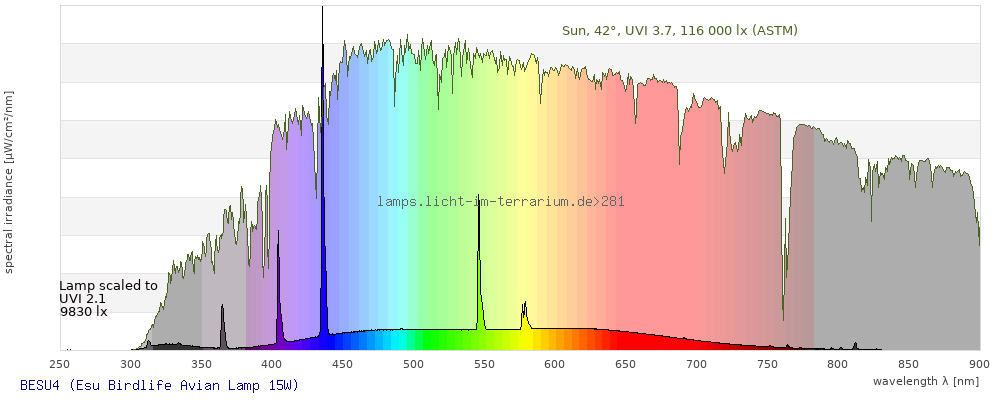

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 693 µW/cm² = 6.93 W/m² UVC ( 0 nm - 280 nm) 0.215 µW/cm² = 0.00215 W/m² non-terrestrial ( 0 nm - 290 nm) 0.239 µW/cm² = 0.00239 W/m² total2 ( 250 nm - 880 nm) 693 µW/cm² = 6.93 W/m² UVB (EU) ( 280 nm - 315 nm) 4.35 µW/cm² = 0.0435 W/m² UVB (US) ( 280 nm - 320 nm) 6.72 µW/cm² = 0.0672 W/m² UVA+B ( 280 nm - 380 nm) 36.5 µW/cm² = 0.365 W/m² Solar UVB ( 290 nm - 315 nm) 4.33 µW/cm² = 0.0433 W/m² UVA D3 regulating ( 315 nm - 335 nm) 10.8 µW/cm² = 0.108 W/m² UVA (EU) ( 315 nm - 380 nm) 32.1 µW/cm² = 0.321 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 10.9 µW/cm² = 0.109 W/m² UVA (US) ( 320 nm - 380 nm) 29.7 µW/cm² = 0.297 W/m² UVA1 (variant) ( 335 nm - 380 nm) 21.3 µW/cm² = 0.213 W/m² UVA1 (medical) ( 340 nm - 400 nm) 26.6 µW/cm² = 0.266 W/m² vis. UVA ( 350 nm - 380 nm) 15.3 µW/cm² = 0.153 W/m² VIS Rep3 ( 350 nm - 600 nm) 470 µW/cm² = 4.7 W/m² VIS Rep4 ( 350 nm - 700 nm) 628 µW/cm² = 6.28 W/m² purple ( 380 nm - 420 nm) 43.6 µW/cm² = 0.436 W/m² VIS ( 380 nm - 780 nm) 650 µW/cm² = 6.5 W/m² VIS2 ( 400 nm - 680 nm) 585 µW/cm² = 5.85 W/m² PAR ( 400 nm - 700 nm) 605 µW/cm² = 6.05 W/m² tmp ( 400 nm - 1100 nm) 649 µW/cm² = 6.49 W/m² blue ( 420 nm - 490 nm) 170 µW/cm² = 1.7 W/m² green ( 490 nm - 575 nm) 183 µW/cm² = 1.83 W/m² yellow ( 575 nm - 585 nm) 28.4 µW/cm² = 0.284 W/m² orange ( 585 nm - 650 nm) 124 µW/cm² = 1.24 W/m² red ( 650 nm - 780 nm) 101 µW/cm² = 1.01 W/m² IRA ( 700 nm - 1400 nm) 43.3 µW/cm² = 0.433 W/m² IR2 ( 720 nm - 1100 nm) 28.5 µW/cm² = 0.285 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.362 UV-Index Pyrimidine dimerization of DNA 2.56 µW/cm² Photoceratitis 0.497 µW/cm² Photoconjunctivitis 0.204 µW/cm² DNA Damage 0.241 Vitamin D3 1.16 µW/cm² Photosynthesis 425 µW/cm² Luminosity 1680 lx Human L-Cone 251 µW/cm² Human M-Cone 210 µW/cm² Human S-Cone 144 µW/cm² CIE X 232 µW/cm² CIE Y 234 µW/cm² CIE Z 265 µW/cm² PAR 2900000 mol photons Extinction preD3 9.3 e-3*m²/mol Extinction Tachysterol 29.8 e-3*m²/mol Exctincition PreD3 5400 m²/mol Extinction Lumisterol 2.69 m²/mol Exctincition Tachysterol 41600 m²/mol Extinction 7DHC 2.8 m²/mol L-Cone 213 µW/cm² M-Cone 198 µW/cm² S-Cone 255 µW/cm² U-Cone 82 µW/cm² UVR - ICNIRP 2004 0.387 Rel Biol Eff Melatonin Supression 194 µW/cm² Blue Light Hazard 162 µW/cm² (96 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 1.26 µW/cm² Lumen Reptil 1740 "pseudo-lx" Vitamin D3 Degradation 1.36 µW/cm² Actinic UV 0.384 µW/cm² (2.28 mW/klm) Exctincition Lumisterol 3230 m²/mol Exctincition 7DHC 3170 m²/mol Exctincition Toxisterols 1630 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 8.38 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.341 Leybold UVB 5.85 µW/cm² Leybold UVA 21 µW/cm² Leybold UVC 0.178 µW/cm² DeltaOhm UVB 13.7 µW/cm² DeltaOhm UVC 1.89 µW/cm² Vernier UVB 1.98 µW/cm² Vernier UVA 18.7 µW/cm² Gröbel UVA 26.7 µW/cm² Gröbel UVB 2.95 µW/cm² Gröbel UVC 0.179 µW/cm² Luxmeter 1720 lx Solarmeter 6.4 (D3) 1.07 IU/min UVX-31 14.9 µW/cm² IL UVB 0.00348 µW/cm² IL UVA 25.1 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.286 UV-Index Solarmeter 6.2 (UVB, post 2010) 5.51 µW/cm² (Solarmeter Ratio = 19.2) Solarmeter AlGaN 6.5 UVI sensor 3.67 UV Index GenUV 7.1 UV-Index 0.212 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 7.07 W/m² Solarmeter 4.0 (UVA) 0.406 mW/cm² LS122 (manuf.) 0.0035 W/m² ISM400 (first guess) 5.07 W/m² LS122 (assumption) 0.248 W/m² ISM400_new 4.23 W/m² Solarmeter 10.0 (Global Power) (assumption) 6.75 W/m²
