Spectrum 277: BZL13 Edit
DeleteMeasurement
| Brand |
R-Zilla Zilla Products http://www.zilla-rules.com |
|---|---|
| Lamp Product |
Desert 50 12W |
| Lamp ID |
BZL13 (12/2008) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

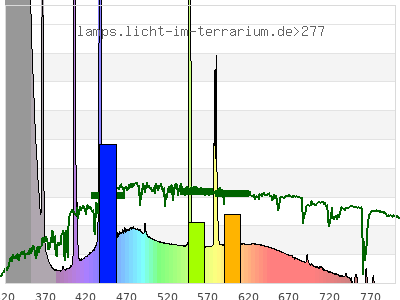

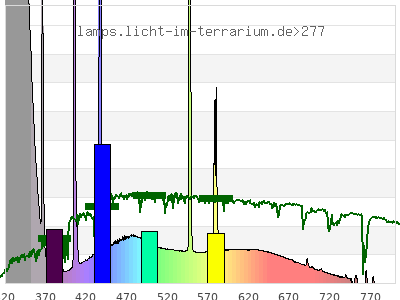

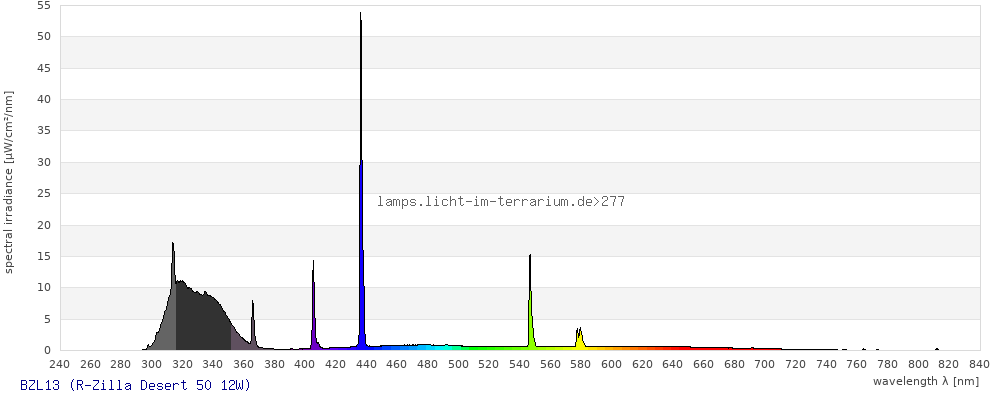

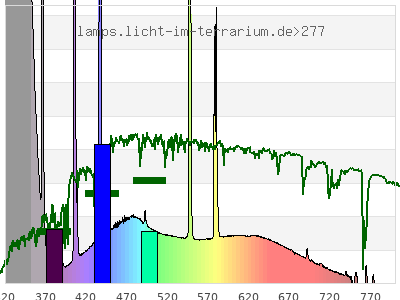

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.26 ; 0.23 ) | ( 0.21 ; 0.57 ) | ( 0.17 ; 0.18 ; 0.47 ) |
| CCT | 100000 Kelvin | 10000 Kelvin | 13000 Kelvin |
| distance | 0.24 | 0.2 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

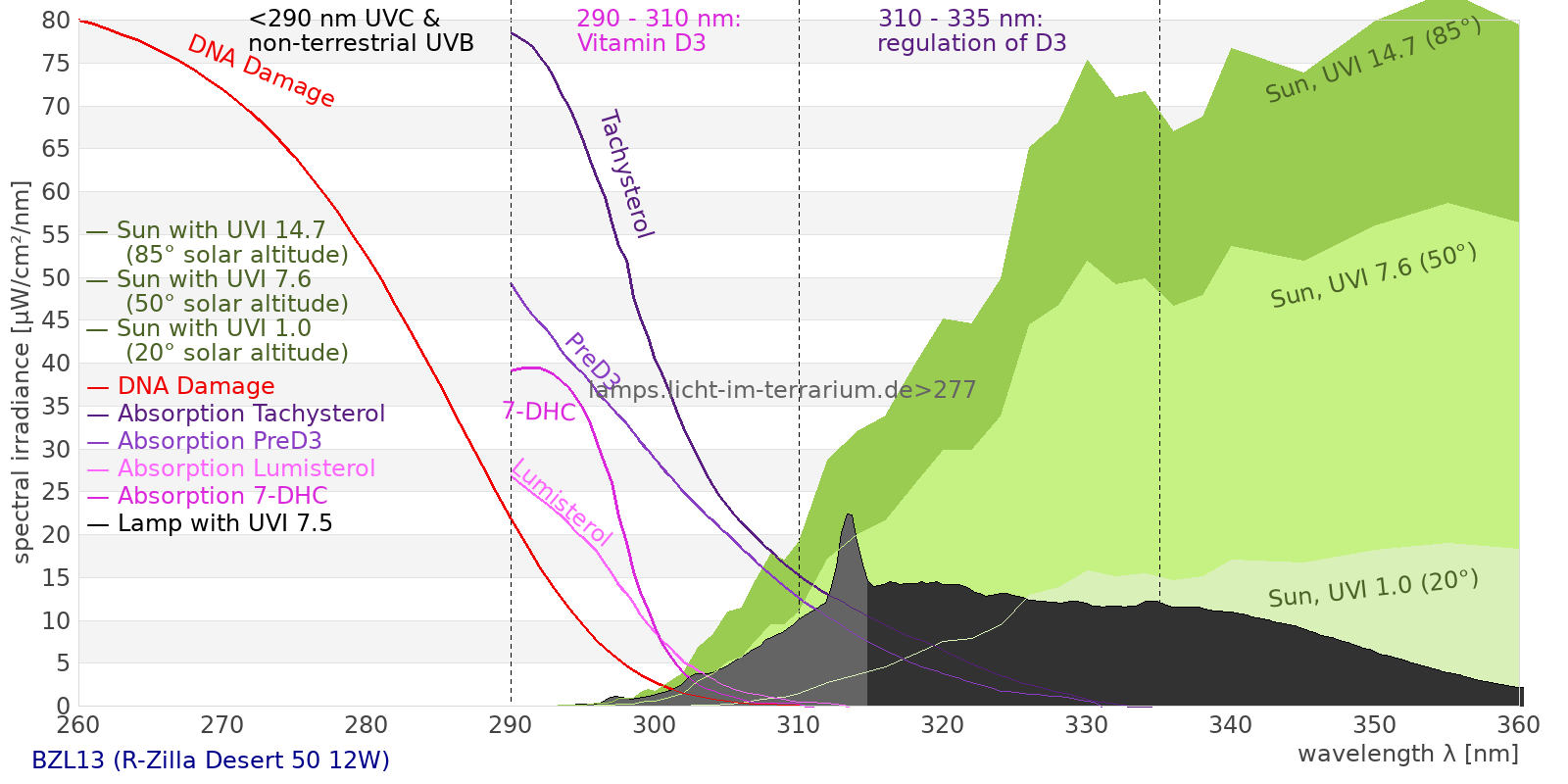

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

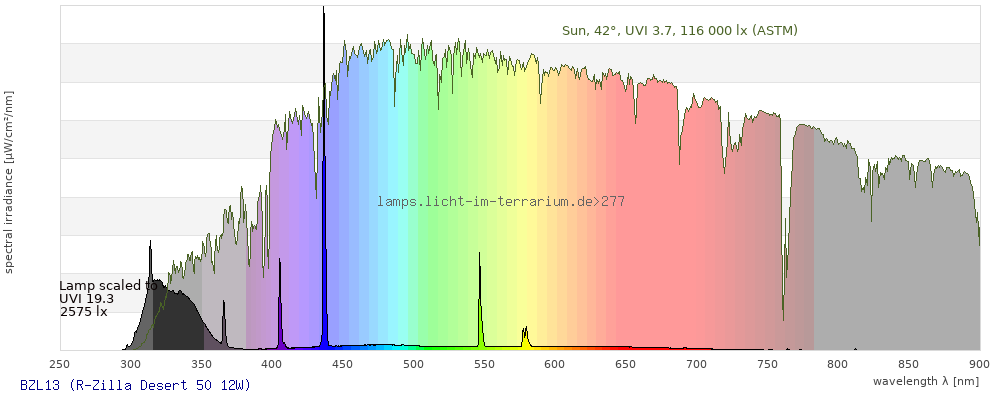

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 825 µW/cm² = 8.25 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 825 µW/cm² = 8.25 W/m² UVB (EU) ( 280 nm - 315 nm) 103 µW/cm² = 1.03 W/m² UVB (US) ( 280 nm - 320 nm) 160 µW/cm² = 1.6 W/m² UVA+B ( 280 nm - 380 nm) 469 µW/cm² = 4.69 W/m² Solar UVB ( 290 nm - 315 nm) 103 µW/cm² = 1.03 W/m² UVA D3 regulating ( 315 nm - 335 nm) 198 µW/cm² = 1.98 W/m² UVA (EU) ( 315 nm - 380 nm) 365 µW/cm² = 3.65 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 187 µW/cm² = 1.87 W/m² UVA (US) ( 320 nm - 380 nm) 308 µW/cm² = 3.08 W/m² UVA1 (variant) ( 335 nm - 380 nm) 167 µW/cm² = 1.67 W/m² UVA1 (medical) ( 340 nm - 400 nm) 126 µW/cm² = 1.26 W/m² vis. UVA ( 350 nm - 380 nm) 55.4 µW/cm² = 0.554 W/m² VIS Rep3 ( 350 nm - 600 nm) 350 µW/cm² = 3.5 W/m² VIS Rep4 ( 350 nm - 700 nm) 402 µW/cm² = 4.02 W/m² purple ( 380 nm - 420 nm) 37.1 µW/cm² = 0.371 W/m² VIS ( 380 nm - 780 nm) 356 µW/cm² = 3.56 W/m² VIS2 ( 400 nm - 680 nm) 335 µW/cm² = 3.35 W/m² PAR ( 400 nm - 700 nm) 342 µW/cm² = 3.42 W/m² tmp ( 400 nm - 1100 nm) 352 µW/cm² = 3.52 W/m² blue ( 420 nm - 490 nm) 148 µW/cm² = 1.48 W/m² green ( 490 nm - 575 nm) 83.3 µW/cm² = 0.833 W/m² yellow ( 575 nm - 585 nm) 16.2 µW/cm² = 0.162 W/m² orange ( 585 nm - 650 nm) 40.7 µW/cm² = 0.407 W/m² red ( 650 nm - 780 nm) 30.2 µW/cm² = 0.302 W/m² IRA ( 700 nm - 1400 nm) 9.27 µW/cm² = 0.0927 W/m² IR2 ( 720 nm - 1100 nm) 4.59 µW/cm² = 0.0459 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 5.79 UV-Index Pyrimidine dimerization of DNA 62.8 µW/cm² Photoceratitis 9.31 µW/cm² Photoconjunctivitis 0.143 µW/cm² DNA Damage 0.483 Vitamin D3 26.6 µW/cm² Photosynthesis 257 µW/cm² Luminosity 772 lx Human L-Cone 113 µW/cm² Human M-Cone 101 µW/cm² Human S-Cone 133 µW/cm² CIE X 120 µW/cm² CIE Y 106 µW/cm² CIE Z 240 µW/cm² PAR 1640000 mol photons Extinction preD3 170 e-3*m²/mol Extinction Tachysterol 593 e-3*m²/mol Exctincition PreD3 77400 m²/mol Extinction Lumisterol 22.6 m²/mol Exctincition Tachysterol 816000 m²/mol Extinction 7DHC 17.7 m²/mol L-Cone 91.1 µW/cm² M-Cone 94.5 µW/cm² S-Cone 255 µW/cm² U-Cone 98.9 µW/cm² UVR - ICNIRP 2004 4.32 Rel Biol Eff Melatonin Supression 152 µW/cm² Blue Light Hazard 152 µW/cm² (197 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 29.7 µW/cm² Lumen Reptil 1120 "pseudo-lx" Vitamin D3 Degradation 30.1 µW/cm² Actinic UV 4.28 µW/cm² (55.5 mW/klm) Exctincition Lumisterol 33800 m²/mol Exctincition 7DHC 23900 m²/mol Exctincition Toxisterols 12500 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 182 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 7.55 Leybold UVB 134 µW/cm² Leybold UVA 209 µW/cm² Leybold UVC 0.00579 µW/cm² DeltaOhm UVB 276 µW/cm² DeltaOhm UVC 36.2 µW/cm² Vernier UVB 49.2 µW/cm² Vernier UVA 297 µW/cm² Gröbel UVA 304 µW/cm² Gröbel UVB 68.8 µW/cm² Gröbel UVC -0.0444 µW/cm² Luxmeter 807 lx Solarmeter 6.4 (D3) 23.6 IU/min UVX-31 294 µW/cm² IL UVB 0.074 µW/cm² IL UVA 238 µW/cm² Solarmeter 6.5 (UVI, post 2010) 6.35 UV-Index Solarmeter 6.2 (UVB, post 2010) 119 µW/cm² (Solarmeter Ratio = 18.7) Solarmeter AlGaN 6.5 UVI sensor 87.1 UV Index GenUV 7.1 UV-Index 4.76 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 5.13 W/m² Solarmeter 4.0 (UVA) 3.07 mW/cm² LS122 (manuf.) 0.000294 W/m² ISM400 (first guess) 2.2 W/m² LS122 (assumption) 0.0905 W/m² ISM400_new 1.68 W/m² Solarmeter 10.0 (Global Power) (assumption) 3.76 W/m²
