Reptile Lamp Database

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

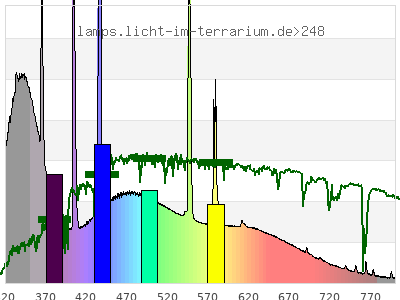

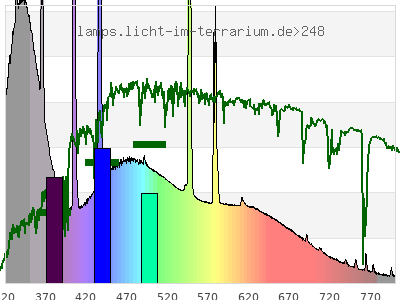

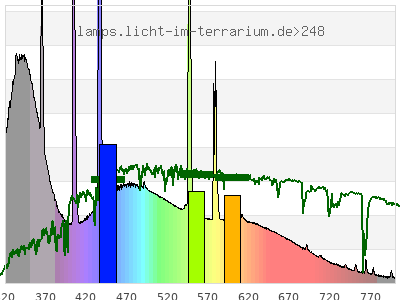

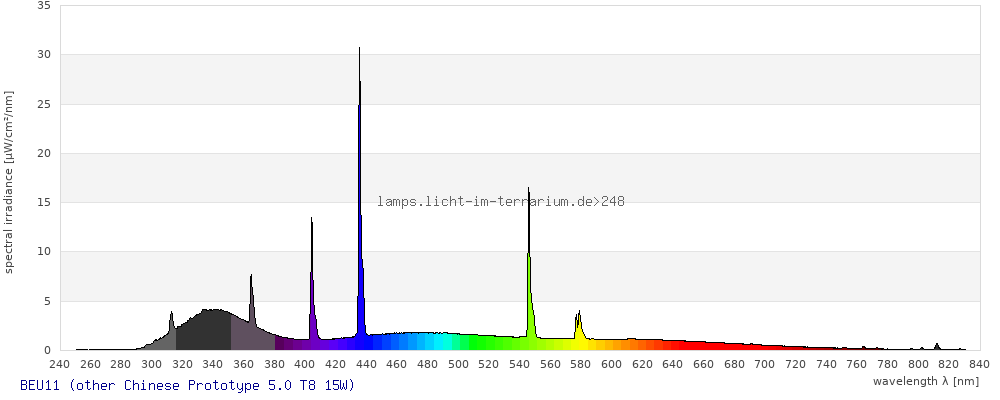

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.28 ; 0.29 )	( 0.27 ; 0.41 )	( 0.19 ; 0.22 ; 0.33 )
CCT	11000 Kelvin	8700 Kelvin	8700 Kelvin
distance		0.072	0.057
colour space			3-D-graph not implemented yet

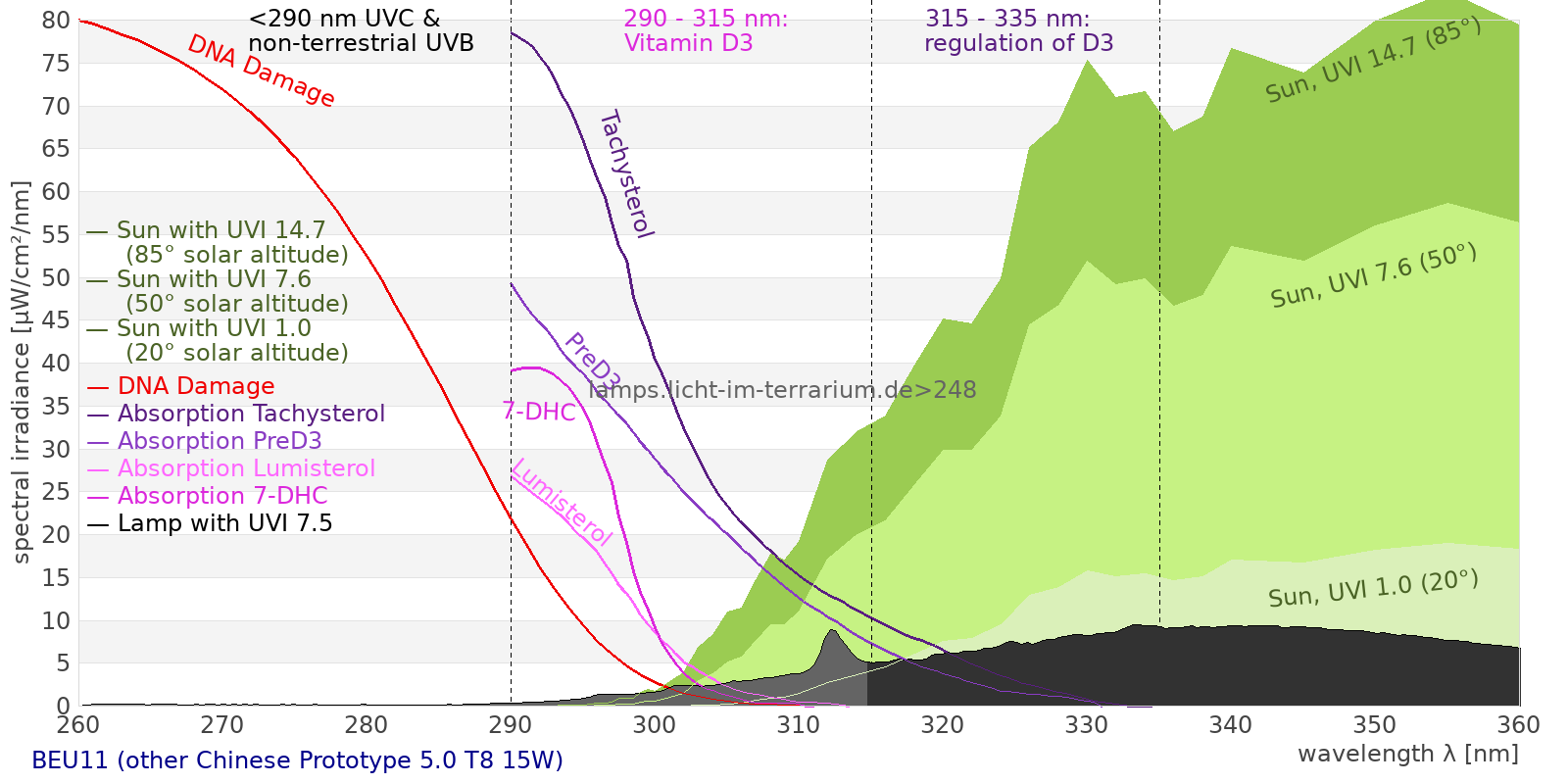

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

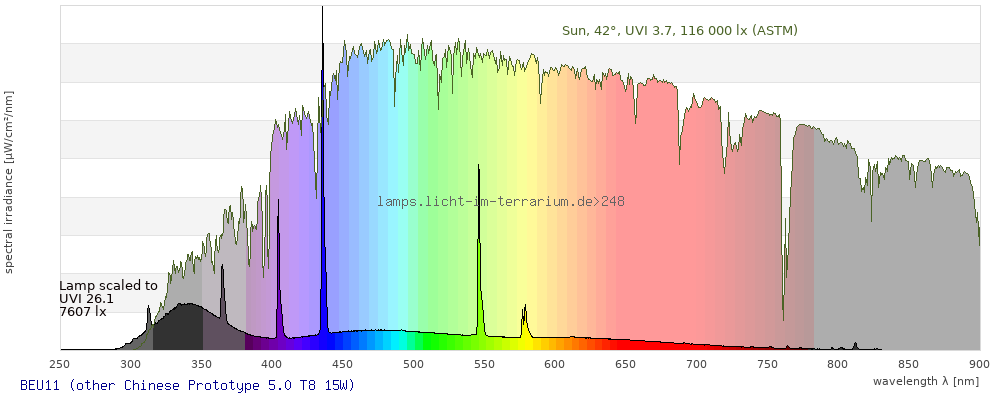

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	811 µW/cm² = 8.11 W/m²
UVC ( 0 nm - 280 nm)	2.35 µW/cm² = 0.0235 W/m²
non-terrestrial ( 0 nm - 290 nm)	3.23 µW/cm² = 0.0323 W/m²
total2 ( 250 nm - 880 nm)	811 µW/cm² = 8.11 W/m²
UVB (EU) ( 280 nm - 315 nm)	31.5 µW/cm² = 0.315 W/m²
UVB (US) ( 280 nm - 320 nm)	44.2 µW/cm² = 0.442 W/m²
UVA+B ( 280 nm - 380 nm)	247 µW/cm² = 2.47 W/m²
Solar UVB ( 290 nm - 315 nm)	30.6 µW/cm² = 0.306 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	64.2 µW/cm² = 0.642 W/m²
UVA (EU) ( 315 nm - 380 nm)	216 µW/cm² = 2.16 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	72.7 µW/cm² = 0.727 W/m²
UVA (US) ( 320 nm - 380 nm)	203 µW/cm² = 2.03 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	151 µW/cm² = 1.51 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	155 µW/cm² = 1.55 W/m²
vis. UVA ( 350 nm - 380 nm)	90 µW/cm² = 0.9 W/m²
VIS Rep3 ( 350 nm - 600 nm)	528 µW/cm² = 5.28 W/m²
VIS Rep4 ( 350 nm - 700 nm)	619 µW/cm² = 6.19 W/m²
purple ( 380 nm - 420 nm)	71.9 µW/cm² = 0.719 W/m²
VIS ( 380 nm - 780 nm)	554 µW/cm² = 5.54 W/m²
VIS2 ( 400 nm - 680 nm)	492 µW/cm² = 4.92 W/m²
PAR ( 400 nm - 700 nm)	504 µW/cm² = 5.04 W/m²
tmp ( 400 nm - 1100 nm)	537 µW/cm² = 5.37 W/m²
blue ( 420 nm - 490 nm)	173 µW/cm² = 1.73 W/m²
green ( 490 nm - 575 nm)	153 µW/cm² = 1.53 W/m²
yellow ( 575 nm - 585 nm)	22 µW/cm² = 0.22 W/m²
orange ( 585 nm - 650 nm)	71.6 µW/cm² = 0.716 W/m²
red ( 650 nm - 780 nm)	62.2 µW/cm² = 0.622 W/m²
IRA ( 700 nm - 1400 nm)	32.3 µW/cm² = 0.323 W/m²
IR2 ( 720 nm - 1100 nm)	23.2 µW/cm² = 0.232 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	4.45 UV-Index
Pyrimidine dimerization of DNA	19.5 µW/cm²
Photoceratitis	6.01 µW/cm²
Photoconjunctivitis	2.3 µW/cm²
DNA Damage	3.03
Vitamin D3	12.8 µW/cm²
Photosynthesis	361 µW/cm²
Luminosity	1300 lx
Human L-Cone	189 µW/cm²
Human M-Cone	171 µW/cm²
Human S-Cone	149 µW/cm²
CIE X	171 µW/cm²
CIE Y	180 µW/cm²
CIE Z	271 µW/cm²
PAR	2410000 mol photons
Extinction preD3	83 e-3*m²/mol
Extinction Tachysterol	266 e-3*m²/mol
Exctincition PreD3	52600 m²/mol
Extinction Lumisterol	38.7 m²/mol
Exctincition Tachysterol	368000 m²/mol
Extinction 7DHC	45.5 m²/mol
L-Cone	153 µW/cm²
M-Cone	180 µW/cm²
S-Cone	270 µW/cm²
U-Cone	212 µW/cm²
UVR - ICNIRP 2004	5.58 Rel Biol Eff
Melatonin Supression	198 µW/cm²
Blue Light Hazard	171 µW/cm² (132 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	13.8 µW/cm²
Lumen Reptil	1710 "pseudo-lx"
Vitamin D3 Degradation	10.6 µW/cm²
Actinic UV	5.53 µW/cm² (42.6 mW/klm)
Exctincition Lumisterol	44900 m²/mol
Exctincition 7DHC	51200 m²/mol
Exctincition Toxisterols	14200 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	57.2 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	3.87
Leybold UVB	38.9 µW/cm²
Leybold UVA	151 µW/cm²
Leybold UVC	1.78 µW/cm²
DeltaOhm UVB	88.2 µW/cm²
DeltaOhm UVC	12.9 µW/cm²
Vernier UVB	16.9 µW/cm²
Vernier UVA	138 µW/cm²
Gröbel UVA	183 µW/cm²
Gröbel UVB	23.9 µW/cm²
Gröbel UVC	1.89 µW/cm²
Luxmeter	1350 lx
Solarmeter 6.4 (D3)	12.1 IU/min
UVX-31	100 µW/cm²
IL UVB	0.0255 µW/cm²
IL UVA	171 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	2.9 UV-Index
Solarmeter 6.2 (UVB, post 2010)	34.8 µW/cm² (Solarmeter Ratio = 12)
Solarmeter AlGaN 6.5 UVI sensor	27.9 UV Index
GenUV 7.1 UV-Index	1.56 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	6.51 W/m²
Solarmeter 4.0 (UVA)	2.33 mW/cm²
LS122 (manuf.)	0.00447 W/m²
ISM400 (first guess)	3.82 W/m²
LS122 (assumption)	0.167 W/m²
ISM400_new	3.08 W/m²
Solarmeter 10.0 (Global Power) (assumption)	5.58 W/m²
