Reptile Lamp Database

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

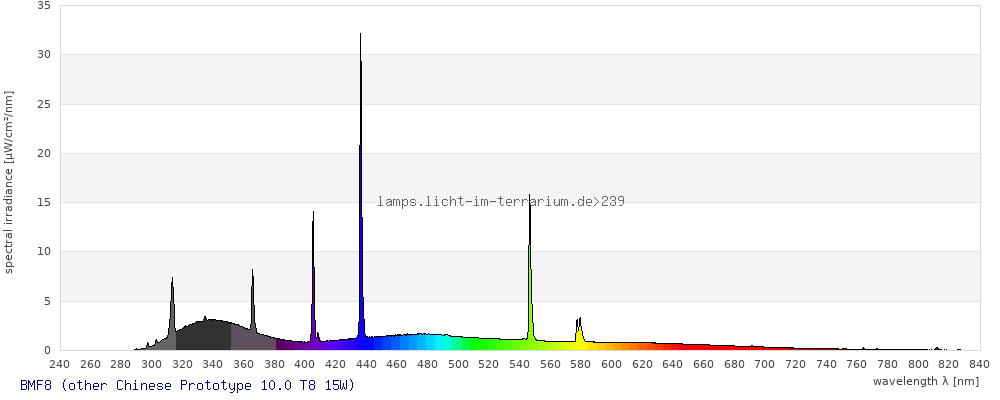

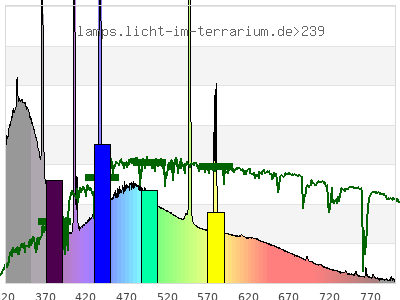

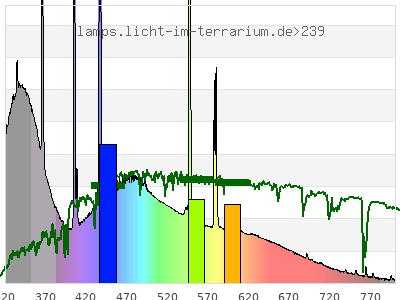

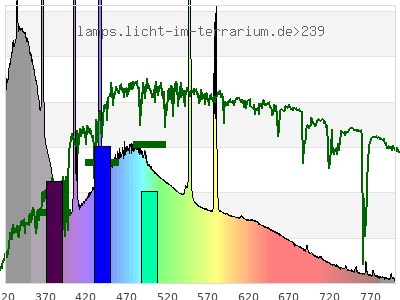

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.26 ; 0.28 )	( 0.28 ; 0.41 )	( 0.17 ; 0.23 ; 0.34 )
CCT	14000 Kelvin	8400 Kelvin	9200 Kelvin
distance		0.078	0.065
colour space			3-D-graph not implemented yet

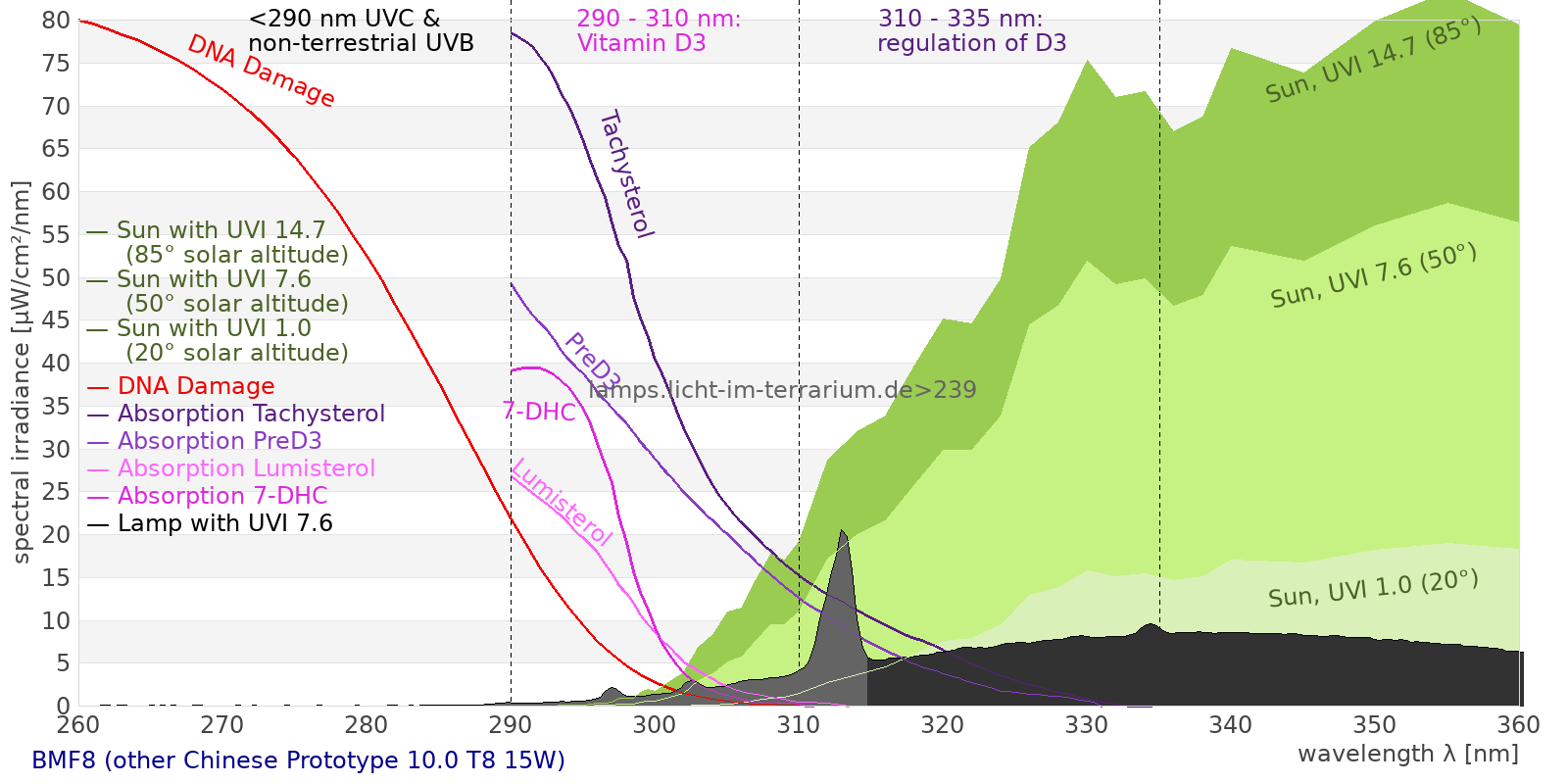

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

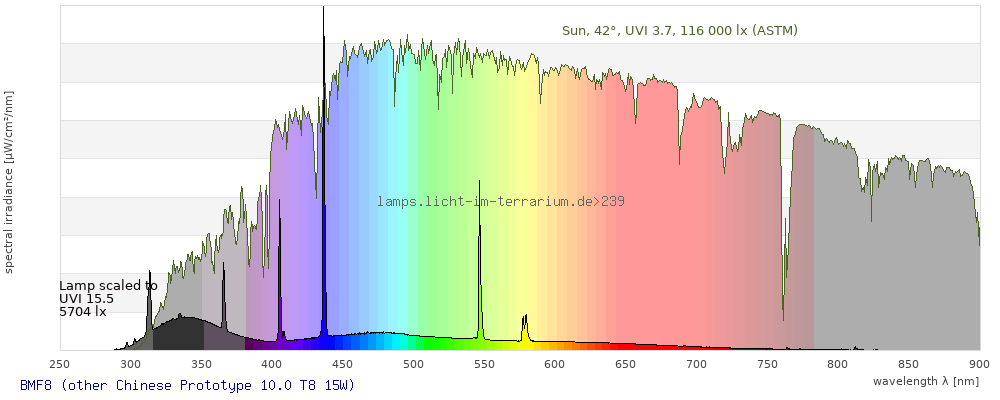

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	645 µW/cm² = 6.45 W/m²
UVC ( 0 nm - 280 nm)	0.198 µW/cm² = 0.00198 W/m²
non-terrestrial ( 0 nm - 290 nm)	0.612 µW/cm² = 0.00612 W/m²
total2 ( 250 nm - 880 nm)	645 µW/cm² = 6.45 W/m²
UVB (EU) ( 280 nm - 315 nm)	34.1 µW/cm² = 0.341 W/m²
UVB (US) ( 280 nm - 320 nm)	45 µW/cm² = 0.45 W/m²
UVA+B ( 280 nm - 380 nm)	203 µW/cm² = 2.03 W/m²
Solar UVB ( 290 nm - 315 nm)	33.7 µW/cm² = 0.337 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	52.5 µW/cm² = 0.525 W/m²
UVA (EU) ( 315 nm - 380 nm)	169 µW/cm² = 1.69 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	57.7 µW/cm² = 0.577 W/m²
UVA (US) ( 320 nm - 380 nm)	158 µW/cm² = 1.58 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	116 µW/cm² = 1.16 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	120 µW/cm² = 1.2 W/m²
vis. UVA ( 350 nm - 380 nm)	70.1 µW/cm² = 0.701 W/m²
VIS Rep3 ( 350 nm - 600 nm)	432 µW/cm² = 4.32 W/m²
VIS Rep4 ( 350 nm - 700 nm)	494 µW/cm² = 4.94 W/m²
purple ( 380 nm - 420 nm)	59.1 µW/cm² = 0.591 W/m²
VIS ( 380 nm - 780 nm)	439 µW/cm² = 4.39 W/m²
VIS2 ( 400 nm - 680 nm)	395 µW/cm² = 3.95 W/m²
PAR ( 400 nm - 700 nm)	404 µW/cm² = 4.04 W/m²
tmp ( 400 nm - 1100 nm)	422 µW/cm² = 4.22 W/m²
blue ( 420 nm - 490 nm)	149 µW/cm² = 1.49 W/m²
green ( 490 nm - 575 nm)	124 µW/cm² = 1.24 W/m²
yellow ( 575 nm - 585 nm)	16.5 µW/cm² = 0.165 W/m²
orange ( 585 nm - 650 nm)	50 µW/cm² = 0.5 W/m²
red ( 650 nm - 780 nm)	39.7 µW/cm² = 0.397 W/m²
IRA ( 700 nm - 1400 nm)	18.6 µW/cm² = 0.186 W/m²
IR2 ( 720 nm - 1100 nm)	12.7 µW/cm² = 0.127 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	2.77 UV-Index
Pyrimidine dimerization of DNA	18.3 µW/cm²
Photoceratitis	4.33 µW/cm²
Photoconjunctivitis	0.336 µW/cm²
DNA Damage	0.703
Vitamin D3	10.2 µW/cm²
Photosynthesis	291 µW/cm²
Luminosity	1020 lx
Human L-Cone	147 µW/cm²
Human M-Cone	138 µW/cm²
Human S-Cone	127 µW/cm²
CIE X	133 µW/cm²
CIE Y	141 µW/cm²
CIE Z	233 µW/cm²
PAR	1920000 mol photons
Extinction preD3	58 e-3*m²/mol
Extinction Tachysterol	204 e-3*m²/mol
Exctincition PreD3	29700 m²/mol
Extinction Lumisterol	16.4 m²/mol
Exctincition Tachysterol	282000 m²/mol
Extinction 7DHC	18.8 m²/mol
L-Cone	117 µW/cm²
M-Cone	153 µW/cm²
S-Cone	229 µW/cm²
U-Cone	170 µW/cm²
UVR - ICNIRP 2004	2.8 Rel Biol Eff
Melatonin Supression	170 µW/cm²
Blue Light Hazard	146 µW/cm² (143 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	10.9 µW/cm²
Lumen Reptil	1400 "pseudo-lx"
Vitamin D3 Degradation	9.32 µW/cm²
Actinic UV	2.77 µW/cm² (27.1 mW/klm)
Exctincition Lumisterol	20900 m²/mol
Exctincition 7DHC	22900 m²/mol
Exctincition Toxisterols	4880 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	52.7 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	2.92
Leybold UVB	38.9 µW/cm²
Leybold UVA	116 µW/cm²
Leybold UVC	0.167 µW/cm²
DeltaOhm UVB	79.2 µW/cm²
DeltaOhm UVC	10.4 µW/cm²
Vernier UVB	15.7 µW/cm²
Vernier UVA	114 µW/cm²
Gröbel UVA	145 µW/cm²
Gröbel UVB	22 µW/cm²
Gröbel UVC	0.162 µW/cm²
Luxmeter	1070 lx
Solarmeter 6.4 (D3)	9.13 IU/min
UVX-31	88.8 µW/cm²
IL UVB	0.0227 µW/cm²
IL UVA	133 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	2.25 UV-Index
Solarmeter 6.2 (UVB, post 2010)	32.8 µW/cm² (Solarmeter Ratio = 14.6)
Solarmeter AlGaN 6.5 UVI sensor	27.3 UV Index
GenUV 7.1 UV-Index	1.46 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	5.03 W/m²
Solarmeter 4.0 (UVA)	1.84 mW/cm²
LS122 (manuf.)	0.00166 W/m²
ISM400 (first guess)	2.79 W/m²
LS122 (assumption)	0.117 W/m²
ISM400_new	2.2 W/m²
Solarmeter 10.0 (Global Power) (assumption)	4.25 W/m²
