Reptile Lamp Database

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

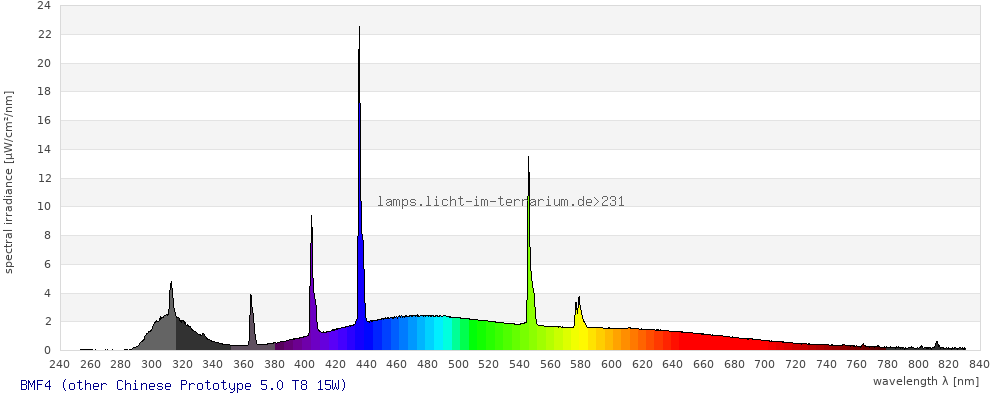

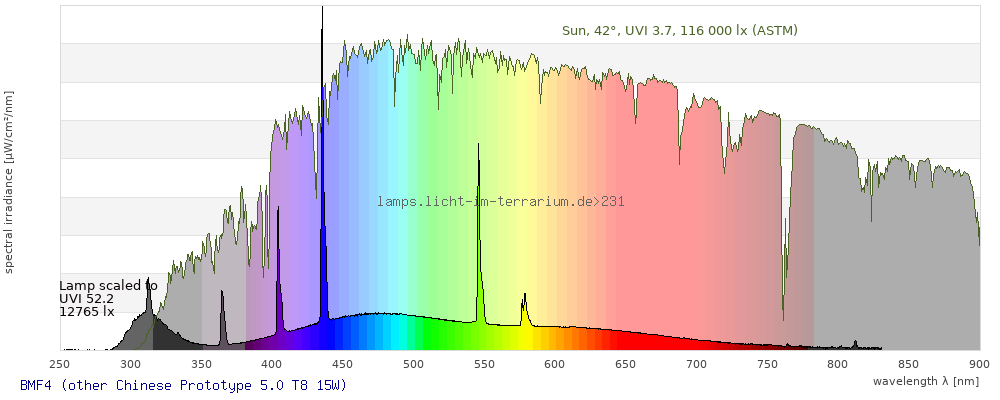

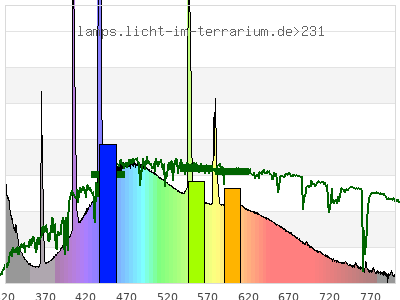

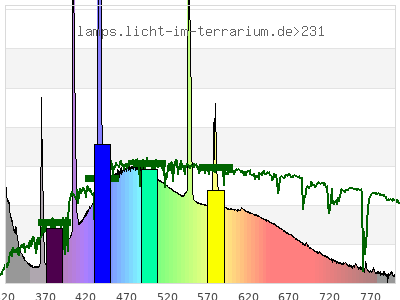

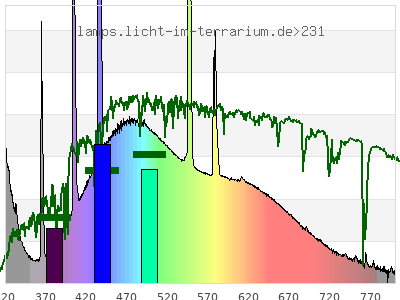

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.28 ; 0.3 )	( 0.37 ; 0.45 )	( 0.23 ; 0.28 ; 0.35 )
CCT	9000 Kelvin	5500 Kelvin	6100 Kelvin
distance		0.11	0.09
colour space			3-D-graph not implemented yet

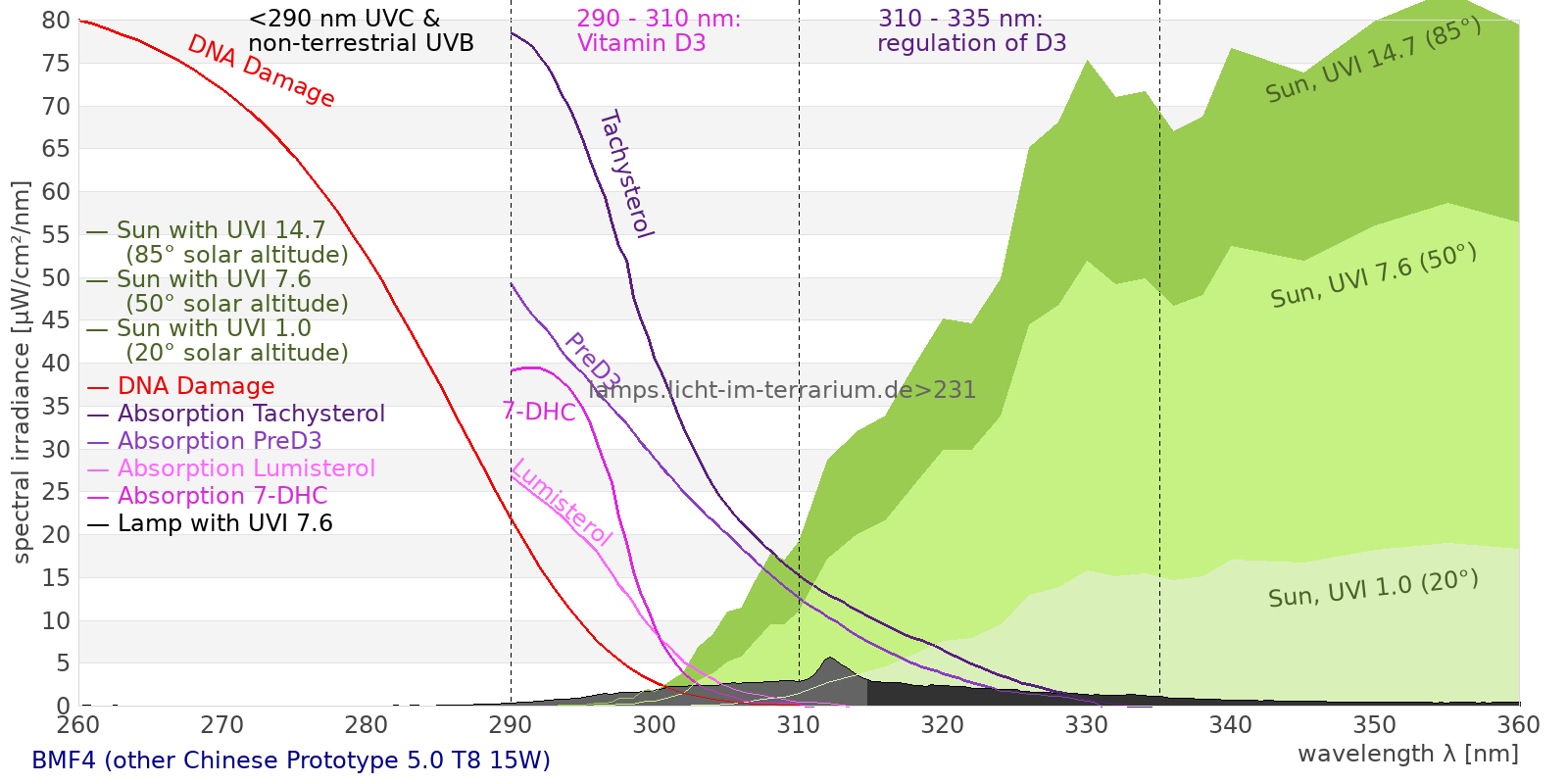

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	768 µW/cm² = 7.68 W/m²
UVC ( 0 nm - 280 nm)	0.437 µW/cm² = 0.00437 W/m²
non-terrestrial ( 0 nm - 290 nm)	1.4 µW/cm² = 0.014 W/m²
total2 ( 250 nm - 880 nm)	768 µW/cm² = 7.68 W/m²
UVB (EU) ( 280 nm - 315 nm)	49.4 µW/cm² = 0.494 W/m²
UVB (US) ( 280 nm - 320 nm)	60.7 µW/cm² = 0.607 W/m²
UVA+B ( 280 nm - 380 nm)	111 µW/cm² = 1.11 W/m²
Solar UVB ( 290 nm - 315 nm)	48.5 µW/cm² = 0.485 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	31.8 µW/cm² = 0.318 W/m²
UVA (EU) ( 315 nm - 380 nm)	61.2 µW/cm² = 0.612 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	24.3 µW/cm² = 0.243 W/m²
UVA (US) ( 320 nm - 380 nm)	49.9 µW/cm² = 0.499 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	29.4 µW/cm² = 0.294 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	40.6 µW/cm² = 0.406 W/m²
vis. UVA ( 350 nm - 380 nm)	20.9 µW/cm² = 0.209 W/m²
VIS Rep3 ( 350 nm - 600 nm)	515 µW/cm² = 5.15 W/m²
VIS Rep4 ( 350 nm - 700 nm)	635 µW/cm² = 6.35 W/m²
purple ( 380 nm - 420 nm)	58.6 µW/cm² = 0.586 W/m²
VIS ( 380 nm - 780 nm)	647 µW/cm² = 6.47 W/m²
VIS2 ( 400 nm - 680 nm)	583 µW/cm² = 5.83 W/m²
PAR ( 400 nm - 700 nm)	599 µW/cm² = 5.99 W/m²
tmp ( 400 nm - 1100 nm)	642 µW/cm² = 6.42 W/m²
blue ( 420 nm - 490 nm)	196 µW/cm² = 1.96 W/m²
green ( 490 nm - 575 nm)	191 µW/cm² = 1.91 W/m²
yellow ( 575 nm - 585 nm)	24.5 µW/cm² = 0.245 W/m²
orange ( 585 nm - 650 nm)	95.1 µW/cm² = 0.951 W/m²
red ( 650 nm - 780 nm)	81.6 µW/cm² = 0.816 W/m²
IRA ( 700 nm - 1400 nm)	43 µW/cm² = 0.43 W/m²
IR2 ( 720 nm - 1100 nm)	31.2 µW/cm² = 0.312 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	6.54 UV-Index
Pyrimidine dimerization of DNA	30.2 µW/cm²
Photoceratitis	9.77 µW/cm²
Photoconjunctivitis	0.856 µW/cm²
DNA Damage	1.85
Vitamin D3	22.7 µW/cm²
Photosynthesis	425 µW/cm²
Luminosity	1600 lx
Human L-Cone	233 µW/cm²
Human M-Cone	210 µW/cm²
Human S-Cone	163 µW/cm²
CIE X	207 µW/cm²
CIE Y	222 µW/cm²
CIE Z	301 µW/cm²
PAR	2810000 mol photons
Extinction preD3	101 e-3*m²/mol
Extinction Tachysterol	355 e-3*m²/mol
Exctincition PreD3	53000 m²/mol
Extinction Lumisterol	43.4 m²/mol
Exctincition Tachysterol	457000 m²/mol
Extinction 7DHC	52.1 m²/mol
L-Cone	190 µW/cm²
M-Cone	233 µW/cm²
S-Cone	283 µW/cm²
U-Cone	112 µW/cm²
UVR - ICNIRP 2004	7.24 Rel Biol Eff
Melatonin Supression	228 µW/cm²
Blue Light Hazard	185 µW/cm² (116 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	24.6 µW/cm²
Lumen Reptil	1850 "pseudo-lx"
Vitamin D3 Degradation	14.2 µW/cm²
Actinic UV	7.15 µW/cm² (44.7 mW/klm)
Exctincition Lumisterol	52400 m²/mol
Exctincition 7DHC	62300 m²/mol
Exctincition Toxisterols	7660 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	69.6 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	6.55
Leybold UVB	52.1 µW/cm²
Leybold UVA	31.8 µW/cm²
Leybold UVC	0.448 µW/cm²
DeltaOhm UVB	69.7 µW/cm²
DeltaOhm UVC	12.3 µW/cm²
Vernier UVB	28.6 µW/cm²
Vernier UVA	47.5 µW/cm²
Gröbel UVA	51.4 µW/cm²
Gröbel UVB	35.9 µW/cm²
Gröbel UVC	0.412 µW/cm²
Luxmeter	1660 lx
Solarmeter 6.4 (D3)	20.5 IU/min
UVX-31	75.1 µW/cm²
IL UVB	0.0299 µW/cm²
IL UVA	41.6 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	4.68 UV-Index
Solarmeter 6.2 (UVB, post 2010)	37.6 µW/cm² (Solarmeter Ratio = 8.03)
Solarmeter AlGaN 6.5 UVI sensor	43 UV Index
GenUV 7.1 UV-Index	2.17 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	7.05 W/m²
Solarmeter 4.0 (UVA)	0.698 mW/cm²
LS122 (manuf.)	0.0056 W/m²
ISM400 (first guess)	4.66 W/m²
LS122 (assumption)	0.212 W/m²
ISM400_new	3.84 W/m²
Solarmeter 10.0 (Global Power) (assumption)	6.47 W/m²
