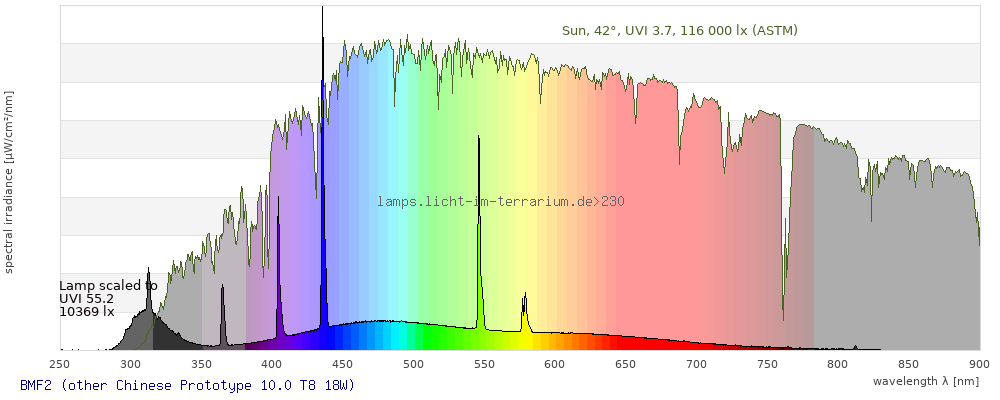

Spectrum 230: BMF2 Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
Chinese Prototype 10.0 T8 18W |
| Lamp ID |
BMF2 (05/2007) |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 102 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
10/Jun/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

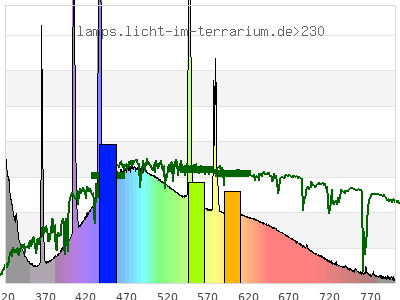

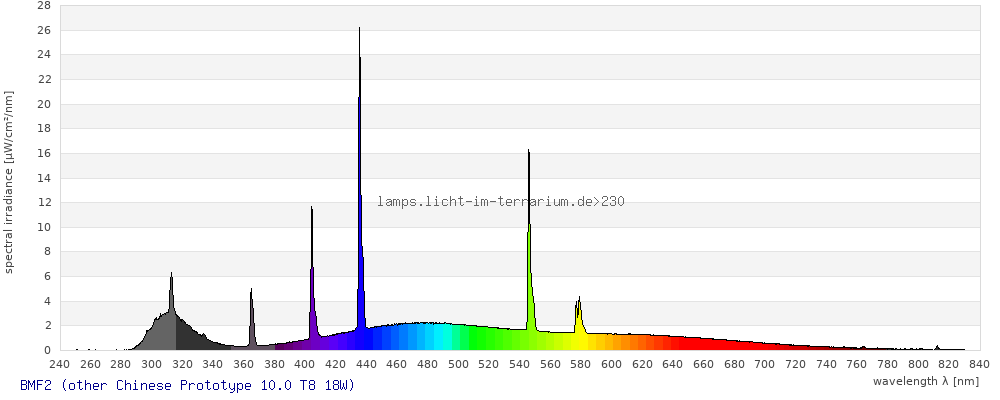

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

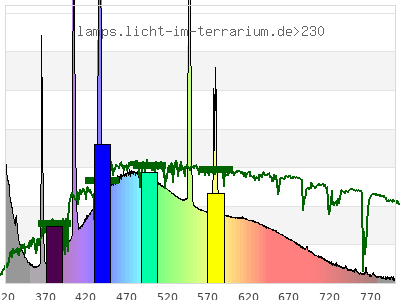

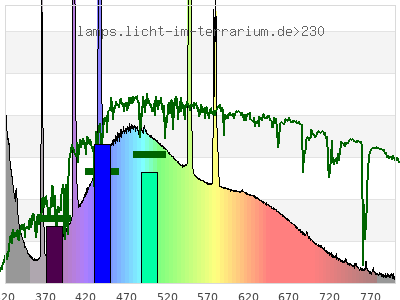

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.28 ; 0.3 ) | ( 0.36 ; 0.45 ) | ( 0.23 ; 0.28 ; 0.35 ) |
| CCT | 9500 Kelvin | 5700 Kelvin | 6300 Kelvin |
| distance | 0.11 | 0.092 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

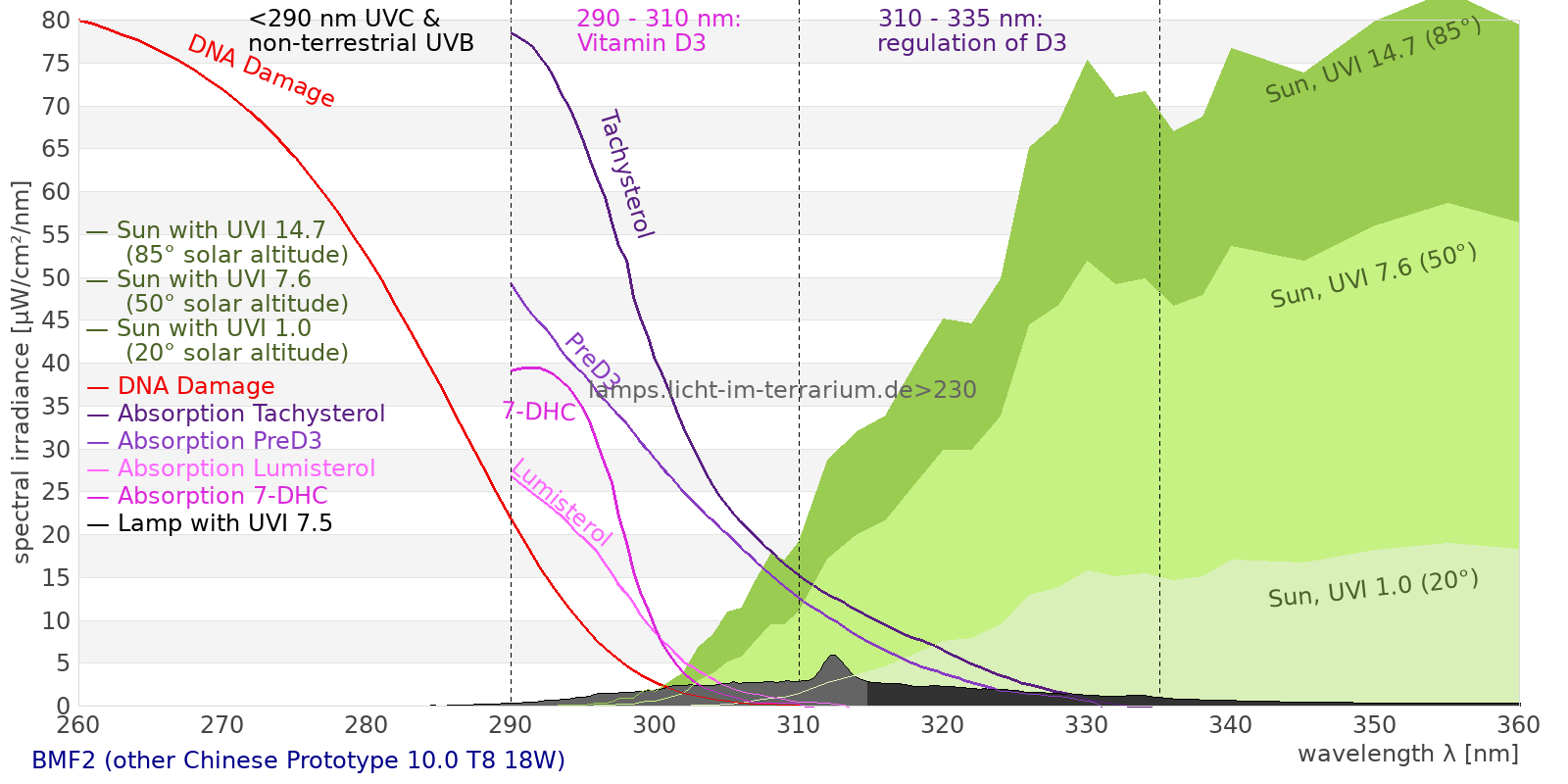

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 736 µW/cm² = 7.36 W/m² UVC ( 0 nm - 280 nm) 0.164 µW/cm² = 0.00164 W/m² non-terrestrial ( 0 nm - 290 nm) 1.26 µW/cm² = 0.0126 W/m² total2 ( 250 nm - 880 nm) 736 µW/cm² = 7.36 W/m² UVB (EU) ( 280 nm - 315 nm) 61.5 µW/cm² = 0.615 W/m² UVB (US) ( 280 nm - 320 nm) 75.2 µW/cm² = 0.752 W/m² UVA+B ( 280 nm - 380 nm) 131 µW/cm² = 1.31 W/m² Solar UVB ( 290 nm - 315 nm) 60.4 µW/cm² = 0.604 W/m² UVA D3 regulating ( 315 nm - 335 nm) 37.9 µW/cm² = 0.379 W/m² UVA (EU) ( 315 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 28.4 µW/cm² = 0.284 W/m² UVA (US) ( 320 nm - 380 nm) 55.6 µW/cm² = 0.556 W/m² UVA1 (variant) ( 335 nm - 380 nm) 31.4 µW/cm² = 0.314 W/m² UVA1 (medical) ( 340 nm - 400 nm) 40.7 µW/cm² = 0.407 W/m² vis. UVA ( 350 nm - 380 nm) 22.1 µW/cm² = 0.221 W/m² VIS Rep3 ( 350 nm - 600 nm) 493 µW/cm² = 4.93 W/m² VIS Rep4 ( 350 nm - 700 nm) 597 µW/cm² = 5.97 W/m² purple ( 380 nm - 420 nm) 57.1 µW/cm² = 0.571 W/m² VIS ( 380 nm - 780 nm) 600 µW/cm² = 6 W/m² VIS2 ( 400 nm - 680 nm) 547 µW/cm² = 5.47 W/m² PAR ( 400 nm - 700 nm) 561 µW/cm² = 5.61 W/m² tmp ( 400 nm - 1100 nm) 592 µW/cm² = 5.92 W/m² blue ( 420 nm - 490 nm) 187 µW/cm² = 1.87 W/m² green ( 490 nm - 575 nm) 182 µW/cm² = 1.82 W/m² yellow ( 575 nm - 585 nm) 24.7 µW/cm² = 0.247 W/m² orange ( 585 nm - 650 nm) 82.1 µW/cm² = 0.821 W/m² red ( 650 nm - 780 nm) 67.6 µW/cm² = 0.676 W/m² IRA ( 700 nm - 1400 nm) 30.4 µW/cm² = 0.304 W/m² IR2 ( 720 nm - 1100 nm) 20.4 µW/cm² = 0.204 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 8.03 UV-Index Pyrimidine dimerization of DNA 37.7 µW/cm² Photoceratitis 12.1 µW/cm² Photoconjunctivitis 0.671 µW/cm² DNA Damage 1.89 Vitamin D3 28.5 µW/cm² Photosynthesis 398 µW/cm² Luminosity 1510 lx Human L-Cone 219 µW/cm² Human M-Cone 200 µW/cm² Human S-Cone 157 µW/cm² CIE X 192 µW/cm² CIE Y 209 µW/cm² CIE Z 288 µW/cm² PAR 2650000 mol photons Extinction preD3 122 e-3*m²/mol Extinction Tachysterol 436 e-3*m²/mol Exctincition PreD3 62300 m²/mol Extinction Lumisterol 51.5 m²/mol Exctincition Tachysterol 561000 m²/mol Extinction 7DHC 62.1 m²/mol L-Cone 177 µW/cm² M-Cone 218 µW/cm² S-Cone 274 µW/cm² U-Cone 112 µW/cm² UVR - ICNIRP 2004 8.79 Rel Biol Eff Melatonin Supression 217 µW/cm² Blue Light Hazard 177 µW/cm² (118 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 30.8 µW/cm² Lumen Reptil 1750 "pseudo-lx" Vitamin D3 Degradation 17.6 µW/cm² Actinic UV 8.67 µW/cm² (57.5 mW/klm) Exctincition Lumisterol 62700 m²/mol Exctincition 7DHC 74900 m²/mol Exctincition Toxisterols 7240 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 85.7 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 8.19 Leybold UVB 64.7 µW/cm² Leybold UVA 34.5 µW/cm² Leybold UVC 0.182 µW/cm² DeltaOhm UVB 85.1 µW/cm² DeltaOhm UVC 14.8 µW/cm² Vernier UVB 35.7 µW/cm² Vernier UVA 55.2 µW/cm² Gröbel UVA 58.3 µW/cm² Gröbel UVB 44.8 µW/cm² Gröbel UVC 0.151 µW/cm² Luxmeter 1580 lx Solarmeter 6.4 (D3) 25.6 IU/min UVX-31 91.7 µW/cm² IL UVB 0.0369 µW/cm² IL UVA 45.9 µW/cm² Solarmeter 6.5 (UVI, post 2010) 5.83 UV-Index Solarmeter 6.2 (UVB, post 2010) 46.3 µW/cm² (Solarmeter Ratio = 7.93) Solarmeter AlGaN 6.5 UVI sensor 53.6 UV Index GenUV 7.1 UV-Index 2.69 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 6.49 W/m² Solarmeter 4.0 (UVA) 0.753 mW/cm² LS122 (manuf.) 0.00226 W/m² ISM400 (first guess) 4.1 W/m² LS122 (assumption) 0.185 W/m² ISM400_new 3.32 W/m² Solarmeter 10.0 (Global Power) (assumption) 5.86 W/m²
