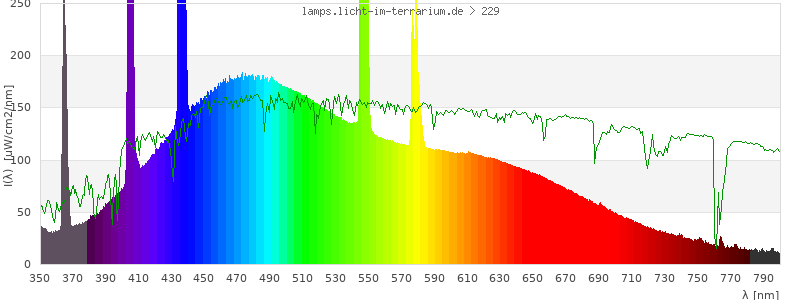

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

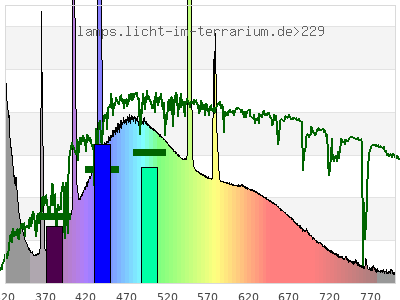

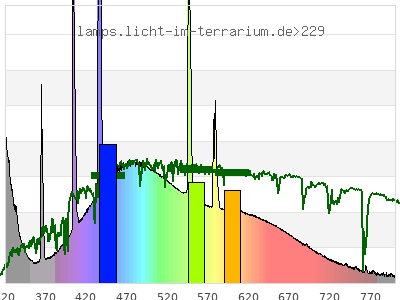

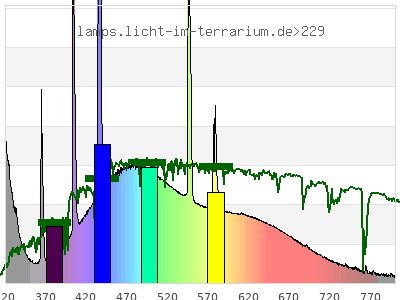

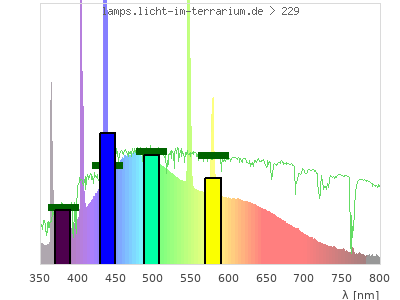

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

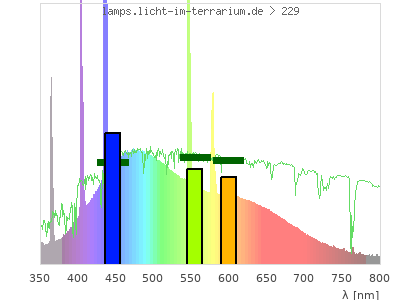

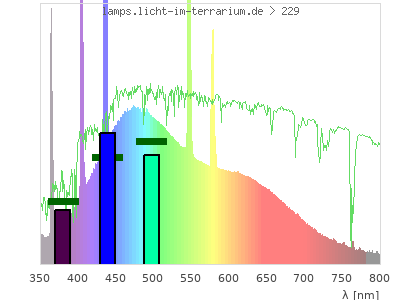

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

	Human (CIE)	3 cone reptile	4 cone reptile
Cone Excitation
Colour Coordinate	( 0.28 ; 0.3 )	( 0.37 ; 0.45 )	( 0.23 ; 0.29 ; 0.34 )
CCT	9400 Kelvin	5500 Kelvin	6200 Kelvin
distance		0.1	0.088
colour space			3-D-graph not implemented yet

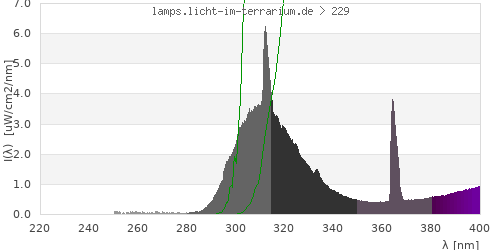

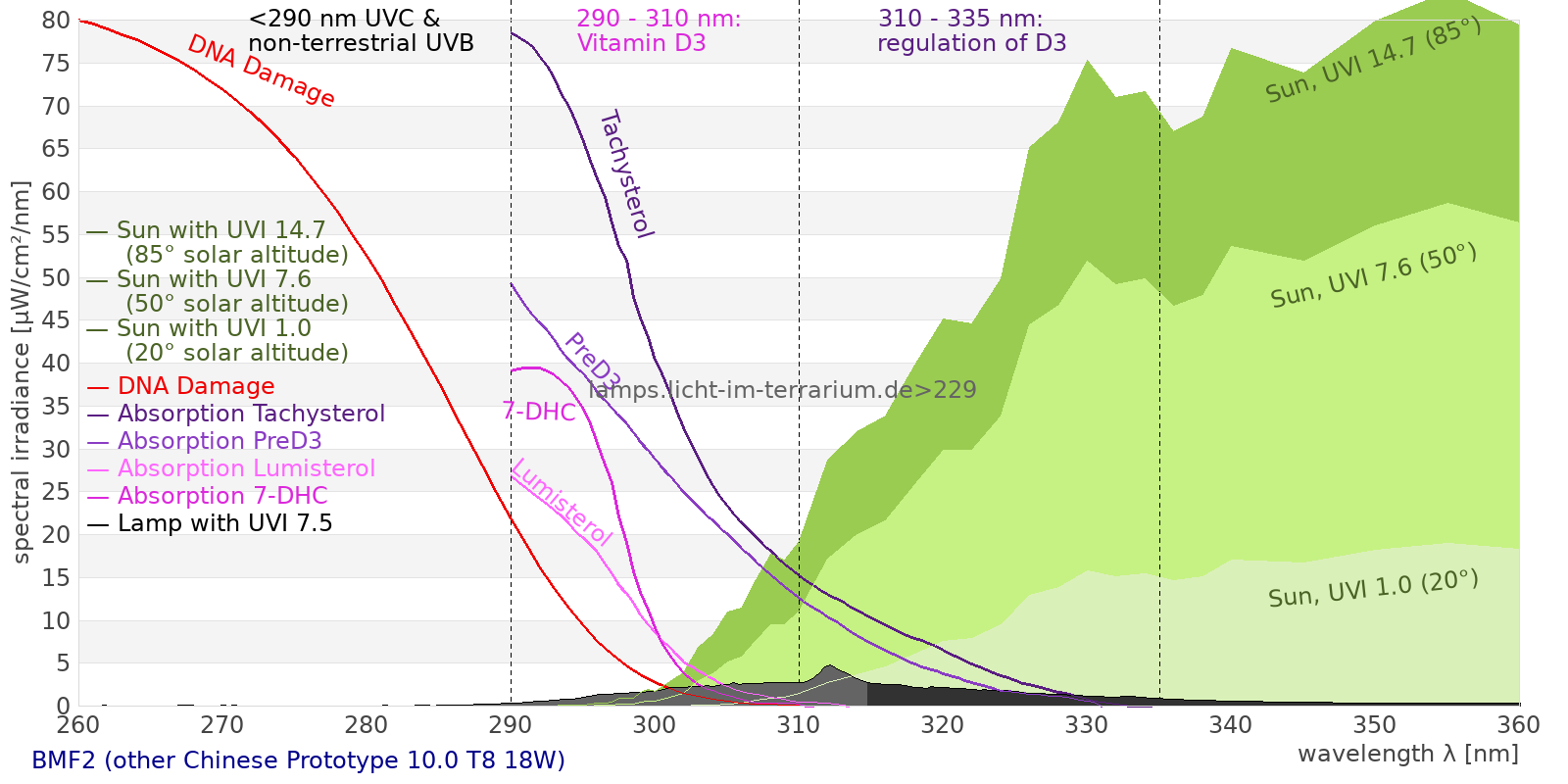

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

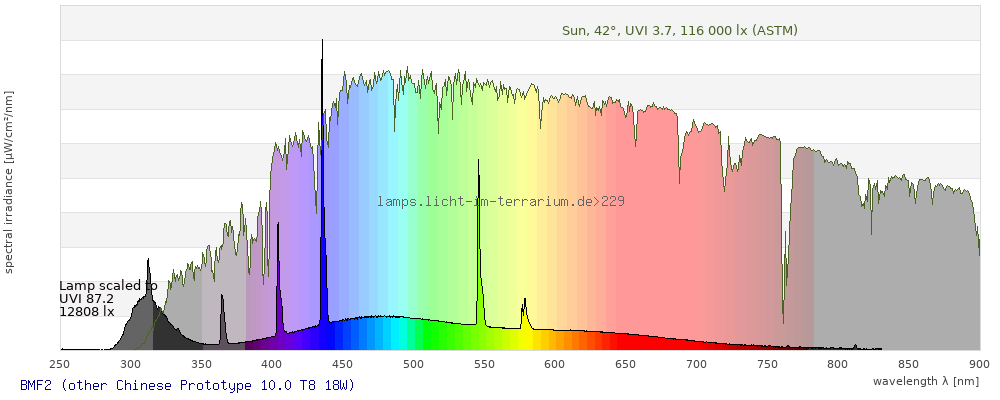

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

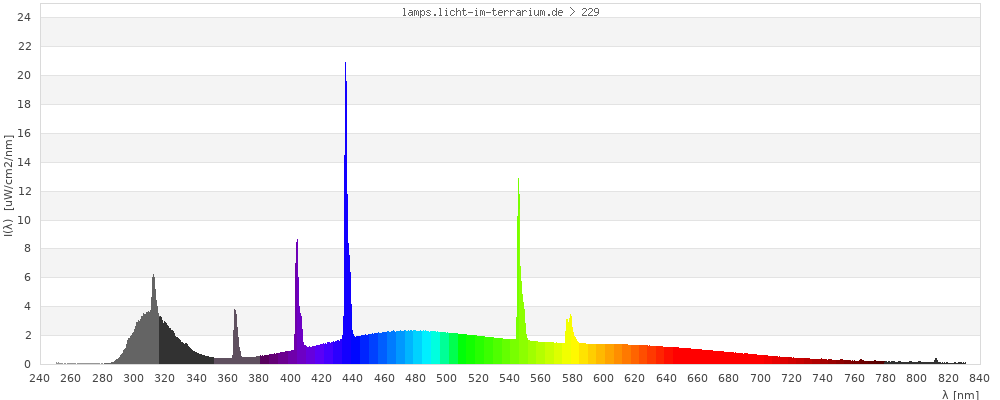

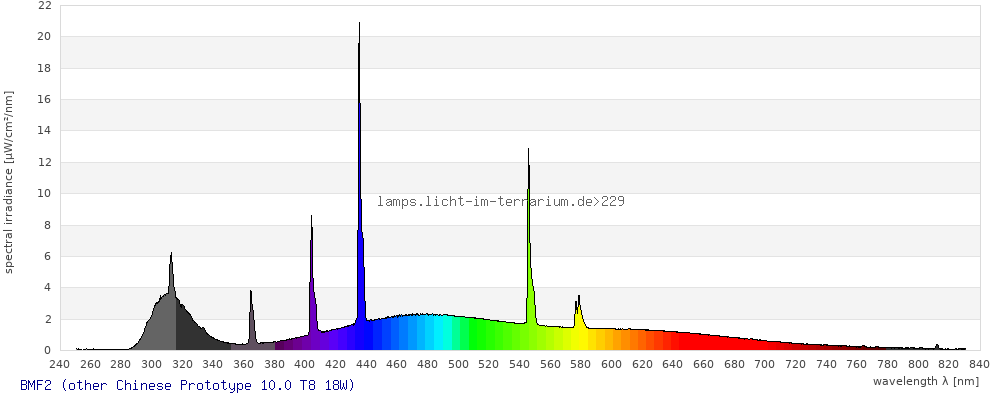

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

total ( 0 nm - 0 nm)	757 µW/cm² = 7.57 W/m²
UVC ( 0 nm - 280 nm)	1.56 µW/cm² = 0.0156 W/m²
non-terrestrial ( 0 nm - 290 nm)	3.2 µW/cm² = 0.032 W/m²
total2 ( 250 nm - 880 nm)	757 µW/cm² = 7.57 W/m²
UVB (EU) ( 280 nm - 315 nm)	71.3 µW/cm² = 0.713 W/m²
UVB (US) ( 280 nm - 320 nm)	87.3 µW/cm² = 0.873 W/m²
UVA+B ( 280 nm - 380 nm)	148 µW/cm² = 1.48 W/m²
Solar UVB ( 290 nm - 315 nm)	69.7 µW/cm² = 0.697 W/m²
UVA D3 regulating ( 315 nm - 335 nm)	43.9 µW/cm² = 0.439 W/m²
UVA (EU) ( 315 nm - 380 nm)	76.7 µW/cm² = 0.767 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm)	32.8 µW/cm² = 0.328 W/m²
UVA (US) ( 320 nm - 380 nm)	60.8 µW/cm² = 0.608 W/m²
UVA1 (variant) ( 335 nm - 380 nm)	32.8 µW/cm² = 0.328 W/m²
UVA1 (medical) ( 340 nm - 400 nm)	42.7 µW/cm² = 0.427 W/m²
vis. UVA ( 350 nm - 380 nm)	22.2 µW/cm² = 0.222 W/m²
VIS Rep3 ( 350 nm - 600 nm)	487 µW/cm² = 4.87 W/m²
VIS Rep4 ( 350 nm - 700 nm)	595 µW/cm² = 5.95 W/m²
purple ( 380 nm - 420 nm)	55.6 µW/cm² = 0.556 W/m²
VIS ( 380 nm - 780 nm)	601 µW/cm² = 6.01 W/m²
VIS2 ( 400 nm - 680 nm)	543 µW/cm² = 5.43 W/m²
PAR ( 400 nm - 700 nm)	558 µW/cm² = 5.58 W/m²
tmp ( 400 nm - 1100 nm)	593 µW/cm² = 5.93 W/m²
blue ( 420 nm - 490 nm)	185 µW/cm² = 1.85 W/m²
green ( 490 nm - 575 nm)	181 µW/cm² = 1.81 W/m²
yellow ( 575 nm - 585 nm)	22.5 µW/cm² = 0.225 W/m²
orange ( 585 nm - 650 nm)	84.8 µW/cm² = 0.848 W/m²
red ( 650 nm - 780 nm)	72.1 µW/cm² = 0.721 W/m²
IRA ( 700 nm - 1400 nm)	35.2 µW/cm² = 0.352 W/m²
IR2 ( 720 nm - 1100 nm)	24.7 µW/cm² = 0.247 W/m²
IRB ( 1400 nm - 3000 nm)	0 µW/cm² = 0 W/m²

Erythema	10.2 UV-Index
Pyrimidine dimerization of DNA	44.1 µW/cm²
Photoceratitis	14.8 µW/cm²
Photoconjunctivitis	2.03 µW/cm²
DNA Damage	3.66
Vitamin D3	34 µW/cm²
Photosynthesis	396 µW/cm²
Luminosity	1490 lx
Human L-Cone	217 µW/cm²
Human M-Cone	197 µW/cm²
Human S-Cone	154 µW/cm²
CIE X	190 µW/cm²
CIE Y	207 µW/cm²
CIE Z	284 µW/cm²
PAR	2610000 mol photons
Extinction preD3	156 e-3*m²/mol
Extinction Tachysterol	539 e-3*m²/mol
Exctincition PreD3	85700 m²/mol
Extinction Lumisterol	72.8 m²/mol
Exctincition Tachysterol	692000 m²/mol
Extinction 7DHC	87.7 m²/mol
L-Cone	175 µW/cm²
M-Cone	222 µW/cm²
S-Cone	266 µW/cm²
U-Cone	110 µW/cm²
UVR - ICNIRP 2004	11.7 Rel Biol Eff
Melatonin Supression	215 µW/cm²
Blue Light Hazard	174 µW/cm² (117 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3	36.7 µW/cm²
Lumen Reptil	1740 "pseudo-lx"
Vitamin D3 Degradation	21.1 µW/cm²
Actinic UV	11.6 µW/cm² (77.7 mW/klm)
Exctincition Lumisterol	86800 m²/mol
Exctincition 7DHC	103000 m²/mol
Exctincition Toxisterols	13700 m²/mol

Solarmeter 6.2 (UVB, pre 2010)	101 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010)	9.89
Leybold UVB	74.9 µW/cm²
Leybold UVA	37.3 µW/cm²
Leybold UVC	1.22 µW/cm²
DeltaOhm UVB	98.5 µW/cm²
DeltaOhm UVC	18.3 µW/cm²
Vernier UVB	42 µW/cm²
Vernier UVA	62.9 µW/cm²
Gröbel UVA	64.2 µW/cm²
Gröbel UVB	52.7 µW/cm²
Gröbel UVC	1.28 µW/cm²
Luxmeter	1550 lx
Solarmeter 6.4 (D3)	30.9 IU/min
UVX-31	106 µW/cm²
IL UVB	0.0436 µW/cm²
IL UVA	49.7 µW/cm²
Solarmeter 6.5 (UVI, post 2010)	7.05 UV-Index
Solarmeter 6.2 (UVB, post 2010)	54.1 µW/cm² (Solarmeter Ratio = 7.67)
Solarmeter AlGaN 6.5 UVI sensor	62.8 UV Index
GenUV 7.1 UV-Index	3.19 UV-Index
Solarmeter 10.0 (Global Power) (manuf.)	6.63 W/m²
Solarmeter 4.0 (UVA)	0.809 mW/cm²
LS122 (manuf.)	0.00342 W/m²
ISM400 (first guess)	4.22 W/m²
LS122 (assumption)	0.19 W/m²
ISM400_new	3.44 W/m²
Solarmeter 10.0 (Global Power) (assumption)	5.98 W/m²
