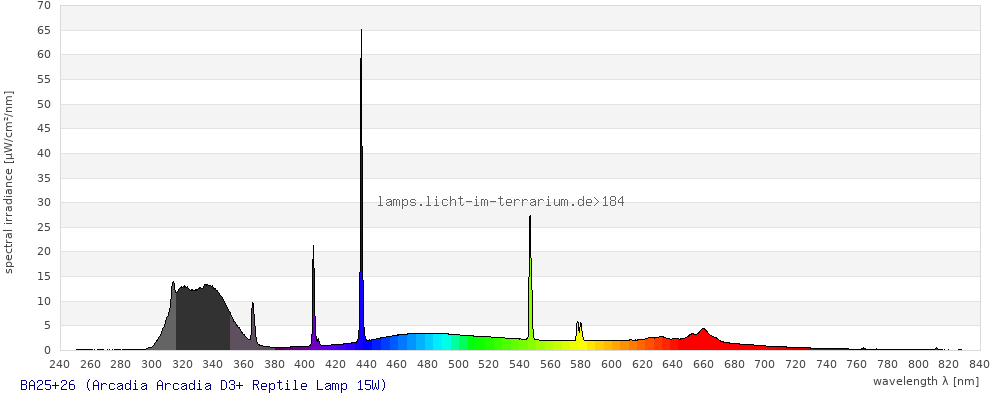

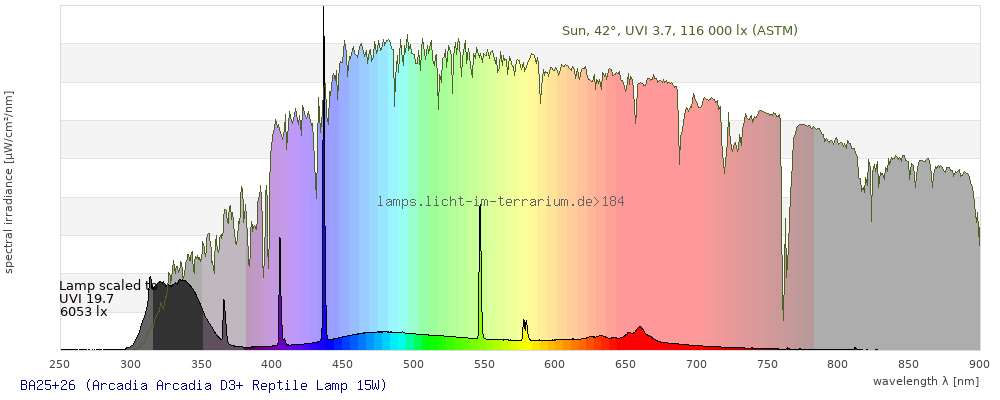

Spectrum 184: BA25+26 Edit
DeleteMeasurement
| Brand |
Arcadia UK company https://www.arcadiareptile.com/ |
|---|---|
| Lamp Product |
Arcadia D3+ Reptile Lamp 15W 12% UVB , 7500K |
| Lamp ID |
BA25+26 (07/2009) x2 in double fixture |
| Spectrometer | USB2000+ (2) |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
9/Jun/2010 ; updated:
Sarina Wunderlich
9/Oct/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

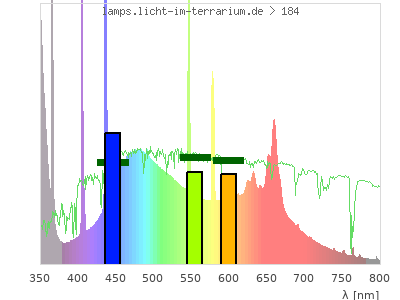

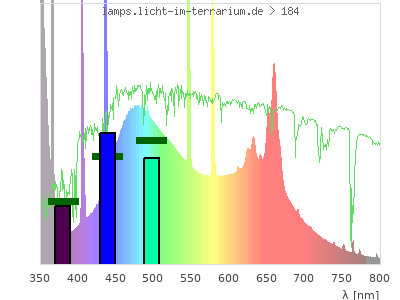

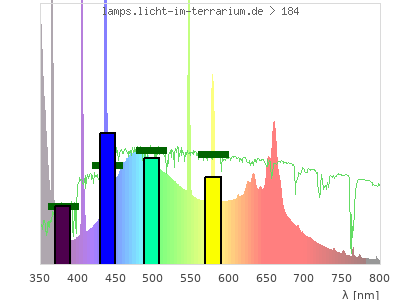

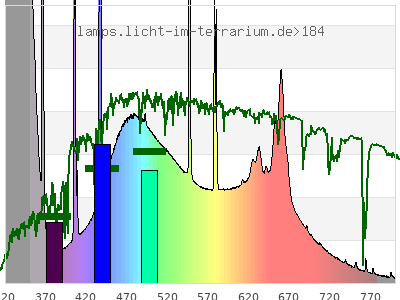

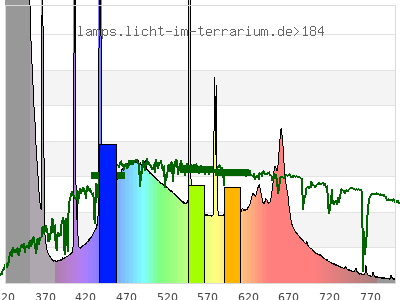

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.29 ) | ( 0.36 ; 0.44 ) | ( 0.23 ; 0.28 ; 0.34 ) |
| CCT | 9000 Kelvin | 5700 Kelvin | 6300 Kelvin |
| distance | 0.1 | 0.083 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

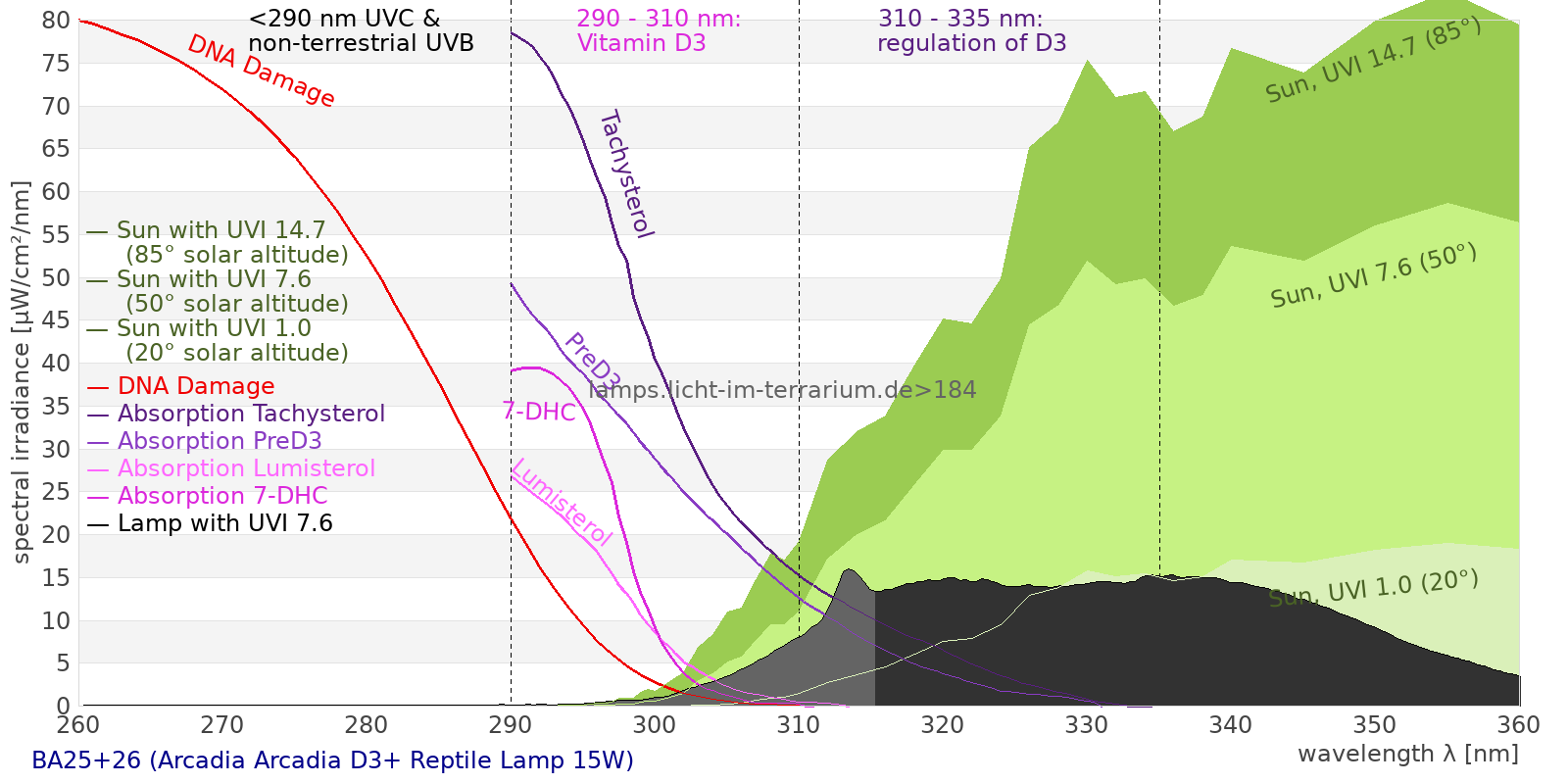

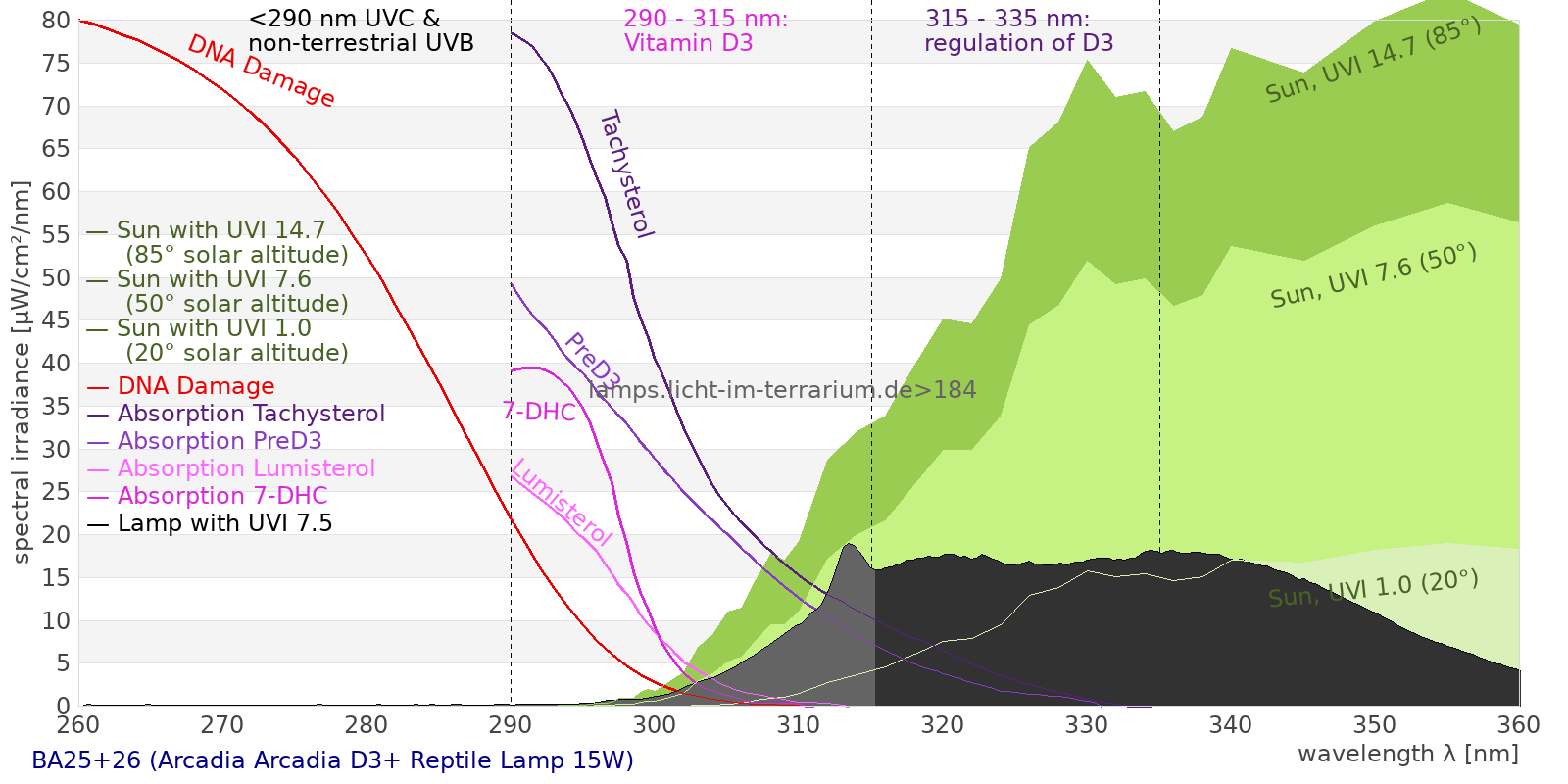

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 1550 µW/cm² = 15.5 W/m² UVC ( 0 nm - 280 nm) 3.28 µW/cm² = 0.0328 W/m² non-terrestrial ( 0 nm - 290 nm) 4.45 µW/cm² = 0.0445 W/m² total2 ( 250 nm - 880 nm) 1550 µW/cm² = 15.5 W/m² UVB (EU) ( 280 nm - 315 nm) 96.4 µW/cm² = 0.964 W/m² UVB (US) ( 280 nm - 320 nm) 156 µW/cm² = 1.56 W/m² UVA+B ( 280 nm - 380 nm) 613 µW/cm² = 6.13 W/m² Solar UVB ( 290 nm - 315 nm) 95.2 µW/cm² = 0.952 W/m² UVA D3 regulating ( 315 nm - 335 nm) 250 µW/cm² = 2.5 W/m² UVA (EU) ( 315 nm - 380 nm) 517 µW/cm² = 5.17 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 258 µW/cm² = 2.58 W/m² UVA (US) ( 320 nm - 380 nm) 457 µW/cm² = 4.57 W/m² UVA1 (variant) ( 335 nm - 380 nm) 267 µW/cm² = 2.67 W/m² UVA1 (medical) ( 340 nm - 400 nm) 214 µW/cm² = 2.14 W/m² vis. UVA ( 350 nm - 380 nm) 94.7 µW/cm² = 0.947 W/m² VIS Rep3 ( 350 nm - 600 nm) 759 µW/cm² = 7.59 W/m² VIS Rep4 ( 350 nm - 700 nm) 983 µW/cm² = 9.83 W/m² purple ( 380 nm - 420 nm) 68.7 µW/cm² = 0.687 W/m² VIS ( 380 nm - 780 nm) 926 µW/cm² = 9.26 W/m² VIS2 ( 400 nm - 680 nm) 851 µW/cm² = 8.51 W/m² PAR ( 400 nm - 700 nm) 874 µW/cm² = 8.74 W/m² tmp ( 400 nm - 1100 nm) 919 µW/cm² = 9.19 W/m² blue ( 420 nm - 490 nm) 278 µW/cm² = 2.78 W/m² green ( 490 nm - 575 nm) 257 µW/cm² = 2.57 W/m² yellow ( 575 nm - 585 nm) 31.4 µW/cm² = 0.314 W/m² orange ( 585 nm - 650 nm) 148 µW/cm² = 1.48 W/m² red ( 650 nm - 780 nm) 143 µW/cm² = 1.43 W/m² IRA ( 700 nm - 1400 nm) 44.6 µW/cm² = 0.446 W/m² IR2 ( 720 nm - 1100 nm) 29.5 µW/cm² = 0.295 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 7.14 UV-Index Pyrimidine dimerization of DNA 58.7 µW/cm² Photoceratitis 10.3 µW/cm² Photoconjunctivitis 3.16 µW/cm² DNA Damage 4.03 Vitamin D3 24.9 µW/cm² Photosynthesis 629 µW/cm² Luminosity 2190 lx Human L-Cone 322 µW/cm² Human M-Cone 284 µW/cm² Human S-Cone 231 µW/cm² CIE X 296 µW/cm² CIE Y 303 µW/cm² CIE Z 429 µW/cm² PAR 4180000 mol photons Extinction preD3 198 e-3*m²/mol Extinction Tachysterol 660 e-3*m²/mol Exctincition PreD3 110000 m²/mol Extinction Lumisterol 50.7 m²/mol Exctincition Tachysterol 931000 m²/mol Extinction 7DHC 53.3 m²/mol L-Cone 266 µW/cm² M-Cone 323 µW/cm² S-Cone 398 µW/cm² U-Cone 176 µW/cm² UVR - ICNIRP 2004 7.41 Rel Biol Eff Melatonin Supression 318 µW/cm² Blue Light Hazard 261 µW/cm² (119 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 27.2 µW/cm² Lumen Reptil 2590 "pseudo-lx" Vitamin D3 Degradation 31.3 µW/cm² Actinic UV 7.37 µW/cm² (33.6 mW/klm) Exctincition Lumisterol 63500 m²/mol Exctincition 7DHC 60500 m²/mol Exctincition Toxisterols 27600 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 192 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 7.46 Leybold UVB 134 µW/cm² Leybold UVA 320 µW/cm² Leybold UVC 2.47 µW/cm² DeltaOhm UVB 321 µW/cm² DeltaOhm UVC 41.6 µW/cm² Vernier UVB 46.1 µW/cm² Vernier UVA 400 µW/cm² Gröbel UVA 432 µW/cm² Gröbel UVB 67.2 µW/cm² Gröbel UVC 2.6 µW/cm² Luxmeter 2240 lx Solarmeter 6.4 (D3) 23.3 IU/min UVX-31 344 µW/cm² IL UVB 0.0796 µW/cm² IL UVA 354 µW/cm² Solarmeter 6.5 (UVI, post 2010) 6.2 UV-Index Solarmeter 6.2 (UVB, post 2010) 128 µW/cm² (Solarmeter Ratio = 20.6) Solarmeter AlGaN 6.5 UVI sensor 81.8 UV Index GenUV 7.1 UV-Index 4.73 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 12 W/m² Solarmeter 4.0 (UVA) 4.54 mW/cm² LS122 (manuf.) 0.00385 W/m² ISM400 (first guess) 6.98 W/m² LS122 (assumption) 0.319 W/m² ISM400_new 5.68 W/m² Solarmeter 10.0 (Global Power) (assumption) 10.2 W/m²
