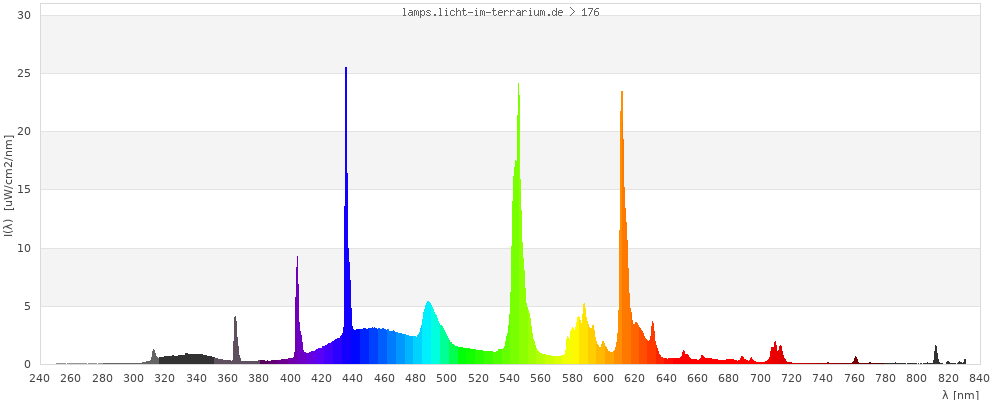

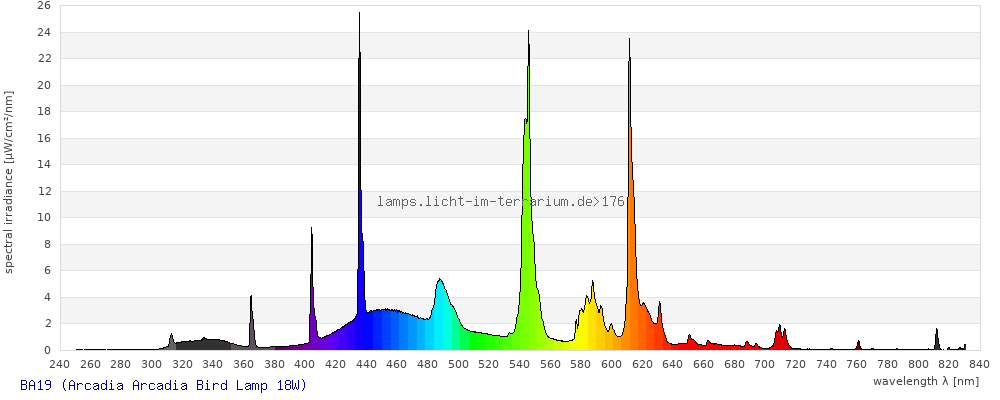

Spectrum 176: BA19 Edit
DeleteMeasurement
| Brand |
Arcadia UK company https://www.arcadiareptile.com/ |
|---|---|
| Lamp Product |
Arcadia Bird Lamp 18W |
| Lamp ID |
BA19 (01/2008) 2.4% UVB T8 |
| Spectrometer | USB 2000 |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 1 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
9/Jun/2010 ; updated:
Sarina Wunderlich
9/Oct/2011

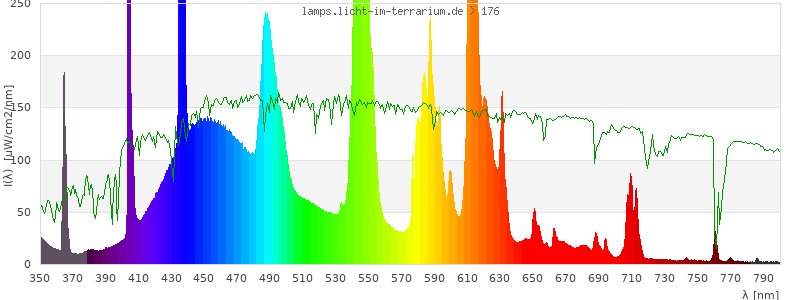

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

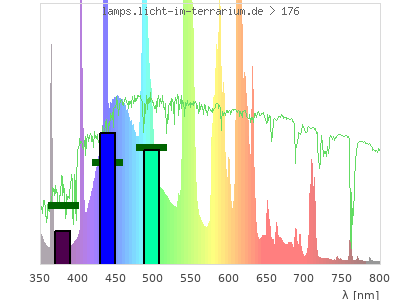

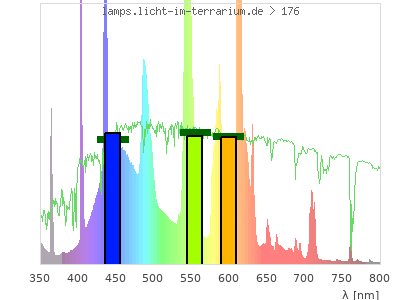

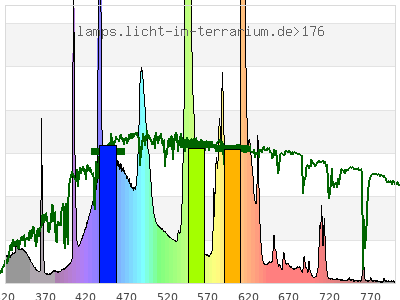

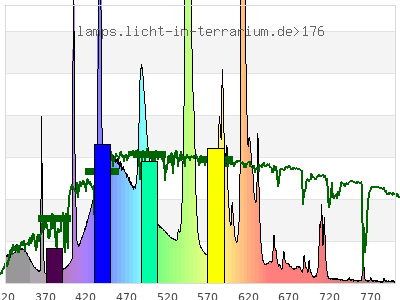

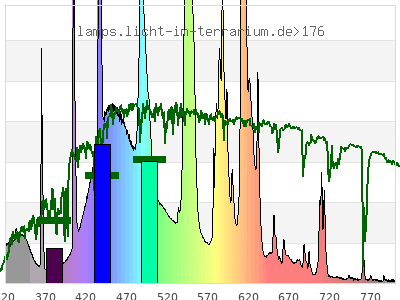

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.33 ; 0.33 ) | ( 0.41 ; 0.47 ) | ( 0.31 ; 0.28 ; 0.32 ) |
| CCT | 5600 Kelvin | 4900 Kelvin | 4700 Kelvin |
| distance | 0.13 | 0.09 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

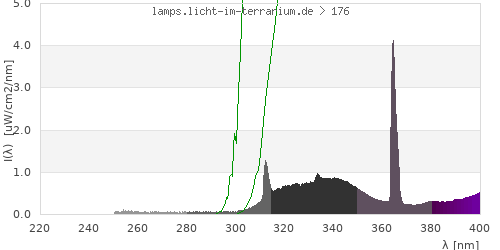

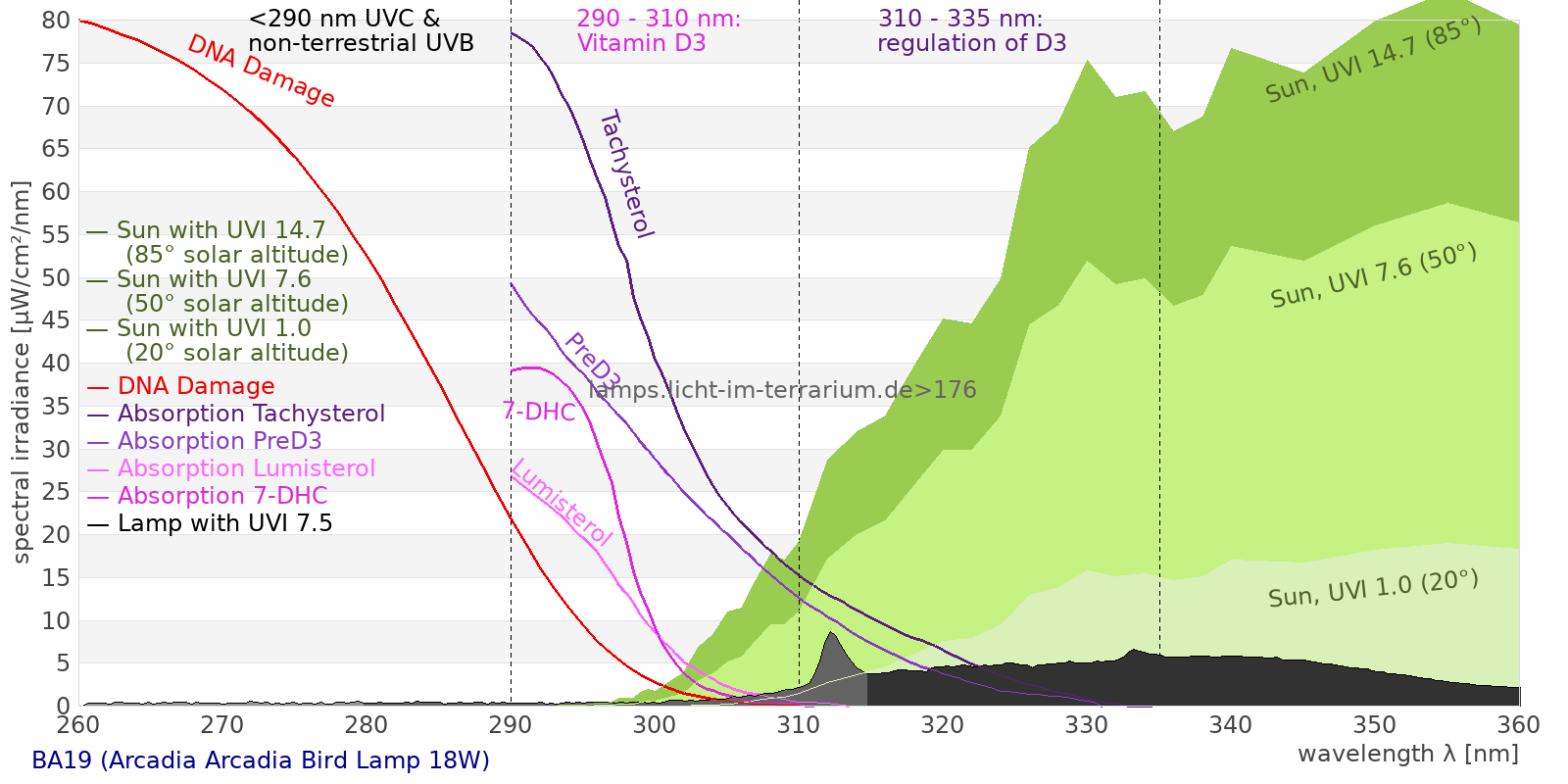

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

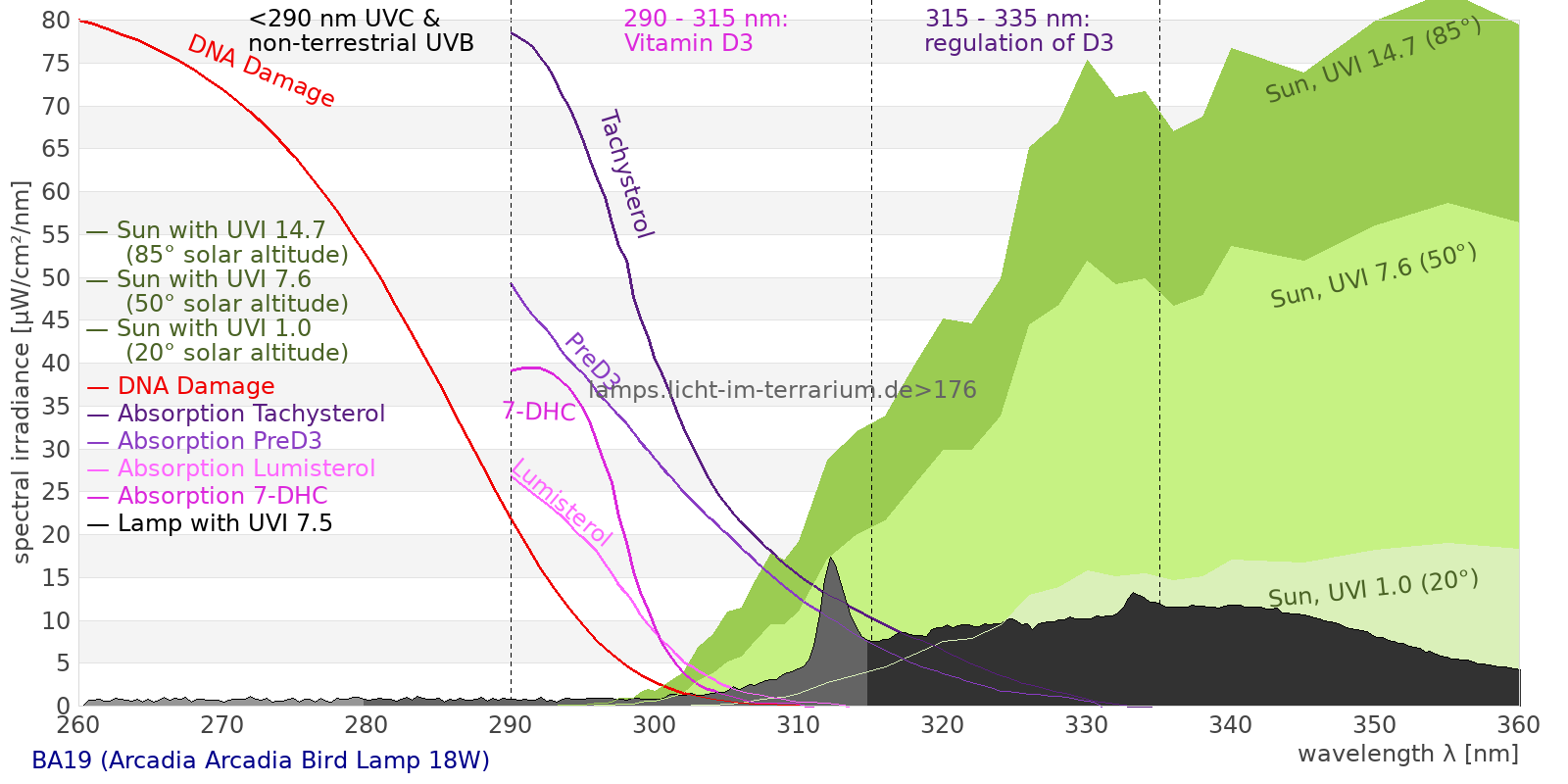

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 893 µW/cm² = 8.93 W/m² UVC ( 0 nm - 280 nm) 1.76 µW/cm² = 0.0176 W/m² non-terrestrial ( 0 nm - 290 nm) 2.35 µW/cm² = 0.0235 W/m² total2 ( 250 nm - 880 nm) 893 µW/cm² = 8.93 W/m² UVB (EU) ( 280 nm - 315 nm) 6.59 µW/cm² = 0.0659 W/m² UVB (US) ( 280 nm - 320 nm) 9.77 µW/cm² = 0.0977 W/m² UVA+B ( 280 nm - 380 nm) 50.7 µW/cm² = 0.507 W/m² Solar UVB ( 290 nm - 315 nm) 6 µW/cm² = 0.06 W/m² UVA D3 regulating ( 315 nm - 335 nm) 14.4 µW/cm² = 0.144 W/m² UVA (EU) ( 315 nm - 380 nm) 44.1 µW/cm² = 0.441 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 15.6 µW/cm² = 0.156 W/m² UVA (US) ( 320 nm - 380 nm) 40.9 µW/cm² = 0.409 W/m² UVA1 (variant) ( 335 nm - 380 nm) 29.8 µW/cm² = 0.298 W/m² UVA1 (medical) ( 340 nm - 400 nm) 32.7 µW/cm² = 0.327 W/m² vis. UVA ( 350 nm - 380 nm) 17.9 µW/cm² = 0.179 W/m² VIS Rep3 ( 350 nm - 600 nm) 645 µW/cm² = 6.45 W/m² VIS Rep4 ( 350 nm - 700 nm) 832 µW/cm² = 8.32 W/m² purple ( 380 nm - 420 nm) 43.4 µW/cm² = 0.434 W/m² VIS ( 380 nm - 780 nm) 834 µW/cm² = 8.34 W/m² VIS2 ( 400 nm - 680 nm) 799 µW/cm² = 7.99 W/m² PAR ( 400 nm - 700 nm) 807 µW/cm² = 8.07 W/m² tmp ( 400 nm - 1100 nm) 833 µW/cm² = 8.33 W/m² blue ( 420 nm - 490 nm) 246 µW/cm² = 2.46 W/m² green ( 490 nm - 575 nm) 264 µW/cm² = 2.64 W/m² yellow ( 575 nm - 585 nm) 30 µW/cm² = 0.3 W/m² orange ( 585 nm - 650 nm) 207 µW/cm² = 2.07 W/m² red ( 650 nm - 780 nm) 43 µW/cm² = 0.43 W/m² IRA ( 700 nm - 1400 nm) 26.8 µW/cm² = 0.268 W/m² IR2 ( 720 nm - 1100 nm) 12.7 µW/cm² = 0.127 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 1.39 UV-Index Pyrimidine dimerization of DNA 3.45 µW/cm² Photoceratitis 1.66 µW/cm² Photoconjunctivitis 1.63 µW/cm² DNA Damage 1.95 Vitamin D3 2.37 µW/cm² Photosynthesis 550 µW/cm² Luminosity 2590 lx Human L-Cone 389 µW/cm² Human M-Cone 320 µW/cm² Human S-Cone 197 µW/cm² CIE X 357 µW/cm² CIE Y 359 µW/cm² CIE Z 367 µW/cm² PAR 3730000 mol photons Extinction preD3 28.3 e-3*m²/mol Extinction Tachysterol 77.3 e-3*m²/mol Exctincition PreD3 22200 m²/mol Extinction Lumisterol 18 m²/mol Exctincition Tachysterol 103000 m²/mol Extinction 7DHC 21.4 m²/mol L-Cone 325 µW/cm² M-Cone 292 µW/cm² S-Cone 334 µW/cm² U-Cone 83.3 µW/cm² UVR - ICNIRP 2004 2.2 Rel Biol Eff Melatonin Supression 274 µW/cm² Blue Light Hazard 220 µW/cm² (85 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 2.45 µW/cm² Lumen Reptil 2480 "pseudo-lx" Vitamin D3 Degradation 2.62 µW/cm² Actinic UV 2.19 µW/cm² (8.46 mW/klm) Exctincition Lumisterol 19900 m²/mol Exctincition 7DHC 22800 m²/mol Exctincition Toxisterols 8280 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 13.8 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.833 Leybold UVB 8 µW/cm² Leybold UVA 30 µW/cm² Leybold UVC 1.32 µW/cm² DeltaOhm UVB 19.3 µW/cm² DeltaOhm UVC 3.83 µW/cm² Vernier UVB 3 µW/cm² Vernier UVA 27.7 µW/cm² Gröbel UVA 37.3 µW/cm² Gröbel UVB 4.93 µW/cm² Gröbel UVC 1.41 µW/cm² Luxmeter 2630 lx Solarmeter 6.4 (D3) 2.6 IU/min UVX-31 21.3 µW/cm² IL UVB 0.00566 µW/cm² IL UVA 34.4 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.638 UV-Index Solarmeter 6.2 (UVB, post 2010) 8.05 µW/cm² (Solarmeter Ratio = 12.6) Solarmeter AlGaN 6.5 UVI sensor 5.77 UV Index GenUV 7.1 UV-Index 0.371 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 8.8 W/m² Solarmeter 4.0 (UVA) 0.511 mW/cm² LS122 (manuf.) 0.00518 W/m² ISM400 (first guess) 5.83 W/m² LS122 (assumption) 0.296 W/m² ISM400_new 4.65 W/m² Solarmeter 10.0 (Global Power) (assumption) 8.36 W/m²
