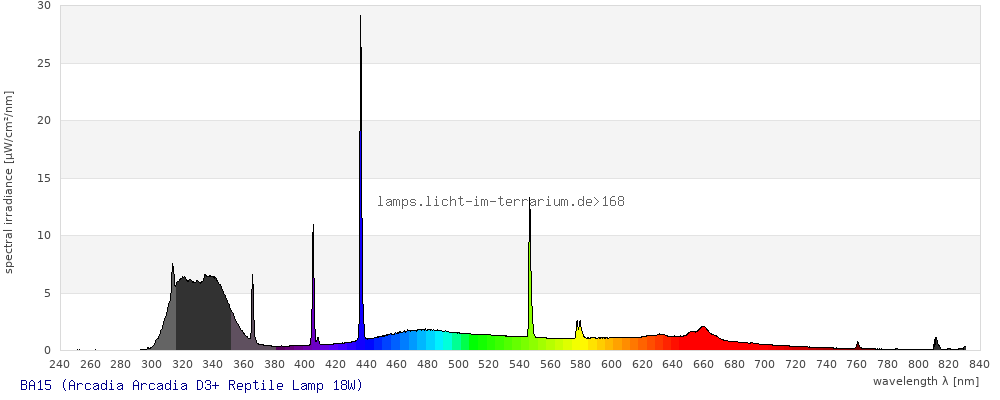

Spectrum 168: BA15 Edit
DeleteMeasurement
| Brand |
Arcadia UK company https://www.arcadiareptile.com/ |
|---|---|
| Lamp Product |
Arcadia D3+ Reptile Lamp 18W |
| Lamp ID |
BA15 (01/2008) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 105 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Maren
8/Jun/2010 ; updated:
Sarina Wunderlich
9/Oct/2011

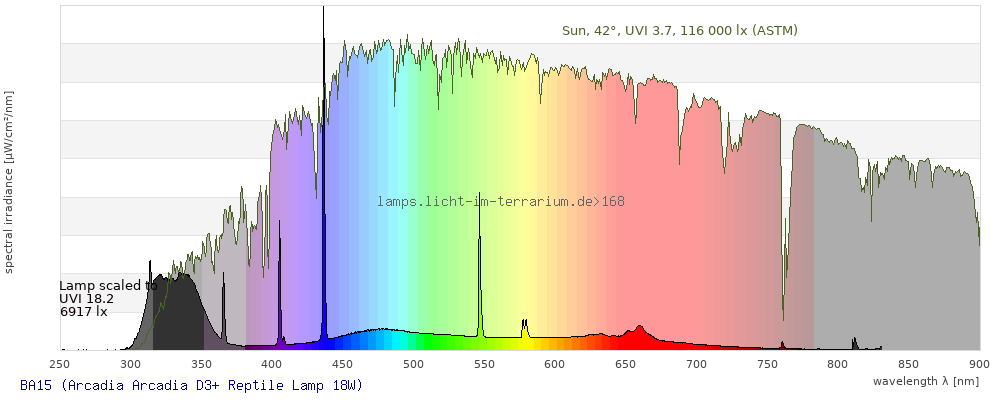

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.29 ; 0.3 ) | ( 0.36 ; 0.43 ) | ( 0.24 ; 0.28 ; 0.33 ) |
| CCT | 8100 Kelvin | 5700 Kelvin | 6100 Kelvin |
| distance | 0.091 | 0.073 | |
| colour space | 3-D-graph not implemented yet |

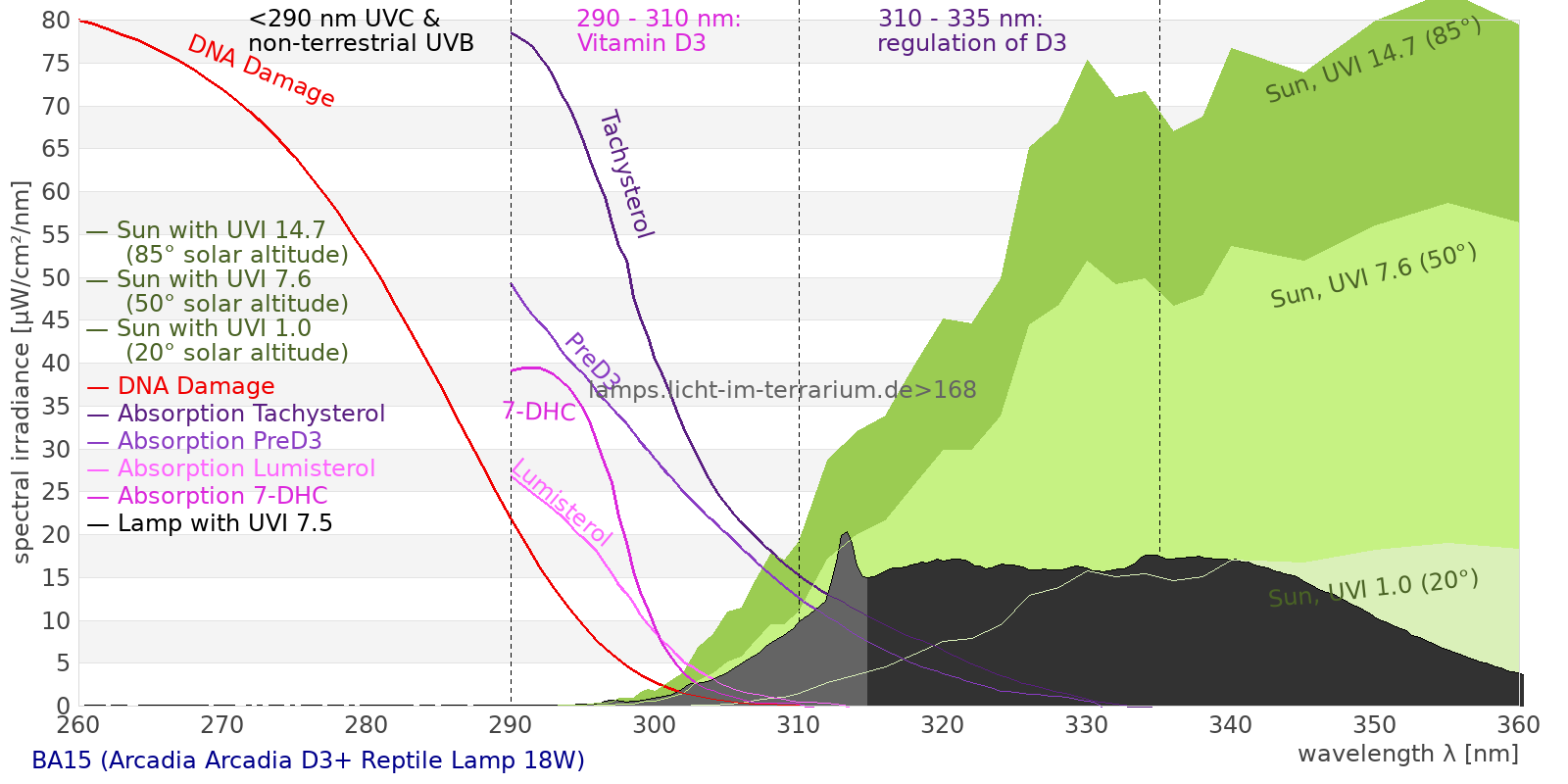

Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 778 µW/cm² = 7.78 W/m² UVC ( 0 nm - 280 nm) 0.858 µW/cm² = 0.00858 W/m² non-terrestrial ( 0 nm - 290 nm) 1.18 µW/cm² = 0.0118 W/m² total2 ( 250 nm - 880 nm) 778 µW/cm² = 7.78 W/m² UVB (EU) ( 280 nm - 315 nm) 46.7 µW/cm² = 0.467 W/m² UVB (US) ( 280 nm - 320 nm) 78.4 µW/cm² = 0.784 W/m² UVA+B ( 280 nm - 380 nm) 301 µW/cm² = 3.01 W/m² Solar UVB ( 290 nm - 315 nm) 46.4 µW/cm² = 0.464 W/m² UVA D3 regulating ( 315 nm - 335 nm) 122 µW/cm² = 1.22 W/m² UVA (EU) ( 315 nm - 380 nm) 255 µW/cm² = 2.55 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 124 µW/cm² = 1.24 W/m² UVA (US) ( 320 nm - 380 nm) 223 µW/cm² = 2.23 W/m² UVA1 (variant) ( 335 nm - 380 nm) 132 µW/cm² = 1.32 W/m² UVA1 (medical) ( 340 nm - 400 nm) 107 µW/cm² = 1.07 W/m² vis. UVA ( 350 nm - 380 nm) 46.5 µW/cm² = 0.465 W/m² VIS Rep3 ( 350 nm - 600 nm) 377 µW/cm² = 3.77 W/m² VIS Rep4 ( 350 nm - 700 nm) 493 µW/cm² = 4.93 W/m² purple ( 380 nm - 420 nm) 34.1 µW/cm² = 0.341 W/m² VIS ( 380 nm - 780 nm) 468 µW/cm² = 4.68 W/m² VIS2 ( 400 nm - 680 nm) 425 µW/cm² = 4.25 W/m² PAR ( 400 nm - 700 nm) 438 µW/cm² = 4.38 W/m² tmp ( 400 nm - 1100 nm) 468 µW/cm² = 4.68 W/m² blue ( 420 nm - 490 nm) 135 µW/cm² = 1.35 W/m² green ( 490 nm - 575 nm) 130 µW/cm² = 1.3 W/m² yellow ( 575 nm - 585 nm) 15.6 µW/cm² = 0.156 W/m² orange ( 585 nm - 650 nm) 78.2 µW/cm² = 0.782 W/m² red ( 650 nm - 780 nm) 75.8 µW/cm² = 0.758 W/m² IRA ( 700 nm - 1400 nm) 29.6 µW/cm² = 0.296 W/m² IR2 ( 720 nm - 1100 nm) 20.9 µW/cm² = 0.209 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 2.95 UV-Index Pyrimidine dimerization of DNA 28.9 µW/cm² Photoceratitis 4.49 µW/cm² Photoconjunctivitis 0.86 µW/cm² DNA Damage 1.14 Vitamin D3 11.6 µW/cm² Photosynthesis 314 µW/cm² Luminosity 1120 lx Human L-Cone 165 µW/cm² Human M-Cone 144 µW/cm² Human S-Cone 111 µW/cm² CIE X 151 µW/cm² CIE Y 155 µW/cm² CIE Z 207 µW/cm² PAR 2100000 mol photons Extinction preD3 88.9 e-3*m²/mol Extinction Tachysterol 303 e-3*m²/mol Exctincition PreD3 45900 m²/mol Extinction Lumisterol 17 m²/mol Exctincition Tachysterol 431000 m²/mol Extinction 7DHC 16.5 m²/mol L-Cone 137 µW/cm² M-Cone 160 µW/cm² S-Cone 191 µW/cm² U-Cone 89.3 µW/cm² UVR - ICNIRP 2004 2.67 Rel Biol Eff Melatonin Supression 155 µW/cm² Blue Light Hazard 126 µW/cm² (113 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 12.8 µW/cm² Lumen Reptil 1290 "pseudo-lx" Vitamin D3 Degradation 15 µW/cm² Actinic UV 2.66 µW/cm² (23.7 mW/klm) Exctincition Lumisterol 22700 m²/mol Exctincition 7DHC 19400 m²/mol Exctincition Toxisterols 10300 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 93 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 3.4 Leybold UVB 65.8 µW/cm² Leybold UVA 158 µW/cm² Leybold UVC 0.655 µW/cm² DeltaOhm UVB 157 µW/cm² DeltaOhm UVC 20 µW/cm² Vernier UVB 21.7 µW/cm² Vernier UVA 196 µW/cm² Gröbel UVA 212 µW/cm² Gröbel UVB 32.6 µW/cm² Gröbel UVC 0.681 µW/cm² Luxmeter 1140 lx Solarmeter 6.4 (D3) 10.6 IU/min UVX-31 169 µW/cm² IL UVB 0.0386 µW/cm² IL UVA 174 µW/cm² Solarmeter 6.5 (UVI, post 2010) 2.88 UV-Index Solarmeter 6.2 (UVB, post 2010) 62.3 µW/cm² (Solarmeter Ratio = 21.6) Solarmeter AlGaN 6.5 UVI sensor 40 UV Index GenUV 7.1 UV-Index 2.29 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 6.16 W/m² Solarmeter 4.0 (UVA) 2.25 mW/cm² LS122 (manuf.) 0.00545 W/m² ISM400 (first guess) 3.69 W/m² LS122 (assumption) 0.172 W/m² ISM400_new 3.05 W/m² Solarmeter 10.0 (Global Power) (assumption) 5.26 W/m²
