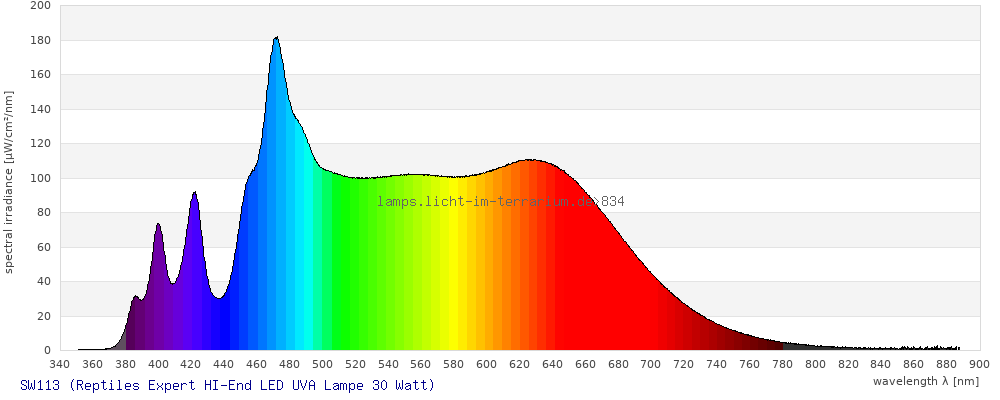

Spectrum #834 SW113 (Reptiles Expert HI-End LED UVA Lampe 30 Watt) Edit
Delete(1) Raw Measurement
| Lampid | SW113 |
|---|---|
| Spectrometer | USB2000+ |
| Originator | Sarina Wunderlich |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | - no reflector - |
| Distance | 10 |
| Age | 1 |
created by Sarina Wunderlich, 24.01.2026; last updated by Sarina Wunderlich, 24.01.2026
Description
CCT:1019 5234K
CRI DC:1017 0
CRI R01:1002 93,4 (5234K)
CRI R02:1003 90,5 (5234K)
CRI R03:1004 88,9 (5234K)
CRI R04:1005 88,7 (5234K)
CRI R05:1006 92,0 (5234K)
CRI R06:1007 87,3 (5234K)
CRI R07:1008 88,3 (5234K)
CRI R08:1009 91,3 (5234K)
CRI R09:1010 87,0 (5234K)
CRI R10:1011 79,2 (5234K)
CRI R11:1012 91,3 (5234K)
CRI R12:1013 81,3 (5234K)
CRI R13:1014 91,9 (5234K)
CRI R14:1015 94,3 (5234K)
CRI R15:1016 92,4 (5234K)
CRI Ra:1001 90,0 (5234K)
DC<5.4E-3:1018 true
X:1022 99
Y:1023 102
Z:1024 90
x:1026 0
y:1027 0
z:1028 0

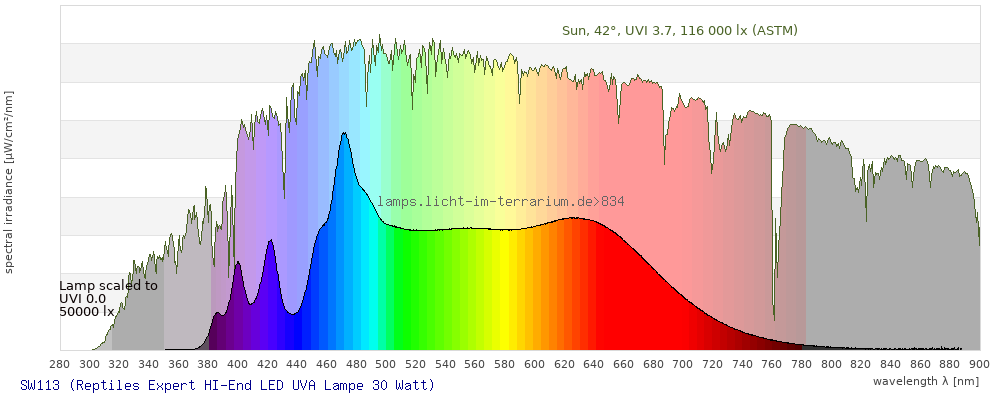

(2) Comparison of full spectrum to sunlight
The spectrum is compared to the ASTM spectrum. The measured spectrum is scaled to a lux or UVI value that seems to "make sense" to the database. This can go wrong, depending on the quality and range of the data.
(3) Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

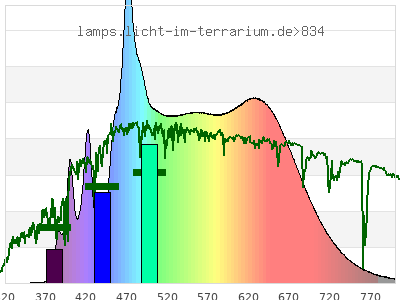

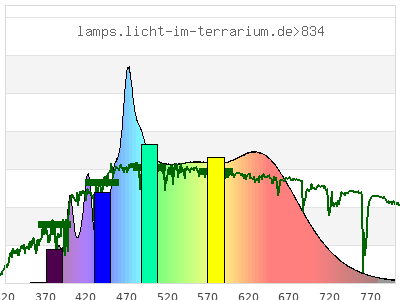

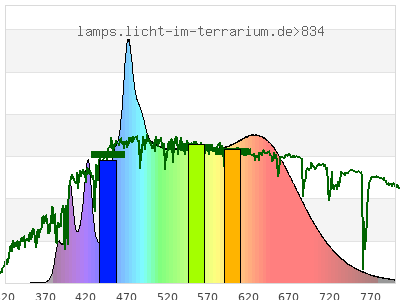

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.34 ; 0.35 ) | ( 0.53 ; 0.34 ) | ( 0.32 ; 0.36 ; 0.23 ) |
| CCT | 5200 Kelvin | 3400 Kelvin | 4400 Kelvin |
| distance | 0.029 | 0.072 | |
| colour space | 3-D-graph not implemented yet |

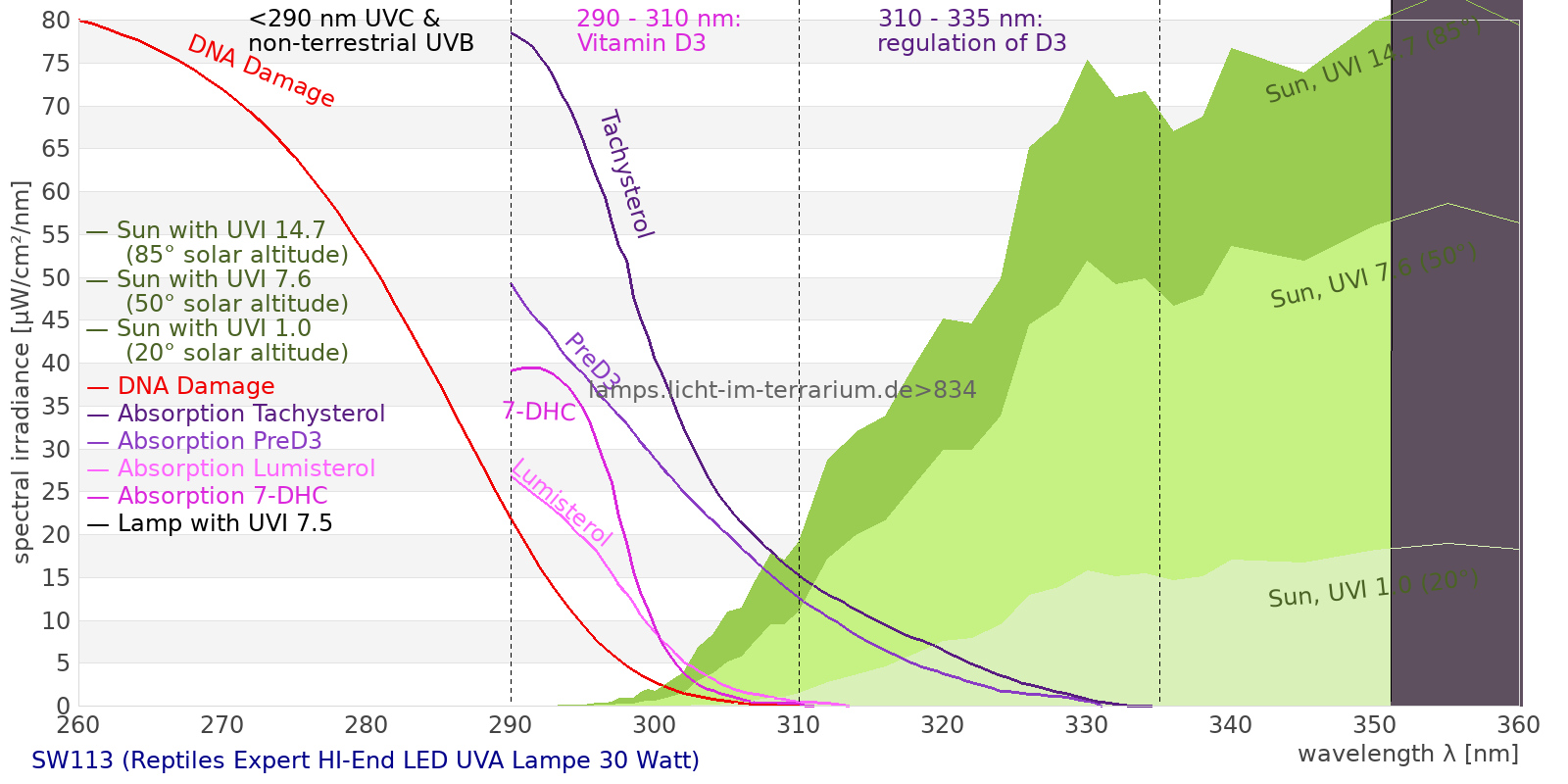

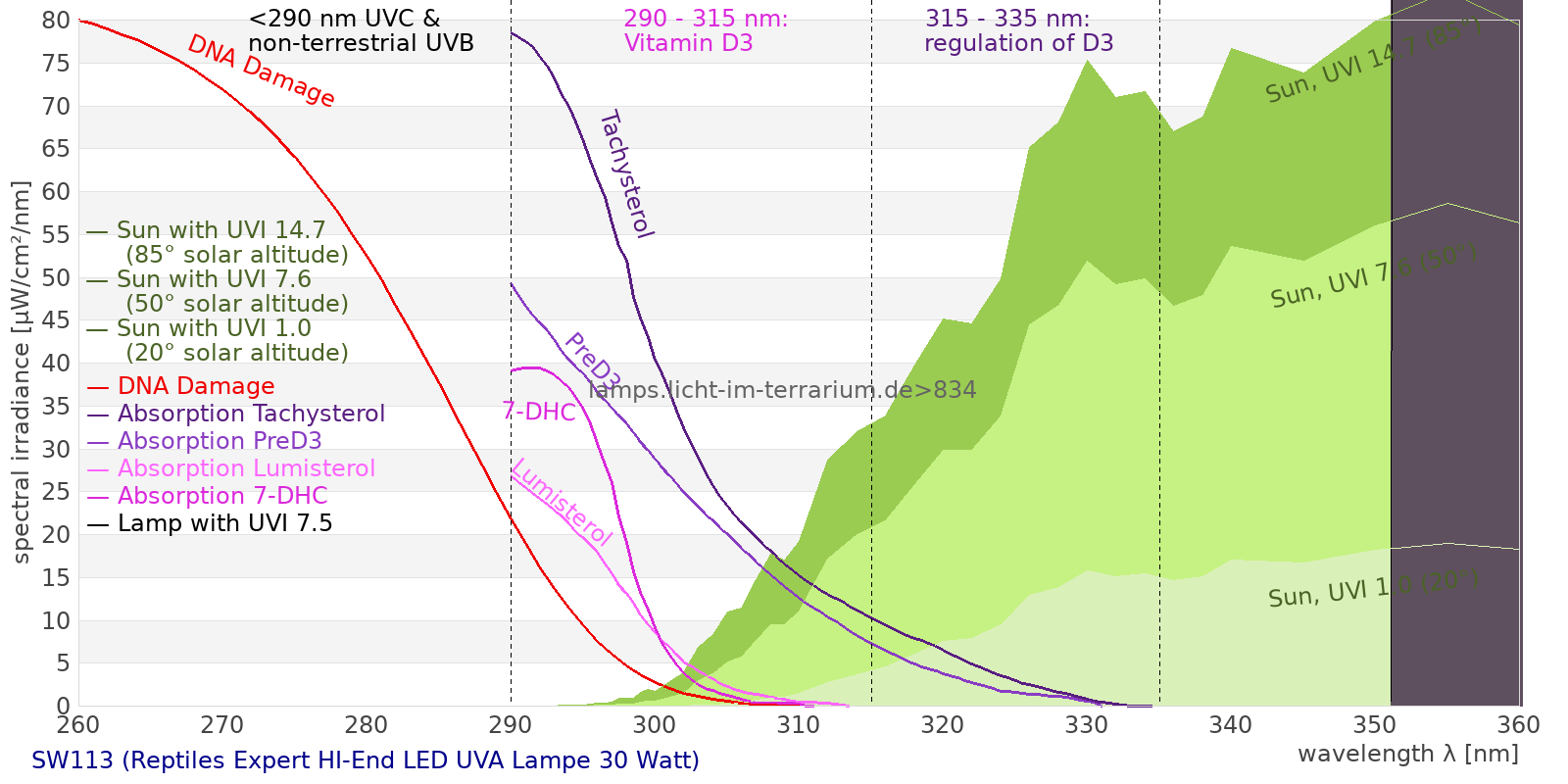

(4) Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
(5) Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
(5a) Ranges
total ( 0 nm - 0 nm) 30900 µW/cm² = 309 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 30900 µW/cm² = 309 W/m² UVB (EU) ( 280 nm - 315 nm) 0 µW/cm² = 0 W/m² UVB (US) ( 280 nm - 320 nm) 0 µW/cm² = 0 W/m² UVA+B ( 280 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² Solar UVB ( 290 nm - 315 nm) 0 µW/cm² = 0 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m² UVA (EU) ( 315 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m² UVA (US) ( 320 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² UVA1 (variant) ( 335 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² UVA1 (medical) ( 340 nm - 400 nm) 842 µW/cm² = 8.42 W/m² vis. UVA ( 350 nm - 380 nm) 69.2 µW/cm² = 0.692 W/m² VIS Rep3 ( 350 nm - 600 nm) 20200 µW/cm² = 202 W/m² VIS Rep4 ( 350 nm - 700 nm) 29200 µW/cm² = 292 W/m² purple ( 380 nm - 420 nm) 1890 µW/cm² = 18.9 W/m² VIS ( 380 nm - 780 nm) 30600 µW/cm² = 306 W/m² VIS2 ( 400 nm - 680 nm) 27300 µW/cm² = 273 W/m² PAR ( 400 nm - 700 nm) 28400 µW/cm² = 284 W/m² tmp ( 400 nm - 1100 nm) 30000 µW/cm² = 300 W/m² blue ( 420 nm - 490 nm) 6980 µW/cm² = 69.8 W/m² green ( 490 nm - 575 nm) 8700 µW/cm² = 87 W/m² yellow ( 575 nm - 585 nm) 1020 µW/cm² = 10.2 W/m² orange ( 585 nm - 650 nm) 6890 µW/cm² = 68.9 W/m² red ( 650 nm - 780 nm) 5130 µW/cm² = 51.3 W/m² IR2 ( 655 nm - 685 nm) 2390 µW/cm² = 23.9 W/m² IRA ( 700 nm - 1400 nm) 1660 µW/cm² = 16.6 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
(5b) Actionspectra
Erythema 0.0572 UV-Index Pyrimidine dimerization of DNA 0.00238 µW/cm² Photoceratitis 0 µW/cm² Photoconjunctivitis 0 µW/cm² DNA Damage 1.41E-5 Vitamin D3 0 µW/cm² Photosynthesis 19800 µW/cm² Luminosity 79900 lx Human L-Cone 12000 µW/cm² Human M-Cone 9850 µW/cm² Human S-Cone 5090 µW/cm² CIE X 10700 µW/cm² CIE Y 11100 µW/cm² CIE Z 9760 µW/cm² PAR PPFD 1330 µmol/m²/s Extinction preD3 0 e-3*m²/mol Extinction Tachysterol 0 e-3*m²/mol Exctincition PreD3 8.35 m²/mol Extinction Lumisterol 0 m²/mol Exctincition Tachysterol 159 m²/mol Extinction 7DHC 0 m²/mol L-Cone 10300 µW/cm² M-Cone 11400 µW/cm² S-Cone 7430 µW/cm² U-Cone 2770 µW/cm² UVR - ICNIRP 2004 0.0367 Rel Biol Eff Melatonin Supression 8580 µW/cm² Blue Light Hazard 5770 µW/cm² (72.2 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0 µW/cm² Lumen Reptil 78000 "pseudo-lx" Vitamin D3 Degradation 0 µW/cm² Actinic UV 0.0366 µW/cm² (0.00458 mW/klm) Exctincition Lumisterol 0 m²/mol Exctincition 7DHC 0 m²/mol Exctincition Toxisterols 9.18 m²/mol
(5c) Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 3.1 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.0105 Leybold UVB 0 µW/cm² Leybold UVA 122 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 0.000171 µW/cm² DeltaOhm UVC 0 µW/cm² Vernier UVB 0 µW/cm² Vernier UVA 25 µW/cm² Gröbel UVA 62.5 µW/cm² Gröbel UVB -0.00223 µW/cm² Gröbel UVC 0 µW/cm² Luxmeter 80300 lx Solarmeter 6.4 (D3) 0.0328 IU/min UVX-31 0.666 µW/cm² IL UVB 0.000129 µW/cm² IL UVA 121 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.000887 UV-Index Solarmeter 6.2 (UVB, post 2010) 0.0263 µW/cm² (Solarmeter Ratio = 29.6) Solarmeter AlGaN 6.5 UVI sensor 0.0897 UV Index GenUV 7.1 UV-Index 0.137 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 334 W/m² Solarmeter 4.0 (UVA) 6.92 mW/cm² LS122 (manuf.) 0.258 W/m² ISM400 (first guess) 248 W/m² LS122 (assumption) 12.4 W/m² ISM400_new 207 W/m² Solarmeter 10.0 (Global Power) (assumption) 327 W/m²
(5d) Summary of my favourites
| UVC (0nm -280nm) [µW/cm] | 0 | 0 % |
| non-terrestrial (0nm -290nm) [µW/cm] | 0 | 0 % |
| UVB (EU) (280nm -315nm) [µW/cm] | 0 | 0 % |
| UVB (US) (280nm -320nm) [µW/cm] | 0 | 0 % |
| Solar UVB (290nm -315nm) [µW/cm] | 0 | 0 % |
| UVA (EU) (315nm -380nm) [µW/cm] | 69.2 | 0.224 % |
| UVA (US) (320nm -380nm) [µW/cm] | 69.2 | 0.224 % |
| UVA2 (medical definition) (320nm -340nm) [µW/cm] | 0 | 0 % |
| UVA1 (medical) (340nm -400nm) [µW/cm] | 842 | 2.73 % |
| UVA D3 regulating (315nm -335nm) [µW/cm] | 0 | 0 % |
| vis. UVA (350nm -380nm) [µW/cm] | 69.2 | 0.224 % |
| VIS (380nm -780nm) [µW/cm] | 30600 | 99.2 % |
| blue (420nm -490nm) [µW/cm] | 6980 | 22.6 % |
| total2 (250nm -880nm) [µW/cm] | 30900 | 100 % |
| Erythema [UV-Index] | 0.0572 | |
| Luminosity [lx] | 79900 | |
| Blue Light Hazard [µW/cm²] | 5770 | 72.2µW/cm/1000lx |
| Solarmeter 6.5 (UVI, post 2010) [UV-Index] | 0.000887 | |
| Solarmeter 6.2 (UVB, post 2010) [µW/cm²] | 0.0263 | |
| Actinic UV [µW/cm²] | 0.0366 | 4.86 at UVI7.6 |
| Vitamin D3 [µW/cm²] | 0 | 0 at UVI7.6 |
