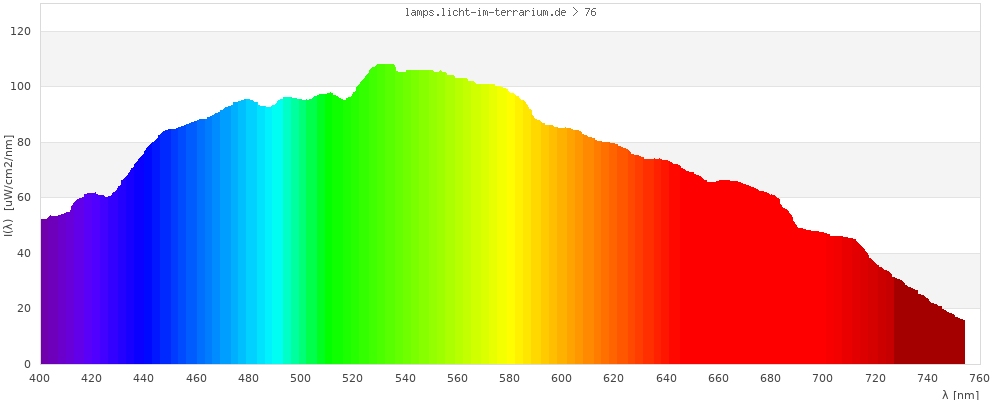

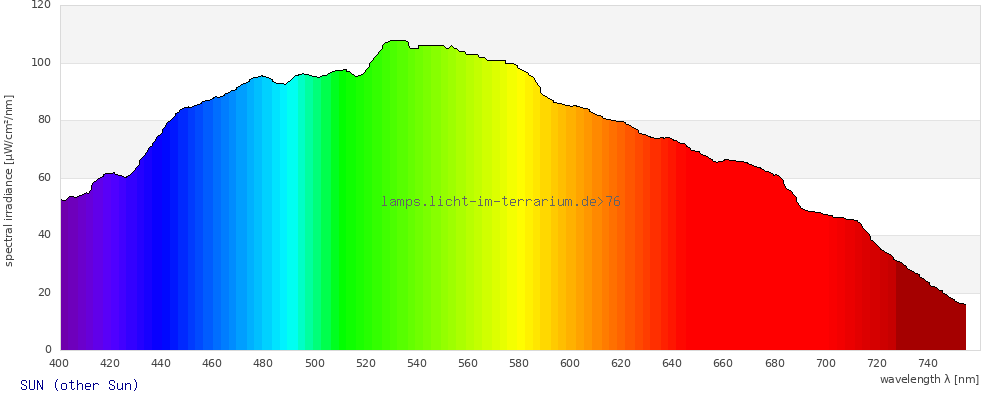

Spectrum #76 SUN (other Sun) Edit
Delete(1) Raw Measurement
| Lampid | SUN |
|---|---|
| Spectrometer | - |
| Originator | Publication |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | - no reflector - |
| Distance | 0 |
| Age | 0 |
created by Sarina Wunderlich, 04.03.2010; last updated by Sarina Wunderlich, 09.10.2011
Description
Lake: Loch Borralie
Smith, Harry. 1982. Light Quality, Photoperception, and Plant Strategy. Annual Review of Plant Physiology 33 481–518.

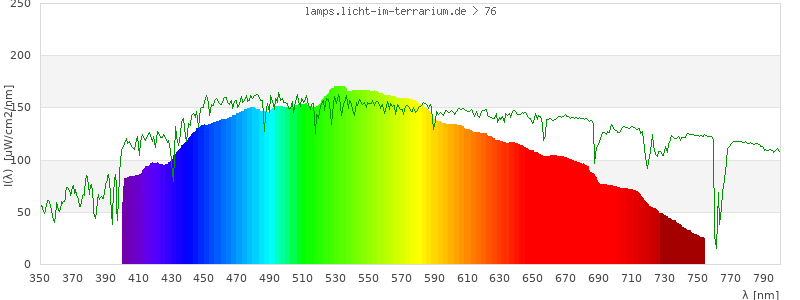

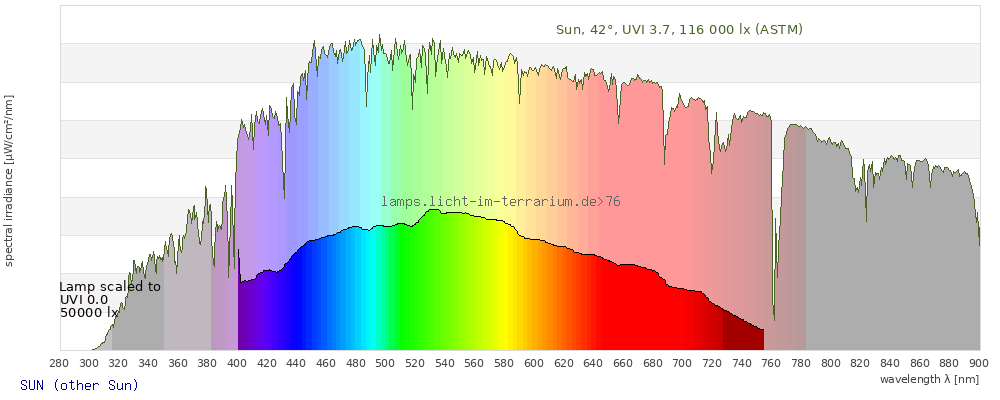

(2) Comparison of full spectrum to sunlight
The spectrum is compared to the ASTM spectrum. The measured spectrum is scaled to a lux or UVI value that seems to "make sense" to the database. This can go wrong, depending on the quality and range of the data.
(3) Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

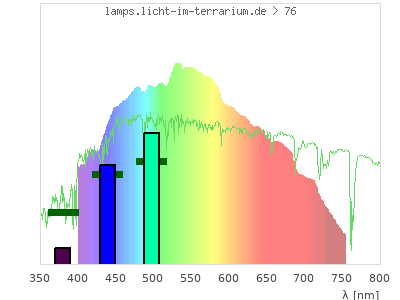

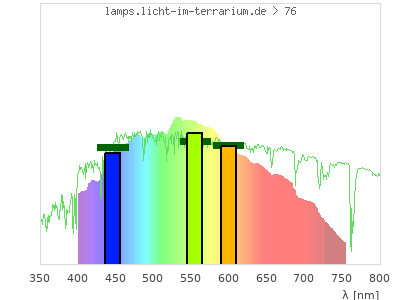

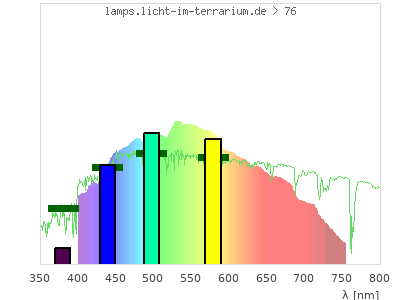

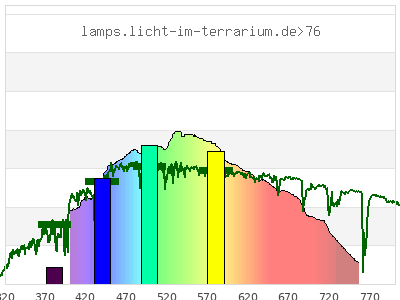

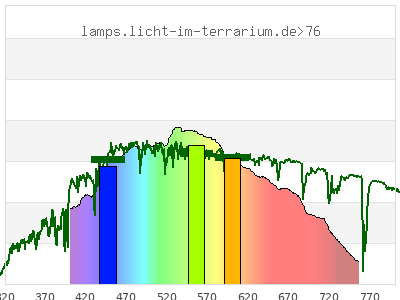

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).

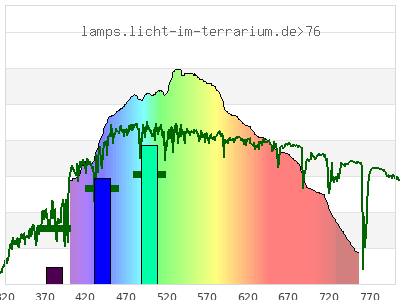

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.33 ; 0.36 ) | ( 0.53 ; 0.4 ) | ( 0.34 ; 0.35 ; 0.27 ) |
| CCT | 5700 Kelvin | 3500 Kelvin | 4300 Kelvin |
| distance | 0.087 | 0.08 | |
| colour space | 3-D-graph not implemented yet |
(4) Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

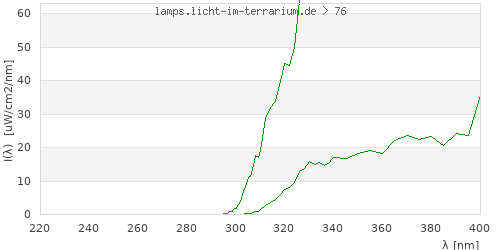

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
(5) Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
(5a) Ranges
total ( 0 nm - 0 nm) 26400 µW/cm² = 264 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 26400 µW/cm² = 264 W/m² UVB (EU) ( 280 nm - 315 nm) 0 µW/cm² = 0 W/m² UVB (US) ( 280 nm - 320 nm) 0 µW/cm² = 0 W/m² UVA+B ( 280 nm - 380 nm) 0 µW/cm² = 0 W/m² Solar UVB ( 290 nm - 315 nm) 0 µW/cm² = 0 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m² UVA (EU) ( 315 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m² UVA (US) ( 320 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA1 (variant) ( 335 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA1 (medical) ( 340 nm - 400 nm) 0 µW/cm² = 0 W/m² vis. UVA ( 350 nm - 380 nm) 0 µW/cm² = 0 W/m² VIS Rep3 ( 350 nm - 600 nm) 17800 µW/cm² = 178 W/m² VIS Rep4 ( 350 nm - 700 nm) 24700 µW/cm² = 247 W/m² purple ( 380 nm - 420 nm) 1120 µW/cm² = 11.2 W/m² VIS ( 380 nm - 780 nm) 26400 µW/cm² = 264 W/m² VIS2 ( 400 nm - 680 nm) 23600 µW/cm² = 236 W/m² PAR ( 400 nm - 700 nm) 24700 µW/cm² = 247 W/m² blue ( 420 nm - 490 nm) 5770 µW/cm² = 57.7 W/m² green ( 490 nm - 575 nm) 8620 µW/cm² = 86.2 W/m² yellow ( 575 nm - 585 nm) 979 µW/cm² = 9.79 W/m² orange ( 585 nm - 650 nm) 5180 µW/cm² = 51.8 W/m² tmp ( 600 nm - 1000 nm) 8600 µW/cm² = 86 W/m² red ( 650 nm - 780 nm) 4740 µW/cm² = 47.4 W/m² IR2 ( 655 nm - 685 nm) 1910 µW/cm² = 19.1 W/m² IRA ( 700 nm - 1400 nm) 1740 µW/cm² = 17.4 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
(5b) Actionspectra
Erythema 0 UV-Index Pyrimidine dimerization of DNA 0 µW/cm² Photoceratitis 0 µW/cm² Photoconjunctivitis 0 µW/cm² DNA Damage 0 Vitamin D3 0 µW/cm² Photosynthesis 16900 µW/cm² Luminosity 73600 lx Human L-Cone 10900 µW/cm² Human M-Cone 9330 µW/cm² Human S-Cone 4630 µW/cm² CIE X 9240 µW/cm² CIE Y 10300 µW/cm² CIE Z 8700 µW/cm² PAR PPFD 1150 µmol/m²/s Extinction preD3 0 e-3*m²/mol Extinction Tachysterol 0 e-3*m²/mol Exctincition PreD3 0 m²/mol Extinction Lumisterol 0 m²/mol Exctincition Tachysterol 0 m²/mol Extinction 7DHC 0 m²/mol L-Cone 9180 µW/cm² M-Cone 9610 µW/cm² S-Cone 7310 µW/cm² U-Cone 1200 µW/cm² UVR - ICNIRP 2004 0 Rel Biol Eff Melatonin Supression 7310 µW/cm² Blue Light Hazard 5240 µW/cm² (71.2 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0 µW/cm² Lumen Reptil 67400 "pseudo-lx" Vitamin D3 Degradation 0 µW/cm² Actinic UV 0 µW/cm² (0 mW/klm) Exctincition Lumisterol 0 m²/mol Exctincition 7DHC 0 m²/mol Exctincition Toxisterols 0 m²/mol UV-Index2 0 UV-Index (285-400nm)
(5c) Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 0 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0 Leybold UVB 0 µW/cm² Leybold UVA 0 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 0 µW/cm² DeltaOhm UVC 0 µW/cm² Vernier UVB 0 µW/cm² Vernier UVA 0 µW/cm² Gröbel UVA 0 µW/cm² Gröbel UVB 0 µW/cm² Gröbel UVC 0 µW/cm² Luxmeter 75500 lx Solarmeter 6.4 (D3) 0 IU/min UVX-31 0 µW/cm² IL UVB 0 µW/cm² IL UVA 0 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0 UV-Index Solarmeter 6.2 (UVB, post 2010) 0 µW/cm² (Solarmeter Ratio = 0) Solarmeter AlGaN 6.5 UVI sensor 0 UV Index GenUV 7.1 UV-Index 0 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 287 W/m² Solarmeter 4.0 (UVA) 0.901 mW/cm² LS122 (manuf.) 0 W/m² ISM400 (first guess) 212 W/m² LS122 (assumption) 10.5 W/m² ISM400_new 177 W/m² Solarmeter 10.0 (Global Power) (assumption) 281 W/m²
(5d) Summary of my favourites
| UVC (0nm -280nm) [µW/cm] | 0 | 0 % |
| non-terrestrial (0nm -290nm) [µW/cm] | 0 | 0 % |
| UVB (EU) (280nm -315nm) [µW/cm] | 0 | 0 % |
| UVB (US) (280nm -320nm) [µW/cm] | 0 | 0 % |
| Solar UVB (290nm -315nm) [µW/cm] | 0 | 0 % |
| UVA (EU) (315nm -380nm) [µW/cm] | 0 | 0 % |
| UVA (US) (320nm -380nm) [µW/cm] | 0 | 0 % |
| UVA2 (medical definition) (320nm -340nm) [µW/cm] | 0 | 0 % |
| UVA1 (medical) (340nm -400nm) [µW/cm] | 0 | 0 % |
| UVA D3 regulating (315nm -335nm) [µW/cm] | 0 | 0 % |
| vis. UVA (350nm -380nm) [µW/cm] | 0 | 0 % |
| VIS (380nm -780nm) [µW/cm] | 26400 | 100 % |
| blue (420nm -490nm) [µW/cm] | 5770 | 21.8 % |
| total2 (250nm -880nm) [µW/cm] | 26400 | 100 % |
| UV-Index2 [UV-Index] | 0 | |
| Luminosity [lx] | 73600 | |
| Blue Light Hazard [µW/cm²] | 5240 | 71.2µW/cm/1000lx |
| Solarmeter 6.5 (UVI, post 2010) [UV-Index] | 0 | |
| Solarmeter 6.2 (UVB, post 2010) [µW/cm²] | 0 | |
| Actinic UV [µW/cm²] | 0 | at UVI7.6 |
| Vitamin D3 [µW/cm²] | 0 | at UVI7.6 |
