Spectrum 582: BRSU1 Edit
Delete

Full Spectrum

Measurement

Brand Reptile Systems
French brand, originally for aqaristics https://www.aquariumsystems.fr/
Lamp Product New Dawn UVI Flood 13W
60-LED UV-emitting LED bar. Specifications: 30 x UVB LED, 2 x UVA LED, 28 x 6500K LED, 13 watts, 120-deg beam angle. 20cm: UVI 5.1; 20-30cm: UVI 3.3 - 5.1; 30-50cm: UVI 3.3 - 1.3; 50-80cm: UVI 0.5 - 1.3
Lamp ID BRSU1 (10/2021)
Spectrometer USB2000+ (2)
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 0.5 hours
Originator (measurement) Frances Baines
Database entry created: Sarina Wunderlich 6/Oct/2021 ; updated: Sarina Wunderlich 6/Oct/2021

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

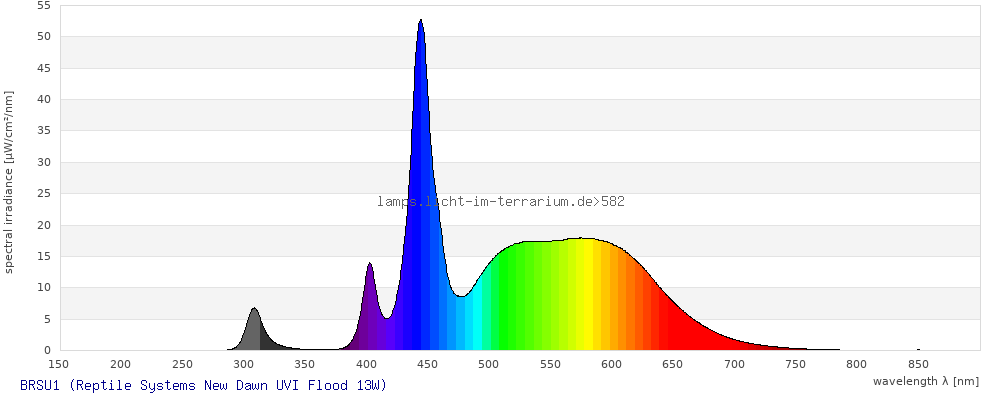

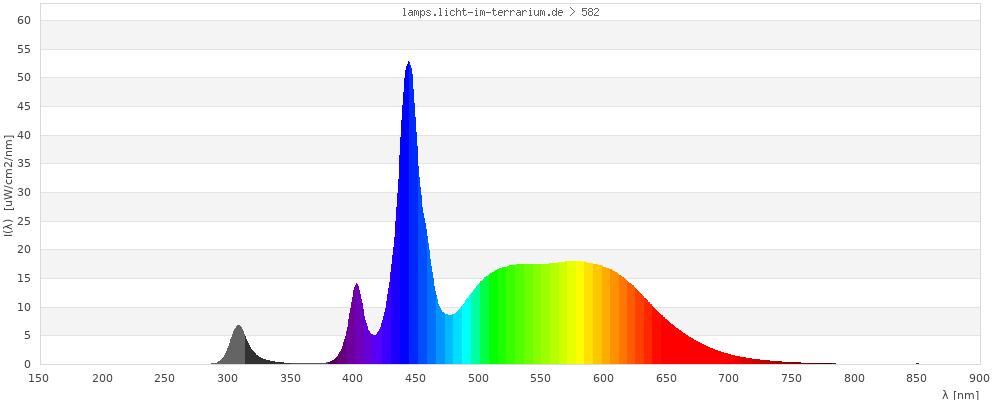

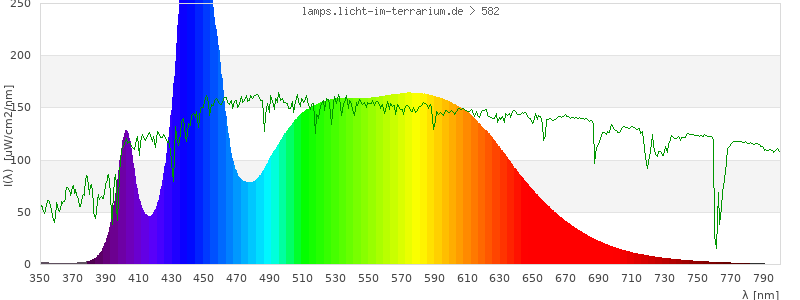

Spectrum in the visible wavelength range

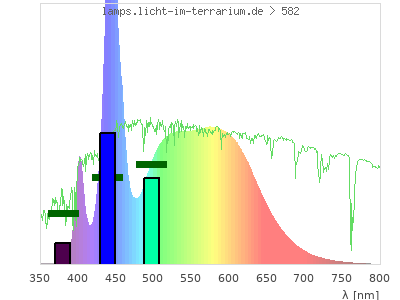

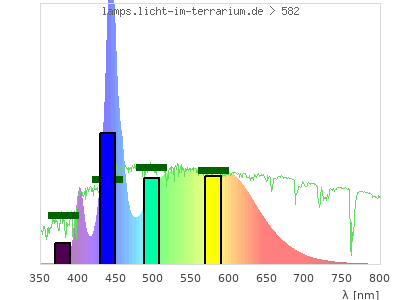

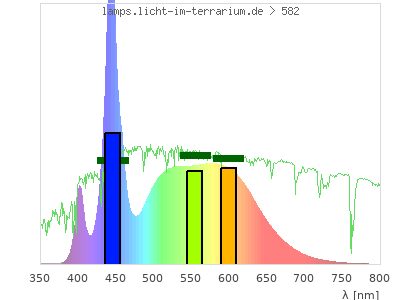

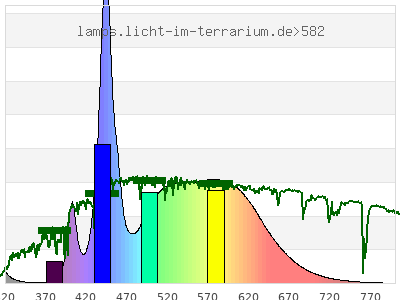

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

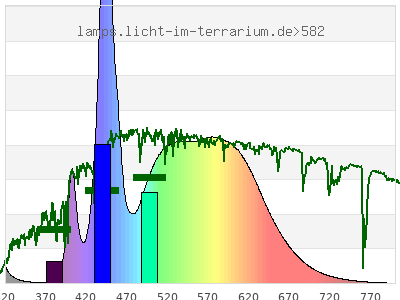

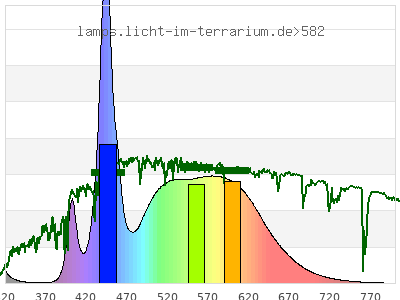

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.3 ; 0.29 ) ( 0.36 ; 0.55 ) ( 0.27 ; 0.26 ; 0.4 )
CCT 7900 Kelvin 5700 Kelvin 5500 Kelvin
distance 0.21 0.15
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

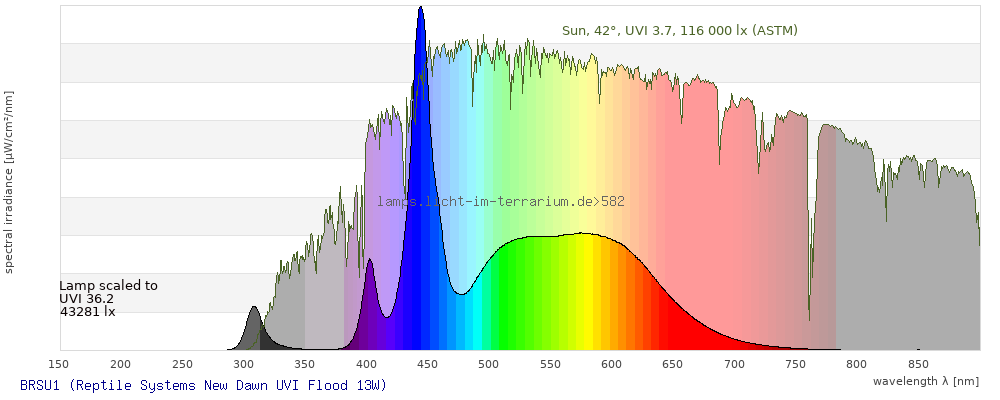

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

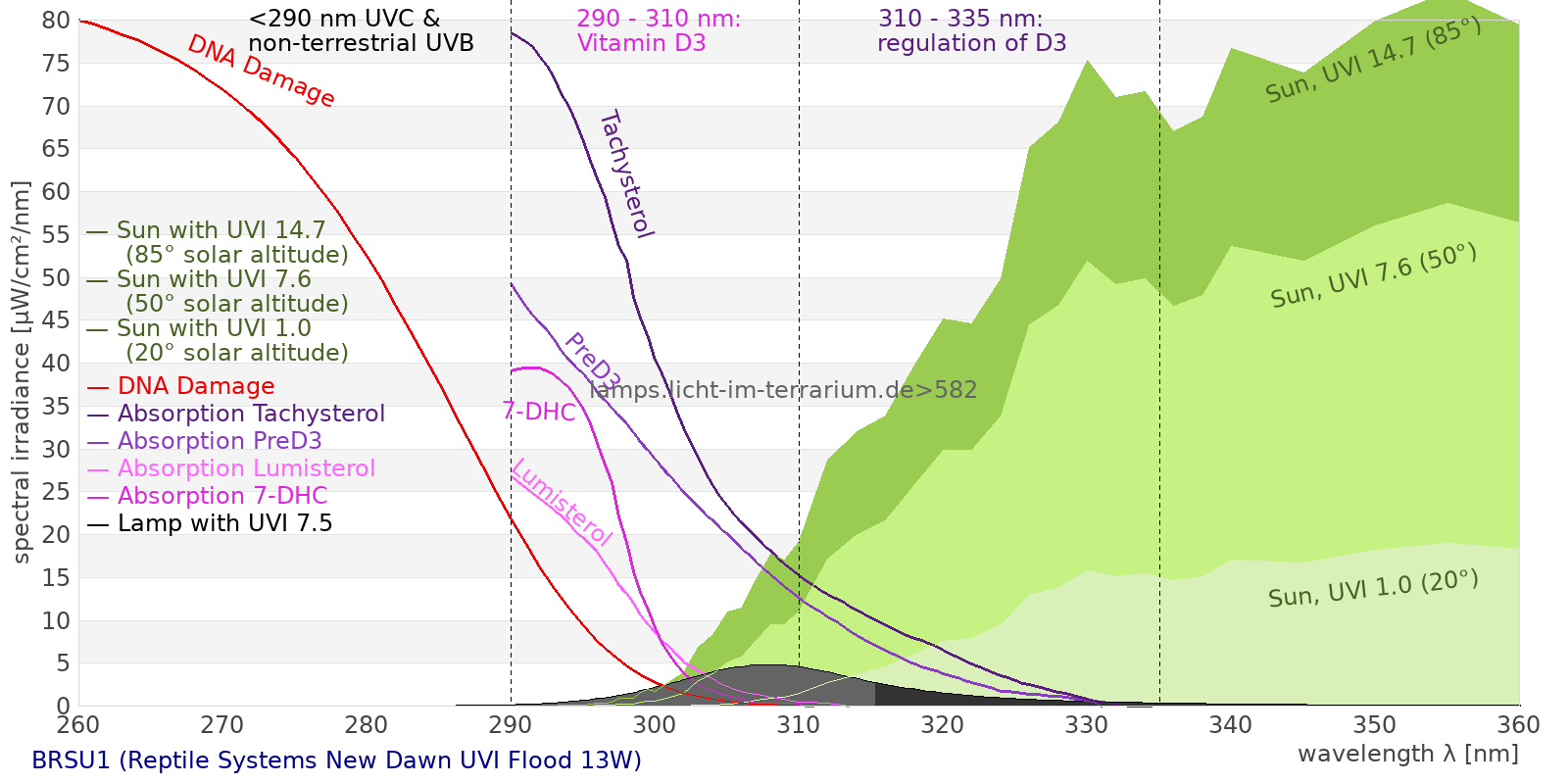

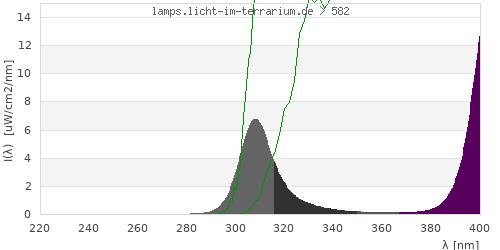

Spectrum in the vitamin D3 active wavelength range

The equilibrium of the photoproducts depends on the actual UV spectrum in the range 250 nm - 340 nm. With knowledge of the conversion probabilities and absorption spectra of 7DHC, PreD3, Tachysterol, and Lumisterol it is possible to calculate the ratio of photoproducts in equilibrium. This is based on scientific literature [1066], however the constants that are used for the calculation are not well calibrated with experiments. It is therefore not a solid method, but I consider it useful as a first guess how natural a UV spectrum is.

Caveat: This evaluation is extremely sensitive to the qualitiy of the spectral measurement in the range 220 nm - 340 nm. High quality spectrometers and good background calibration is needed to get the noise below 300 nm low enough for this evaluation. Please check at least the UV graph above for noise.

Simulation of the development of the Vitamin D3 photoproducts Simulation of the development of the Vitamin D3 photoproducts

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
UVA (EU) ( 315 nm - 400 nm) 121 µW/cm² = 1.21 W/m²
UVA (US) ( 320 nm - 400 nm) 107 µW/cm² = 1.07 W/m²
UVB (EU) ( 280 nm - 315 nm) 96.4 µW/cm² = 0.964 W/m²
UVB (US) ( 280 nm - 320 nm) 110 µW/cm² = 1.1 W/m²
UVC ( 0 nm - 280 nm) 0.227 µW/cm² = 0.00227 W/m²
vis. UVA ( 350 nm - 380 nm) 5.04 µW/cm² = 0.0504 W/m²
purple ( 380 nm - 420 nm) 251 µW/cm² = 2.51 W/m²
blue ( 420 nm - 490 nm) 1490 µW/cm² = 14.9 W/m²
green ( 490 nm - 575 nm) 1400 µW/cm² = 14 W/m²
yellow ( 575 nm - 585 nm) 178 µW/cm² = 1.78 W/m²
orange ( 585 nm - 650 nm) 906 µW/cm² = 9.06 W/m²
red ( 650 nm - 780 nm) 252 µW/cm² = 2.52 W/m²
VIS ( 380 nm - 780 nm) 4480 µW/cm² = 44.8 W/m²
PAR ( 400 nm - 700 nm) 4350 µW/cm² = 43.5 W/m²
total ( 0 nm - 0 nm) 4620 µW/cm² = 46.2 W/m²
UVA1 ( 315 nm - 350 nm) 34.6 µW/cm² = 0.346 W/m²
VIS Rep3 ( 350 nm - 600 nm) 3590 µW/cm² = 35.9 W/m²
VIS Rep4 ( 350 nm - 700 nm) 4440 µW/cm² = 44.4 W/m²
IRA ( 700 nm - 1400 nm) 49.1 µW/cm² = 0.491 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 10.6 UV-Index
Pyrimidine dimerization of DNA 64.3 µW/cm²
Photoceratitis 15.8 µW/cm²
Photoconjunctivitis 0.711 µW/cm²
DNA Damage 1.99
Vitamin D3 43 µW/cm²
Photosynthesis 3060 µW/cm²
Luminosity 12700 lx
Human L-Cone 1890 µW/cm²
Human M-Cone 1600 µW/cm²
Human S-Cone 1330 µW/cm²
CIE X 1820 µW/cm²
CIE Y 1760 µW/cm²
CIE Z 2470 µW/cm²
PAR 19700000 mol photons
Extinction preD3 0.176 m²/mol
Extinction Tachysterol 0.601 m²/mol
Extinction Lumisterol 0.0618 m²/mol
Extinction 7DHC 0.0655 m²/mol
L-Cone 1570 µW/cm²
M-Cone 1540 µW/cm²
S-Cone 2340 µW/cm²
U-Cone 375 µW/cm²
UVR - ICNIRP 2004 10.7 Rel Biol Eff
Melatonin Supression 1650 µW/cm²
Blue Light Hazard 1430 µW/cm² (112 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 48.1 µW/cm²
Lumen Reptil 13300 "pseudo-lx"
Vitamin D3 Degradation 25.9 µW/cm²
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 122 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 12.2
Leybold UVB 97.8 µW/cm²
Leybold UVA 19.6 µW/cm²
Leybold UVC 0.125 µW/cm²
DeltaOhm UVB 107 µW/cm²
DeltaOhm UVC 19.5 µW/cm²
Vernier UVB 61.6 µW/cm²
Vernier UVA 46.8 µW/cm²
Gröbel UVA 38 µW/cm²
Gröbel UVB 68.7 µW/cm²
Gröbel UVC 0.155 µW/cm²
Solarmeter 6.4 (D3) 38.2 IU/min
UVX-31 119 µW/cm²
IL UVB 0.0527 µW/cm²
IL UVA 24.4 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 9.14 UV-Index
Solarmeter 6.2 (UVB, post 2010) 63.5 µW/cm² (Solarmeter Ratio = 6.95)
Solarmeter AlGaN 6.5 UVI sensor 85.8 UV Index
GenUV 7.1 UV-Index 4.14 UV-Index
Solarmeter 10.0 (Global Power) 44.7 W/m²
Solarmeter 4.0 (UVA) 0.991 mW/cm²
