Spectrum 577: SW09 Edit
Delete

Full Spectrum

Measurement

Brand VivTech
Lamp Product SurSun Mid-Day-Blaze
Lamp ID SW09 (08/2021)
Spectrometer USB2000+
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 15 cm
Age 10 hours
Originator (measurement) Sarina Wunderlich
Database entry created: Sarina Wunderlich 30/Aug/2021 ; updated: Sarina Wunderlich 30/Aug/2021

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 280.606 - 799.941 nm. Results are shown anyway but should be ignored by anyone except experts.

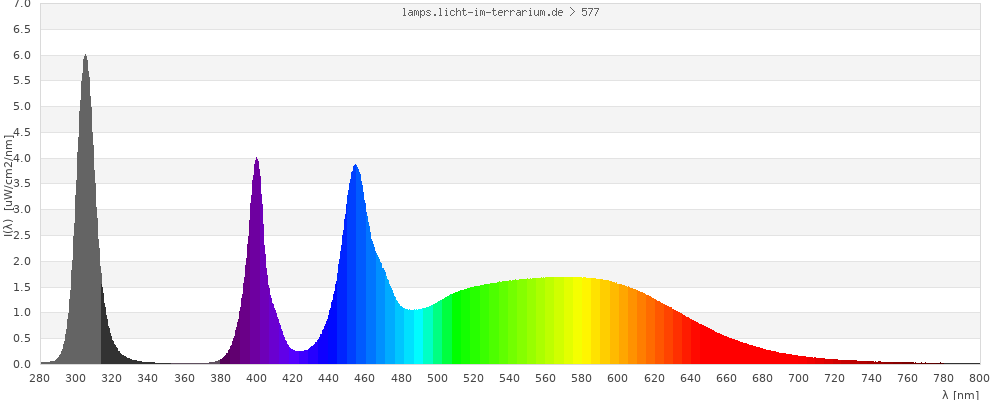

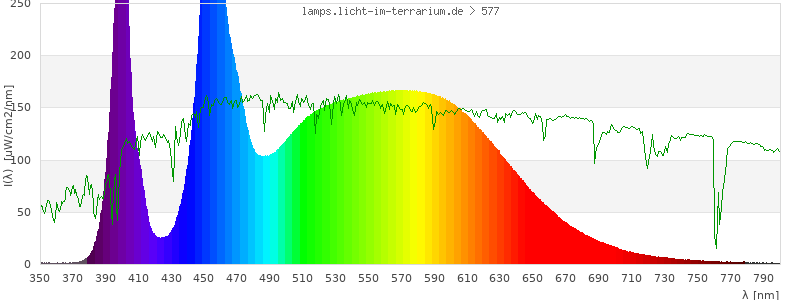

Spectrum in the visible wavelength range

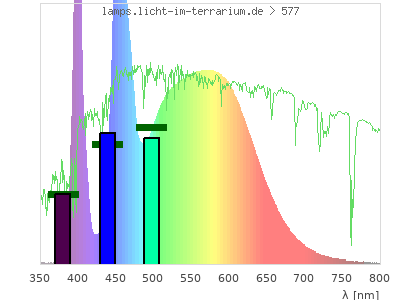

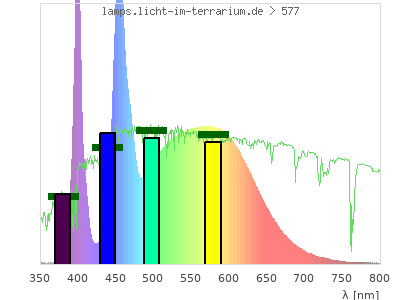

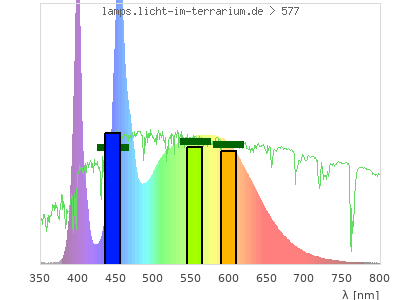

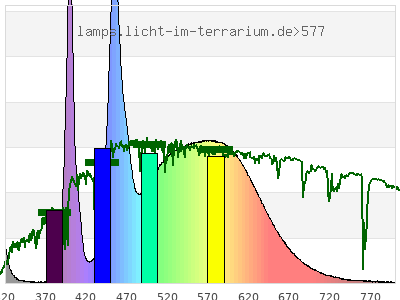

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.31 ; 0.32 ) ( 0.39 ; 0.4 ) ( 0.27 ; 0.28 ; 0.29 )
CCT 6500 Kelvin 5200 Kelvin 5400 Kelvin
distance 0.058 0.043
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

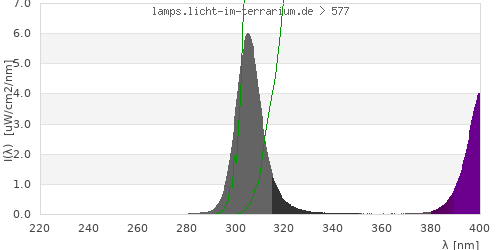

Spectrum in the vitamin D3 active wavelength range

The equilibrium of the photoproducts depends on the actual UV spectrum in the range 250 nm - 340 nm. With knowledge of the conversion probabilities and absorption spectra of 7DHC, PreD3, Tachysterol, and Lumisterol it is possible to calculate the ratio of photoproducts in equilibrium. This is based on scientific literature [1066], however the constants that are used for the calculation are not well calibrated with experiments. It is therefore not a solid method, but I consider it useful as a first guess how natural a UV spectrum is.

Caveat: This evaluation is extremely sensitive to the qualitiy of the spectral measurement in the range 220 nm - 340 nm. High quality spectrometers and good background calibration is needed to get the noise below 300 nm low enough for this evaluation. Please check at least the UV graph above for noise.

Simulation of the development of the Vitamin D3 photoproducts Simulation of the development of the Vitamin D3 photoproducts

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
UVA (EU) ( 315 nm - 400 nm) 36.4 µW/cm² = 0.364 W/m²
UVA (US) ( 320 nm - 400 nm) 32.5 µW/cm² = 0.325 W/m²
UVB (EU) ( 280 nm - 315 nm) 73.9 µW/cm² = 0.739 W/m²
UVB (US) ( 280 nm - 320 nm) 77.9 µW/cm² = 0.779 W/m²
UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m²
vis. UVA ( 350 nm - 380 nm) 0.678 µW/cm² = 0.00678 W/m²
purple ( 380 nm - 420 nm) 56 µW/cm² = 0.56 W/m²
blue ( 420 nm - 490 nm) 112 µW/cm² = 1.12 W/m²
green ( 490 nm - 575 nm) 128 µW/cm² = 1.28 W/m²
yellow ( 575 nm - 585 nm) 17 µW/cm² = 0.17 W/m²
orange ( 585 nm - 650 nm) 81.5 µW/cm² = 0.815 W/m²
red ( 650 nm - 780 nm) 23.4 µW/cm² = 0.234 W/m²
VIS ( 380 nm - 780 nm) 418 µW/cm² = 4.18 W/m²
PAR ( 400 nm - 700 nm) 384 µW/cm² = 3.84 W/m²
total ( 0 nm - 0 nm) 500 µW/cm² = 5 W/m²
UVA1 ( 315 nm - 350 nm) 6.8 µW/cm² = 0.068 W/m²
VIS Rep3 ( 350 nm - 600 nm) 338 µW/cm² = 3.38 W/m²
VIS Rep4 ( 350 nm - 700 nm) 414 µW/cm² = 4.14 W/m²
IRA ( 700 nm - 1400 nm) 5.11 µW/cm² = 0.0511 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 9.88 UV-Index
Pyrimidine dimerization of DNA 53.9 µW/cm²
Photoceratitis 14.1 µW/cm²
Photoconjunctivitis 0.471 µW/cm²
DNA Damage 1.57
Vitamin D3 40.1 µW/cm²
Photosynthesis 260 µW/cm²
Luminosity 1170 lx
Human L-Cone 174 µW/cm²
Human M-Cone 148 µW/cm²
Human S-Cone 94.4 µW/cm²
CIE X 157 µW/cm²
CIE Y 163 µW/cm²
CIE Z 182 µW/cm²
PAR 1810000 mol photons
Extinction preD3 0.144 m²/mol
Extinction Tachysterol 0.49 m²/mol
Extinction Lumisterol 0.0561 m²/mol
Extinction 7DHC 0.0582 m²/mol
L-Cone 146 µW/cm²
M-Cone 150 µW/cm²
S-Cone 156 µW/cm²
U-Cone 83.9 µW/cm²
UVR - ICNIRP 2004 10 Rel Biol Eff
Melatonin Supression 139 µW/cm²
Blue Light Hazard 102 µW/cm² (87.1 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 44.8 µW/cm²
Lumen Reptil 1240 "pseudo-lx"
Vitamin D3 Degradation 20 µW/cm²
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 87.5 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 11.3
Leybold UVB 72.4 µW/cm²
Leybold UVA 3.93 µW/cm²
Leybold UVC 0.0268 µW/cm²
DeltaOhm UVB 64.7 µW/cm²
DeltaOhm UVC 13.3 µW/cm²
Vernier UVB 50.8 µW/cm²
Vernier UVA 15.5 µW/cm²
Gröbel UVA 11.3 µW/cm²
Gröbel UVB 56.3 µW/cm²
Gröbel UVC 0.0215 µW/cm²
Solarmeter 6.4 (D3) 35.3 IU/min
UVX-31 75.4 µW/cm²
IL UVB 0.0402 µW/cm²
IL UVA 5.44 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 8.3 UV-Index
Solarmeter 6.2 (UVB, post 2010) 42.1 µW/cm² (Solarmeter Ratio = 5.07)
Solarmeter AlGaN 6.5 UVI sensor 68.2 UV Index
GenUV 7.1 UV-Index 3.18 UV-Index
Solarmeter 10.0 (Global Power) 4.37 W/m²
Solarmeter 4.0 (UVA) 0.298 mW/cm²
