Spectrum 573: Morita2016_LEDs Edit
Delete

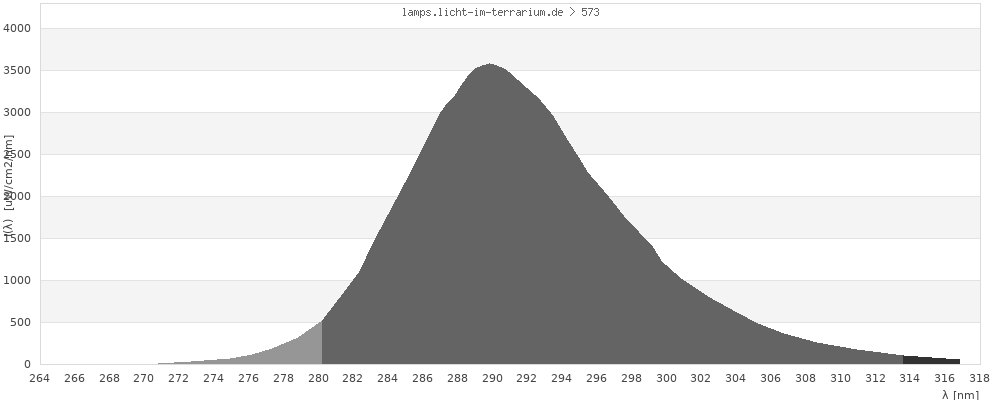

Full Spectrum

Measurement

Brand Nikkiso
Lamp Product Generic UV LED
Lamp ID Morita2016_LEDs (01/2016)
LEDs used in Morita, D., Nishida, Y., Higuchi, Y., Seki, T., Ikuta, K., Asano, H. & Ishiguro, N. (2016) Short-range ultraviolet irradiation with LED device effectively increases serum levels of 25(OH)D. Journal of Photochemistry and Photobiology B: Biology, 164 256–263.
Spectrometer -
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 0 hours
Originator (measurement) Publication
Database entry created: Sarina Wunderlich 21/Aug/2021 ; updated: Sarina Wunderlich 22/Aug/2021

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 265.9 - 316.8 nm. Results are shown anyway but should be ignored by anyone except experts.

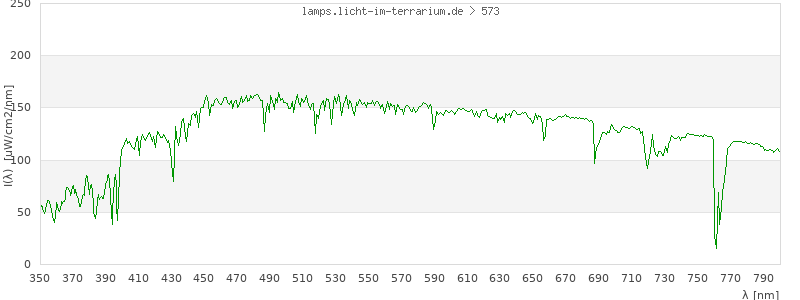

Spectrum in the visible wavelength range

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( NAN ; NAN ) ( NAN ; NAN ) ( NAN ; NAN ; NAN )
CCT 0 Kelvin NAN Kelvin NAN Kelvin
distance NAN NAN
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

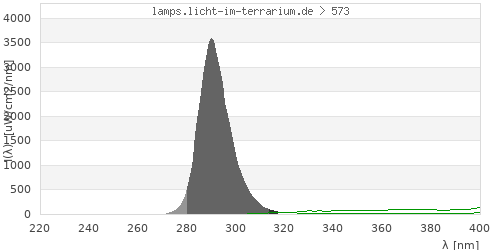

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 54000 µW/cm² = 540 W/m²
UVC ( 0 nm - 280 nm) 1420 µW/cm² = 14.2 W/m²
non-terrestrial ( 0 nm - 290 nm) 23600 µW/cm² = 236 W/m²
total2 ( 250 nm - 880 nm) 54000 µW/cm² = 540 W/m²
UVB (EU) ( 280 nm - 315 nm) 52600 µW/cm² = 526 W/m²
UVB (US) ( 280 nm - 320 nm) 52600 µW/cm² = 526 W/m²
UVA+B ( 280 nm - 380 nm) 52600 µW/cm² = 526 W/m²
Solar UVB ( 290 nm - 315 nm) 30400 µW/cm² = 304 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m²
UVA (EU) ( 315 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m²
UVA (US) ( 320 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 0 µW/cm² = 0 W/m²
vis. UVA ( 350 nm - 380 nm) 0 µW/cm² = 0 W/m²
VIS Rep3 ( 350 nm - 600 nm) 0 µW/cm² = 0 W/m²
VIS Rep4 ( 350 nm - 700 nm) 0 µW/cm² = 0 W/m²
purple ( 380 nm - 420 nm) 0 µW/cm² = 0 W/m²
VIS ( 380 nm - 780 nm) 0 µW/cm² = 0 W/m²
PAR ( 400 nm - 700 nm) 0 µW/cm² = 0 W/m²
blue ( 420 nm - 490 nm) 0 µW/cm² = 0 W/m²
green ( 490 nm - 575 nm) 0 µW/cm² = 0 W/m²
yellow ( 575 nm - 585 nm) 0 µW/cm² = 0 W/m²
orange ( 585 nm - 650 nm) 0 µW/cm² = 0 W/m²
red ( 650 nm - 780 nm) 0 µW/cm² = 0 W/m²
IRA ( 700 nm - 1400 nm) 0 µW/cm² = 0 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 19600 UV-Index
Pyrimidine dimerization of DNA 17600 µW/cm²
Photoceratitis 34800 µW/cm²
Photoconjunctivitis 5540 µW/cm²
DNA Damage 13400
Vitamin D3 43900 µW/cm²
Photosynthesis 0 µW/cm²
Luminosity 0 lx
Human L-Cone 0 µW/cm²
Human M-Cone 0 µW/cm²
Human S-Cone 0 µW/cm²
CIE X 0 µW/cm²
CIE Y 0 µW/cm²
CIE Z 0 µW/cm²
PAR 0 mol photons
Extinction preD3 225000 e-3*m²/mol
Extinction Tachysterol 872000 e-3*m²/mol
Exctincition PreD3 165000000 m²/mol
Extinction Lumisterol 221000 m²/mol
Exctincition Tachysterol 1120000000 m²/mol
Extinction 7DHC 299000 m²/mol
L-Cone 0 µW/cm²
M-Cone 0 µW/cm²
S-Cone 0 µW/cm²
U-Cone 0 µW/cm²
UVR - ICNIRP 2004 31100 Rel Biol Eff
Melatonin Supression 0 µW/cm²
Blue Light Hazard 54.8 µW/cm² (NAN µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 44200 µW/cm²
Lumen Reptil 0 "pseudo-lx"
Vitamin D3 Degradation 25700 µW/cm²
Actinic UV 30900 µW/cm² (NAN mW/klm)
Exctincition Lumisterol 258000000 m²/mol
Exctincition 7DHC 341000000 m²/mol
Exctincition Toxisterols 10700000 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 76600 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 15600
Leybold UVB 29600 µW/cm²
Leybold UVA 0 µW/cm²
Leybold UVC 460 µW/cm²
DeltaOhm UVB 35500 µW/cm²
DeltaOhm UVC 14700 µW/cm²
Vernier UVB 33600 µW/cm²
Vernier UVA 749 µW/cm²
Gröbel UVA 549 µW/cm²
Gröbel UVB 49600 µW/cm²
Gröbel UVC 1710 µW/cm²
Solarmeter 6.4 (D3) 48800 IU/min
UVX-31 32600 µW/cm²
IL UVB 38.1 µW/cm²
IL UVA 101 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 8340 UV-Index
Solarmeter 6.2 (UVB, post 2010) 26200 µW/cm² (Solarmeter Ratio = 3.14)
Solarmeter AlGaN 6.5 UVI sensor 43800 UV Index
GenUV 7.1 UV-Index 2390 UV-Index
Solarmeter 10.0 (Global Power) 157 W/m²
Solarmeter 4.0 (UVA) 3.96 mW/cm²
LS122 0 W/m²
ISM400 0.238 W/m²
