Spectrum #572 Morita2016_LEDs (Nikkiso Generic UV LED) Edit

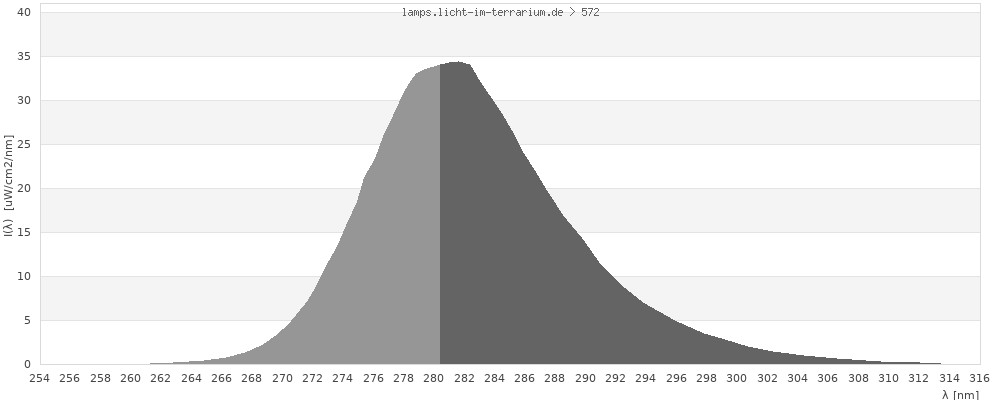

Delete(1) Raw Measurement
| Lampid | Morita2016_LEDs |
|---|---|
| Spectrometer | - |
| Originator | Publication |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | - no reflector - |
| Distance | 10 |
| Age | 0 |

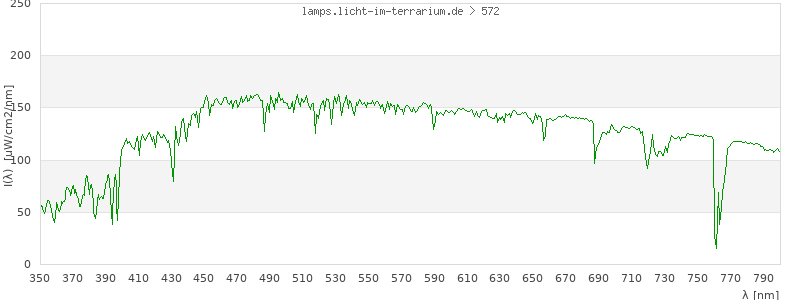

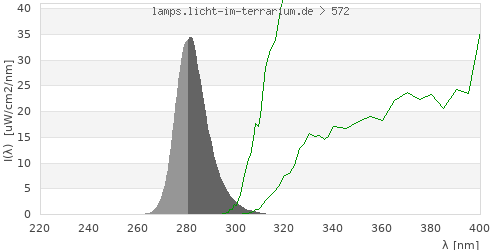

(2) Comparison of full spectrum to sunlight
(3) Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | |||
| CCT | 0 Kelvin | 0 Kelvin | 0 Kelvin |
| distance | 0 | 0 | |
| colour space | 3-D-graph not implemented yet |
(4) Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
(5) Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
total ( 0 nm - 0 nm) 539 µW/cm² = 5.39 W/m² UVC ( 0 nm - 280 nm) 217 µW/cm² = 2.17 W/m² non-terrestrial ( 0 nm - 290 nm) 474 µW/cm² = 4.74 W/m² total2 ( 250 nm - 880 nm) 539 µW/cm² = 5.39 W/m² UVB (EU) ( 280 nm - 315 nm) 322 µW/cm² = 3.22 W/m² UVB (US) ( 280 nm - 320 nm) 322 µW/cm² = 3.22 W/m² UVA+B ( 280 nm - 380 nm) 322 µW/cm² = 3.22 W/m² Solar UVB ( 290 nm - 315 nm) 64.3 µW/cm² = 0.643 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m² UVA (EU) ( 315 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m² UVA (US) ( 320 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA1 (variant) ( 335 nm - 380 nm) 0 µW/cm² = 0 W/m² UVA1 (medical) ( 340 nm - 400 nm) 0 µW/cm² = 0 W/m² vis. UVA ( 350 nm - 380 nm) 0 µW/cm² = 0 W/m² VIS Rep3 ( 350 nm - 600 nm) 0 µW/cm² = 0 W/m² VIS Rep4 ( 350 nm - 700 nm) 0 µW/cm² = 0 W/m² purple ( 380 nm - 420 nm) 0 µW/cm² = 0 W/m² VIS ( 380 nm - 780 nm) 0 µW/cm² = 0 W/m² VIS2 ( 400 nm - 680 nm) 0 µW/cm² = 0 W/m² PAR ( 400 nm - 700 nm) 0 µW/cm² = 0 W/m² blue ( 420 nm - 490 nm) 0 µW/cm² = 0 W/m² green ( 490 nm - 575 nm) 0 µW/cm² = 0 W/m² yellow ( 575 nm - 585 nm) 0 µW/cm² = 0 W/m² orange ( 585 nm - 650 nm) 0 µW/cm² = 0 W/m² tmp ( 600 nm - 1000 nm) 0 µW/cm² = 0 W/m² red ( 650 nm - 780 nm) 0 µW/cm² = 0 W/m² IR2 ( 655 nm - 685 nm) 0 µW/cm² = 0 W/m² IRA ( 700 nm - 1400 nm) 0 µW/cm² = 0 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Erythema 212 UV-Index Pyrimidine dimerization of DNA 68.7 µW/cm² Photoceratitis 286 µW/cm² Photoconjunctivitis 178 µW/cm² DNA Damage 290 Vitamin D3 320 µW/cm² Photosynthesis 0 µW/cm² Luminosity 0 lx Human L-Cone 0 µW/cm² Human M-Cone 0 µW/cm² Human S-Cone 0 µW/cm² CIE X 0 µW/cm² CIE Y 0 µW/cm² CIE Z 0 µW/cm² PAR PPFD 0 µmol/m²/s Extinction preD3 3210 e-3*m²/mol Extinction Tachysterol 10700 e-3*m²/mol Exctincition PreD3 2780000 m²/mol Extinction Lumisterol 3500 m²/mol Exctincition Tachysterol 13500000 m²/mol Extinction 7DHC 4580 m²/mol L-Cone 0 µW/cm² M-Cone 0 µW/cm² S-Cone 0 µW/cm² U-Cone 0 µW/cm² UVR - ICNIRP 2004 432 Rel Biol Eff Melatonin Supression 0 µW/cm² Blue Light Hazard 0.0983 µW/cm² CIE 174:2006 PreVit D3 313 µW/cm² Lumen Reptil 0 "pseudo-lx" Vitamin D3 Degradation 338 µW/cm² Actinic UV 429 µW/cm² Exctincition Lumisterol 4010000 m²/mol Exctincition 7DHC 5050000 m²/mol Exctincition Toxisterols 233000 m²/mol UV-Index2 60.7 UV-Index (285-400nm)
Solarmeter 6.2 (UVB, pre 2010) 793 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 162 Leybold UVB 103 µW/cm² Leybold UVA 0 µW/cm² Leybold UVC 61.4 µW/cm² DeltaOhm UVB 199 µW/cm² DeltaOhm UVC 208 µW/cm² Vernier UVB 182 µW/cm² Vernier UVA 0.808 µW/cm² Gröbel UVA 0.898 µW/cm² Gröbel UVB 394 µW/cm² Gröbel UVC 116 µW/cm² Luxmeter 0 lx Solarmeter 6.4 (D3) 506 IU/min UVX-31 196 µW/cm² IL UVB 0.346 µW/cm² IL UVA 0.136 µW/cm² Solarmeter 6.5 (UVI, post 2010) 77.3 UV-Index Solarmeter 6.2 (UVB, post 2010) 237 µW/cm² (Solarmeter Ratio = 3.07) Solarmeter AlGaN 6.5 UVI sensor 377 UV Index GenUV 7.1 UV-Index 23.5 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 1.43 W/m² Solarmeter 4.0 (UVA) 0.0063 mW/cm² LS122 (manuf.) 0 W/m² ISM400 (first guess) 0.000368 W/m² LS122 (assumption) 0 W/m² ISM400_new 0.000155 W/m² Solarmeter 10.0 (Global Power) (assumption) 0.368 W/m²
| UVC (0nm -280nm) [µW/cm] | 217 | 40.3 % |
| non-terrestrial (0nm -290nm) [µW/cm] | 474 | 88 % |
| UVB (EU) (280nm -315nm) [µW/cm] | 322 | 59.7 % |
| UVB (US) (280nm -320nm) [µW/cm] | 322 | 59.7 % |
| Solar UVB (290nm -315nm) [µW/cm] | 64.3 | 11.9 % |
| UVA (EU) (315nm -380nm) [µW/cm] | 0 | 0 % |
| UVA (US) (320nm -380nm) [µW/cm] | 0 | 0 % |
| UVA2 (medical definition) (320nm -340nm) [µW/cm] | 0 | 0 % |
| UVA1 (medical) (340nm -400nm) [µW/cm] | 0 | 0 % |
| UVA D3 regulating (315nm -335nm) [µW/cm] | 0 | 0 % |
| vis. UVA (350nm -380nm) [µW/cm] | 0 | 0 % |
| VIS (380nm -780nm) [µW/cm] | 0 | 0 % |
| blue (420nm -490nm) [µW/cm] | 0 | 0 % |
| total2 (250nm -880nm) [µW/cm] | 539 | 100 % |
| UV-Index2 [UV-Index] | 60.7 | |
| Luminosity [lx] | 0 | |
| Blue Light Hazard [µW/cm²] | 0.0983 | /µW/cm/1000lx |
| Solarmeter 6.5 (UVI, post 2010) [UV-Index] | 77.3 | |
| Solarmeter 6.2 (UVB, post 2010) [µW/cm²] | 237 | |
| Actinic UV [µW/cm²] | 429 | 53.8 at UVI7.6 |
| Vitamin D3 [µW/cm²] | 320 | 40 at UVI7.6 |
