Reptile Lamp Database

Spectrum 560: WL03 Edit
Delete

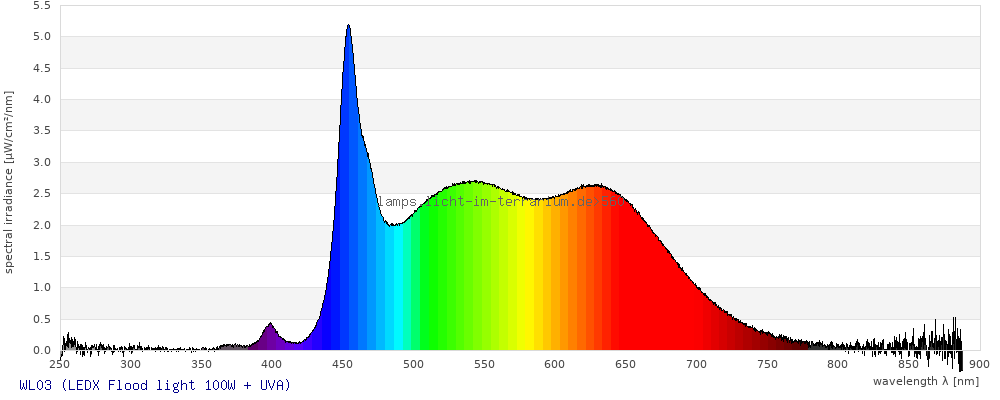

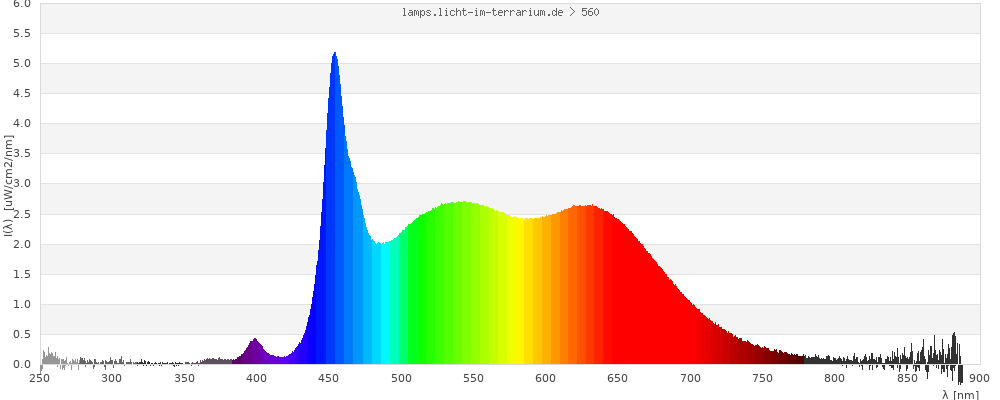

Full Spectrum

26 °

Measurement

Brand LEDX
LEDX GmbH In den Weiden 2A/1/4 2230 Gänserndorf Österreich ledx.at
Lamp Product Flood light 100W + UVA
Lamp ID WL03 (11/2020)
Spectrometer USB2000+
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 100 cm
Age 1 hours
Originator (measurement) Sarina Wunderlich
Database entry created: Sarina Wunderlich 20/Dec/2020 ; updated: Sarina Wunderlich 22/Aug/2021

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

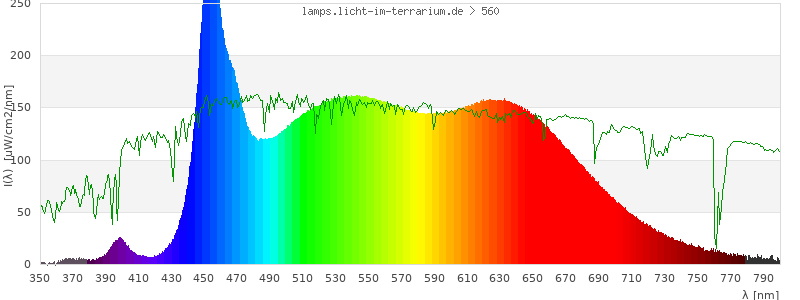

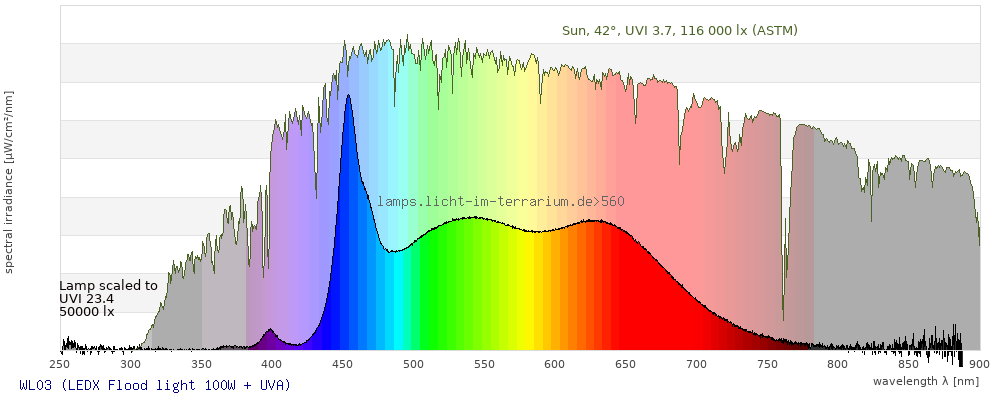

Spectrum in the visible wavelength range

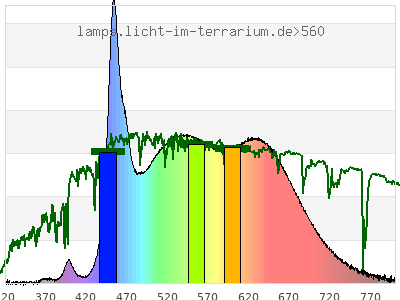

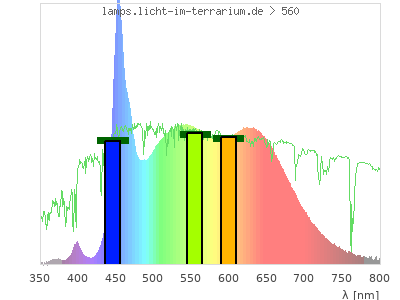

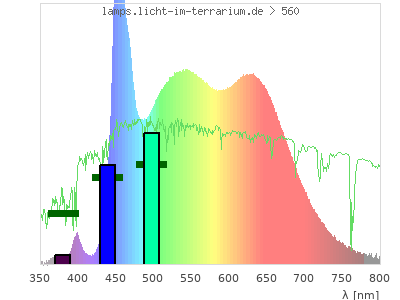

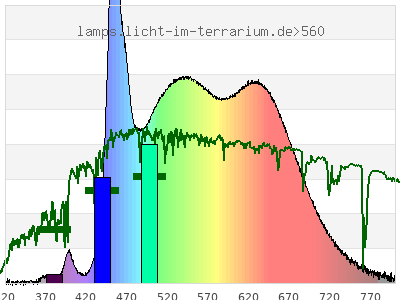

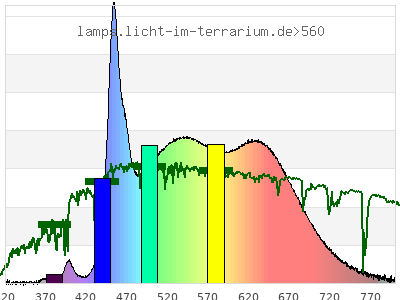

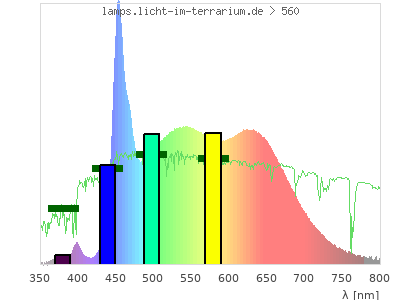

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.33 ; 0.34 ) ( 0.55 ; 0.42 ) ( 0.35 ; 0.35 ; 0.27 )
CCT 5400 Kelvin 3500 Kelvin 4100 Kelvin
distance 0.1 0.085
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

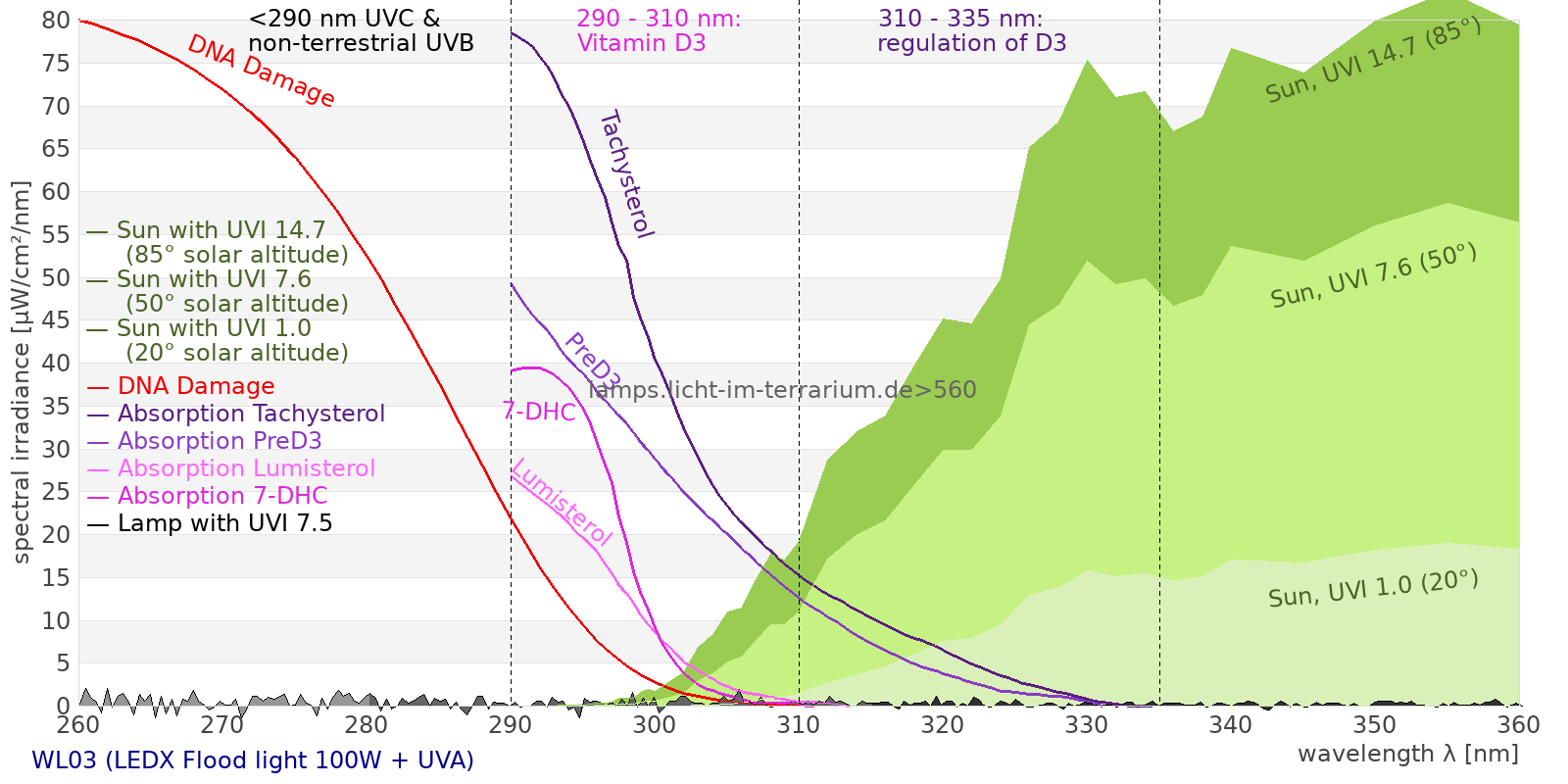

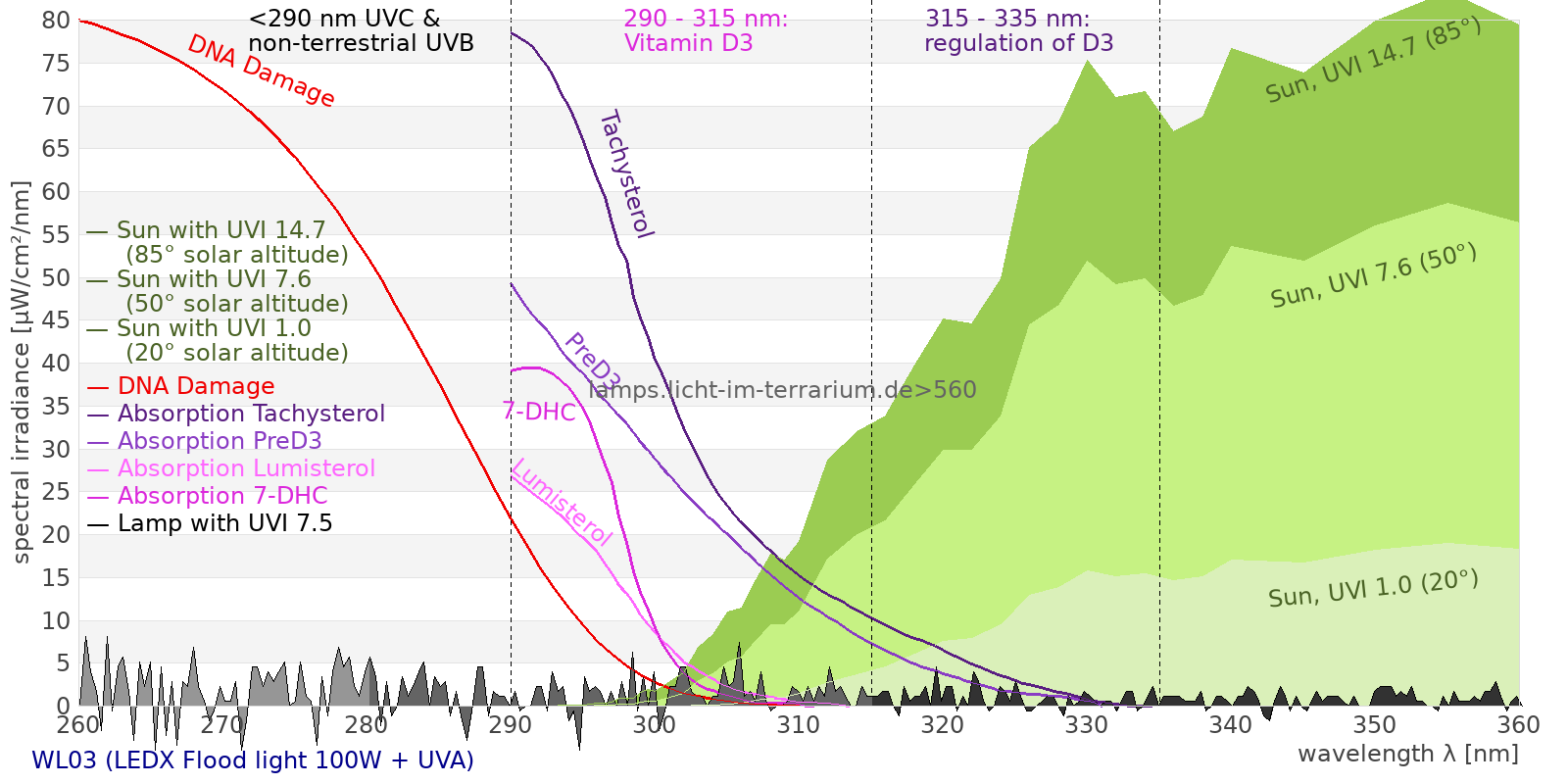

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

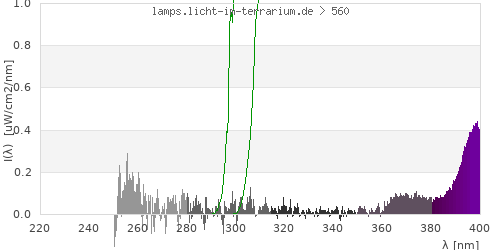

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 702 µW/cm² = 7.02 W/m²
UVC ( 0 nm - 280 nm) 1.75 µW/cm² = 0.0175 W/m²
non-terrestrial ( 0 nm - 290 nm) 2 µW/cm² = 0.02 W/m²
total2 ( 250 nm - 880 nm) 701 µW/cm² = 7.01 W/m²
UVB (EU) ( 280 nm - 315 nm) 0.881 µW/cm² = 0.00881 W/m²
UVB (US) ( 280 nm - 320 nm) 0.994 µW/cm² = 0.00994 W/m²
UVA+B ( 280 nm - 380 nm) 3.05 µW/cm² = 0.0305 W/m²
Solar UVB ( 290 nm - 315 nm) 0.633 µW/cm² = 0.00633 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 0.327 µW/cm² = 0.00327 W/m²
UVA (EU) ( 315 nm - 380 nm) 2.17 µW/cm² = 0.0217 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 0.276 µW/cm² = 0.00276 W/m²
UVA (US) ( 320 nm - 380 nm) 2.05 µW/cm² = 0.0205 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 1.84 µW/cm² = 0.0184 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 6.07 µW/cm² = 0.0607 W/m²
vis. UVA ( 350 nm - 380 nm) 1.66 µW/cm² = 0.0166 W/m²
VIS Rep3 ( 350 nm - 600 nm) 446 µW/cm² = 4.46 W/m²
VIS Rep4 ( 350 nm - 700 nm) 658 µW/cm² = 6.58 W/m²
purple ( 380 nm - 420 nm) 7.95 µW/cm² = 0.0795 W/m²
VIS ( 380 nm - 780 nm) 690 µW/cm² = 6.9 W/m²
PAR ( 400 nm - 700 nm) 652 µW/cm² = 6.52 W/m²
blue ( 420 nm - 490 nm) 162 µW/cm² = 1.62 W/m²
green ( 490 nm - 575 nm) 213 µW/cm² = 2.13 W/m²
yellow ( 575 nm - 585 nm) 24.7 µW/cm² = 0.247 W/m²
orange ( 585 nm - 650 nm) 164 µW/cm² = 1.64 W/m²
red ( 650 nm - 780 nm) 118 µW/cm² = 1.18 W/m²
IRA ( 700 nm - 1400 nm) 40.3 µW/cm² = 0.403 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.91 UV-Index
Pyrimidine dimerization of DNA 0.465 µW/cm²
Photoceratitis 0.816 µW/cm²
Photoconjunctivitis 1.61 µW/cm²
DNA Damage 1.77
Vitamin D3 0.77 µW/cm²
Photosynthesis 449 µW/cm²
Luminosity 1940 lx
Human L-Cone 292 µW/cm²
Human M-Cone 240 µW/cm²
Human S-Cone 128 µW/cm²
CIE X 264 µW/cm²
CIE Y 270 µW/cm²
CIE Z 254 µW/cm²
PAR 3040000 mol photons
Extinction preD3 17.5 e-3*m²/mol
Extinction Tachysterol 34.6 e-3*m²/mol
Exctincition PreD3 16400 m²/mol
Extinction Lumisterol 13.6 m²/mol
Exctincition Tachysterol 42400 m²/mol
Extinction 7DHC 15.6 m²/mol
L-Cone 250 µW/cm²
M-Cone 249 µW/cm²
S-Cone 190 µW/cm²
U-Cone 16.3 µW/cm²
UVR - ICNIRP 2004 1.51 Rel Biol Eff
Melatonin Supression 193 µW/cm²
Blue Light Hazard 133 µW/cm² (68.4 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 0.8 µW/cm²
Lumen Reptil 1740 "pseudo-lx"
Vitamin D3 Degradation 0.65 µW/cm²
Actinic UV 1.5 µW/cm² (7.73 mW/klm)
Exctincition Lumisterol 14100 m²/mol
Exctincition 7DHC 15900 m²/mol
Exctincition Toxisterols 9000 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 2.99 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 0.306
Leybold UVB 0.712 µW/cm²
Leybold UVA 1.65 µW/cm²
Leybold UVC 1.45 µW/cm²
DeltaOhm UVB 1.02 µW/cm²
DeltaOhm UVC 1.7 µW/cm²
Vernier UVB 0.566 µW/cm²
Vernier UVA 0.953 µW/cm²
Gröbel UVA 1.66 µW/cm²
Gröbel UVB 0.955 µW/cm²
Gröbel UVC 1.45 µW/cm²
Solarmeter 6.4 (D3) 0.955 IU/min
UVX-31 1.15 µW/cm²
IL UVB 0.000968 µW/cm²
IL UVA 1.95 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 0.274 UV-Index
Solarmeter 6.2 (UVB, post 2010) 1.03 µW/cm² (Solarmeter Ratio = 3.75)
Solarmeter AlGaN 6.5 UVI sensor 1.02 UV Index
GenUV 7.1 UV-Index 0.103 UV-Index
Solarmeter 10.0 (Global Power) 7.77 W/m²
Solarmeter 4.0 (UVA) 0.0545 mW/cm²
LS122 0.035 W/m²
ISM400 5.86 W/m²
