Reptile Lamp Database

Spectrum 559: WL03 Edit
Delete

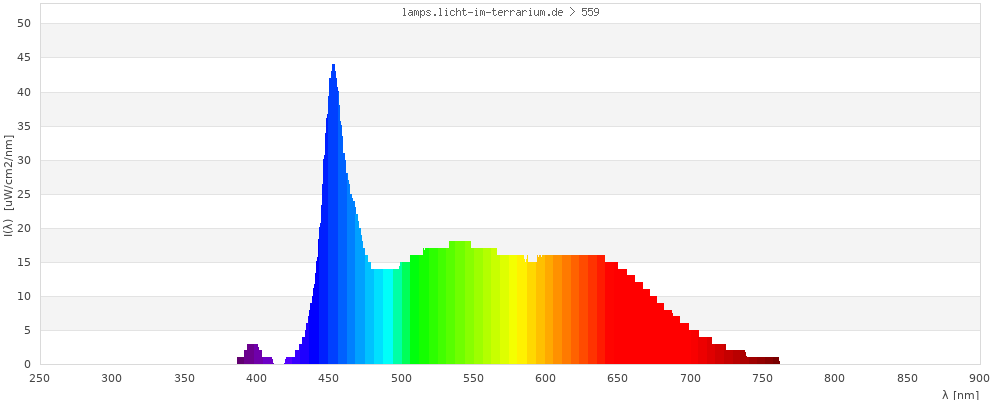

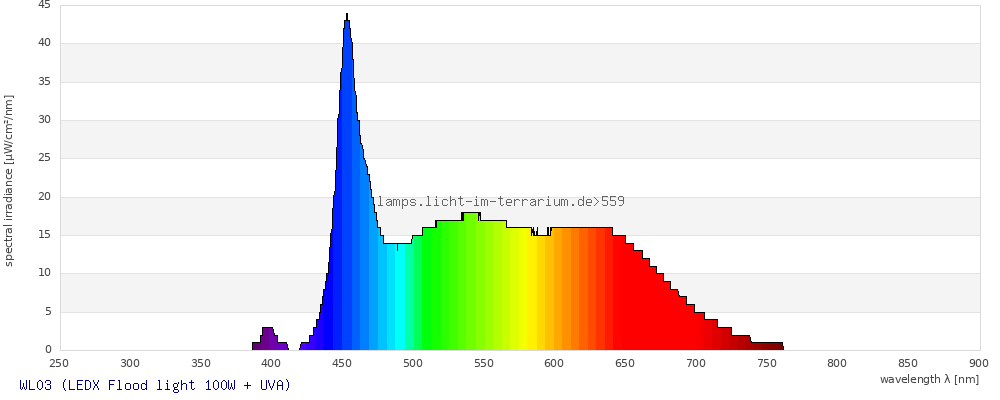

Full Spectrum

Measurement

Brand LEDX
LEDX GmbH In den Weiden 2A/1/4 2230 Gänserndorf Österreich ledx.at
Lamp Product Flood light 100W + UVA
Lamp ID WL03 (11/2020)
Spectrometer USB2000+
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 100 cm
Age 1 hours
Originator (measurement) Sarina Wunderlich
Database entry created: Sarina Wunderlich 20/Dec/2020 ; updated: Sarina Wunderlich 20/Dec/2020

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

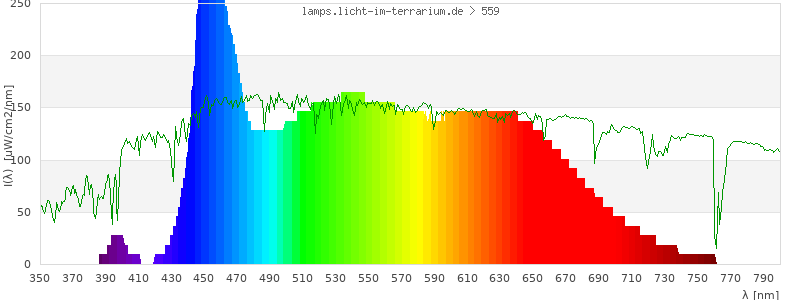

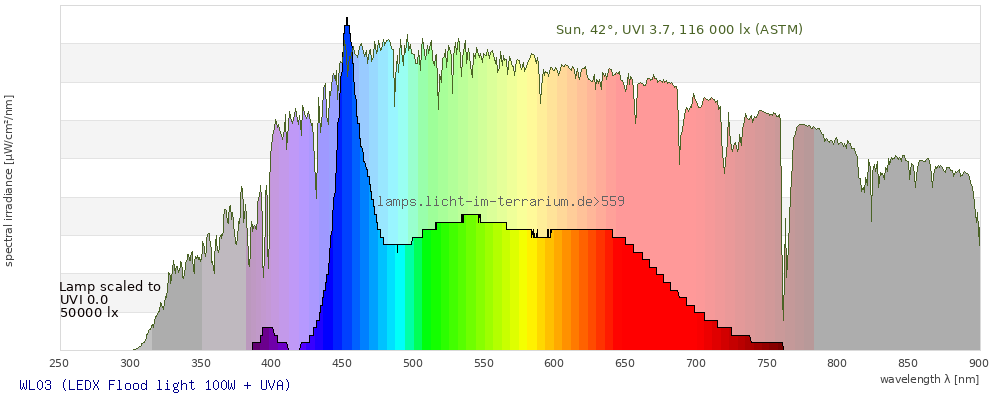

Spectrum in the visible wavelength range

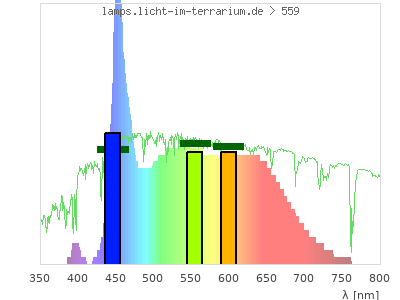

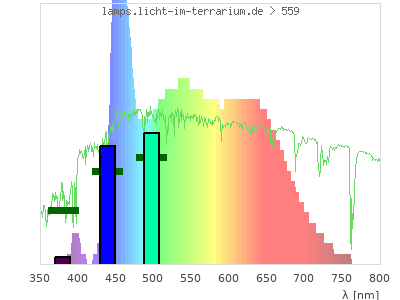

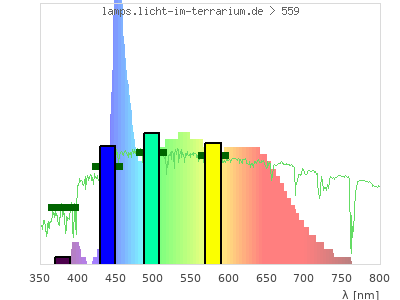

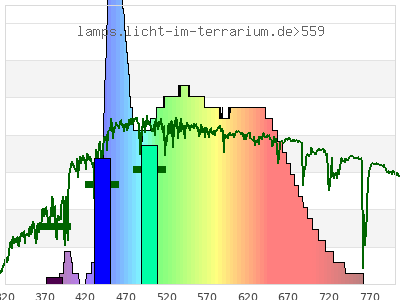

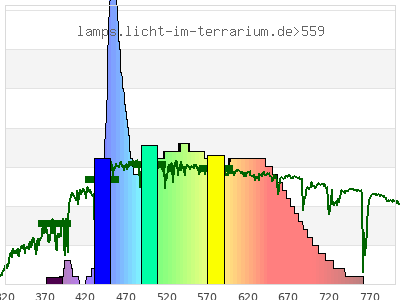

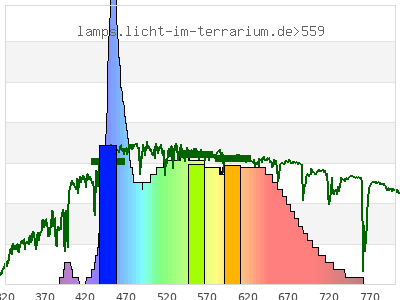

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.32 ; 0.32 ) ( 0.51 ; 0.46 ) ( 0.32 ; 0.35 ; 0.31 )
CCT 6500 Kelvin 3800 Kelvin 4500 Kelvin
distance 0.14 0.11
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

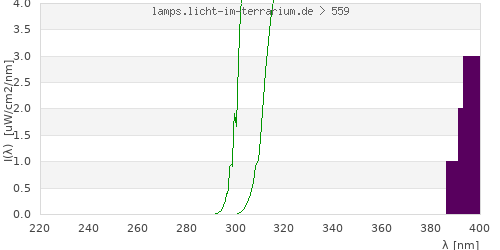

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 4540 µW/cm² = 45.4 W/m²
UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m²
non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m²
total2 ( 250 nm - 880 nm) 4540 µW/cm² = 45.4 W/m²
UVB (EU) ( 280 nm - 315 nm) 0 µW/cm² = 0 W/m²
UVB (US) ( 280 nm - 320 nm) 0 µW/cm² = 0 W/m²
UVA+B ( 280 nm - 380 nm) 0 µW/cm² = 0 W/m²
Solar UVB ( 290 nm - 315 nm) 0 µW/cm² = 0 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 0 µW/cm² = 0 W/m²
UVA (EU) ( 315 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 0 µW/cm² = 0 W/m²
UVA (US) ( 320 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 0 µW/cm² = 0 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 30 µW/cm² = 0.3 W/m²
vis. UVA ( 350 nm - 380 nm) 0 µW/cm² = 0 W/m²
VIS Rep3 ( 350 nm - 600 nm) 3120 µW/cm² = 31.2 W/m²
VIS Rep4 ( 350 nm - 700 nm) 4400 µW/cm² = 44 W/m²
purple ( 380 nm - 420 nm) 44.4 µW/cm² = 0.444 W/m²
VIS ( 380 nm - 780 nm) 4540 µW/cm² = 45.4 W/m²
PAR ( 400 nm - 700 nm) 4370 µW/cm² = 43.7 W/m²
blue ( 420 nm - 490 nm) 1290 µW/cm² = 12.9 W/m²
green ( 490 nm - 575 nm) 1400 µW/cm² = 14 W/m²
yellow ( 575 nm - 585 nm) 159 µW/cm² = 1.59 W/m²
orange ( 585 nm - 650 nm) 1020 µW/cm² = 10.2 W/m²
red ( 650 nm - 780 nm) 627 µW/cm² = 6.27 W/m²
IRA ( 700 nm - 1400 nm) 141 µW/cm² = 1.41 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.00163 UV-Index
Pyrimidine dimerization of DNA 0 µW/cm²
Photoceratitis 0 µW/cm²
Photoconjunctivitis 0 µW/cm²
DNA Damage 0
Vitamin D3 0 µW/cm²
Photosynthesis 3050 µW/cm²
Luminosity 12700 lx
Human L-Cone 1890 µW/cm²
Human M-Cone 1590 µW/cm²
Human S-Cone 1030 µW/cm²
CIE X 1750 µW/cm²
CIE Y 1760 µW/cm²
CIE Z 2040 µW/cm²
PAR 20000000 mol photons
Extinction preD3 0 e-3*m²/mol
Extinction Tachysterol 0 e-3*m²/mol
Exctincition PreD3 0 m²/mol
Extinction Lumisterol 0 m²/mol
Exctincition Tachysterol 0 m²/mol
Extinction 7DHC 0 m²/mol
L-Cone 1600 µW/cm²
M-Cone 1730 µW/cm²
S-Cone 1570 µW/cm²
U-Cone 86.5 µW/cm²
UVR - ICNIRP 2004 0.00102 Rel Biol Eff
Melatonin Supression 1480 µW/cm²
Blue Light Hazard 1060 µW/cm² (83.9 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 0 µW/cm²
Lumen Reptil 12000 "pseudo-lx"
Vitamin D3 Degradation 0 µW/cm²
Actinic UV 0.00102 µW/cm² (0.000804 mW/klm)
Exctincition Lumisterol 0 m²/mol
Exctincition 7DHC 0 m²/mol
Exctincition Toxisterols 0 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 0.0981 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 0.000174
Leybold UVB 0 µW/cm²
Leybold UVA 2.57 µW/cm²
Leybold UVC 0 µW/cm²
DeltaOhm UVB 0 µW/cm²
DeltaOhm UVC 0 µW/cm²
Vernier UVB 0 µW/cm²
Vernier UVA 0.112 µW/cm²
Gröbel UVA 0.104 µW/cm²
Gröbel UVB 0 µW/cm²
Gröbel UVC 0 µW/cm²
Solarmeter 6.4 (D3) 0.000544 IU/min
UVX-31 0 µW/cm²
IL UVB 0 µW/cm²
IL UVA 0.907 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 0 UV-Index
Solarmeter 6.2 (UVB, post 2010) 0.000312 µW/cm² (Solarmeter Ratio = NAN)
Solarmeter AlGaN 6.5 UVI sensor 0.00276 UV Index
GenUV 7.1 UV-Index 0.00454 UV-Index
Solarmeter 10.0 (Global Power) 48.7 W/m²
Solarmeter 4.0 (UVA) 0.2 mW/cm²
LS122 0 W/m²
ISM400 34.9 W/m²
