Reptile Lamp Database

Spectrum 552: WL02 Edit
Delete

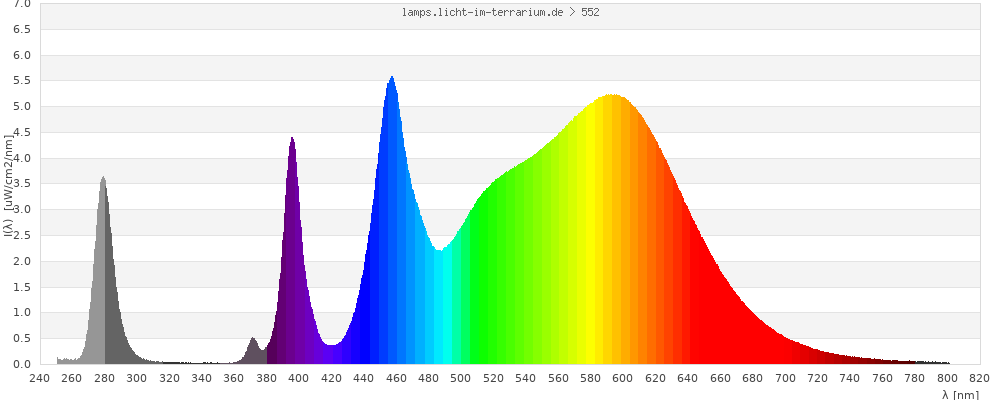

Full Spectrum

at the center (blueish spot from the primary LED)

Measurement

Brand Lightstorm
https://jetter-terraristikbedarf.de/
Lamp Product UVB LED
Lamp ID WL02 (11/2020)
Spectrometer USB2000+
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 2 hours
Originator (measurement) Sarina Wunderlich
Database entry created: Sarina Wunderlich 10/Nov/2020 ; updated: Sarina Wunderlich 13/Nov/2020

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

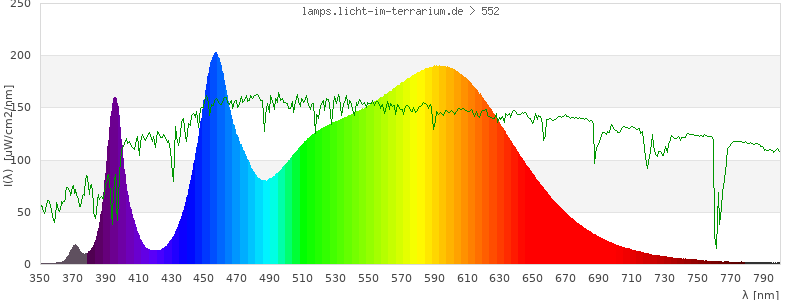

Spectrum in the visible wavelength range

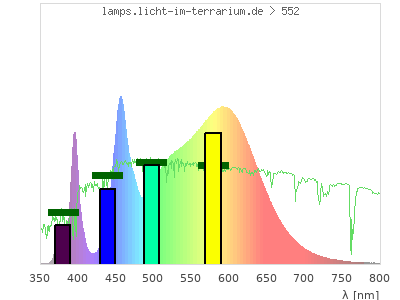

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

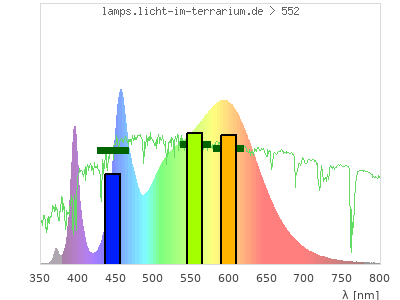

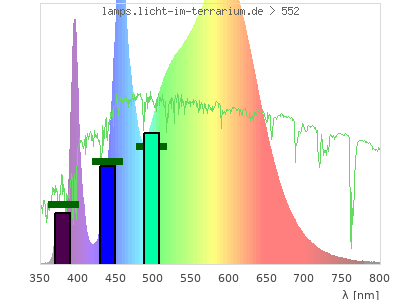

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.37 ; 0.37 ) ( 0.47 ; 0.35 ) ( 0.38 ; 0.29 ; 0.22 )
CCT 4300 Kelvin 4000 Kelvin 3900 Kelvin
distance 0.021 0.014
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

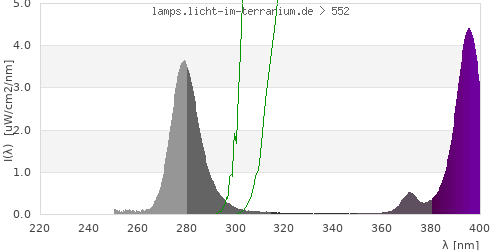

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 1040 µW/cm² = 10.4 W/m²
UVC ( 0 nm - 280 nm) 30.1 µW/cm² = 0.301 W/m²
non-terrestrial ( 0 nm - 290 nm) 50.3 µW/cm² = 0.503 W/m²
total2 ( 250 nm - 880 nm) 1040 µW/cm² = 10.4 W/m²
UVB (EU) ( 280 nm - 315 nm) 25.1 µW/cm² = 0.251 W/m²
UVB (US) ( 280 nm - 320 nm) 25.3 µW/cm² = 0.253 W/m²
UVA+B ( 280 nm - 380 nm) 31.8 µW/cm² = 0.318 W/m²
Solar UVB ( 290 nm - 315 nm) 4.89 µW/cm² = 0.0489 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 0.561 µW/cm² = 0.00561 W/m²
UVA (EU) ( 315 nm - 380 nm) 6.66 µW/cm² = 0.0666 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 0.476 µW/cm² = 0.00476 W/m²
UVA (US) ( 320 nm - 380 nm) 6.48 µW/cm² = 0.0648 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 6.1 µW/cm² = 0.061 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 54.2 µW/cm² = 0.542 W/m²
vis. UVA ( 350 nm - 380 nm) 5.77 µW/cm² = 0.0577 W/m²
VIS Rep3 ( 350 nm - 600 nm) 714 µW/cm² = 7.14 W/m²
VIS Rep4 ( 350 nm - 700 nm) 971 µW/cm² = 9.71 W/m²
purple ( 380 nm - 420 nm) 68.3 µW/cm² = 0.683 W/m²
VIS ( 380 nm - 780 nm) 981 µW/cm² = 9.81 W/m²
PAR ( 400 nm - 700 nm) 917 µW/cm² = 9.17 W/m²
blue ( 420 nm - 490 nm) 193 µW/cm² = 1.93 W/m²
green ( 490 nm - 575 nm) 318 µW/cm² = 3.18 W/m²
yellow ( 575 nm - 585 nm) 51.5 µW/cm² = 0.515 W/m²
orange ( 585 nm - 650 nm) 273 µW/cm² = 2.73 W/m²
red ( 650 nm - 780 nm) 76.9 µW/cm² = 0.769 W/m²
IRA ( 700 nm - 1400 nm) 15.9 µW/cm² = 0.159 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 21.7 UV-Index
Pyrimidine dimerization of DNA 5.24 µW/cm²
Photoceratitis 25.9 µW/cm²
Photoconjunctivitis 23.1 µW/cm²
DNA Damage 33.8
Vitamin D3 28.3 µW/cm²
Photosynthesis 598 µW/cm²
Luminosity 3190 lx
Human L-Cone 485 µW/cm²
Human M-Cone 381 µW/cm²
Human S-Cone 156 µW/cm²
CIE X 440 µW/cm²
CIE Y 445 µW/cm²
CIE Z 307 µW/cm²
PAR 4310000 mol photons
Extinction preD3 354 e-3*m²/mol
Extinction Tachysterol 1090 e-3*m²/mol
Exctincition PreD3 316000 m²/mol
Extinction Lumisterol 379 m²/mol
Exctincition Tachysterol 1380000 m²/mol
Extinction 7DHC 488 m²/mol
L-Cone 423 µW/cm²
M-Cone 321 µW/cm²
S-Cone 242 µW/cm²
U-Cone 125 µW/cm²
UVR - ICNIRP 2004 46.1 Rel Biol Eff
Melatonin Supression 239 µW/cm²
Blue Light Hazard 166 µW/cm² (52.1 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 27.4 µW/cm²
Lumen Reptil 2730 "pseudo-lx"
Vitamin D3 Degradation 34.9 µW/cm²
Actinic UV 45.8 µW/cm² (143 mW/klm)
Exctincition Lumisterol 430000 m²/mol
Exctincition 7DHC 530000 m²/mol
Exctincition Toxisterols 36700 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 80.1 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 15.7
Leybold UVB 7.62 µW/cm²
Leybold UVA 8.51 µW/cm²
Leybold UVC 10.6 µW/cm²
DeltaOhm UVB 16.6 µW/cm²
DeltaOhm UVC 23.6 µW/cm²
Vernier UVB 14.7 µW/cm²
Vernier UVA 2.54 µW/cm²
Gröbel UVA 5.21 µW/cm²
Gröbel UVB 35.3 µW/cm²
Gröbel UVC 17 µW/cm²
Solarmeter 6.4 (D3) 49.2 IU/min
UVX-31 17.8 µW/cm²
IL UVB 0.0328 µW/cm²
IL UVA 7.84 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 7.57 UV-Index
Solarmeter 6.2 (UVB, post 2010) 23.5 µW/cm² (Solarmeter Ratio = 3.1)
Solarmeter AlGaN 6.5 UVI sensor 36.5 UV Index
GenUV 7.1 UV-Index 2.38 UV-Index
Solarmeter 10.0 (Global Power) 10.6 W/m²
Solarmeter 4.0 (UVA) 0.413 mW/cm²
LS122 6.08E-7 W/m²
ISM400 7.36 W/m²
