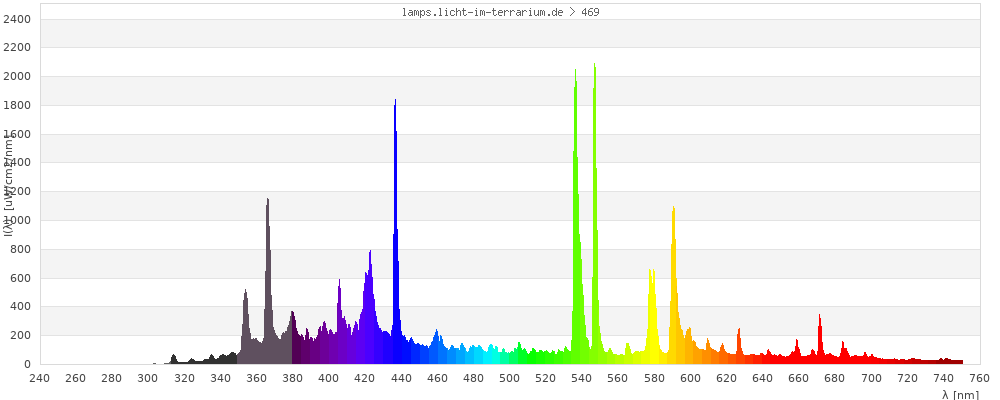

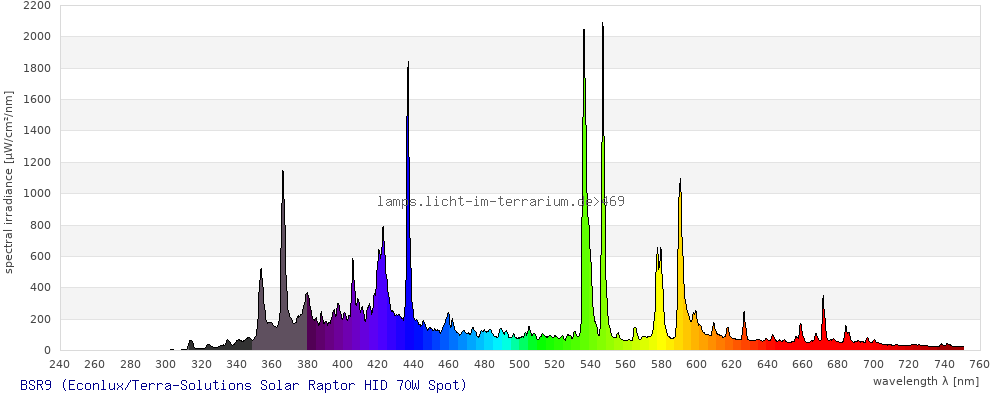

Full Spectrum

Measurement

Brand Econlux/Terra-Solutions
Econlux GmbH www.terra-solutions.de www.econlux.de
Lamp Product Solar Raptor HID 70W Spot
PAR30-Spot (97mmx123mm) >150 µW/cm² @ 30cm 30°
Lamp ID BSR9 (04/2011)
Solar Raptor HID-Lamp 70watt Spot-Beam
Spectrometer USB2000+ (2)
Ballast 70W EVG
Reflector
Distance 30 cm
Age 105 hours
Originator (measurement) Frances Baines
Database entry created: Frances Baines 12/Feb/2012 ; updated: Frances Baines 12/Feb/2012

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 250.23 - 750.24 nm. Results are shown anyway but should be ignored by anyone except experts.

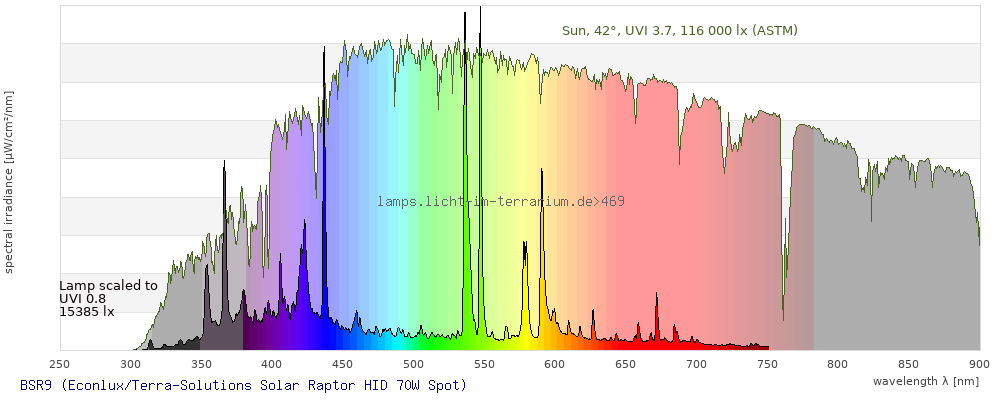

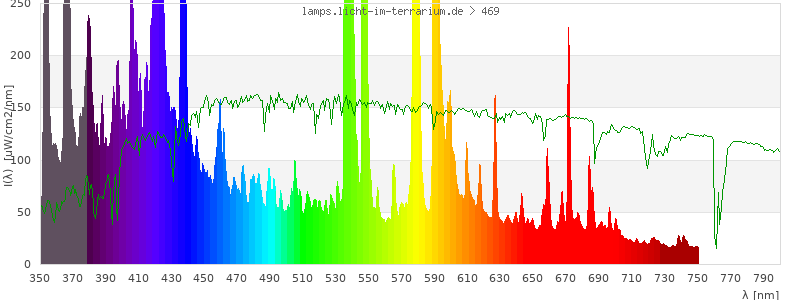

Spectrum in the visible wavelength range

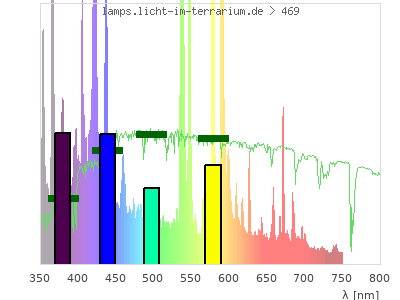

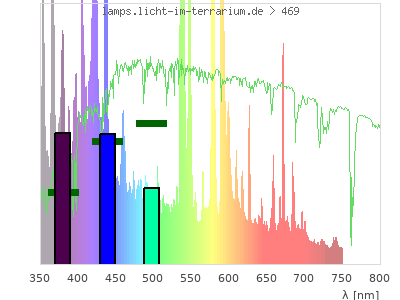

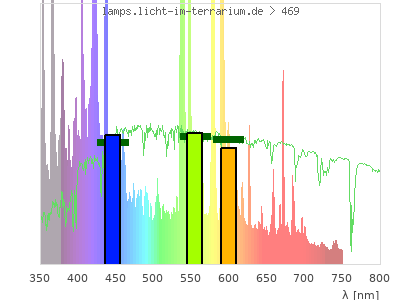

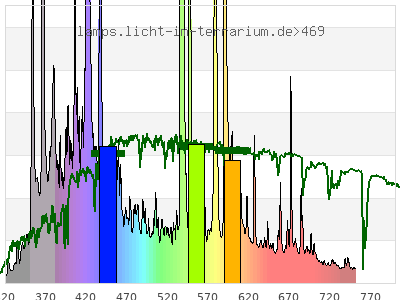

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.31 ; 0.35 ) ( 0.23 ; 0.39 ) ( 0.23 ; 0.17 ; 0.3 )
CCT 6600 Kelvin 13000 Kelvin 7900 Kelvin
distance 0.061 0.079
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

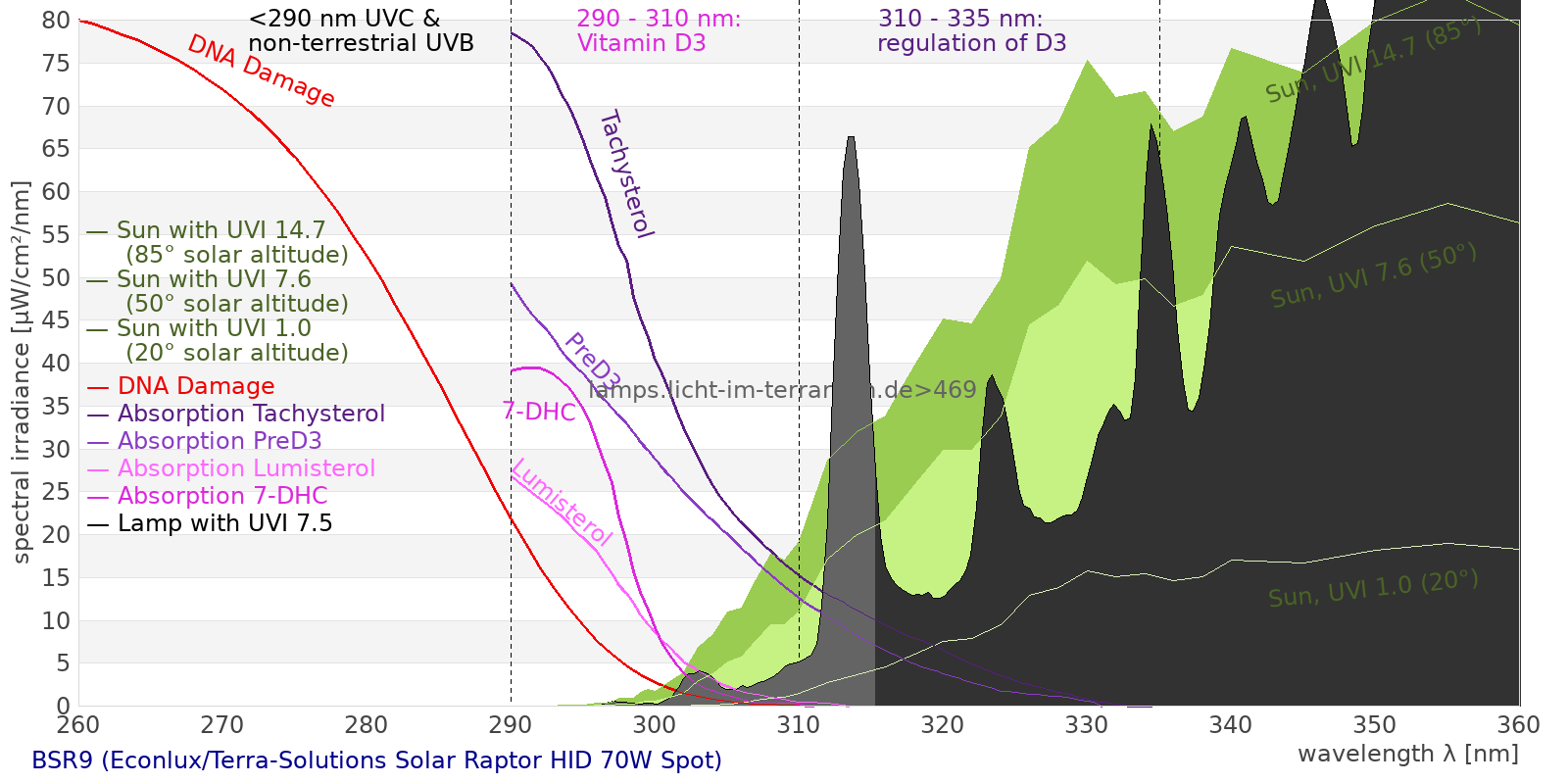

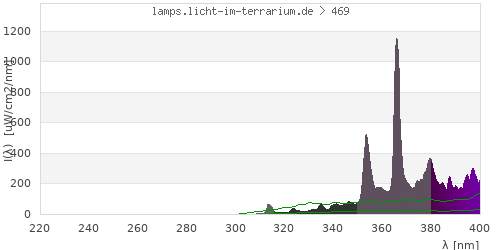

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 74800 µW/cm² = 748 W/m²
UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m²
non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m²
total2 ( 250 nm - 880 nm) 74800 µW/cm² = 748 W/m²
UVB (EU) ( 280 nm - 315 nm) 216 µW/cm² = 2.16 W/m²
UVB (US) ( 280 nm - 320 nm) 285 µW/cm² = 2.85 W/m²
UVA+B ( 280 nm - 380 nm) 11000 µW/cm² = 110 W/m²
Solar UVB ( 290 nm - 315 nm) 216 µW/cm² = 2.16 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 528 µW/cm² = 5.28 W/m²
UVA (EU) ( 315 nm - 380 nm) 10800 µW/cm² = 108 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 706 µW/cm² = 7.06 W/m²
UVA (US) ( 320 nm - 380 nm) 10700 µW/cm² = 107 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 10200 µW/cm² = 102 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 14300 µW/cm² = 143 W/m²
vis. UVA ( 350 nm - 380 nm) 9300 µW/cm² = 93 W/m²
VIS Rep3 ( 350 nm - 600 nm) 62800 µW/cm² = 628 W/m²
VIS Rep4 ( 350 nm - 700 nm) 71400 µW/cm² = 714 W/m²
purple ( 380 nm - 420 nm) 10700 µW/cm² = 107 W/m²
VIS ( 380 nm - 780 nm) 63800 µW/cm² = 638 W/m²
PAR ( 400 nm - 700 nm) 57800 µW/cm² = 578 W/m²
blue ( 420 nm - 490 nm) 16000 µW/cm² = 160 W/m²
green ( 490 nm - 575 nm) 18300 µW/cm² = 183 W/m²
yellow ( 575 nm - 585 nm) 3250 µW/cm² = 32.5 W/m²
orange ( 585 nm - 650 nm) 9950 µW/cm² = 99.5 W/m²
red ( 650 nm - 780 nm) 5650 µW/cm² = 56.5 W/m²
IRA ( 700 nm - 1400 nm) 1680 µW/cm² = 16.8 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 8.8 UV-Index
Pyrimidine dimerization of DNA 95.8 µW/cm²
Photoceratitis 12.6 µW/cm²
Photoconjunctivitis 0.0942 µW/cm²
DNA Damage 0.377
Vitamin D3 30 µW/cm²
Photosynthesis 39200 µW/cm²
Luminosity 179000 lx
Human L-Cone 26300 µW/cm²
Human M-Cone 23100 µW/cm²
Human S-Cone 14400 µW/cm²
CIE X 22200 µW/cm²
CIE Y 25100 µW/cm²
CIE Z 24700 µW/cm²
PAR 269000000 mol photons
Extinction preD3 277 e-3*m²/mol
Extinction Tachysterol 995 e-3*m²/mol
Exctincition PreD3 149000 m²/mol
Extinction Lumisterol 17.4 m²/mol
Exctincition Tachysterol 1730000 m²/mol
Extinction 7DHC 10.9 m²/mol
L-Cone 21500 µW/cm²
M-Cone 16400 µW/cm²
S-Cone 28100 µW/cm²
U-Cone 28200 µW/cm²
UVR - ICNIRP 2004 5.51 Rel Biol Eff
Melatonin Supression 18600 µW/cm²
Blue Light Hazard 18000 µW/cm² (101 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 31.3 µW/cm²
Lumen Reptil 204000 "pseudo-lx"
Vitamin D3 Degradation 53.7 µW/cm²
Actinic UV 5.45 µW/cm² (0.305 mW/klm)
Exctincition Lumisterol 35000 m²/mol
Exctincition 7DHC 17600 m²/mol
Exctincition Toxisterols 37700 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 396 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 9.35
Leybold UVB 253 µW/cm²
Leybold UVA 8080 µW/cm²
Leybold UVC 0.00219 µW/cm²
DeltaOhm UVB 740 µW/cm²
DeltaOhm UVC 72 µW/cm²
Vernier UVB 66.7 µW/cm²
Vernier UVA 4500 µW/cm²
Gröbel UVA 8850 µW/cm²
Gröbel UVB 121 µW/cm²
Gröbel UVC -0.105 µW/cm²
Solarmeter 6.4 (D3) 29.2 IU/min
UVX-31 1220 µW/cm²
IL UVB 0.189 µW/cm²
IL UVA 10000 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 8.09 UV-Index
Solarmeter 6.2 (UVB, post 2010) 242 µW/cm² (Solarmeter Ratio = 29.9)
Solarmeter AlGaN 6.5 UVI sensor 148 UV Index
GenUV 7.1 UV-Index 10.7 UV-Index
Solarmeter 10.0 (Global Power) 663 W/m²
Solarmeter 4.0 (UVA) 159 mW/cm²
LS122 0 W/m²
ISM400 405 W/m²
