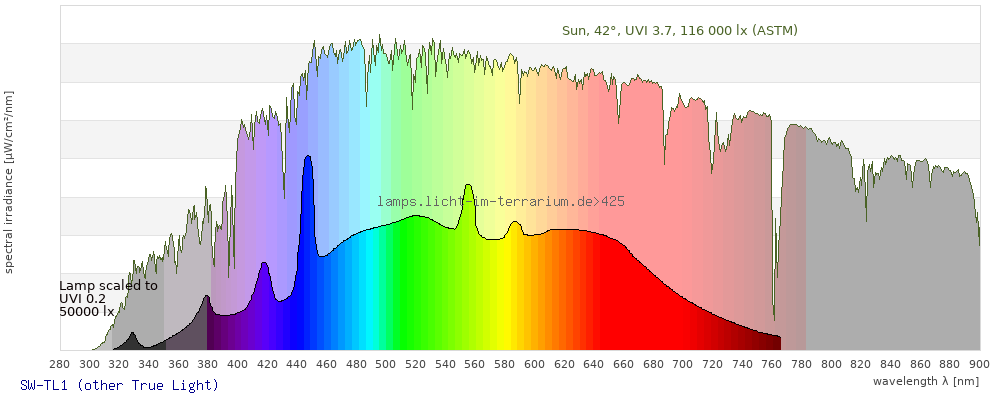

Spectrum taken from Leaflet from Website
http://www.true-light.eu/PDF/Broschuere_True-Light_Mai09.pdf

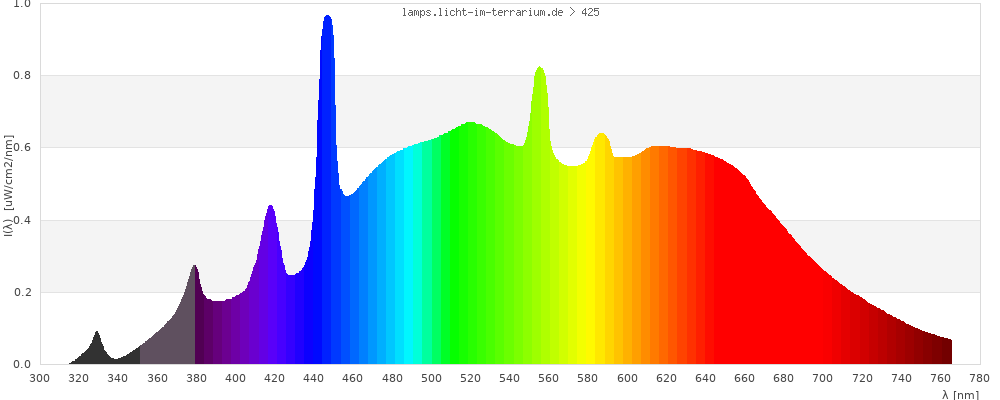

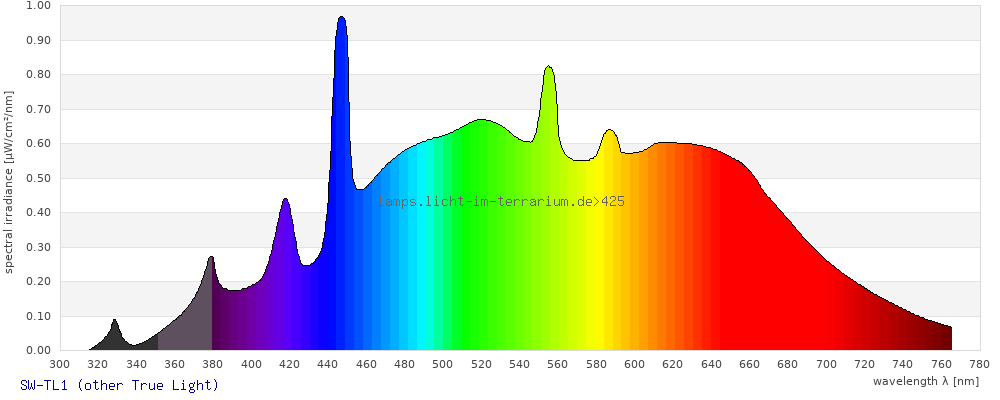

Spectrum 425: SW-TL1 Edit
DeleteMeasurement
| Brand |
other other |
|---|---|
| Lamp Product |
True Light |
| Lamp ID |
SW-TL1 (12/2011) |
| Spectrometer | - |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 0 cm |
| Age | 0 hours |
| Originator (measurement) | Manufacturer |
Database entry created:
Sarina Wunderlich
29/Dec/2011 ; updated:
Sarina Wunderlich
29/Dec/2011

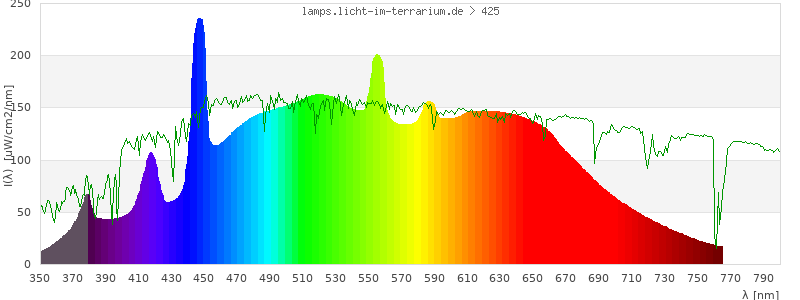

Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
WARNING: The measurement range (350 - 800 nm) is not sufficient for this evaluation! Data is only available in the range 300 - 765 nm. Results are shown anyway but should be ignored by anyone except experts.

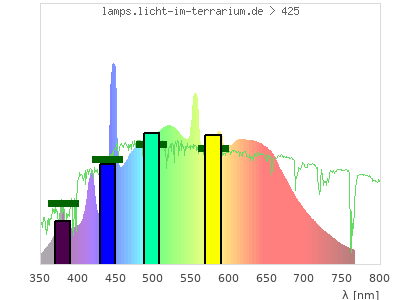

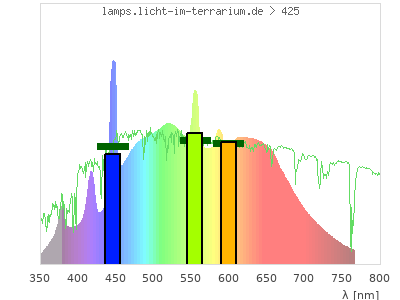

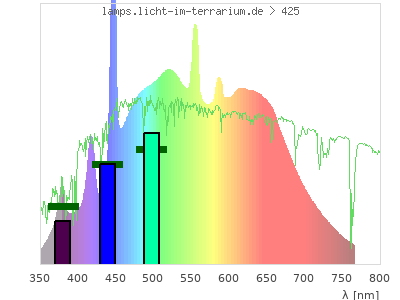

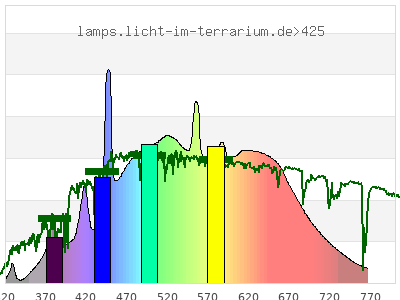

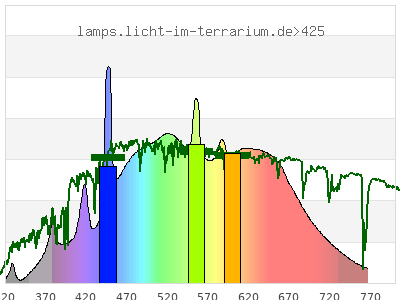

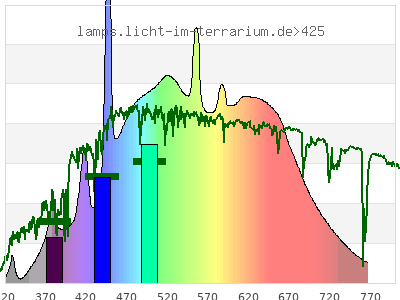

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.34 ; 0.36 ) | ( 0.48 ; 0.36 ) | ( 0.32 ; 0.32 ; 0.25 ) |
| CCT | 5300 Kelvin | 3900 Kelvin | 4500 Kelvin |
| distance | 0.036 | 0.045 | |
| colour space | 3-D-graph not implemented yet |

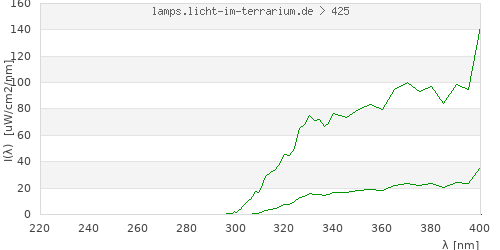

Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 180 µW/cm² = 1.8 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 180 µW/cm² = 1.8 W/m² UVB (EU) ( 280 nm - 315 nm) 0.00188 µW/cm² = 1.88E-5 W/m² UVB (US) ( 280 nm - 320 nm) 0.0578 µW/cm² = 0.000578 W/m² UVA+B ( 280 nm - 380 nm) 5.33 µW/cm² = 0.0533 W/m² Solar UVB ( 290 nm - 315 nm) 0.00188 µW/cm² = 1.88E-5 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0.82 µW/cm² = 0.0082 W/m² UVA (EU) ( 315 nm - 380 nm) 5.32 µW/cm² = 0.0532 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0.85 µW/cm² = 0.0085 W/m² UVA (US) ( 320 nm - 380 nm) 5.27 µW/cm² = 0.0527 W/m² UVA1 (variant) ( 335 nm - 380 nm) 4.5 µW/cm² = 0.045 W/m² UVA1 (medical) ( 340 nm - 400 nm) 8.16 µW/cm² = 0.0816 W/m² vis. UVA ( 350 nm - 380 nm) 4.12 µW/cm² = 0.0412 W/m² VIS Rep3 ( 350 nm - 600 nm) 119 µW/cm² = 1.19 W/m² VIS Rep4 ( 350 nm - 700 nm) 169 µW/cm² = 1.69 W/m² purple ( 380 nm - 420 nm) 9.92 µW/cm² = 0.0992 W/m² VIS ( 380 nm - 780 nm) 175 µW/cm² = 1.75 W/m² PAR ( 400 nm - 700 nm) 161 µW/cm² = 1.61 W/m² blue ( 420 nm - 490 nm) 35.9 µW/cm² = 0.359 W/m² green ( 490 nm - 575 nm) 54.5 µW/cm² = 0.545 W/m² yellow ( 575 nm - 585 nm) 5.75 µW/cm² = 0.0575 W/m² orange ( 585 nm - 650 nm) 38.5 µW/cm² = 0.385 W/m² red ( 650 nm - 780 nm) 30 µW/cm² = 0.3 W/m² IRA ( 700 nm - 1400 nm) 9.5 µW/cm² = 0.095 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.00199 UV-Index Pyrimidine dimerization of DNA 0.0231 µW/cm² Photoceratitis 5.12E-5 µW/cm² Photoconjunctivitis 0 µW/cm² DNA Damage 1.16E-5 Vitamin D3 0.000493 µW/cm² Photosynthesis 111 µW/cm² Luminosity 476 lx Human L-Cone 71 µW/cm² Human M-Cone 59.2 µW/cm² Human S-Cone 29.7 µW/cm² CIE X 62 µW/cm² CIE Y 66.1 µW/cm² CIE Z 55.7 µW/cm² PAR 754000 mol photons Extinction preD3 0.101 e-3*m²/mol Extinction Tachysterol 0.445 e-3*m²/mol Exctincition PreD3 68.4 m²/mol Extinction Lumisterol 0 m²/mol Exctincition Tachysterol 932 m²/mol Extinction 7DHC 0 m²/mol L-Cone 60.5 µW/cm² M-Cone 61.4 µW/cm² S-Cone 46.9 µW/cm² U-Cone 20.3 µW/cm² UVR - ICNIRP 2004 0.00111 Rel Biol Eff Melatonin Supression 46 µW/cm² Blue Light Hazard 33.2 µW/cm² (69.7 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 5.83E-5 µW/cm² Lumen Reptil 451 "pseudo-lx" Vitamin D3 Degradation 0.0238 µW/cm² Actinic UV 0.00111 µW/cm² (0.0234 mW/klm) Exctincition Lumisterol 3.32 m²/mol Exctincition 7DHC 0.503 m²/mol Exctincition Toxisterols 22.2 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 0.224 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.00134 Leybold UVB 0.109 µW/cm² Leybold UVA 3.61 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 0.69 µW/cm² DeltaOhm UVC 0.0788 µW/cm² Vernier UVB 0.000831 µW/cm² Vernier UVA 2.18 µW/cm² Gröbel UVA 3.94 µW/cm² Gröbel UVB 0.0225 µW/cm² Gröbel UVC -1.67E-5 µW/cm² Solarmeter 6.4 (D3) 0.00419 IU/min UVX-31 0.791 µW/cm² IL UVB 0.000115 µW/cm² IL UVA 4.67 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.00105 UV-Index Solarmeter 6.2 (UVB, post 2010) 0.2 µW/cm² (Solarmeter Ratio = 191) Solarmeter AlGaN 6.5 UVI sensor 0.0125 UV Index GenUV 7.1 UV-Index 0.00279 UV-Index Solarmeter 10.0 (Global Power) 1.92 W/m² Solarmeter 4.0 (UVA) 0.0893 mW/cm² LS122 0 W/m² ISM400 1.41 W/m²
