Reptile Lamp Database

Spectrum 400: BA38 Edit
Delete

Full Spectrum

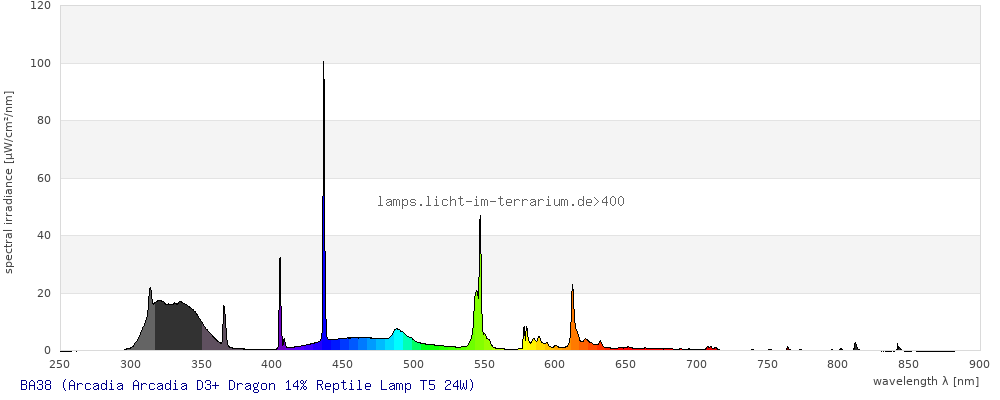

Measurement

Brand Arcadia
UK company https://www.arcadiareptile.com/
Lamp Product D3+ Dragon 14% Reptile Lamp T5 24W
Lamp ID BA38 (04/2011)
Spectrometer USB2000+ (2)
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 1 hours
Originator (measurement) Frances Baines
Database entry created: Frances Baines 1/May/2011 ; updated: Frances Baines 1/May/2011

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

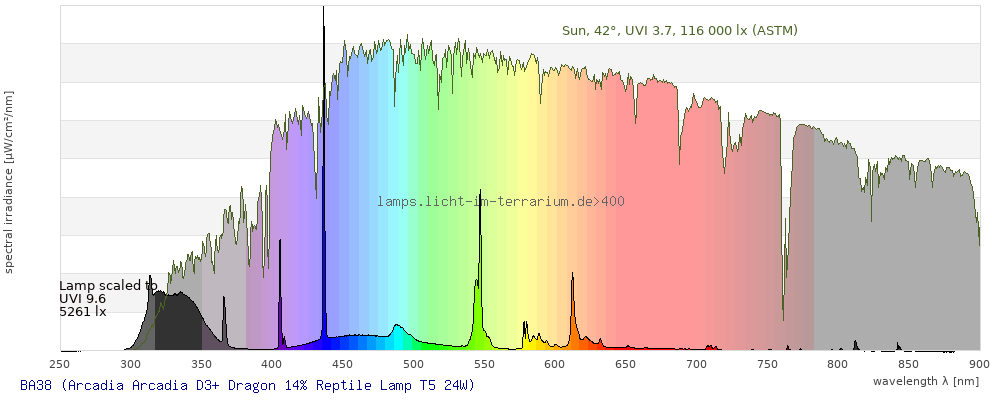

Spectrum in the visible wavelength range

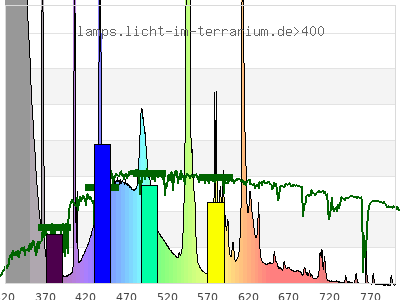

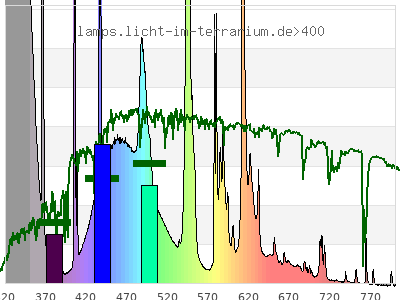

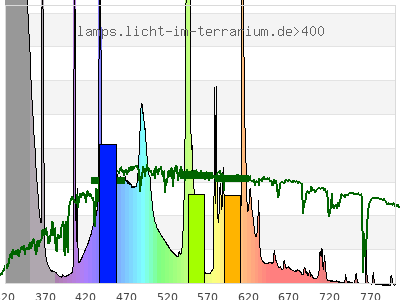

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.28 ; 0.28 ) ( 0.34 ; 0.49 ) ( 0.22 ; 0.27 ; 0.38 )
CCT 11000 Kelvin 6100 Kelvin 6600 Kelvin
distance 0.14 0.11
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

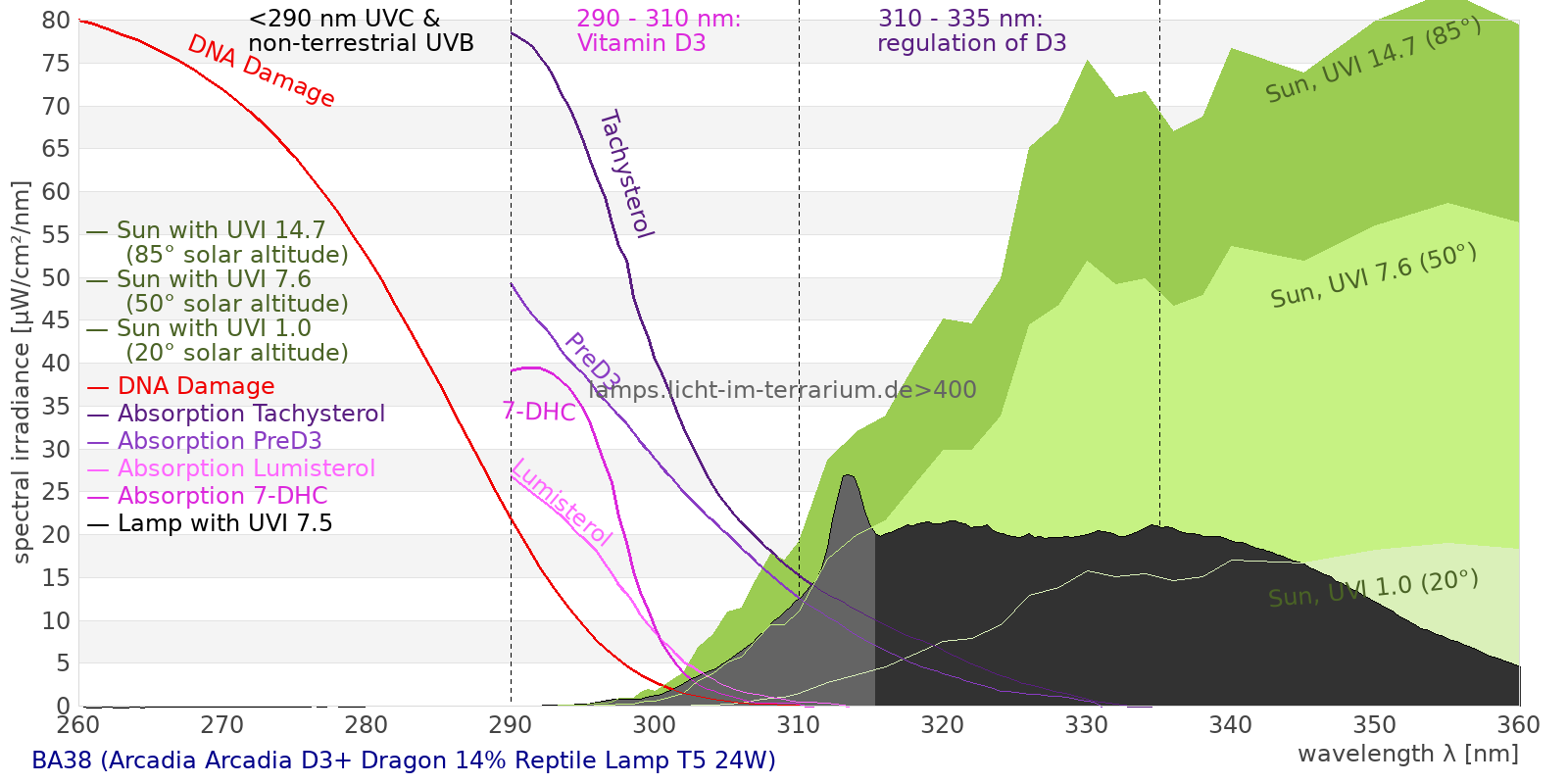

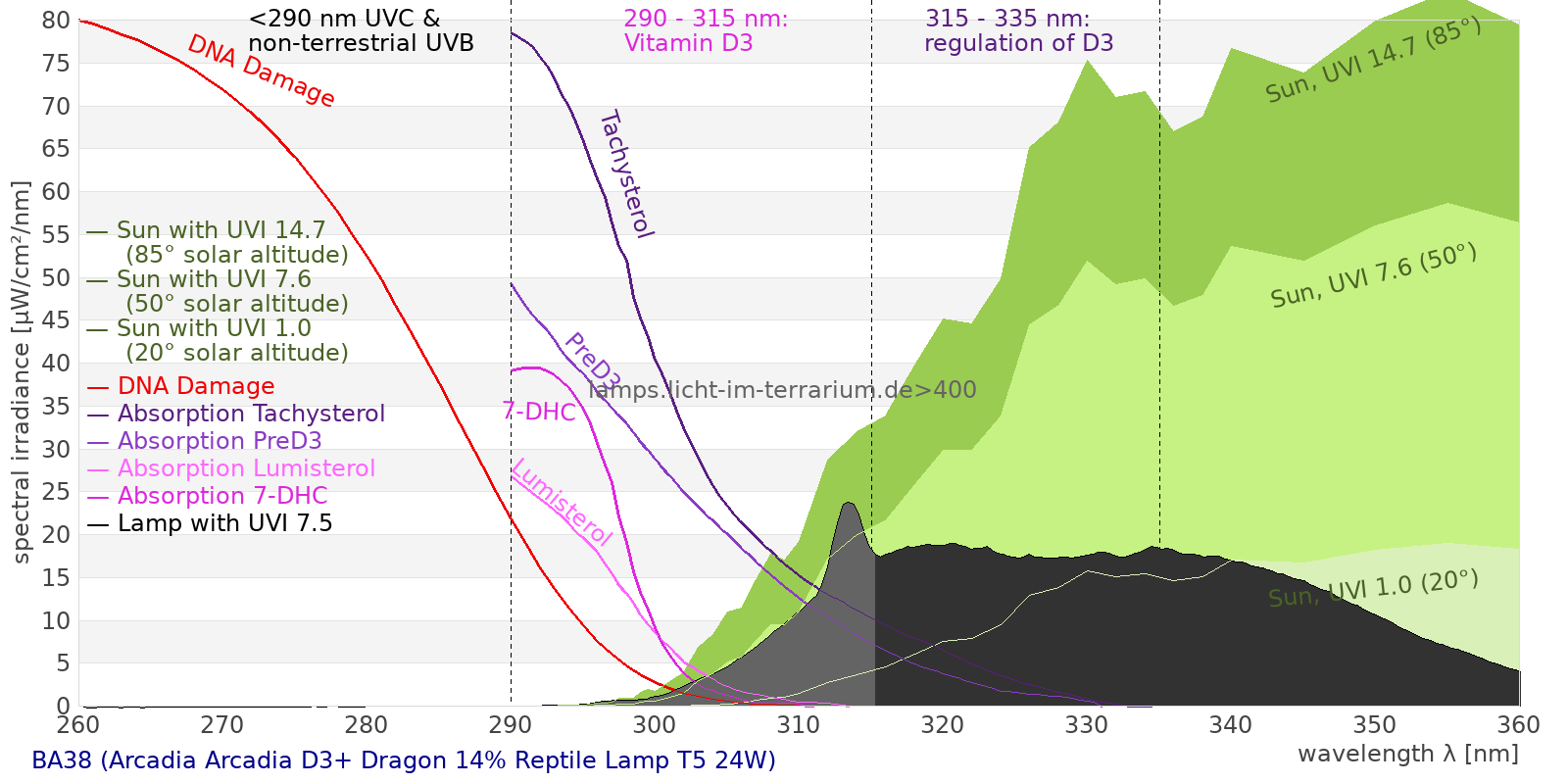

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 1880 µW/cm² = 18.8 W/m²
UVC ( 0 nm - 280 nm) -3.9 µW/cm² = -0.039 W/m²
non-terrestrial ( 0 nm - 290 nm) -4.01 µW/cm² = -0.0401 W/m²
total2 ( 250 nm - 880 nm) 1890 µW/cm² = 18.9 W/m²
UVB (EU) ( 280 nm - 315 nm) 138 µW/cm² = 1.38 W/m²
UVB (US) ( 280 nm - 320 nm) 220 µW/cm² = 2.2 W/m²
UVA+B ( 280 nm - 380 nm) 801 µW/cm² = 8.01 W/m²
Solar UVB ( 290 nm - 315 nm) 139 µW/cm² = 1.39 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 329 µW/cm² = 3.29 W/m²
UVA (EU) ( 315 nm - 380 nm) 662 µW/cm² = 6.62 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 332 µW/cm² = 3.32 W/m²
UVA (US) ( 320 nm - 380 nm) 581 µW/cm² = 5.81 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 333 µW/cm² = 3.33 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 257 µW/cm² = 2.57 W/m²
vis. UVA ( 350 nm - 380 nm) 121 µW/cm² = 1.21 W/m²
VIS Rep3 ( 350 nm - 600 nm) 1020 µW/cm² = 10.2 W/m²
VIS Rep4 ( 350 nm - 700 nm) 1200 µW/cm² = 12 W/m²
purple ( 380 nm - 420 nm) 77.3 µW/cm² = 0.773 W/m²
VIS ( 380 nm - 780 nm) 1090 µW/cm² = 10.9 W/m²
PAR ( 400 nm - 700 nm) 1070 µW/cm² = 10.7 W/m²
blue ( 420 nm - 490 nm) 416 µW/cm² = 4.16 W/m²
green ( 490 nm - 575 nm) 324 µW/cm² = 3.24 W/m²
yellow ( 575 nm - 585 nm) 40.7 µW/cm² = 0.407 W/m²
orange ( 585 nm - 650 nm) 187 µW/cm² = 1.87 W/m²
red ( 650 nm - 780 nm) 47.1 µW/cm² = 0.471 W/m²
IRA ( 700 nm - 1400 nm) 12.3 µW/cm² = 0.123 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 5.36 UV-Index
Pyrimidine dimerization of DNA 82.5 µW/cm²
Photoceratitis 10.2 µW/cm²
Photoconjunctivitis -3.34 µW/cm²
DNA Damage -3.18
Vitamin D3 31.3 µW/cm²
Photosynthesis 765 µW/cm²
Luminosity 2940 lx
Human L-Cone 430 µW/cm²
Human M-Cone 383 µW/cm²
Human S-Cone 340 µW/cm²
CIE X 401 µW/cm²
CIE Y 405 µW/cm²
CIE Z 632 µW/cm²
PAR 4980000 mol photons
Extinction preD3 195 e-3*m²/mol
Extinction Tachysterol 749 e-3*m²/mol
Exctincition PreD3 72700 m²/mol
Extinction Lumisterol -0.855 m²/mol
Exctincition Tachysterol 1070000 m²/mol
Extinction 7DHC -10.3 m²/mol
L-Cone 346 µW/cm²
M-Cone 417 µW/cm²
S-Cone 592 µW/cm²
U-Cone 208 µW/cm²
UVR - ICNIRP 2004 2.09 Rel Biol Eff
Melatonin Supression 452 µW/cm²
Blue Light Hazard 383 µW/cm² (130 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 34.7 µW/cm²
Lumen Reptil 3480 "pseudo-lx"
Vitamin D3 Degradation 40.9 µW/cm²
Actinic UV 2.07 µW/cm² (7.05 mW/klm)
Exctincition Lumisterol 13200 m²/mol
Exctincition 7DHC -3050 m²/mol
Exctincition Toxisterols -1020 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 256 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 8.88
Leybold UVB 188 µW/cm²
Leybold UVA 402 µW/cm²
Leybold UVC -3.24 µW/cm²
DeltaOhm UVB 432 µW/cm²
DeltaOhm UVC 49.8 µW/cm²
Vernier UVB 64.3 µW/cm²
Vernier UVA 519 µW/cm²
Gröbel UVA 554 µW/cm²
Gröbel UVB 91.4 µW/cm²
Gröbel UVC -3.33 µW/cm²
Solarmeter 6.4 (D3) 27.7 IU/min
UVX-31 462 µW/cm²
IL UVB 0.106 µW/cm²
IL UVA 449 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 7.46 UV-Index
Solarmeter 6.2 (UVB, post 2010) 174 µW/cm² (Solarmeter Ratio = 23.3)
Solarmeter AlGaN 6.5 UVI sensor 114 UV Index
GenUV 7.1 UV-Index 6.32 UV-Index
Solarmeter 10.0 (Global Power) 13.5 W/m²
Solarmeter 4.0 (UVA) 5.72 mW/cm²
LS122 -0.0786 W/m²
ISM400 6.69 W/m²
