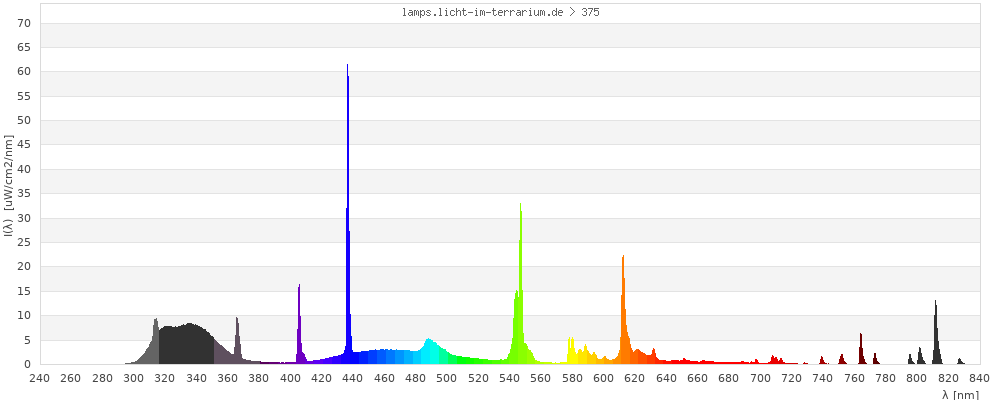

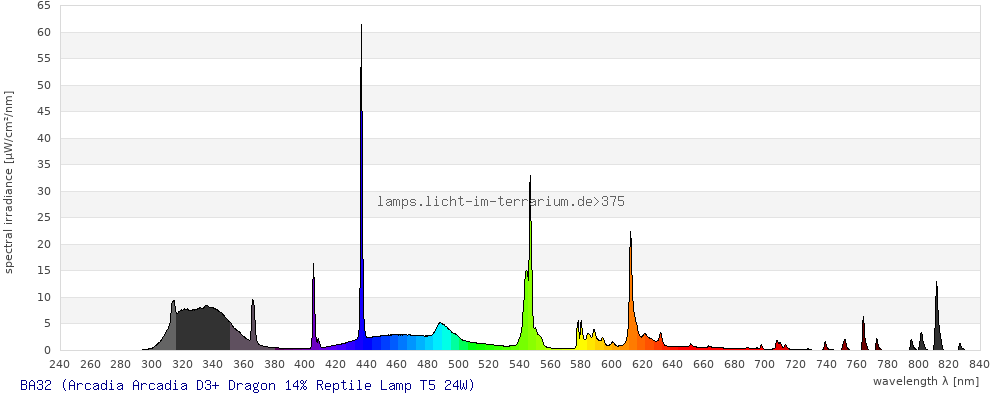

Full Spectrum

Spectrometer Error Testing

Test 1: Spectrometer settings unaltered, multiple averaged scans

16:12

Measurement

Brand Arcadia
UK company https://www.arcadiareptile.com/
Lamp Product D3+ Dragon 14% Reptile Lamp T5 24W
Lamp ID BA32 (02/2011)
Spectrometer USB2000+ (2)
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 2,750 hours
Originator (measurement) Frances Baines
Database entry created: Sarina Wunderlich 5/Feb/2011 ; updated: Sarina Wunderlich 27/Feb/2011

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

Spectrum in the visible wavelength range

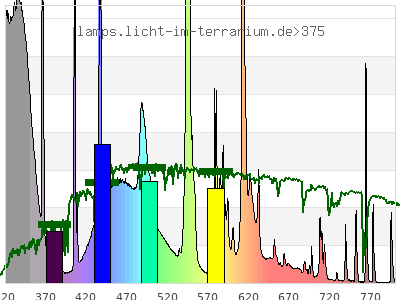

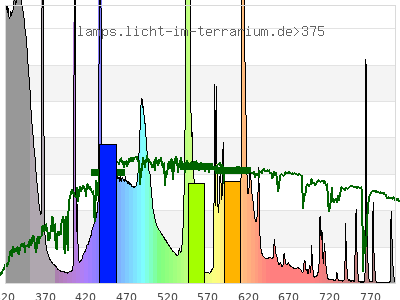

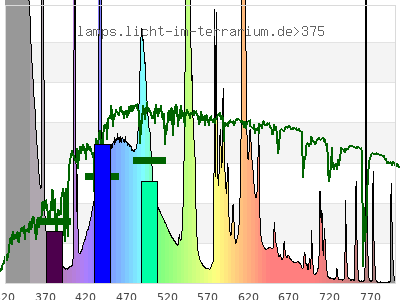

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.3 ; 0.29 ) ( 0.35 ; 0.47 ) ( 0.24 ; 0.26 ; 0.36 )
CCT 7900 Kelvin 6000 Kelvin 6000 Kelvin
distance 0.13 0.099
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

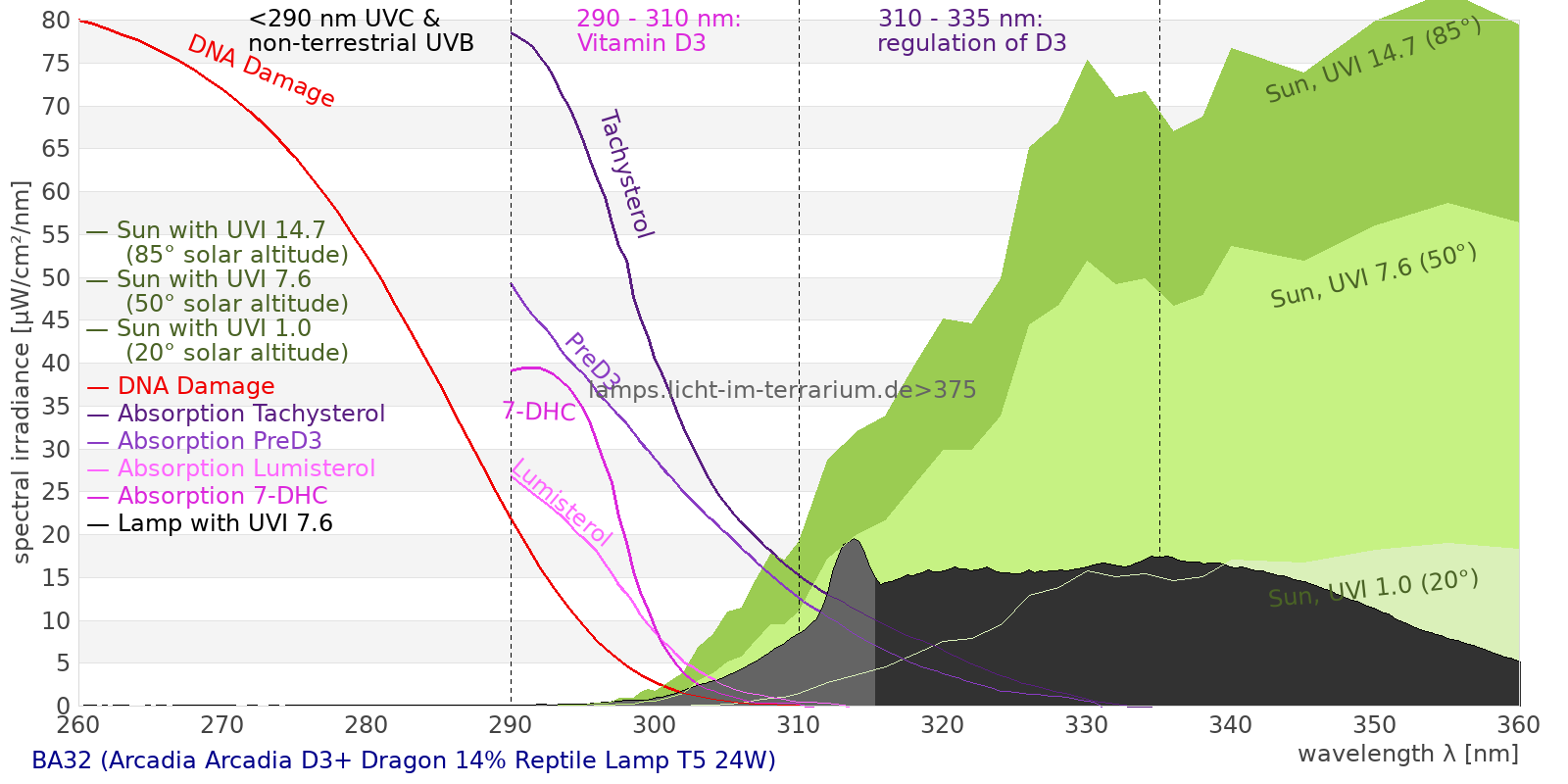

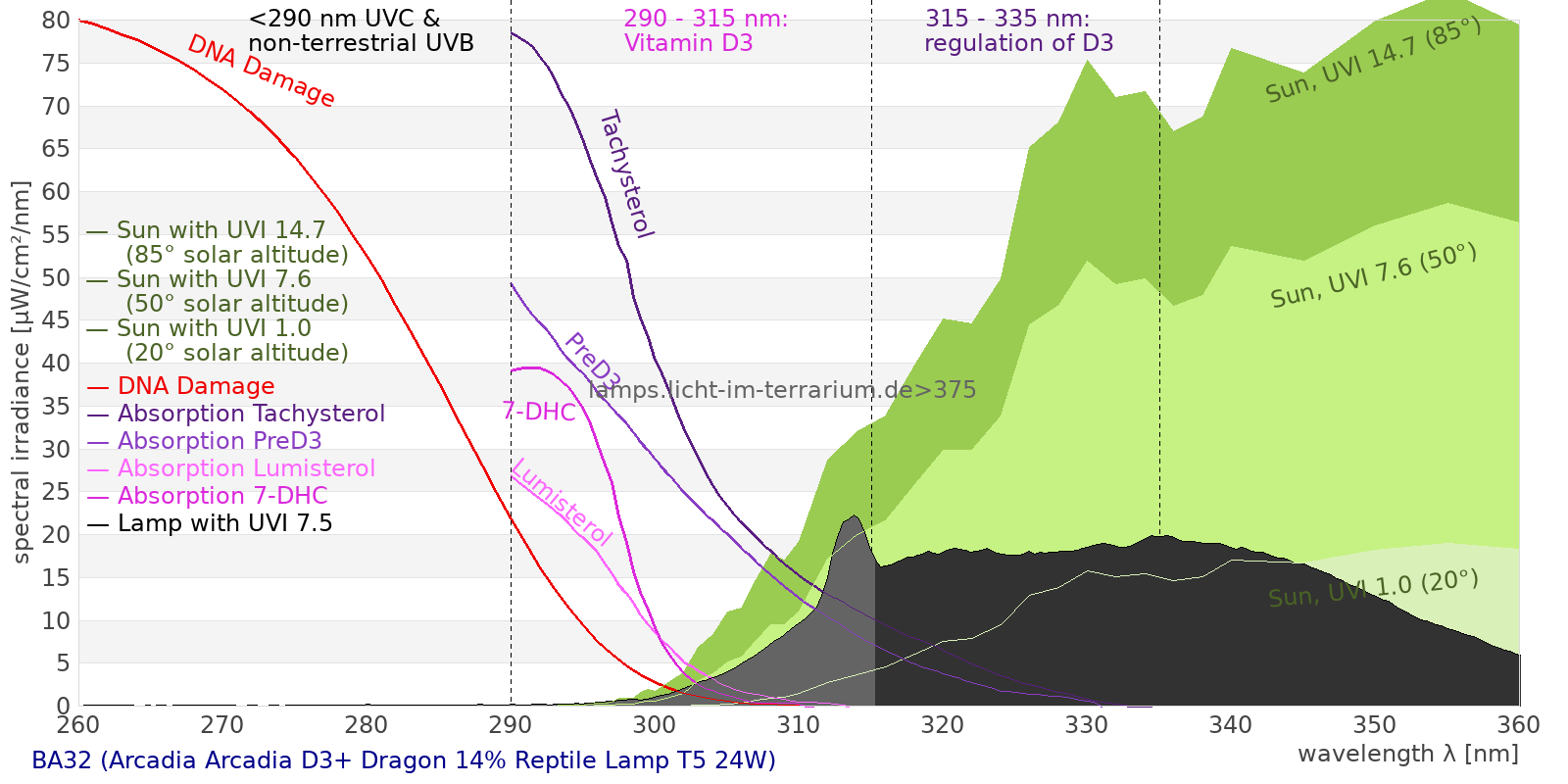

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 1270 µW/cm² = 12.7 W/m²
UVC ( 0 nm - 280 nm) 1.18 µW/cm² = 0.0118 W/m²
non-terrestrial ( 0 nm - 290 nm) 1.76 µW/cm² = 0.0176 W/m²
total2 ( 250 nm - 880 nm) 1270 µW/cm² = 12.7 W/m²
UVB (EU) ( 280 nm - 315 nm) 59.8 µW/cm² = 0.598 W/m²
UVB (US) ( 280 nm - 320 nm) 95.1 µW/cm² = 0.951 W/m²
UVA+B ( 280 nm - 380 nm) 405 µW/cm² = 4.05 W/m²
Solar UVB ( 290 nm - 315 nm) 59.2 µW/cm² = 0.592 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 154 µW/cm² = 1.54 W/m²
UVA (EU) ( 315 nm - 380 nm) 345 µW/cm² = 3.45 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 160 µW/cm² = 1.6 W/m²
UVA (US) ( 320 nm - 380 nm) 310 µW/cm² = 3.1 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 191 µW/cm² = 1.91 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 157 µW/cm² = 1.57 W/m²
vis. UVA ( 350 nm - 380 nm) 81.4 µW/cm² = 0.814 W/m²
VIS Rep3 ( 350 nm - 600 nm) 697 µW/cm² = 6.97 W/m²
VIS Rep4 ( 350 nm - 700 nm) 857 µW/cm² = 8.57 W/m²
purple ( 380 nm - 420 nm) 49 µW/cm² = 0.49 W/m²
VIS ( 380 nm - 780 nm) 814 µW/cm² = 8.14 W/m²
PAR ( 400 nm - 700 nm) 769 µW/cm² = 7.69 W/m²
blue ( 420 nm - 490 nm) 277 µW/cm² = 2.77 W/m²
green ( 490 nm - 575 nm) 229 µW/cm² = 2.29 W/m²
yellow ( 575 nm - 585 nm) 28.5 µW/cm² = 0.285 W/m²
orange ( 585 nm - 650 nm) 165 µW/cm² = 1.65 W/m²
red ( 650 nm - 780 nm) 64.4 µW/cm² = 0.644 W/m²
IRA ( 700 nm - 1400 nm) 83.5 µW/cm² = 0.835 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 3.82 UV-Index
Pyrimidine dimerization of DNA 35.1 µW/cm²
Photoceratitis 5.79 µW/cm²
Photoconjunctivitis 1.16 µW/cm²
DNA Damage 1.6
Vitamin D3 14.3 µW/cm²
Photosynthesis 546 µW/cm²
Luminosity 2190 lx
Human L-Cone 325 µW/cm²
Human M-Cone 276 µW/cm²
Human S-Cone 226 µW/cm²
CIE X 310 µW/cm²
CIE Y 302 µW/cm²
CIE Z 421 µW/cm²
PAR 3570000 mol photons
Extinction preD3 112 e-3*m²/mol
Extinction Tachysterol 384 e-3*m²/mol
Exctincition PreD3 58900 m²/mol
Extinction Lumisterol 23.7 m²/mol
Exctincition Tachysterol 547000 m²/mol
Extinction 7DHC 24.4 m²/mol
L-Cone 267 µW/cm²
M-Cone 286 µW/cm²
S-Cone 391 µW/cm²
U-Cone 147 µW/cm²
UVR - ICNIRP 2004 3.67 Rel Biol Eff
Melatonin Supression 301 µW/cm²
Blue Light Hazard 253 µW/cm² (116 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 15.6 µW/cm²
Lumen Reptil 2460 "pseudo-lx"
Vitamin D3 Degradation 18.8 µW/cm²
Actinic UV 3.65 µW/cm² (16.7 mW/klm)
Exctincition Lumisterol 31200 m²/mol
Exctincition 7DHC 28500 m²/mol
Exctincition Toxisterols 12800 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 116 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 4.27
Leybold UVB 81.7 µW/cm²
Leybold UVA 219 µW/cm²
Leybold UVC 0.827 µW/cm²
DeltaOhm UVB 198 µW/cm²
DeltaOhm UVC 24.7 µW/cm²
Vernier UVB 27.4 µW/cm²
Vernier UVA 258 µW/cm²
Gröbel UVA 290 µW/cm²
Gröbel UVB 40.5 µW/cm²
Gröbel UVC 0.896 µW/cm²
Solarmeter 6.4 (D3) 13.3 IU/min
UVX-31 214 µW/cm²
IL UVB 0.0484 µW/cm²
IL UVA 244 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 3.56 UV-Index
Solarmeter 6.2 (UVB, post 2010) 77.8 µW/cm² (Solarmeter Ratio = 21.9)
Solarmeter AlGaN 6.5 UVI sensor 49.4 UV Index
GenUV 7.1 UV-Index 2.85 UV-Index
Solarmeter 10.0 (Global Power) 10.5 W/m²
Solarmeter 4.0 (UVA) 3.12 mW/cm²
LS122 0.0649 W/m²
ISM400 6.64 W/m²
