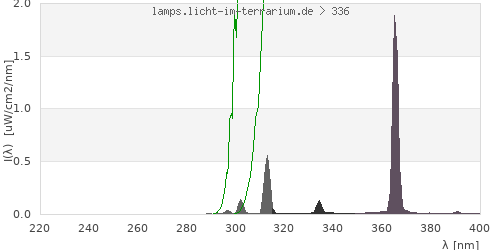

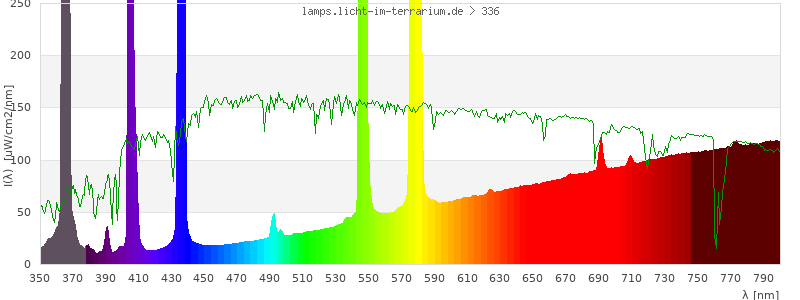

Spectrum 336: FM_OU1 Edit
DeleteMeasurement
| Brand |
Osram Osram GmbH http://www.osram.de/ |
|---|---|
| Lamp Product |
Ultravitalux 300W |
| Lamp ID |
FM_OU1 (10/2010) |
| Spectrometer | - |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 0 cm |
| Age | 0 hours |
| Originator (measurement) | Frank M |
Database entry created:
Sarina Wunderlich
10/Nov/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

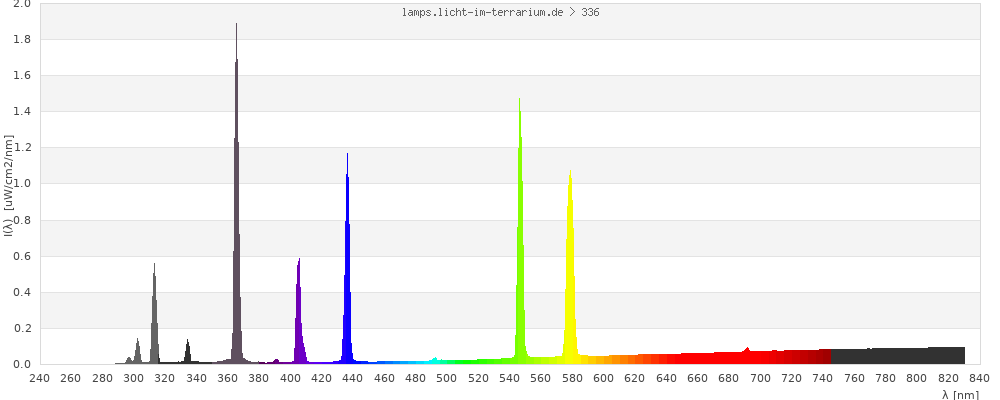

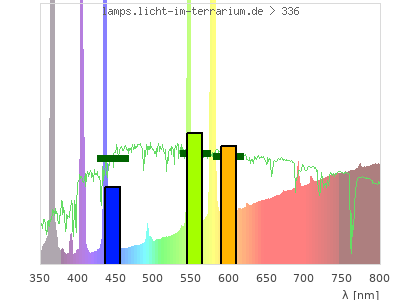

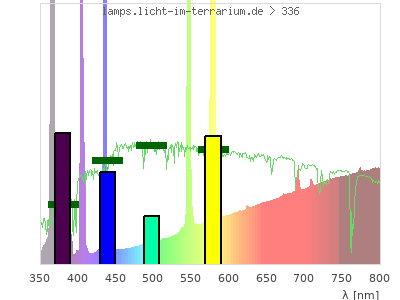

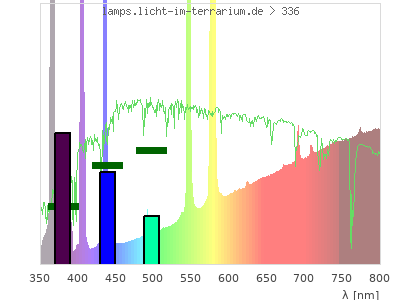

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.36 ; 0.4 ) | ( 0.18 ; 0.34 ) | ( 0.32 ; 0.12 ; 0.23 ) |
| CCT | 4600 Kelvin | 74000 Kelvin | 5300 Kelvin |
| distance | 0.034 | 0.16 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 45 µW/cm² = 0.45 W/m² UVC ( 0 nm - 280 nm) 0.0154 µW/cm² = 0.000154 W/m² non-terrestrial ( 0 nm - 290 nm) 0.042 µW/cm² = 0.00042 W/m² total2 ( 250 nm - 880 nm) 45 µW/cm² = 0.45 W/m² UVB (EU) ( 280 nm - 315 nm) 2.14 µW/cm² = 0.0214 W/m² UVB (US) ( 280 nm - 320 nm) 2.21 µW/cm² = 0.0221 W/m² UVA+B ( 280 nm - 380 nm) 8.61 µW/cm² = 0.0861 W/m² Solar UVB ( 290 nm - 315 nm) 2.11 µW/cm² = 0.0211 W/m² UVA D3 regulating ( 315 nm - 335 nm) 0.538 µW/cm² = 0.00538 W/m² UVA (EU) ( 315 nm - 380 nm) 6.48 µW/cm² = 0.0648 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 0.573 µW/cm² = 0.00573 W/m² UVA (US) ( 320 nm - 380 nm) 6.4 µW/cm² = 0.064 W/m² UVA1 (variant) ( 335 nm - 380 nm) 5.94 µW/cm² = 0.0594 W/m² UVA1 (medical) ( 340 nm - 400 nm) 6.08 µW/cm² = 0.0608 W/m² vis. UVA ( 350 nm - 380 nm) 5.69 µW/cm² = 0.0569 W/m² VIS Rep3 ( 350 nm - 600 nm) 25.1 µW/cm² = 0.251 W/m² VIS Rep4 ( 350 nm - 700 nm) 31.1 µW/cm² = 0.311 W/m² purple ( 380 nm - 420 nm) 2.27 µW/cm² = 0.0227 W/m² VIS ( 380 nm - 780 nm) 31.9 µW/cm² = 0.319 W/m² PAR ( 400 nm - 700 nm) 25.2 µW/cm² = 0.252 W/m² blue ( 420 nm - 490 nm) 4.36 µW/cm² = 0.0436 W/m² green ( 490 nm - 575 nm) 7.12 µW/cm² = 0.0712 W/m² yellow ( 575 nm - 585 nm) 5.01 µW/cm² = 0.0501 W/m² orange ( 585 nm - 650 nm) 3.34 µW/cm² = 0.0334 W/m² red ( 650 nm - 780 nm) 9.77 µW/cm² = 0.0977 W/m² IRA ( 700 nm - 1400 nm) 11 µW/cm² = 0.11 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.174 UV-Index Pyrimidine dimerization of DNA 0.935 µW/cm² Photoceratitis 0.277 µW/cm² Photoconjunctivitis 0.0225 µW/cm² DNA Damage 0.0472 Vitamin D3 0.642 µW/cm² Photosynthesis 16.4 µW/cm² Luminosity 88.6 lx Human L-Cone 13.3 µW/cm² Human M-Cone 10.9 µW/cm² Human S-Cone 4.14 µW/cm² CIE X 11.4 µW/cm² CIE Y 12.5 µW/cm² CIE Z 7.35 µW/cm² PAR 128000 mol photons Extinction preD3 3.12 e-3*m²/mol Extinction Tachysterol 10.7 e-3*m²/mol Exctincition PreD3 1590 m²/mol Extinction Lumisterol 1.1 m²/mol Exctincition Tachysterol 13700 m²/mol Extinction 7DHC 1.26 m²/mol L-Cone 11.6 µW/cm² M-Cone 4.39 µW/cm² S-Cone 8.37 µW/cm² U-Cone 11.9 µW/cm² UVR - ICNIRP 2004 0.19 Rel Biol Eff Melatonin Supression 5.08 µW/cm² Blue Light Hazard 4.84 µW/cm² (54.6 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.67 µW/cm² Lumen Reptil 80.3 "pseudo-lx" Vitamin D3 Degradation 0.458 µW/cm² Actinic UV 0.185 µW/cm² (20.9 mW/klm) Exctincition Lumisterol 1360 m²/mol Exctincition 7DHC 1530 m²/mol Exctincition Toxisterols 205 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 2.34 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.18 Leybold UVB 1.87 µW/cm² Leybold UVA 4.52 µW/cm² Leybold UVC 0.0102 µW/cm² DeltaOhm UVB 2.25 µW/cm² DeltaOhm UVC 0.373 µW/cm² Vernier UVB 0.938 µW/cm² Vernier UVA 3.62 µW/cm² Gröbel UVA 5.9 µW/cm² Gröbel UVB 1.19 µW/cm² Gröbel UVC 0.0117 µW/cm² Solarmeter 6.4 (D3) 0.561 IU/min UVX-31 2.66 µW/cm² IL UVB 0.000974 µW/cm² IL UVA 6.02 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.133 UV-Index Solarmeter 6.2 (UVB, post 2010) 1.23 µW/cm² (Solarmeter Ratio = 9.29) Solarmeter AlGaN 6.5 UVI sensor 1.55 UV Index GenUV 7.1 UV-Index 0.0778 UV-Index Solarmeter 10.0 (Global Power) 0.482 W/m² Solarmeter 4.0 (UVA) 0.0807 mW/cm² LS122 0.00139 W/m² ISM400 0.413 W/m²
