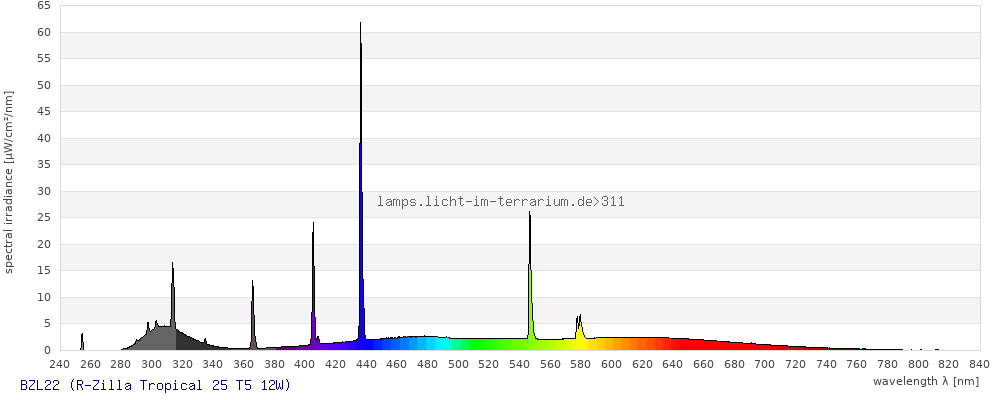

Spectrum 311: BZL22 Edit
DeleteMeasurement
| Brand |
R-Zilla Zilla Products http://www.zilla-rules.com |
|---|---|
| Lamp Product |
Tropical 25 T5 12W |
| Lamp ID |
BZL22 (03/2008) |
| Spectrometer | USB2000+ |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | |
| Distance | 10 cm |
| Age | 120 hours |
| Originator (measurement) | Frances Baines |
Database entry created:
Sarina Wunderlich
3/Jul/2010 ; updated:
Sarina Wunderlich
27/Feb/2011
Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

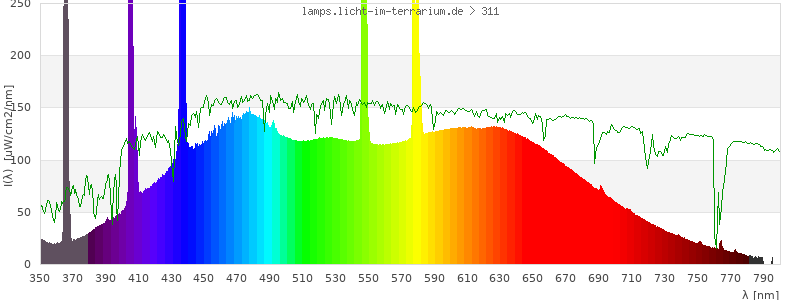

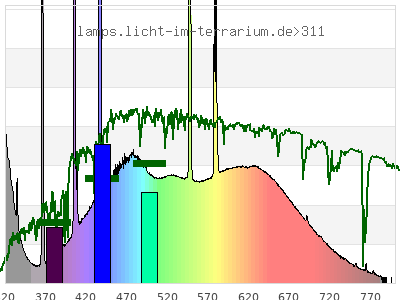

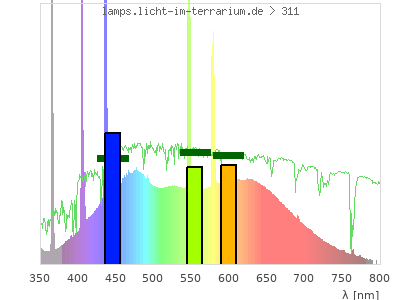

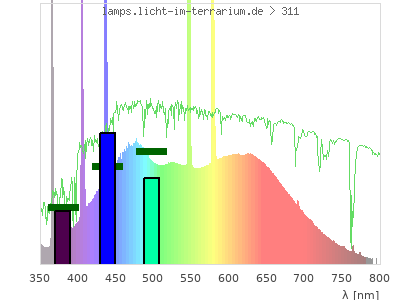

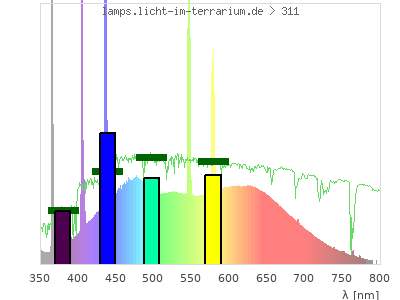

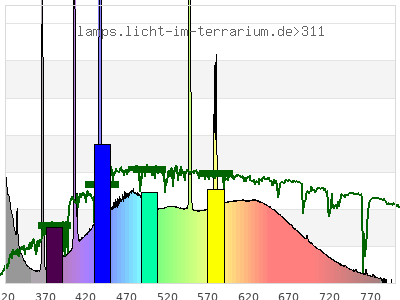

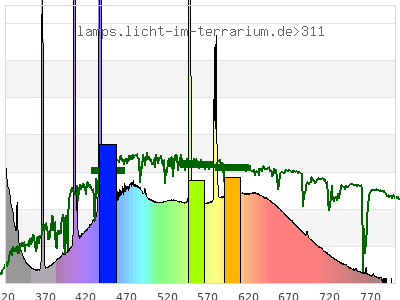

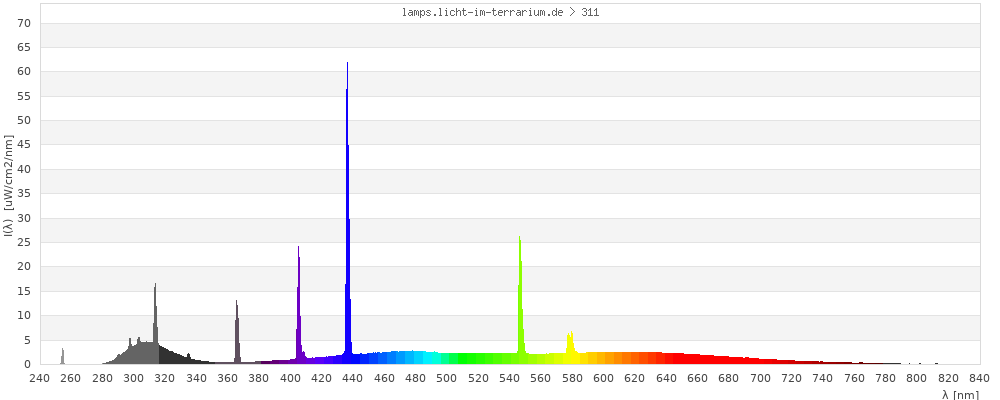

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

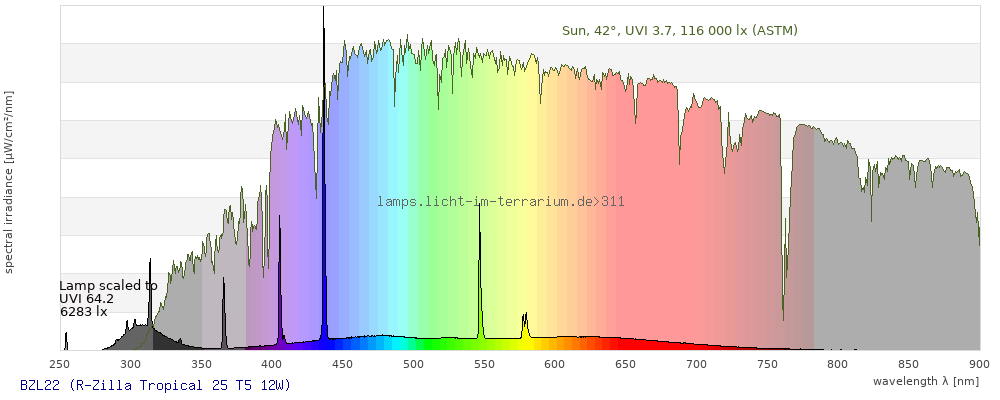

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.3 ; 0.3 ) | ( 0.32 ; 0.49 ) | ( 0.25 ; 0.24 ; 0.37 ) |
| CCT | 7500 Kelvin | 6700 Kelvin | 6200 Kelvin |
| distance | 0.14 | 0.11 | |
| colour space | 3-D-graph not implemented yet |
Vitamin D3 Analysis

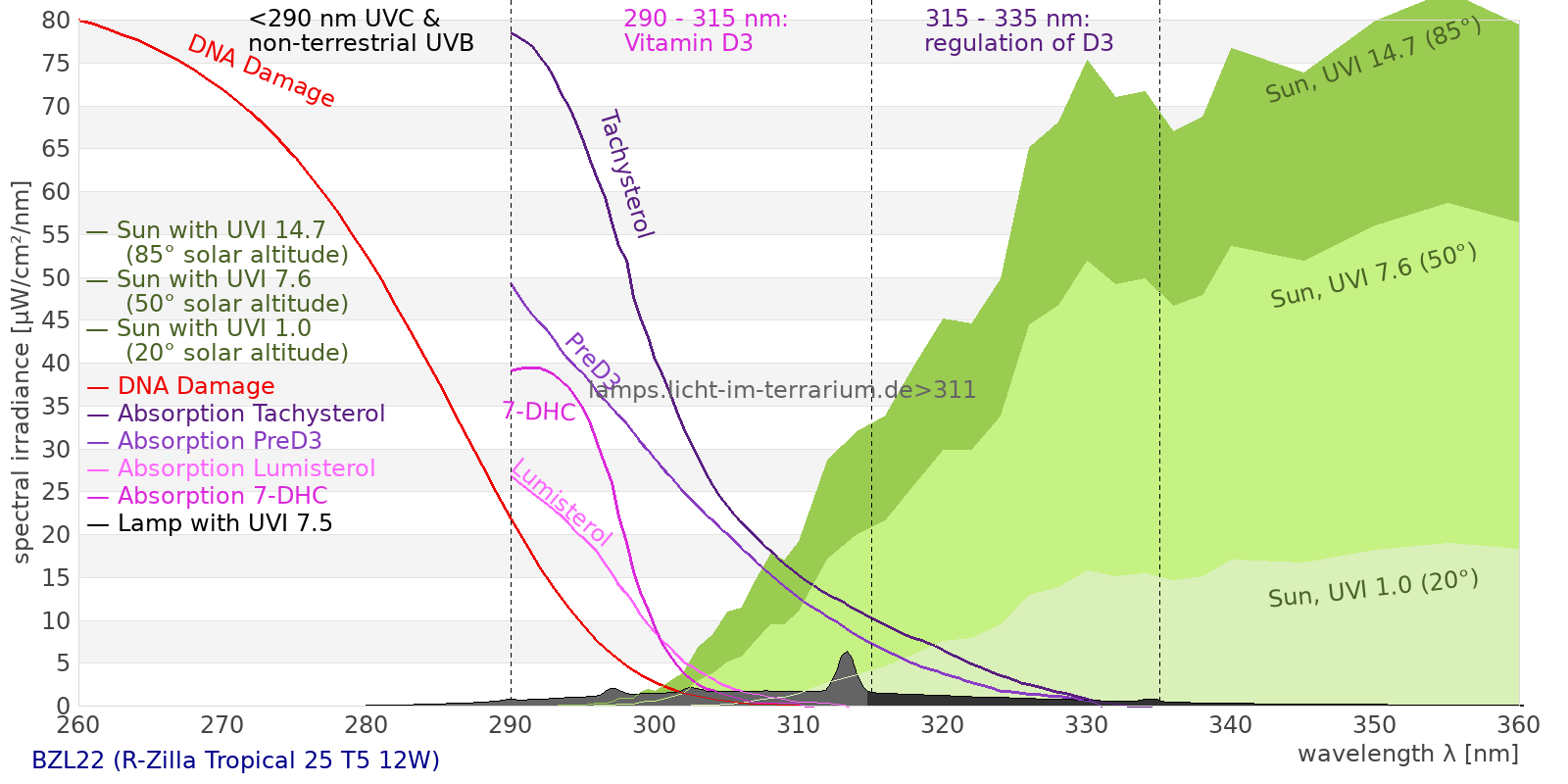

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

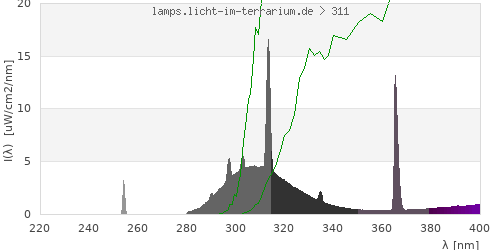

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
Ranges
total ( 0 nm - 0 nm) 1110 µW/cm² = 11.1 W/m² UVC ( 0 nm - 280 nm) 3.89 µW/cm² = 0.0389 W/m² non-terrestrial ( 0 nm - 290 nm) 12 µW/cm² = 0.12 W/m² total2 ( 250 nm - 880 nm) 1110 µW/cm² = 11.1 W/m² UVB (EU) ( 280 nm - 315 nm) 125 µW/cm² = 1.25 W/m² UVB (US) ( 280 nm - 320 nm) 144 µW/cm² = 1.44 W/m² UVA+B ( 280 nm - 380 nm) 222 µW/cm² = 2.22 W/m² Solar UVB ( 290 nm - 315 nm) 117 µW/cm² = 1.17 W/m² UVA D3 regulating ( 315 nm - 335 nm) 50.4 µW/cm² = 0.504 W/m² UVA (EU) ( 315 nm - 380 nm) 96.8 µW/cm² = 0.968 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 37.2 µW/cm² = 0.372 W/m² UVA (US) ( 320 nm - 380 nm) 78.2 µW/cm² = 0.782 W/m² UVA1 (variant) ( 335 nm - 380 nm) 46.3 µW/cm² = 0.463 W/m² UVA1 (medical) ( 340 nm - 400 nm) 56.3 µW/cm² = 0.563 W/m² vis. UVA ( 350 nm - 380 nm) 35.1 µW/cm² = 0.351 W/m² VIS Rep3 ( 350 nm - 600 nm) 674 µW/cm² = 6.74 W/m² VIS Rep4 ( 350 nm - 700 nm) 875 µW/cm² = 8.75 W/m² purple ( 380 nm - 420 nm) 77.8 µW/cm² = 0.778 W/m² VIS ( 380 nm - 780 nm) 882 µW/cm² = 8.82 W/m² VIS2 ( 400 nm - 680 nm) 798 µW/cm² = 7.98 W/m² PAR ( 400 nm - 700 nm) 824 µW/cm² = 8.24 W/m² tmp ( 400 nm - 1100 nm) 868 µW/cm² = 8.68 W/m² blue ( 420 nm - 490 nm) 256 µW/cm² = 2.56 W/m² green ( 490 nm - 575 nm) 232 µW/cm² = 2.32 W/m² yellow ( 575 nm - 585 nm) 36.7 µW/cm² = 0.367 W/m² orange ( 585 nm - 650 nm) 155 µW/cm² = 1.55 W/m² red ( 650 nm - 780 nm) 124 µW/cm² = 1.24 W/m² IRA ( 700 nm - 1400 nm) 43.9 µW/cm² = 0.439 W/m² IR2 ( 720 nm - 1100 nm) 25.5 µW/cm² = 0.255 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 22.1 UV-Index Pyrimidine dimerization of DNA 69 µW/cm² Photoceratitis 33.1 µW/cm² Photoconjunctivitis 6.07 µW/cm² DNA Damage 10.7 Vitamin D3 64.3 µW/cm² Photosynthesis 588 µW/cm² Luminosity 2160 lx Human L-Cone 321 µW/cm² Human M-Cone 272 µW/cm² Human S-Cone 220 µW/cm² CIE X 306 µW/cm² CIE Y 299 µW/cm² CIE Z 402 µW/cm² PAR 3980000 mol photons Extinction preD3 309 e-3*m²/mol Extinction Tachysterol 1060 e-3*m²/mol Exctincition PreD3 188000 m²/mol Extinction Lumisterol 177 m²/mol Exctincition Tachysterol 1350000 m²/mol Extinction 7DHC 222 m²/mol L-Cone 270 µW/cm² M-Cone 260 µW/cm² S-Cone 397 µW/cm² U-Cone 160 µW/cm² UVR - ICNIRP 2004 27.2 Rel Biol Eff Melatonin Supression 288 µW/cm² Blue Light Hazard 248 µW/cm² (115 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 68.3 µW/cm² Lumen Reptil 2450 "pseudo-lx" Vitamin D3 Degradation 37.8 µW/cm² Actinic UV 26.9 µW/cm² (125 mW/klm) Exctincition Lumisterol 206000 m²/mol Exctincition 7DHC 257000 m²/mol Exctincition Toxisterols 43600 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 169 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 19.3 Leybold UVB 119 µW/cm² Leybold UVA 48.5 µW/cm² Leybold UVC 3.96 µW/cm² DeltaOhm UVB 146 µW/cm² DeltaOhm UVC 32.3 µW/cm² Vernier UVB 71.6 µW/cm² Vernier UVA 82.6 µW/cm² Gröbel UVA 85.7 µW/cm² Gröbel UVB 92.6 µW/cm² Gröbel UVC 3.79 µW/cm² Luxmeter 2210 lx Solarmeter 6.4 (D3) 60.2 IU/min UVX-31 156 µW/cm² IL UVB 0.0742 µW/cm² IL UVA 66.9 µW/cm² Solarmeter 6.5 (UVI, post 2010) 13 UV-Index Solarmeter 6.2 (UVB, post 2010) 84.3 µW/cm² (Solarmeter Ratio = 6.49) Solarmeter AlGaN 6.5 UVI sensor 105 UV Index GenUV 7.1 UV-Index 5.42 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 9.82 W/m² Solarmeter 4.0 (UVA) 1.08 mW/cm² LS122 (manuf.) 0.000313 W/m² ISM400 (first guess) 6.36 W/m² LS122 (assumption) 0.303 W/m² ISM400_new 5.21 W/m² Solarmeter 10.0 (Global Power) (assumption) 8.89 W/m²
