Reptile Lamp Database

Spectrum 283: BESU5 Edit
Delete

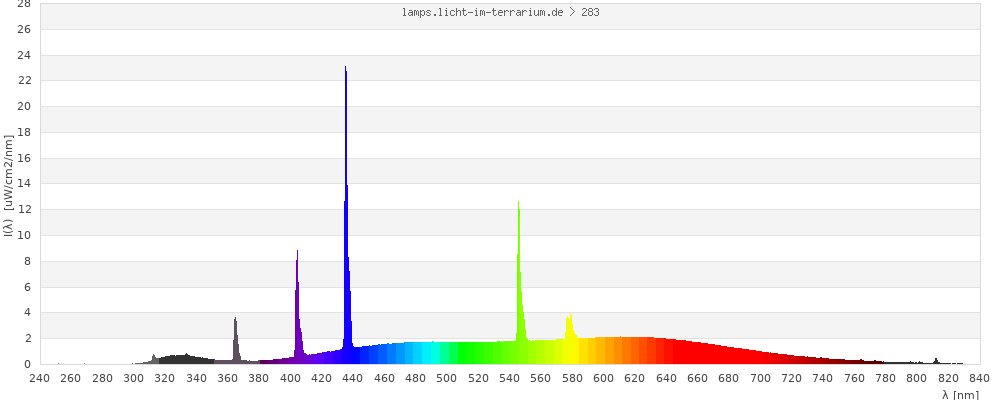

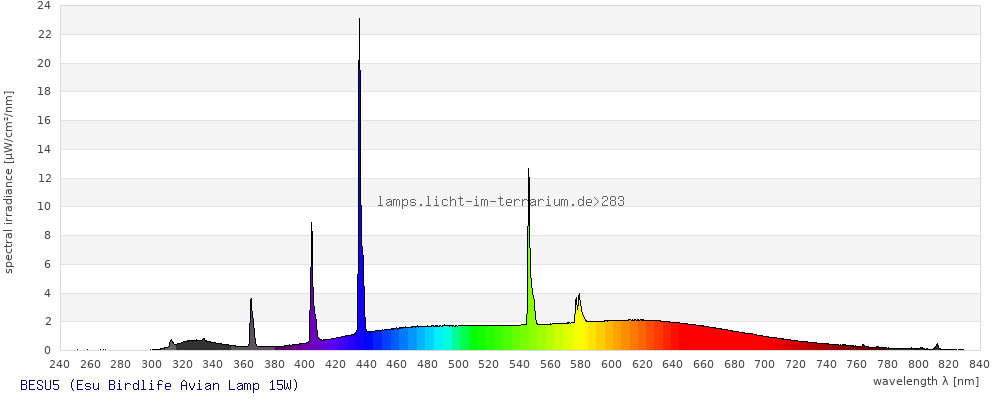

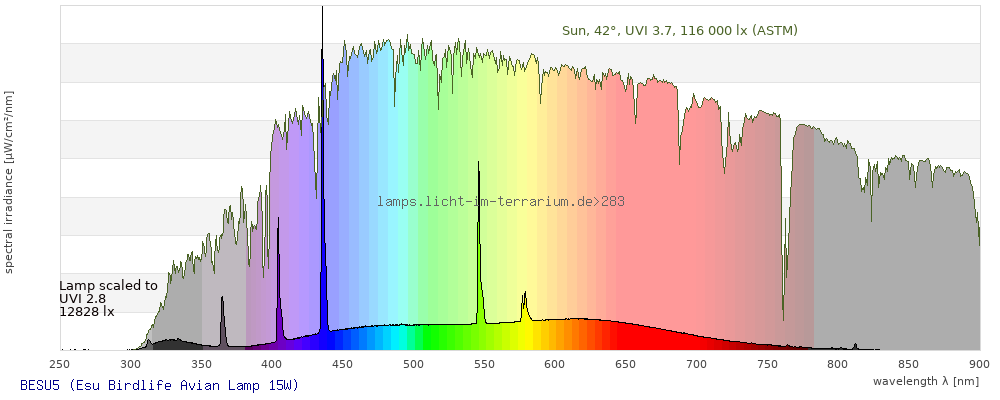

Full Spectrum

Measurement

Brand Esu Birdlife
Esu Birdlife
Lamp Product Avian Lamp 15W
Lamp ID BESU5 (02/2008)
Spectrometer USB 2000
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 105 hours
Originator (measurement) Frances Baines
Database entry created: Maren 17/Jun/2010 ; updated: Sarina Wunderlich 27/Feb/2011

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

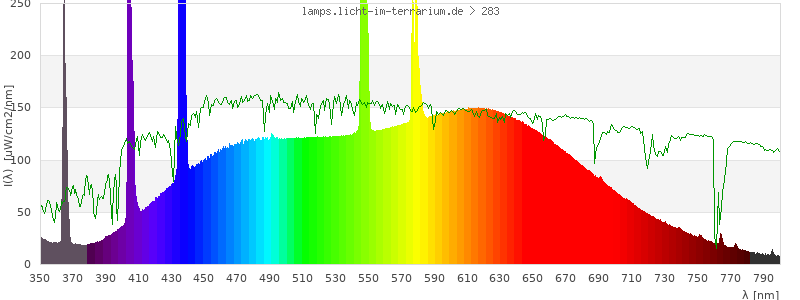

Spectrum in the visible wavelength range

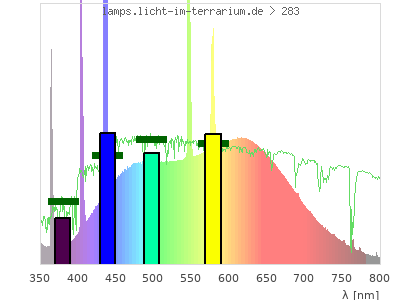

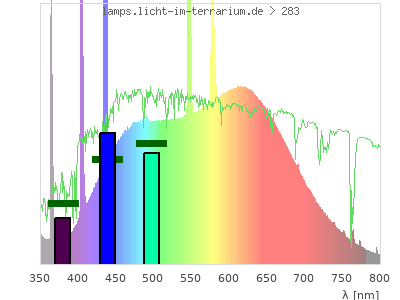

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

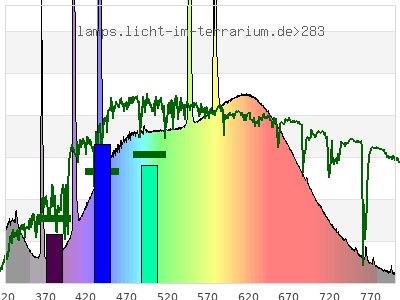

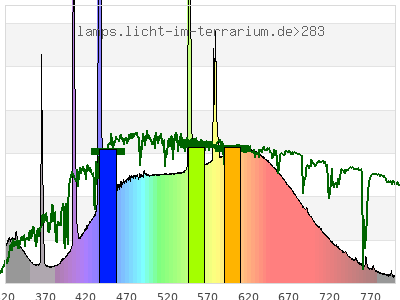

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.34 ; 0.33 ) ( 0.39 ; 0.45 ) ( 0.31 ; 0.27 ; 0.31 )
CCT 5400 Kelvin 5300 Kelvin 4800 Kelvin
distance 0.11 0.079
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

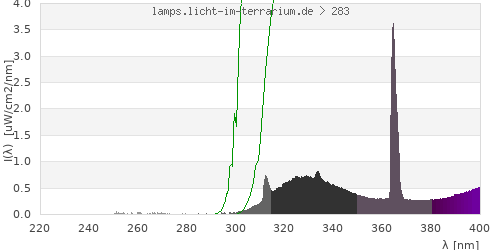

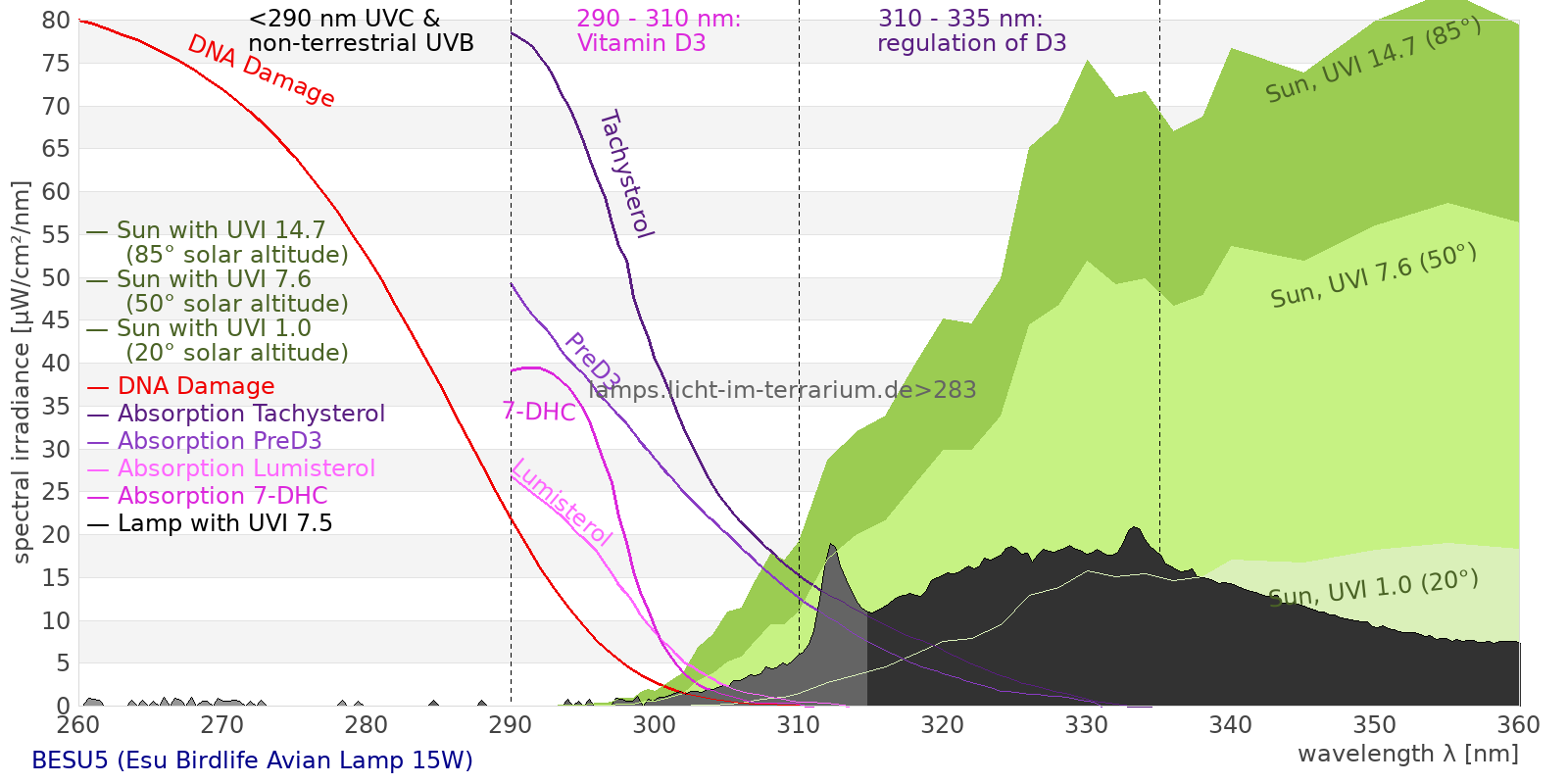

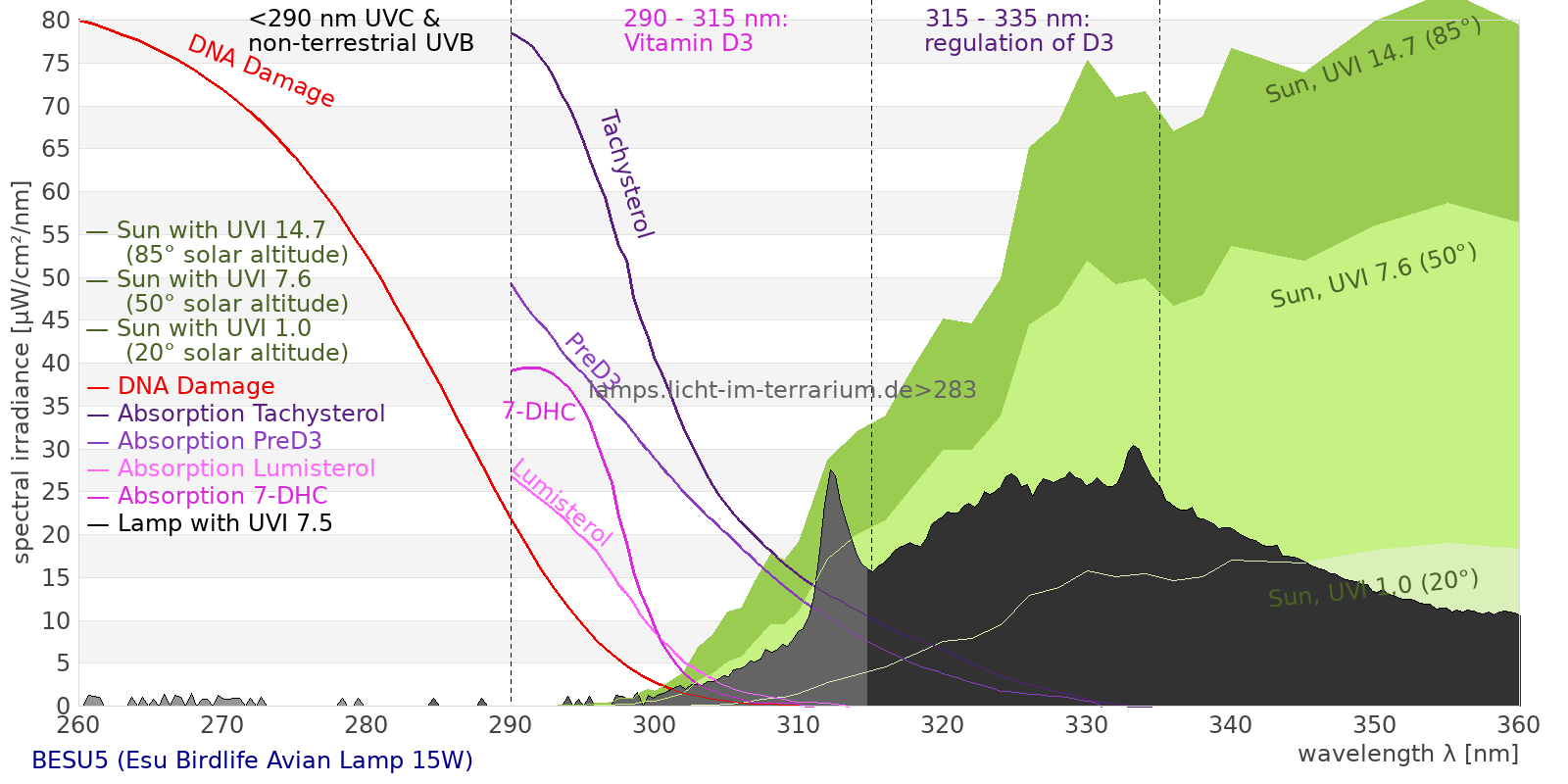

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 676 µW/cm² = 6.76 W/m²
UVC ( 0 nm - 280 nm) 0.361 µW/cm² = 0.00361 W/m²
non-terrestrial ( 0 nm - 290 nm) 0.38 µW/cm² = 0.0038 W/m²
total2 ( 250 nm - 880 nm) 676 µW/cm² = 6.76 W/m²
UVB (EU) ( 280 nm - 315 nm) 3.77 µW/cm² = 0.0377 W/m²
UVB (US) ( 280 nm - 320 nm) 6.43 µW/cm² = 0.0643 W/m²
UVA+B ( 280 nm - 380 nm) 40.7 µW/cm² = 0.407 W/m²
Solar UVB ( 290 nm - 315 nm) 3.75 µW/cm² = 0.0375 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 13 µW/cm² = 0.13 W/m²
UVA (EU) ( 315 nm - 380 nm) 36.9 µW/cm² = 0.369 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 13.4 µW/cm² = 0.134 W/m²
UVA (US) ( 320 nm - 380 nm) 34.3 µW/cm² = 0.343 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 23.9 µW/cm² = 0.239 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 28.3 µW/cm² = 0.283 W/m²
vis. UVA ( 350 nm - 380 nm) 16.3 µW/cm² = 0.163 W/m²
VIS Rep3 ( 350 nm - 600 nm) 432 µW/cm² = 4.32 W/m²
VIS Rep4 ( 350 nm - 700 nm) 605 µW/cm² = 6.05 W/m²
purple ( 380 nm - 420 nm) 38.6 µW/cm² = 0.386 W/m²
VIS ( 380 nm - 780 nm) 629 µW/cm² = 6.29 W/m²
PAR ( 400 nm - 700 nm) 581 µW/cm² = 5.81 W/m²
blue ( 420 nm - 490 nm) 146 µW/cm² = 1.46 W/m²
green ( 490 nm - 575 nm) 174 µW/cm² = 1.74 W/m²
yellow ( 575 nm - 585 nm) 27.4 µW/cm² = 0.274 W/m²
orange ( 585 nm - 650 nm) 133 µW/cm² = 1.33 W/m²
red ( 650 nm - 780 nm) 111 µW/cm² = 1.11 W/m²
IRA ( 700 nm - 1400 nm) 45.7 µW/cm² = 0.457 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.354 UV-Index
Pyrimidine dimerization of DNA 2.31 µW/cm²
Photoceratitis 0.436 µW/cm²
Photoconjunctivitis 0.329 µW/cm²
DNA Damage 0.362
Vitamin D3 0.928 µW/cm²
Photosynthesis 405 µW/cm²
Luminosity 1650 lx
Human L-Cone 248 µW/cm²
Human M-Cone 202 µW/cm²
Human S-Cone 122 µW/cm²
CIE X 230 µW/cm²
CIE Y 229 µW/cm²
CIE Z 226 µW/cm²
PAR 2800000 mol photons
Extinction preD3 9.82 e-3*m²/mol
Extinction Tachysterol 29.8 e-3*m²/mol
Exctincition PreD3 6310 m²/mol
Extinction Lumisterol 3.25 m²/mol
Exctincition Tachysterol 42500 m²/mol
Extinction 7DHC 3.48 m²/mol
L-Cone 213 µW/cm²
M-Cone 182 µW/cm²
S-Cone 214 µW/cm²
U-Cone 76.1 µW/cm²
UVR - ICNIRP 2004 0.426 Rel Biol Eff
Melatonin Supression 170 µW/cm²
Blue Light Hazard 138 µW/cm² (83.7 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 0.998 µW/cm²
Lumen Reptil 1620 "pseudo-lx"
Vitamin D3 Degradation 1.31 µW/cm²
Actinic UV 0.423 µW/cm² (2.57 mW/klm)
Exctincition Lumisterol 3750 m²/mol
Exctincition 7DHC 3720 m²/mol
Exctincition Toxisterols 2270 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 8.49 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 0.277
Leybold UVB 5.67 µW/cm²
Leybold UVA 24 µW/cm²
Leybold UVC 0.295 µW/cm²
DeltaOhm UVB 15.2 µW/cm²
DeltaOhm UVC 2.1 µW/cm²
Vernier UVB 1.67 µW/cm²
Vernier UVA 22.2 µW/cm²
Gröbel UVA 30.5 µW/cm²
Gröbel UVB 2.68 µW/cm²
Gröbel UVC 0.301 µW/cm²
Solarmeter 6.4 (D3) 0.867 IU/min
UVX-31 16.5 µW/cm²
IL UVB 0.00355 µW/cm²
IL UVA 28.4 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 0.252 UV-Index
Solarmeter 6.2 (UVB, post 2010) 5.79 µW/cm² (Solarmeter Ratio = 23)
Solarmeter AlGaN 6.5 UVI sensor 3.26 UV Index
GenUV 7.1 UV-Index 0.201 UV-Index
Solarmeter 10.0 (Global Power) 7.03 W/m²
Solarmeter 4.0 (UVA) 0.439 mW/cm²
LS122 0.00489 W/m²
ISM400 5.15 W/m²
