Reptile Lamp Database

Spectrum 276: BZL12 Edit
Delete

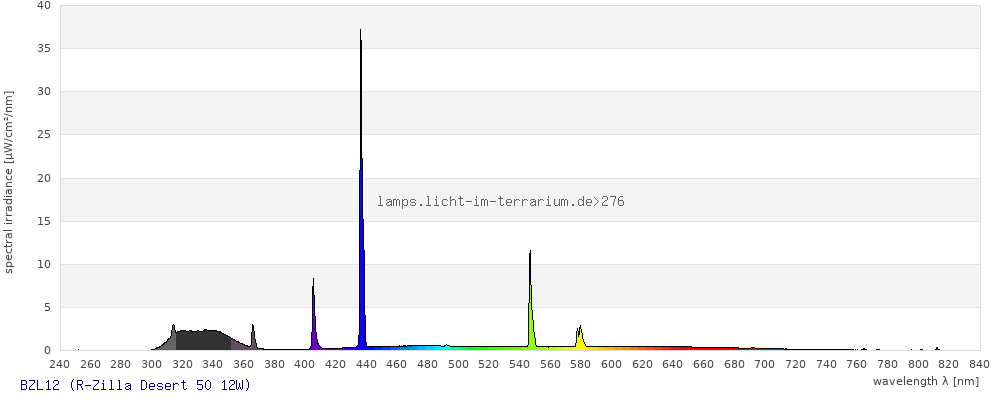

Full Spectrum

with 105hr-exposed acrylic shield

Measurement

Brand R-Zilla
Zilla Products http://www.zilla-rules.com
Lamp Product Desert 50 12W
Lamp ID BZL12 (10/2008)
Spectrometer USB2000+
Ballast - no ballast or default/unknown ballast -
Reflector
Distance 10 cm
Age 105 hours
Originator (measurement) Frances Baines
Database entry created: Maren 17/Jun/2010 ; updated: Sarina Wunderlich 27/Feb/2011

Colorimetry

Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.

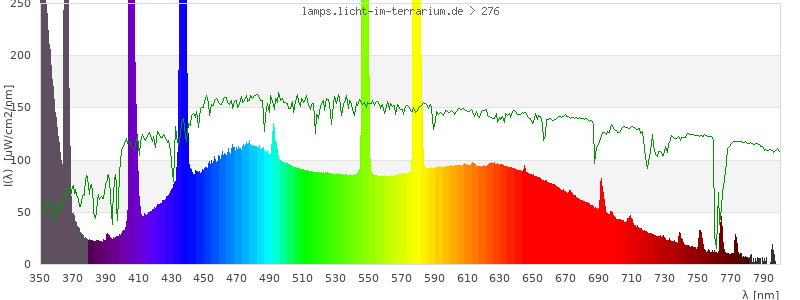

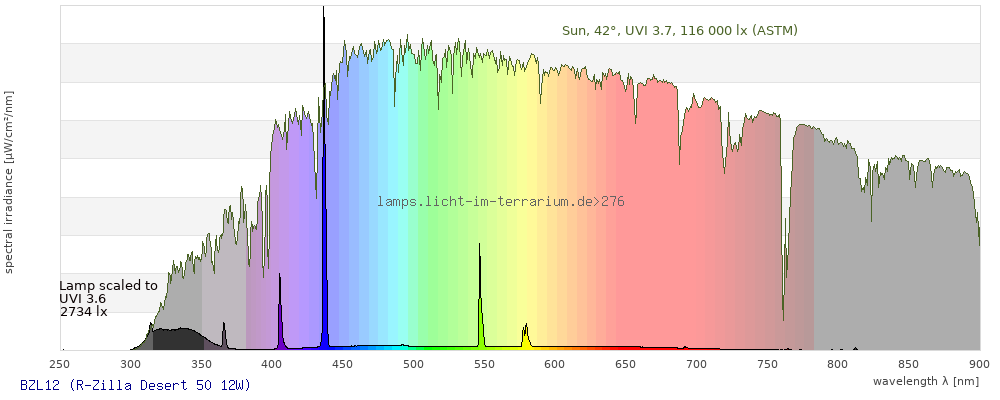

Spectrum in the visible wavelength range

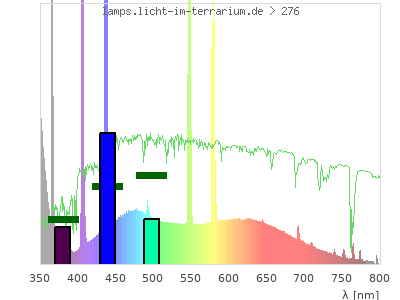

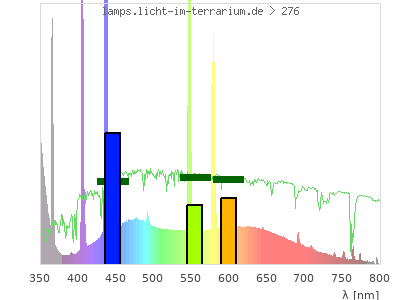

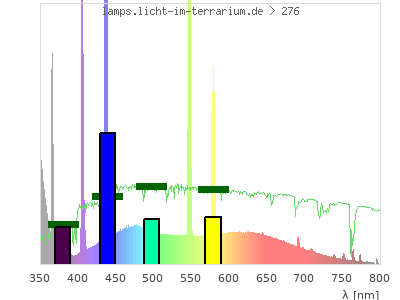

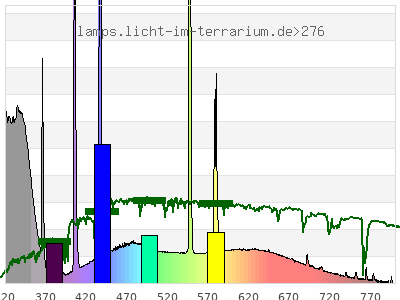

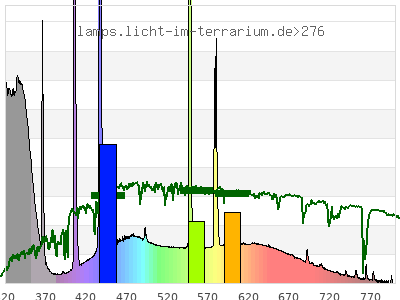

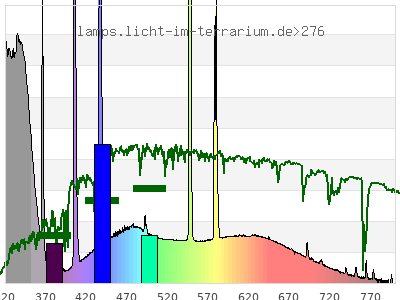

Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (id 1).

From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338451, 511513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.

Human (CIE) 3 cone reptile 4 cone reptile
Cone Excitation
Colour Coordinate ( 0.26 ; 0.23 ) ( 0.21 ; 0.61 ) ( 0.18 ; 0.17 ; 0.5 )
CCT 60000 Kelvin 9800 Kelvin 11000 Kelvin
distance 0.28 0.23
colour space 3-D-graph not implemented yet

Vitamin D3 Analysis

Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.

This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.

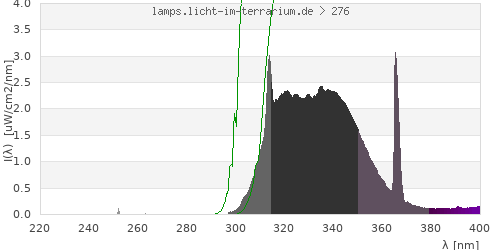

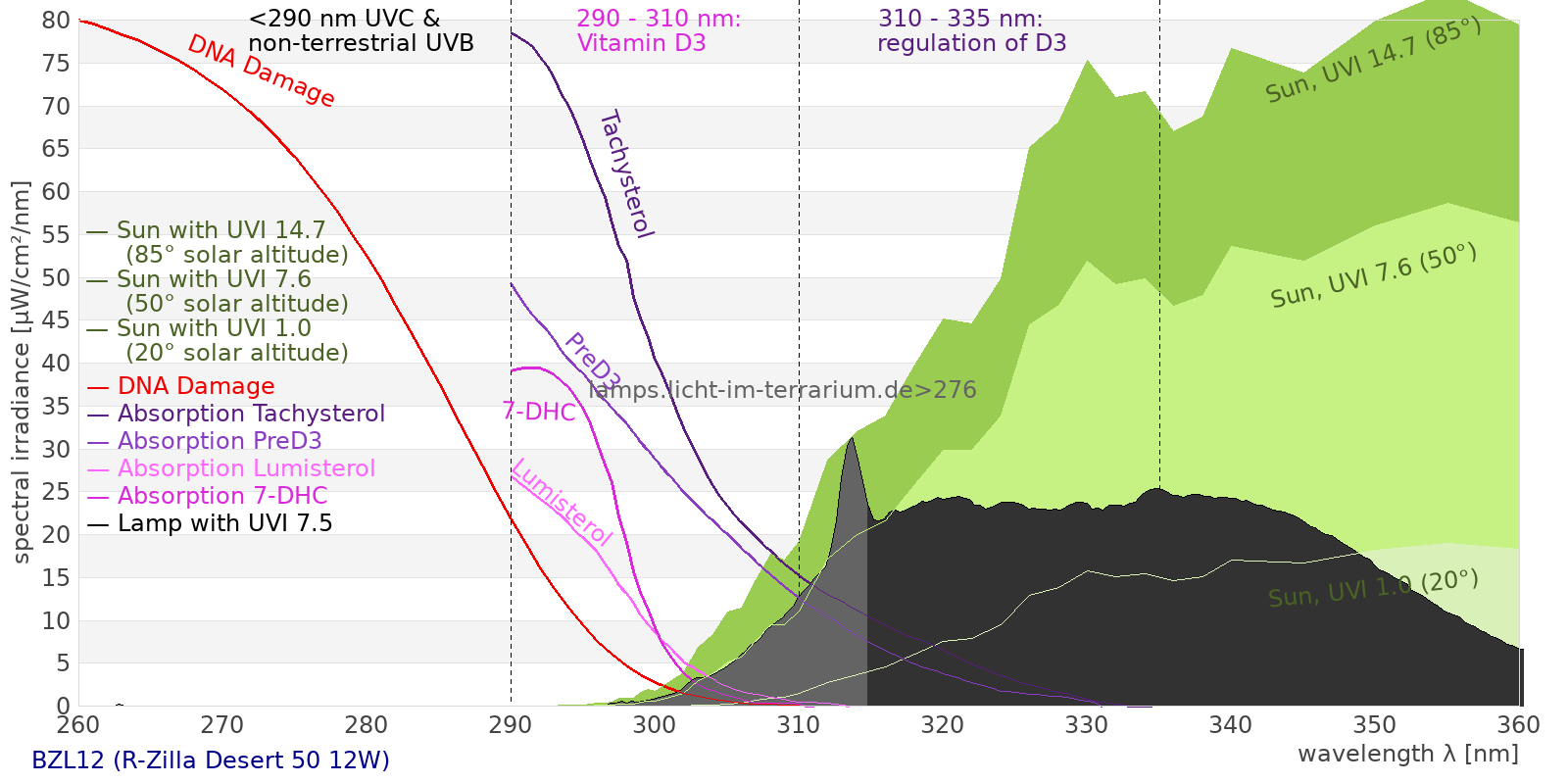

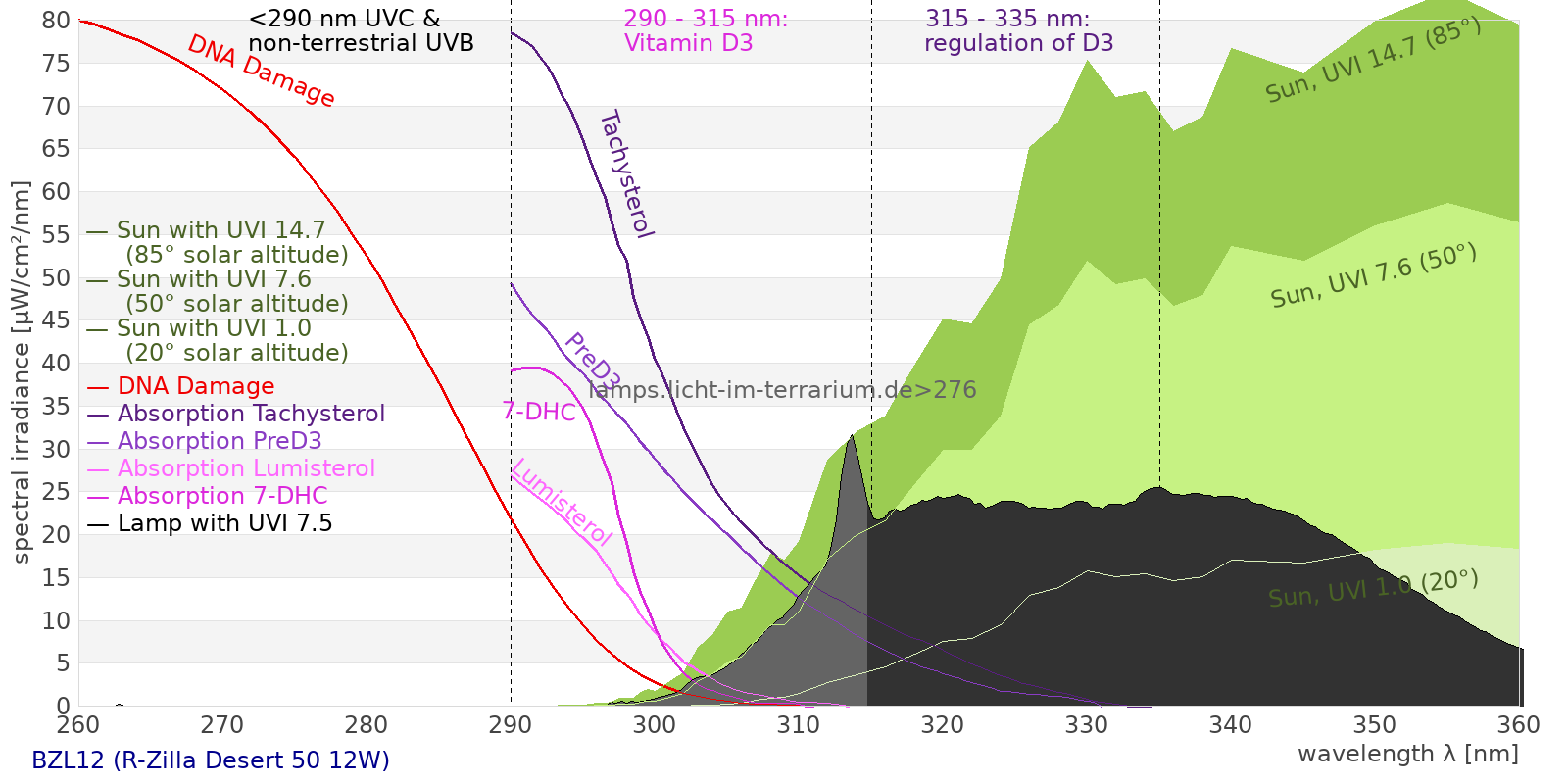

Spectrum in the vitamin D3 active wavelength range

The ratio of the two solarmeters 6.2 (UVB) and 6.5 (UV index) readings has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.

Effective Irradiances

Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.

The calculation method is a numerical implementation (Simpson's rule) of the formula

To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).

The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists

  • range: UVB (US) = 13.8 µW/cm²
  • radiometer: Solarmeter 6.2 = 19.6 µW/cm²
then any Solarmeter 6.2 reading multiplied with 0.7 (0.7=13.8/19.6) is an estimate of UVB irradiance for this specific lamp. If you do so, always make sure, that the calculated (effective) irradiance is valid. The calculated value is not valid, if the lamp's spectrum is not measured in the relevant range.

Ranges
total ( 0 nm - 0 nm) 373 µW/cm² = 3.73 W/m²
UVC ( 0 nm - 280 nm) 0.0502 µW/cm² = 0.000502 W/m²
non-terrestrial ( 0 nm - 290 nm) 0.0502 µW/cm² = 0.000502 W/m²
total2 ( 250 nm - 880 nm) 373 µW/cm² = 3.73 W/m²
UVB (EU) ( 280 nm - 315 nm) 16.1 µW/cm² = 0.161 W/m²
UVB (US) ( 280 nm - 320 nm) 27.6 µW/cm² = 0.276 W/m²
UVA+B ( 280 nm - 380 nm) 115 µW/cm² = 1.15 W/m²
Solar UVB ( 290 nm - 315 nm) 16.1 µW/cm² = 0.161 W/m²
UVA D3 regulating ( 315 nm - 335 nm) 45.1 µW/cm² = 0.451 W/m²
UVA (EU) ( 315 nm - 380 nm) 98.7 µW/cm² = 0.987 W/m²
UVA2 (medical definition) ( 320 nm - 340 nm) 45.8 µW/cm² = 0.458 W/m²
UVA (US) ( 320 nm - 380 nm) 87.1 µW/cm² = 0.871 W/m²
UVA1 (variant) ( 335 nm - 380 nm) 53.5 µW/cm² = 0.535 W/m²
UVA1 (medical) ( 340 nm - 400 nm) 43.7 µW/cm² = 0.437 W/m²
vis. UVA ( 350 nm - 380 nm) 21.4 µW/cm² = 0.214 W/m²
VIS Rep3 ( 350 nm - 600 nm) 230 µW/cm² = 2.3 W/m²
VIS Rep4 ( 350 nm - 700 nm) 269 µW/cm² = 2.69 W/m²
purple ( 380 nm - 420 nm) 23.4 µW/cm² = 0.234 W/m²
VIS ( 380 nm - 780 nm) 257 µW/cm² = 2.57 W/m²
PAR ( 400 nm - 700 nm) 245 µW/cm² = 2.45 W/m²
blue ( 420 nm - 490 nm) 106 µW/cm² = 1.06 W/m²
green ( 490 nm - 575 nm) 60 µW/cm² = 0.6 W/m²
yellow ( 575 nm - 585 nm) 12.6 µW/cm² = 0.126 W/m²
orange ( 585 nm - 650 nm) 29.5 µW/cm² = 0.295 W/m²
red ( 650 nm - 780 nm) 25.1 µW/cm² = 0.251 W/m²
IRA ( 700 nm - 1400 nm) 10.1 µW/cm² = 0.101 W/m²
IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
Actionspectra
Erythema 0.742 UV-Index
Pyrimidine dimerization of DNA 9.71 µW/cm²
Photoceratitis 1.21 µW/cm²
Photoconjunctivitis 0.0595 µW/cm²
DNA Damage 0.0917
Vitamin D3 3.4 µW/cm²
Photosynthesis 185 µW/cm²
Luminosity 566 lx
Human L-Cone 82.7 µW/cm²
Human M-Cone 74 µW/cm²
Human S-Cone 96.4 µW/cm²
CIE X 88.3 µW/cm²
CIE Y 77.8 µW/cm²
CIE Z 174 µW/cm²
PAR 1170000 mol photons
Extinction preD3 27.4 e-3*m²/mol
Extinction Tachysterol 96.3 e-3*m²/mol
Exctincition PreD3 13000 m²/mol
Extinction Lumisterol 2.47 m²/mol
Exctincition Tachysterol 140000 m²/mol
Extinction 7DHC 1.52 m²/mol
L-Cone 67.3 µW/cm²
M-Cone 63.9 µW/cm²
S-Cone 185 µW/cm²
U-Cone 53 µW/cm²
UVR - ICNIRP 2004 0.479 Rel Biol Eff
Melatonin Supression 107 µW/cm²
Blue Light Hazard 107 µW/cm² (190 µW/cm² per 1000 lx)
CIE 174:2006 PreVit D3 3.76 µW/cm²
Lumen Reptil 778 "pseudo-lx"
Vitamin D3 Degradation 5.04 µW/cm²
Actinic UV 0.478 µW/cm² (8.45 mW/klm)
Exctincition Lumisterol 4100 m²/mol
Exctincition 7DHC 2140 m²/mol
Exctincition Toxisterols 2760 m²/mol
Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 32.4 µW/cm²
Solarmeter 6.5 (UV-Index, pre 2010) 0.981
Leybold UVB 23.1 µW/cm²
Leybold UVA 62 µW/cm²
Leybold UVC 0.048 µW/cm²
DeltaOhm UVB 57 µW/cm²
DeltaOhm UVC 6.93 µW/cm²
Vernier UVB 7 µW/cm²
Vernier UVA 74.6 µW/cm²
Gröbel UVA 82.7 µW/cm²
Gröbel UVB 10.9 µW/cm²
Gröbel UVC 0.0366 µW/cm²
Solarmeter 6.4 (D3) 3.07 IU/min
UVX-31 61.5 µW/cm²
IL UVB 0.0134 µW/cm²
IL UVA 69 µW/cm²
Solarmeter 6.5 (UVI, post 2010) 0.867 UV-Index
Solarmeter 6.2 (UVB, post 2010) 22.2 µW/cm² (Solarmeter Ratio = 25.7)
Solarmeter AlGaN 6.5 UVI sensor 13.4 UV Index
GenUV 7.1 UV-Index 0.777 UV-Index
Solarmeter 10.0 (Global Power) 2.89 W/m²
Solarmeter 4.0 (UVA) 0.895 mW/cm²
LS122 0.00107 W/m²
ISM400 1.6 W/m²
